INSTRUKCJA OBSŁUGI ATV22C BOSS
User's Manual
ATV20
OFF ROAD/MARINE SOUND SYSTEM
FEATURING 6.5" (165mm) MARINE
SPEAKERS AND 1.5" (38mm)
WEATHER PROOF TWEETERS AND
BUILT-IN INTERNAL AMPLIFIER
ATV20
OFF ROAD/MARINE SOUND STSYEM
FEATURING 6.5" (165mm) MARINE SPEAKERS AND
1.5" (38mm) WEATHER PROOF TWEETERS AND BUILT-IN INTERNAL AMPLIFIER
02.2011
CE
e1
tech support: www.bossaudio.com/support
BOSS®
AUDIO SYSTEMS
BOSS Audio Systems
3451 Lunar Court • Oxnard, CA 93030
www.bossaudio.com
800.999.1236
BOSS®
AUDIO SYSTEMS
ATV20
User's Manual
BOSS®
AUDIO SYSTEMS
OFF ROAD/MARINE SOUND SYSTEM
FEATURING 6.5" (165mm) MARINE SPEAKERS AND 1.5" (38mm) WEATHER PROOF TWEETERS AND BUILT-IN INTERNAL AMPLIFIER
Congratulations on your purchase of a BOSS AUDIO SYSTEMS ATV20 Off Road/Marine Sound System. Thank you for making BOSS AUDIO SYSTEMS your choice for mobile audio/video entertainment.
SAFETY PRECAUTIONS
- Do not operate any mobile video equipment while driving – safe driving should always be your highest priority.
- Do not open or attempt to repair this unit yourself. Refer any repairs to a qualified BOSS AUDIO SYSTEMS technician.
- If there is smoke or any peculiar odor present during use or if there is damage to any of the component enclosures, immediately remove it from your system and send to your local dealer or service center as soon as possible.
INSTALLATION PRECAUTIONS
- The ATV20 has to be wired to a switched source to avoid draining your vehicles battery.
- ATV20 can be powered from a vehicles cigarette lighter port, or be hard wired to the battery.
- When wired directly to the vehicles battery, please insure proper fuse rating of 10 Amps is placed in line with the positive battery terminal.
- The ATV20 is weather proof but should not be submerged in water under any circumstances.
- ATV20 can play audio out of any device that has a 3.5mm output audio jack.
- Use only the installation parts provided with the unit.
SPECIFICATIONS:
- Fully Marinized
- Weather Proof Poly Injection Cone 6.5" Marine Speakers
- Soft Dome Diaphragm High Performance 1.5" Weather Proof Tweeters
- Internal Amplifier:
• 3.5mm Input Jack - Plug and Play Installation
- 450W Max Power
• 10 Amp (Max)
• Frequency Response: 45Hz-25kHz

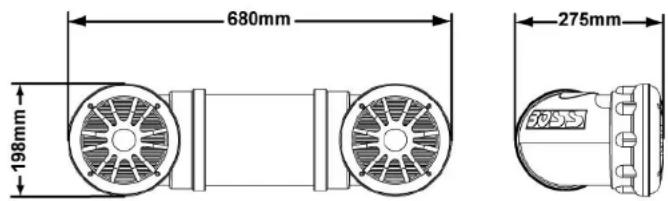

DIMENSIONS
