| Type de produit | Automobile |
| Marque | Vauxhall |
| Modèle | Mokka Phase 2 (Mokka X) (2016-2019) |
| Motorisations disponibles | Essence : 1.6i 115 ch, 1.4i Turbo 140 ch (152 ch auto 4x4) ; Diesel : 1.6CDTi 110 ch, 1.6CDTi 136 ch |
| Transmission | Traction avant ou intégrale (4x4) ; Boîte manuelle 5/6 vitesses ou automatique 6 vitesses |
| Capacité du réservoir | 53 litres |
| Consommation mixte (min-max) | 3,9 à 6,7 L/100 km selon motorisation |
| Émissions de CO2 (min-max) | 103 à 155 g/km |
| Poids total en charge (PTAC) | 1 789 à 1 938 kg selon version |
| Pneumatiques | 17, 18 ou 19 pouces selon finition |
| Système d'info-divertissement | IntelliLink R4.0 (7 pouces) ou Navi 900 (8 pouces) avec Apple CarPlay et Android Auto |
| Connectivité | Vauxhall OnStar avec hotspot Wi-Fi 4G, Bluetooth, USB |
| Éclairage avant | LED adaptatif (Adaptive Forward Lighting) avec 9 situations |
| Aide à la conduite | Régulateur de vitesse, limiteur, freinage d'urgence, antidémarrage, contrôle de descente (4x4) |
| Sièges | Ergonomiques certifiés AGR (sport sur Elite), chauffants (Elite) |
| Phares antibrouillard avant | De série |
| Capteurs de stationnement | Avant et arrière de série |
| Poids tracté max (freiné) | 1 200 à 1 500 kg selon version |
| Carburant compatible | E10 pour essence, gazole pour diesel |
| Climatisation | Bi-zone électronique de série |
| Garantie | 2 ans Vauxhall (standard) – accessoires 12 mois |
FOIRE AUX QUESTIONS - Mokka Phase 2 (2016-2019) Vauxhall
Questions des utilisateurs sur Mokka Phase 2 (2016-2019) Vauxhall
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Automobile au format PDF gratuitement ! Retrouvez votre notice Mokka Phase 2 (2016-2019) - Vauxhall et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil Mokka Phase 2 (2016-2019) de la marque Vauxhall.
MODE D'EMPLOI Mokka Phase 2 (2016-2019) Vauxhall

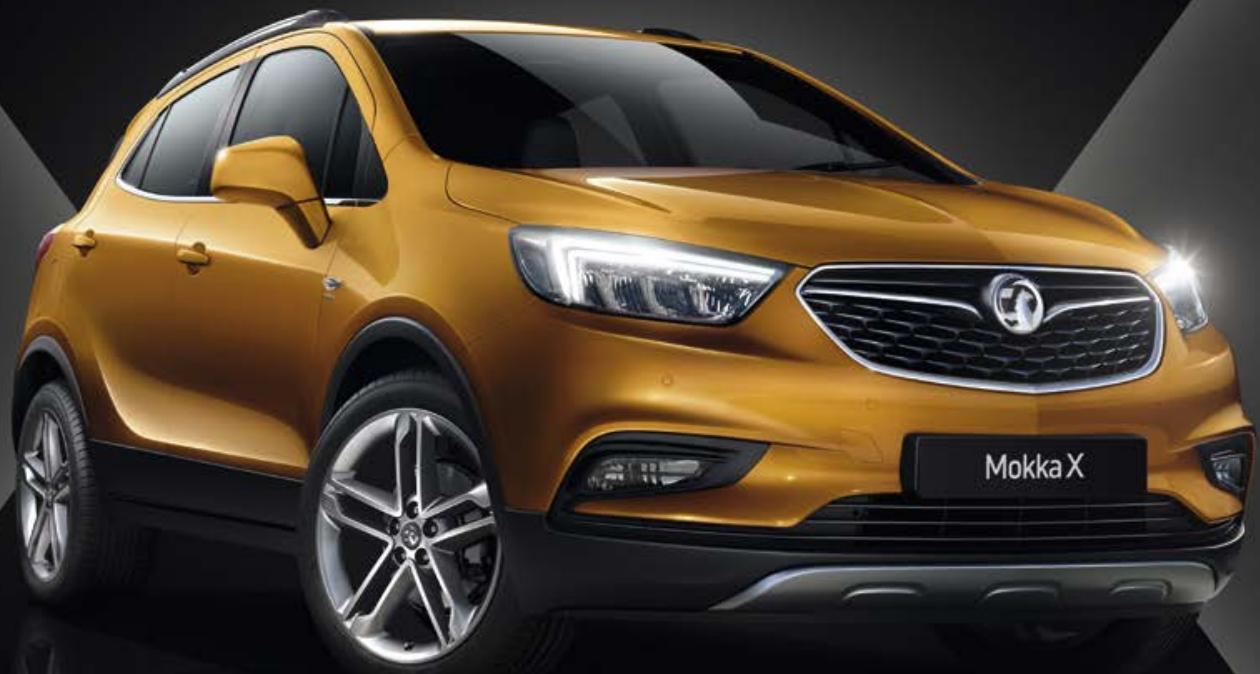

NEW MOKKA X
2017 Models Edition 1
IT'S YOUR LIFE, GO DRIVE IT.
The 'X' in Mokka X hints at everything Xtra exciting about it.
Xtra height, and that Xtra feelgood factor of driving high and mighty above the crowd.
Xtra traction, whether you're on the motorway, nipping around town or going off-road – it stays confidently on track.
Xtra muscle, with an intelligent four-wheel drive system that gives new Mokka X improved stability, traction and handling. Ideal when you're faced with the worst the British weather can throw at you.
And let's not forget all its Xtra clever technology. On the safety front there's LED Adaptive Forward Lighting, while inside you'll find a totally redesigned facia with touchscreen infotainment. 4G Wi-Fi and Vauxhall OnStar as standard.
So you can see, that whatever your lifestyle, new Mokka X is ready to bring something Xtra.

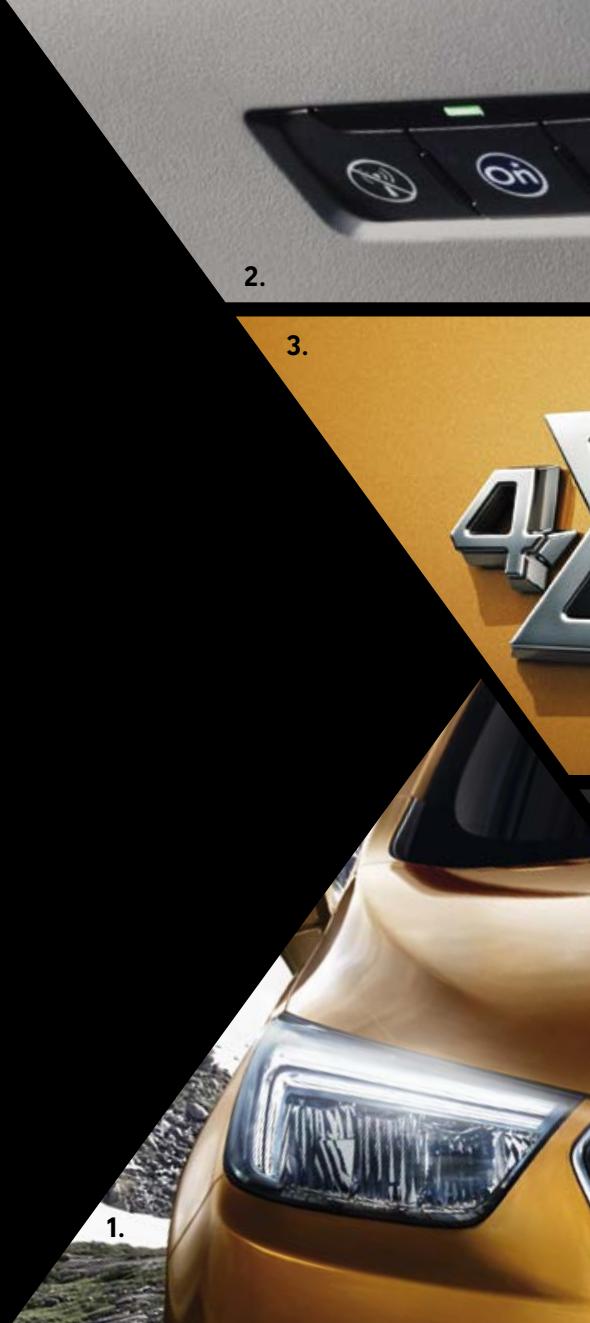

LIVE THE HIGH LIFE.
Underneath that rugged exterior, new Mokka X shows off plenty of sophistication. Here's a taste of the highlights - beginning with some rather clever headlights:
- LED Adaptive Forward Lighting tailors the shape of your headlights' beam for up to nine different driving situations, giving you optimum visibility at all times. Be enlightened on page 13.
- Vauxhall OnStar doesn't just give you 4G Wi-Fi on the go (cool enough), it's also a 24/7 onboard personal assistant with full GPS that – at the touch of a button – can connect you with a real person in the event of an emergency, or even just give you directions if you're lost. Get personal on pages 16- 17.
- 4X4 intelligent All Wheel Drive will automatically distribute the power between the front and rear wheels to optimise Mokka X's traction in difficult conditions, giving even greater grip. Steer your way to page 10.
- R4.0 IntelliLink. Stay informed and entertained with a state-of-the-art infotainment system, featuring a touchscreen interface that seamlessly integrates your digital devices using either Apple CarPlay or Android Auto. Fast forward to page 21.
- Ergonomic seats, specially certified by the AGR*, with extendable thigh support and an adjustable lumbar area to support you in all the right places and keep your back healthy. Sit back, relax and check out page 8.

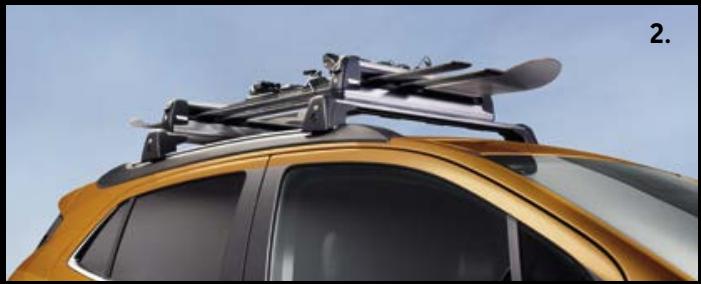

- Ski and snowboard carrier. Skiers can carry up to six pairs of skis or four snowboards safely and securely with this tough carrier, available as an accessory. To discover more lifestyle accessories, head to pages 34-35.
*AGR (The Campaign for Healthier Backs) is an independent centre of excellence for ergonomics, based in Germany.
Apple CarPlay and Apple are trademarks of Apple Inc., registered in the U.S. and other countries. Android is a trademark of Google Inc.
CONTENTS.
06-07 BOLD EXTERIOR DESIGN
08-09 PREMIUM INTERIOR DESIGN
10-11 HIGH-PERFORMANCE DRIVING
12-13 SAFETYINNOVATIONS
14-15 EFFICIENCY
16-19 ONSTAR-YOUR PERSONAL ASSISTANT
20-21 SLICK CONNECTIVITY
22-27 THE MOKKAX TRIM LEVELS
28-29 COLOURS AND TRIMS
30-31 WHEELS
32-33 STYLING
34-35 ACCESSORIES
36-37 TAKE A TEST DRIVE
38-39 FUEL DATA
This brochure covers Mokka X Active, Design Nav, and Elite models only. Some of the models shown include options and accessories available at extra cost. And not all of the features described are available on every model. We may also offer alternative Mokka X models such as Special Editions. So for all current model or equipment details visit the Vauxhall website: www.vauxhall.co.uk

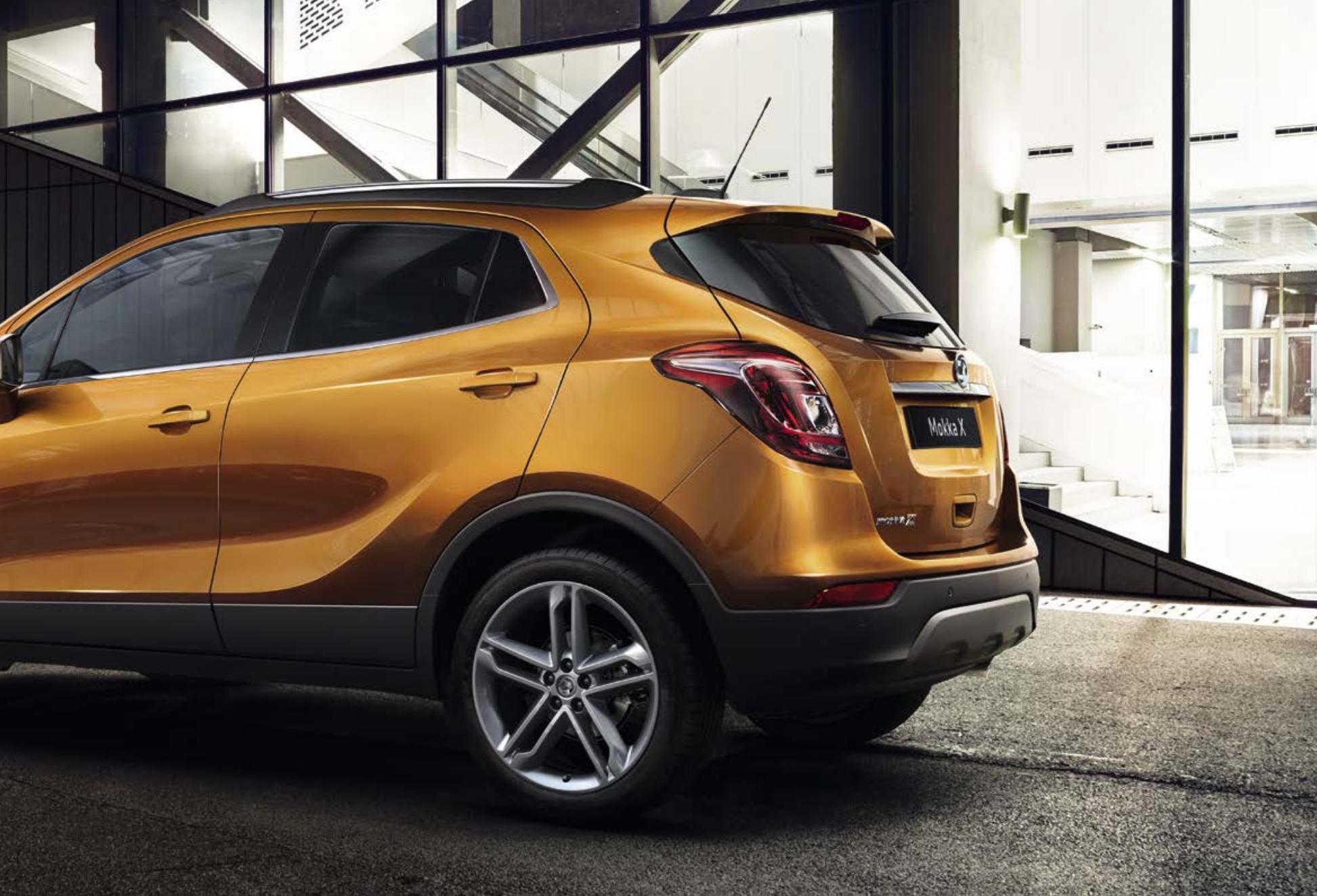

TAKES TOWN AND COUNTRY TO A DIFFERENT CLASS.
New Mokka X brings premium design and practicality to the street smart SUV.
Nicely compact with a muscular shape, it not only looks and drives great in the city, but has the ride height and big alloy wheels to go off-road with confidence.
- Xtra all-round. In every detail, Mokka X shows off urban style with a rugged attitude.
- Ready for action. Useful features like roof rails enhance Mokka X's poised and sporty look.
- Let the outdoors in. The big optional glass sunroof adds to the great sense of space inside.

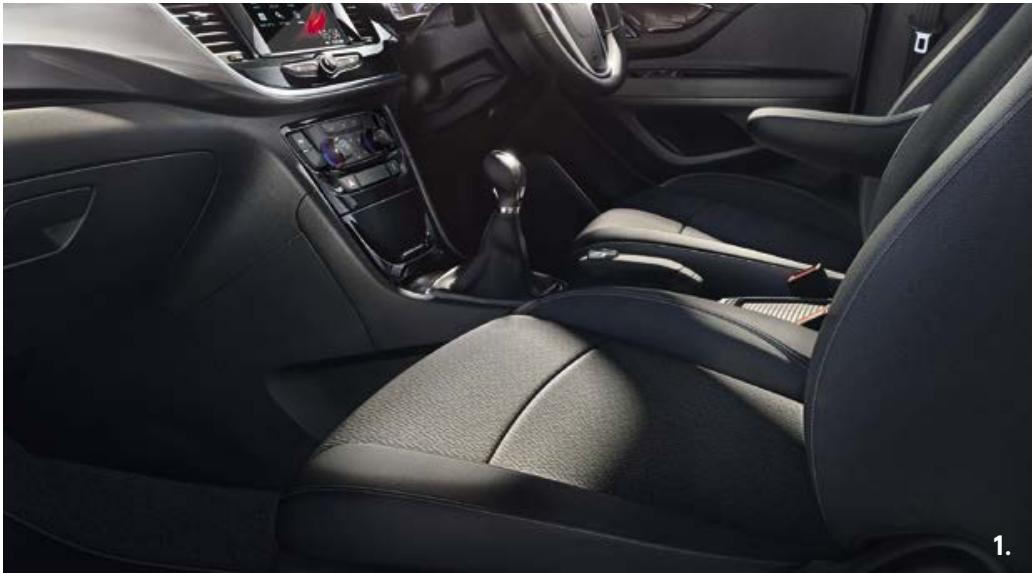

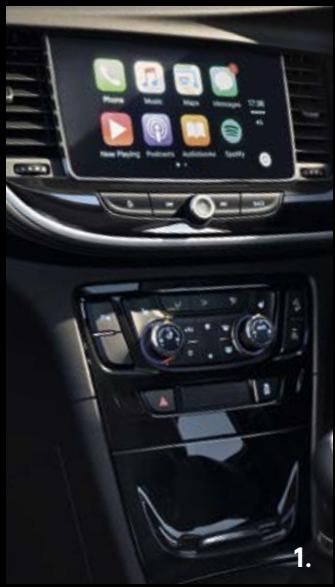

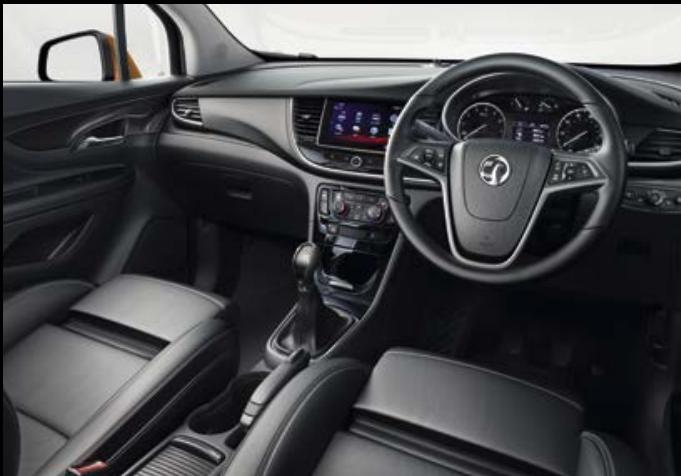

FEELS GOOD INSIDE.
Step into the new Mokka X, and the first thing you'll notice is its premium quality and elegant minimalism.
Its airy, uncluttered cabin and facia give you a true sense of spaciousness, heightened by Mokka X's elevated position that gives you a clear view of the road ahead.
Detailed refinement and upscale quality continue throughout the cabin. Deeply contoured ergonomic seats*, smart technology and thoughtful features show off the careful design that has gone into the new Mokka X interior.
Storage space is also generous and clever, with improved arrangements that are even more useful.
Throughout the cabin, delicate curves complement the high-quality trim to highlight the cool, calm and comfortable feel of Mokka X's new interior. Welcome inside.

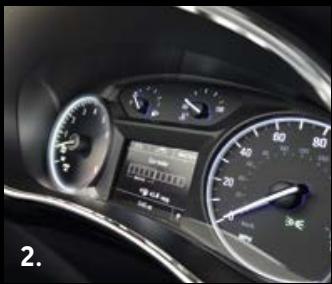

- Clarity and style. The clean, uncluttered layout of the centre console with the integrated IntelliLink touchscreen display makes it easy to find key controls at a glance.
- Practical technology. Complementing the IntelliLink touchscreen display, the driver display in the instrument cluster shows up loud and clear.

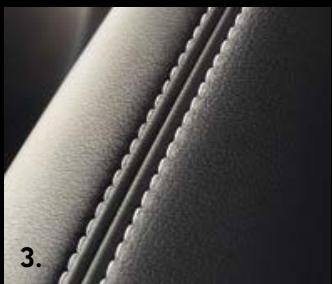

- Crafted with care. Stylish facia stitching shows off the Mokka X's quality in even the smallest of details.

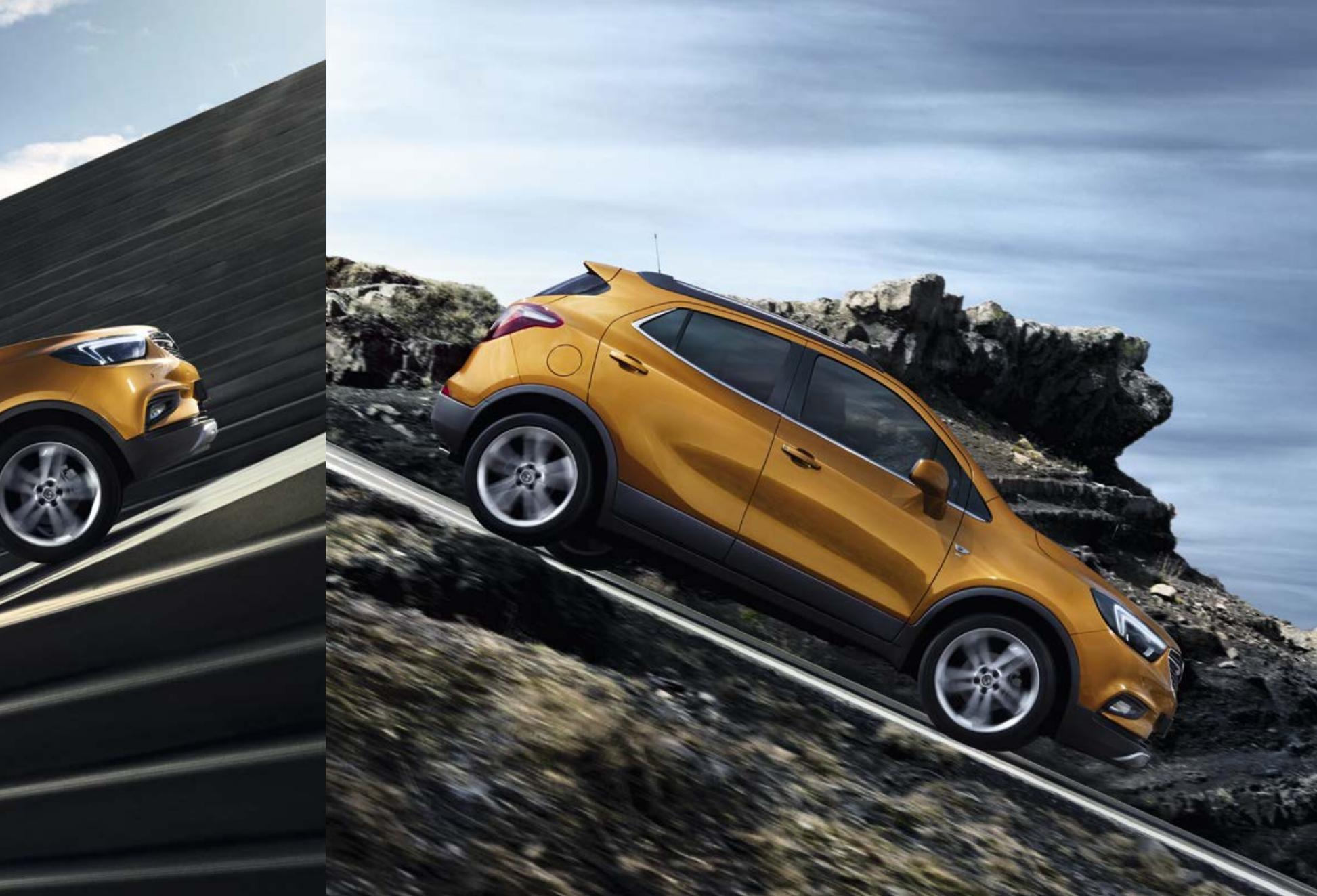

IT GRIPS YOU.
Whether you're driving around tight city streets or up steep country lanes, new Mokka X is made for the challenge.
Combining brains with brawn, optional 4X4 intelligent four-wheel drive technology gives new Mokka X greater traction, stability and control using sensors to continuously monitor the car's grip.
As the road surface changes, the 4X4 system automatically distributes drive between the front and rear wheels to optimise road holding.
But the high-tech doesn't end there.
The hill start assist will stop you rolling back on steep hills by automatically releasing the brakes as you pull away, while with a descent control system you can take your new Mokka X4X4 off-road and safely control your speed on steep downhill gradients without having to brake.

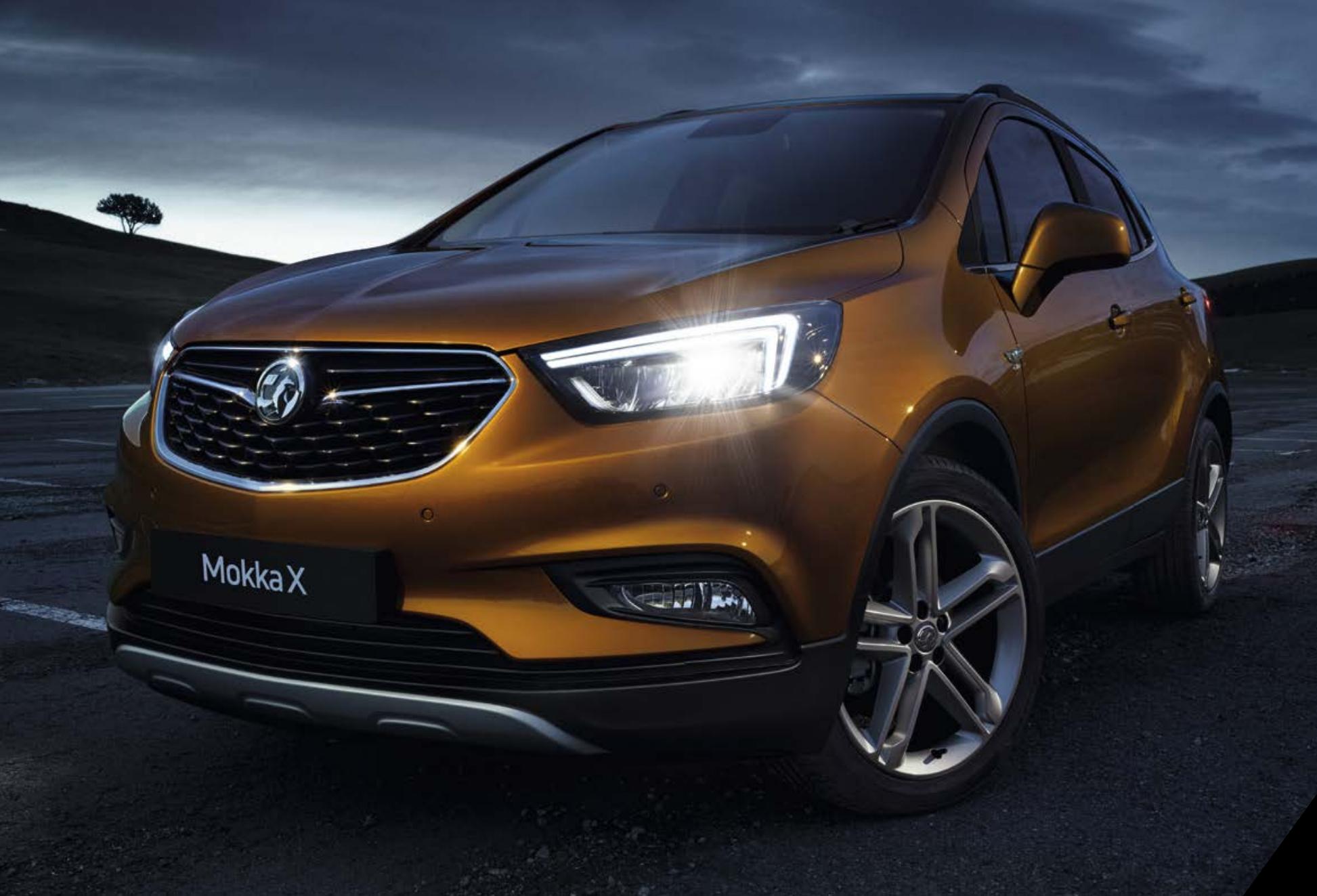

LIGHTS WITH BRIGHT IDEAS.
Mokka X is one of the first SUVs to offer full LED Adaptive Forward Lighting (AFL). This literally brilliant LED technology automatically adjusts an array of LED beams to illuminate different hazards, depending on the kind of driving or manoeuvre you're performing.
How AFL works. AFL headlights on the Mokka X feature six LED elements that light the road 30% brighter than standard halogen lights, giving you a better chance to see hazards sooner and giving you more time to react in an emergency. The AFL LED system uses data such as the Mokka X's speed, steering angle and indicators to choose the best lighting pattern.
Energy saving mode.
Switches off the cornering lights to save energy when the Mokka X's Start/Stop mode is on.
Parking light. In reverse gear, this switches on the front cornering light on both sides of the car so it makes it easier for you to get in and out of parking spots.
Static cornering light (up to 25 mph). When you indicate and turn the steering wheel past a certain angle extra AFL LED lights come on to show what's around the corner.
Dynamic curve light (25 to 45 mph). Above a certain steering angle, extra cornering AFL LED lights give you an illuminated view around higher-speed curves.
Motorway light. Powerful illumination on top of the LED low beam - gives you full-on lighting for maximum visibility at night and on low-lit roads.
Country light. Above 34 mph, a longer, broader, dazzle-free, low-beam light helps to illuminate any upcoming roadside hazards.
Urban light. At speeds under 35 mph, a wider spread of light shows more of the roadside to help show up pedestrians or other potential hazards.
High beam assist. This safety feature automatically dips your headlights when the AFL LED system detects other vehicles approaching.
Tourist mode*. If you're driving on the continent, to avoid dazzling oncoming traffic the headlights automatically angle slightly downwards.
EFFICIENCY WHERE IT COUNTS.
You know what they say - power is nothing without control.
Which is why Vauxhall developed intelligent 4X4 technology and new, fuel-efficient engines for the new Mokka X, including a powerful 4X4 6-speed automatic.
The new Mokka X delivers:
- A tough yet lightweight chassis for exceptional agility
- Impressive driving performance, both on and off-road
- Low-noise, high-power diesel technology
- ecoFLEX technology for reduced emissions and lower fuel costs
Go on – just put new Mokka X to the test and we're sure you'll have nothing but a smile on your face.
- No compromises here. Our 1.4i petrol turbo is powerful for its relatively small size, giving great fuel economy without compromise on performance and muscle.
- Save at the pumps. Our ecoFLEX diesel models deliver total efficiency which means you spend less on fuel at the pumps.
- A nice change. Choose the convenient 6-speed automatic or a hands-on 5 or 6-speed manual for amazing response with powerful control.
PERFORMANCE, FUEL ECONOMY AND EMISSIONS
| Performance (man. figures) | Fuel economy mpg(litres/100km)# | CO2 emissions g/km# | Vehicle Excise Duty* | Benefit-in-Kind company car rates (2016/17 tax year)** | |||||
| Max. speed (mph) | Acceleration 0-60mph (sec) | Urban driving | Extra-urban driving | Combined figure | First year rate | Standard rate | |||
| Petrol | |||||||||
| 1.6i (115PS) S/S FWD | 106 | 11.8 | 32.8 (8.6) | 50.4 (5.6) | 42.2 (6.7) | 155 | £185 | £185 | 28% |
| 1.4i Turbo (140PS) S/S FWD | 122 | 9.3 | 37.2 (7.6) | 55.4 (5.1) | 47.1 (6.0) | 140 | £130 | £130 | 25% |
| 1.4i Turbo (140PS) auto FWD | 119 | 10.1 | 33.6 (8.4) | 52.3 (5.4) | 43.5 (6.5) | 149 | £145 | £145 | 26% |
| 1.4i Turbo (140PS) S/S 4X4 | 116 | 9.3 | 34.0 (8.3) | 50.4 (5.6) | 43.5 (6.5) | 152 | £185 | £185 | 27% |
| 1.4i Turbo (152PS) S/S auto 4X4 | 120 | 9.4 | 35.8 (7.9) | 49.6 (5.7) | 43.5 (6.5) | 150 | £145 | £145 | 27% |
| Diesel | |||||||||
| 1.6CDTi (110PS) S/S ecoFLEX FWD | 112 | 11.5 | 64.2 (4.4) | 78.5 (3.6) | 72.4 (3.9) | 103 | £0 | £20 | 20% |
| 1.6CDTi (110PS) S/S FWD | 112 | 11.5 | 64.2 (4.4) | 76.3 (3.7) | 70.6 (4.0) | 105 | £0 | £20 | 21% |
| 1.6CDTi (136PS) S/S ecoFLEX FWD | 118 | 9.3 | 61.4 (4.6) | 74.3 (3.8) | 68.9 (4.1) | 106 | £0 | £20 | 21% |
| 1.6CDTi (136PS) S/S FWD | 118 | 9.3 | 58.9 (4.8) | 70.6 (4.0) | 65.7 (4.3) | 114 | £0 | £30 | 22% |
| 1.6CDTi (136PS) auto FWD | 117 | 10.3 | 47.1 (6.0) | 64.2 (4.4) | 56.5 (5.0) | 132 | £130 | £130 | 26% |
| 1.6CDTi (136PS) S/S 4X4 | 116 | 9.7 | 54.3 (5.2) | 64.2 (4.4) | 60.1 (4.7) | 124 | £0 | £110 | 24% |
Fuel consumption information is official government environmental data, tested in accordance with the relevant EU directive. Official EU-regulated test data is provided for comparison purposes and actual performance will depend on driving style, road conditions and other non-technical factors.
Correct at time of publication
*Taxation information for guidance only. Please take professional advice on your own tax position. S/S = Start/Stop.
YOUR PERSONAL ON BOARD ASSISTANT
Vauxhall OnStar1 gives you an incomparable feeling of safety, 24/7, 365 days a year.
Best of all it's free of charge for the first 12 months on all Mokka X models. Even for your 4G Wi-Fi Hotspot² you will get a free data trial period³.
Driving will never be the same again.
WHAT ONSTAR CAN DO FOR YOU.
SOS
Automatic Crash Response.
In the event of a crash, built-in vehicle sensors automatically alert an OnStar advisor, who will be immediately connected to your car. The advisor will assess the situation and if needed notify the emergency services and provide them with your exact GPS location1.
4G Wi-Fi Hotspot2.
Your car is online! The extra-powerful OnStar roof antenna gives you a stable and quick Internet connection and creates a Wi-Fi Hotspot2 for up to seven devices1.
Smartphone App.
At the touch of a button, remotely lock/unlock your doors, check your oil life or sound the horn and flash the lights!
Stolen Vehicle Assistance.
If someone steals your car, call our OnStar advisors and give them the reference number the police gave you. The advisor will then provide the police with the location and prevent your car from being restarted so it can be recovered'.
Vehicle Diagnostics.
Whenever you want you can ask OnStar to remotely check some of the key systems of your car like engine, transmission, emissions or airbags. If you wish, OnStar can also send you a monthly e-mail with this key data.
Destination Download.
Searching for an alternative route, a restaurant, a petrol station or anywhere else you might need? Just press the Service Button! Our advisors will provide you with the address. They can automatically download the location to your Vauxhall's navigation system1,4.

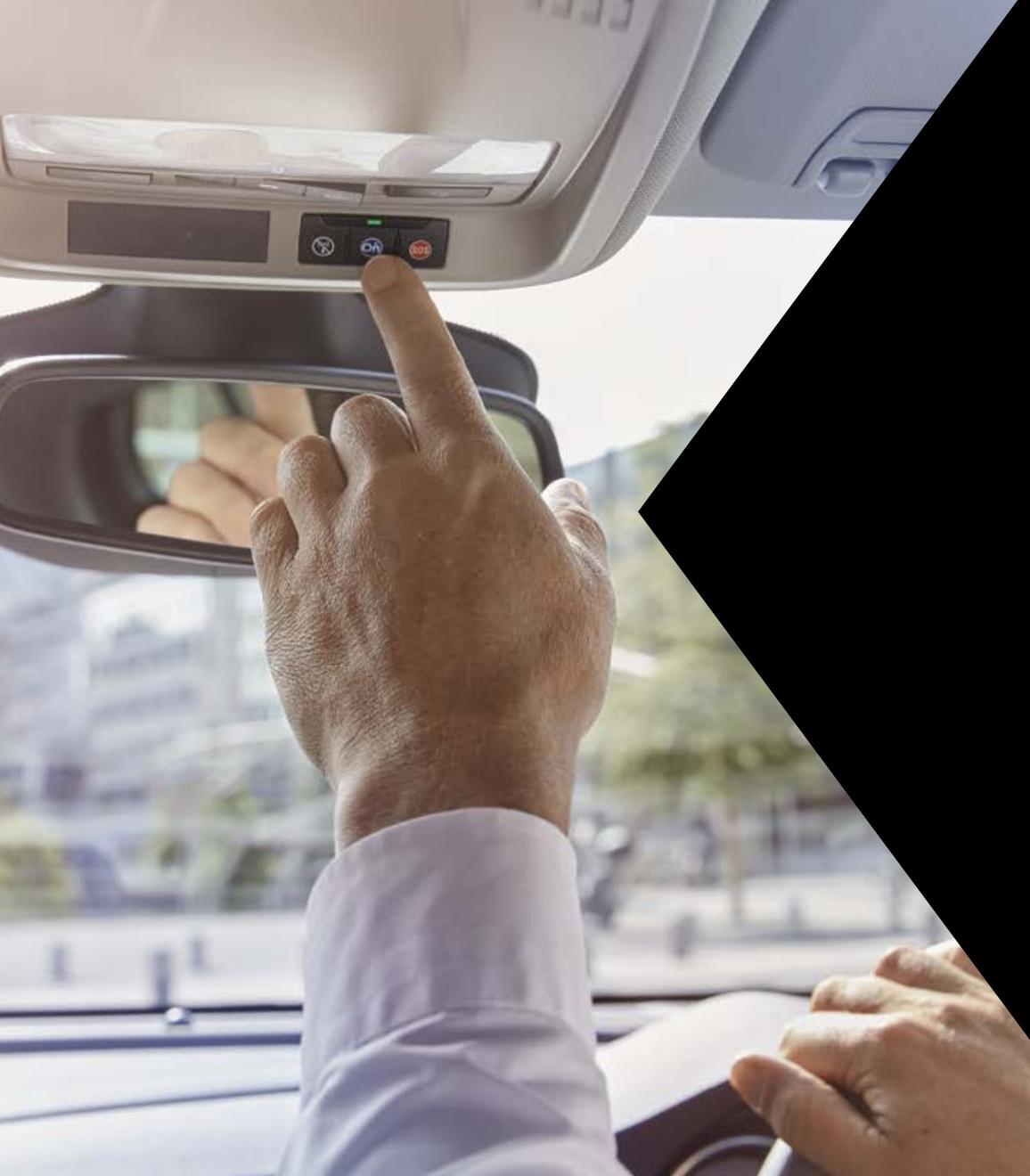

YOUR PRIVACY. YOUR CALL.
You are in control of what OnStar can and cannot do!
- Once you've registered and activated OnStar, you can access every OnStar Service available on Mokka X models. To ensure security, several services will ask for your PIN.
- Press and hold the Privacy Button for approximately five seconds to mask your car's location at any time. If you change your mind, press the Privacy Button again for approximately five seconds to reveal your location. Only in emergencies can OnStar override this.
- OnStar Europe Ltd t/a Vauxhall OnStar will never sell your information on. Your information will only be disclosed to OnStar and GM Holdings LLC (USA), its affiliate companies (i.e. Adam Opel AG and General Motors UK Limited), your selected/preferred retailers, companies involved in providing or carrying out the OnStar Services and, at your request, to other service companies.
HOW CAN I GET ONSTAR?
Vauxhall OnStar is standard on all Mokka X models.
To get it:
- Request OnStar when you order your new Vauxhall Mokka X.
- OnStar will send you an e-mail invitation so you can activate your account.
- Complete your registration and set up your preferences.
- OnStar is ready to go!
After the 12-month free trial period, you can decide to order a continuation of the OnStar services. This will be subject to a fee.
You can purchase 4G Wi-Fi Hotspot data packages separately from the nominated network provider by following the instructions on www.vauxhall.co.uk/onstar Charges apply after the free trial period.
To find out more, visit www.vauxhall.co.uk/onstar
14G is subject to mobile network coverage and availability.
HOW MY VAUXHALL SERVICES DO MORE FOR YOU.
My Vauxhall is your one-stop shop to manage everything to do with your Vauxhall – from your Vauxhall OnStar account to organising your vehicle's next service to rewards and exclusive offers. Everything is targeted to you and the Vauxhall you drive.
- Manage your Vauxhall – take care of your Vauxhall online, book a service
- Access your Vauxhall OnStar Services - get diagnostics reports, manage your subscription and more
- Exclusive offers - stay up to date on special offers, latest news and current events
- Retailer locator – find your nearest Vauxhall retailer
If you already are a Vauxhall OnStar customer, you can access all the My Vauxhall services. Otherwise, you can register for My Vauxhall by following these easy steps:
- When you order your car, your retailer will go through a simple pre-registration with you.
- We will send you an e-mail invitation so you can activate your account.
- Complete your registration.
- My Vauxhall anytime anywhere!
To easily access My Vauxhall from your smartphone, just download the app from the Google Play Store or from Apple App Store.

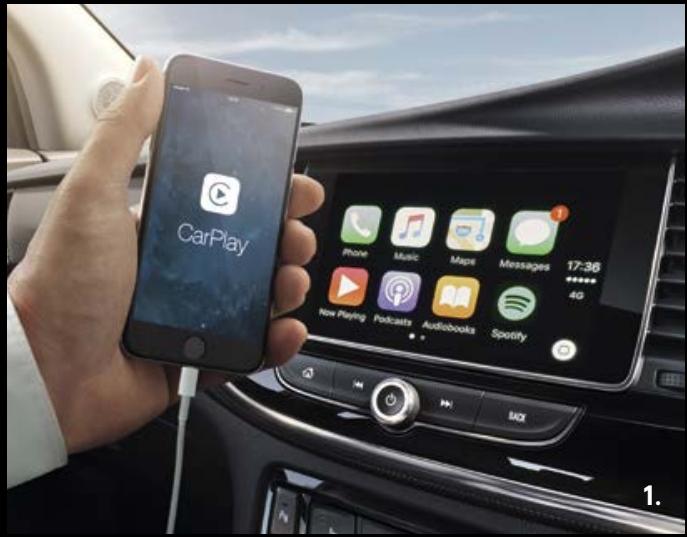

STAY CONNECTED, WHEREVER YOU ROAM.
The new Mokka X is one of the best-connected, smartest SUVs in its category. With OnStar onboard you have a powerful 4G Wi-Fi Hotspot at all times, so you can make full use of your digital devices, anytime and anywhere. What's more, with IntelliLink as standard too, you can display features from your smartphone to the touchscreen on the facia, keeping you informed and entertained on the road.
- Smartphone projection. R4.0 IntelliLink can access applications from your smartphone or tablet device, which can be projected to the touchscreen display. So you can do things like use Maps, or enjoy Tuneln and Spotify, either using the touchscreen or the voice control interface to control the apps.
- The 7-inch multitasker. The R4.0 IntelliLink also gives you hands-free phone calls and audio streaming through Bluetooth®. And it's compatible with Apple CarPlay and Google's Android Auto, so you can store and personalise all your favourite radio stations.

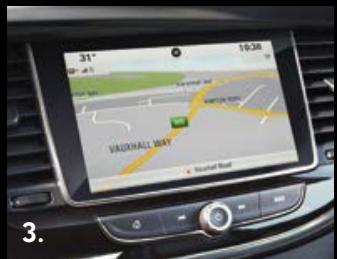

- Top-of-the-range sat nav. On top of all that R4.0 functionality, the optional 8-inch Navi 900 IntelliLink4 includes a fully-fledged navigation system with bird's eye view mode. You can choose destinations through the voice command mode, the touchscreen or select places from your favourites.

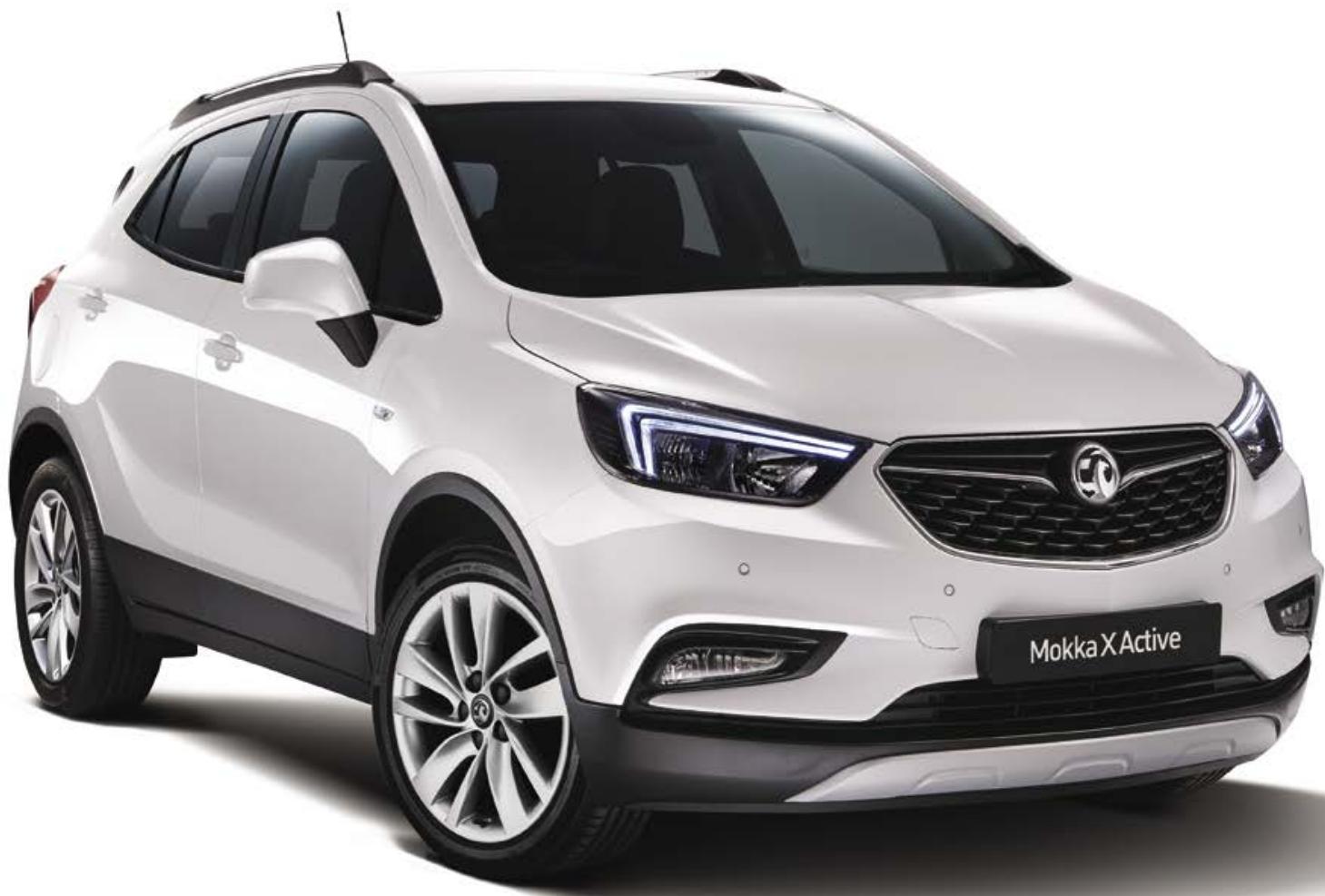

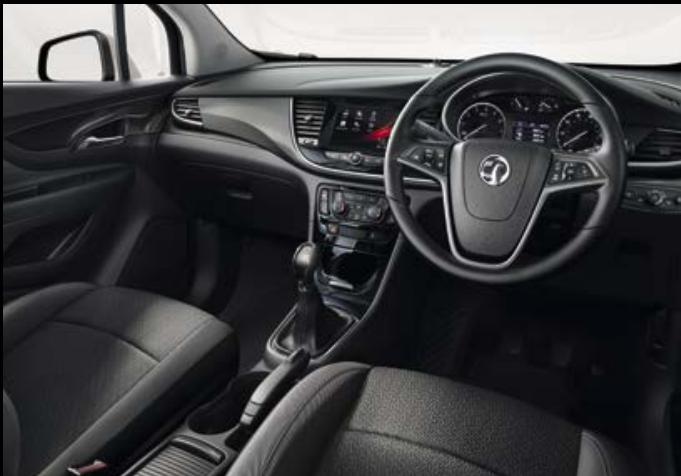

MOKKA X ACTIVE.
Rising to every challenge, the new Mokka X Active comes well equipped from the word go. Active gives you premium features like R4.0 IntelliLink, Vauxhall OnStar and dual-zone climate control as standard, while 4X4 models get intelligent four-wheel drive and the descent control system.
Standard features include:
Vauxhall OnStar
R4.0 IntelliLink system with 7-inch colour touchscreen and digital radio
USB and Bluetooth connectivity
- Leather-covered steering wheel
- Steering column adjustable for reach and rake
- Steering wheel mounted audio controls
- Front centre armrest
- 60/40 split flip and fold rear seat
- Dual-zone electronic climate control
- 17-inch alloy wheels with 215/60 R 17 tyres (ecoFLEX models only)
Silver-effect 18-inch alloy wheels with 215/55 R 18 tyres (excluding ecoFLEX models) - Hill start assist
- Rain-sensitive windscreen wipers
Cruise control with speed limiter
High beam assist - LED daytime running lights
- Front and rear parking distance sensors
Electrically foldable door mirrors
Electrically adjustable/heated door mirrors - Front fog lights
- Remote control central locking
- Switchable electronic stability programme
- Anti-lock braking system
- Traction control
4X4 models additionally feature:
- Intelligent four-wheel drive
- Descent control system
| Engine availability | Insurance groups (ABI) |
| 1.6i (115PS) S/S FWD | 8E |
| 1.4i Turbo (140PS) S/S FWD | 14E |
| 1.4i Turbo (140PS) auto FWD | 14E |
| 1.4i Turbo (140PS) S/S 4X4 | 13E |
| 1.4i Turbo (152PS) S/S auto 4X4 | 13E |
| Diesel | |
| 1.6CDTi (110PS) S/S ecoFLEX FWD | 13E |
| 1.6CDTi (110PS) S/S FWD | 13E |
| 1.6CDTi (136PS) S/S ecoFLEX FWD | 15E |
| 1.6CDTi (136PS) S/S FWD | 15E |
| 1.6CDTi (136PS) auto FWD | 15E |
| 1.6CDTi (136PS) S/S 4X4 | 14E |
S/S = Start/Stop.
MOKKA X DESIGN NAV.
Building on the brilliant standards set by Active, the new Mokka X Design Nav upgrades the R4.0 IntelliLink system to Navi 900 with a built-in satellite navigation system. Design Nav 4X4 models also get intelligent four-wheel drive and the descent control system.
Standard features include:
Vauxhall OnStar
- Navi 900 IntelliLink satellite navigation system with 8-inch colour touchscreen
USB and Bluetooth connectivity
- Leather-covered steering wheel
- Steering column adjustable for reach and rake
- Steering wheel mounted audio controls
- Front centre armrest
- 60/40 split flip and fold rear seat
- Dual-zone electronic climate control
- 17-inch alloy wheels with 215/60 R 17 tyres (ecoFLEX models only)
Silver-effect 18-inch alloy wheels with 215/55 R 18 tyres (excluding ecoFLEX models) - Hill start assist
- Rain-sensitive windscreen wipers
Cruise control with speed limiter
High beam assist - LED daytime running lights
- Front and rear parking distance sensors
Electrically foldable door mirrors
Electrically adjustable/heated door mirrors - Front fog lights
- Remote control central locking
- Switchable electronic stability programme
- Anti-lock braking system
- Traction control
4X4 models additionally feature:
- Intelligent four-wheel drive
- Descent control system
| Engine availability | Insurance groups (ABI) |
| 1.6i (115PS) S/S FWD | 7E |
| 1.4i Turbo (140PS) S/S FWD | 13E |
| 1.4i Turbo (140PS) auto FWD | 13E |
| 1.4i Turbo (140PS) S/S 4X4 | 13E |
| 1.4i Turbo (152PS) S/S auto 4X4 | 13E |
| Diesel | |
| 1.6CDTi (110PS) S/S ecoFLEX FWD | 12E |
| 1.6CDTi (110PS) S/S FWD | 12E |
| 1.6CDTi (136PS) S/S ecoFLEX FWD | 14E |
| 1.6CDTi (136PS) S/S FWD | 14E |
| 1.6CDTi (136PS) auto FWD | 14E |
| 1.6CDTi (136PS) S/S 4X4 | 14E |
S/S = Start/Stop.
MOKKA X ELITE.
Taking premium features to the max, the new Mokka X Elite tops the range with an extended list of extras over and above Active. Elite gives you leather seat facings, ergonomic sports front seats, electrically heated steering wheel and front seats, as well as a rear seat armrest with drinks holders and dark-tinted rear windows for that true luxury feel.
Standard features over and above
Active include:
- Leather seat facings
- Ergonomic sports front seats
Electrically heated front seats
Electrically heated steering wheel
Rear seat centre armrest with drinks holders
Silver-effect 17-inch alloy wheels with 215/60 R 17 tyres (ecoFLEX models only) - Multi-spoke 18-inch alloy wheels with 215/55 R 18 tyres (not ecoFLEX models)
Dark-tinted rear windows - Chrome-effect side window trim
- Alloy-effect door sill covers
4X4 models additionally feature:
- Intelligent four-wheel drive
Descent control system
Elite Nav models also available.
Elite Nav model illustrated.
| Engine availability | Insurance groups (ABI) |
| 1.6i (115PS) S/S FWD | 8E |
| 1.4i Turbo (140PS) S/S FWD | 14E |
| 1.4i Turbo (140PS) auto FWD | 14E |
| 1.4i Turbo (140PS) S/S 4X4 | 14E |
| 1.4i Turbo (152PS) S/S auto 4X4 | 14E |
| Diesel | |
| 1.6CDTi (110PS) S/S ecoFLEX FWD | 13E* |
| 1.6CDTi (110PS) S/S FWD | 13E* |
| 1.6CDTi (136PS) S/S ecoFLEX FWD | 15E |
| 1.6CDTi (136PS) S/S FWD | 15E |
| 1.6CDTi (136PS) auto FWD | 15E |
| 1.6CDTi (136PS) S/S 4X4 | 15E |
S/S = Start/Stop.
^* = Insurance group 14E for Elite Nav models.

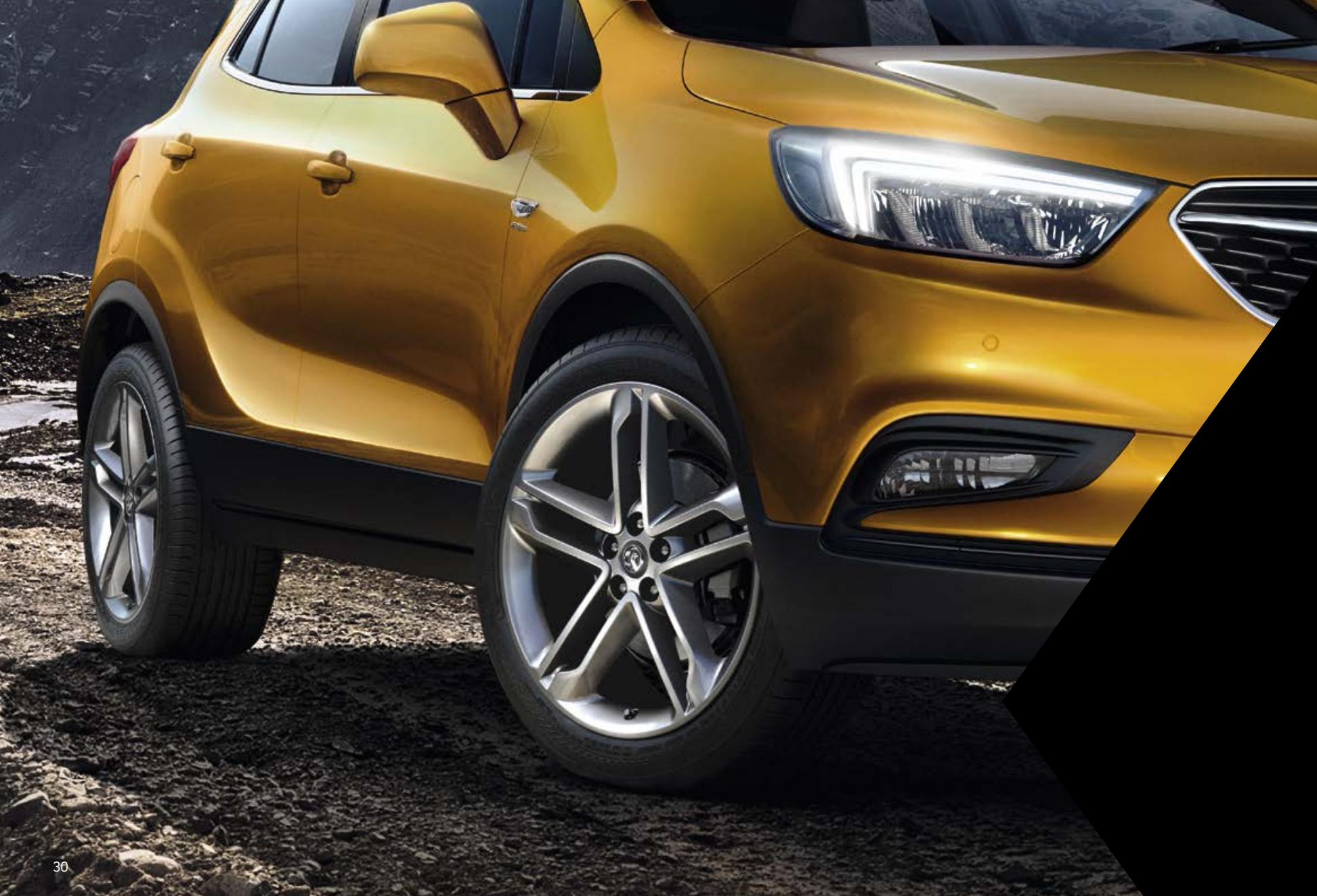

GIVE IT SOME STYLE, INSIDE AND OUT.
As you'd imagine for a style leader like new Mokka X, it comes in a striking array of exterior colours* and interior fabrics to create an individual look.
For body colours, new Mokka X shows off a palette of gleaming metallic finishes, complemented by stylish interior fabrics and décor mouldings. These give you an inspiring choice of combinations to mix and match an individual character for your new Mokka X.
Royal Blue Solid
Lava Red Brilliant
Summit White Brilliant
Amber Orange Metallic
Quantum Grey Metallic
Borocay Blue Metallic
Mineral Black Metallic
Amaretto Metallic
Velvet Red Metallic
*Please refer to the latest Mokka X Price and Specification Guide available from www.vauxhall.co.uk for details of colour availability by model and price.
Due to the limitations of the printing process, the colours reproduced may vary slightly from the actual paint colour and trim material. As a result, they should be used as a guide only. Your Vauxhall retailer has a comprehensive display of paint samples.
Sovereign Silver Metallic
Abalone White Tri-coat
- Active and Design Nav models. Jet Black Milano seat fabric. Décor mouldings in Piano Black and Tioga Grey with Galvano Chrome inlays.
- Elite models. Ergonomic, back-friendly sports front seats with Jet Black Jasmine leather seat inserts and Jet Black Morrocana bolsters. Décor mouldings in Ruthenium and Jet Black with Galvano Chrome inlays.
- Elite models (no-cost option). Ergonomic, back-friendly sports front seats with Brandy Jasmine leather seat inserts and Brandy Morrocanabolsters. Décor mouldings in Piano Black and Jet Black with Galvano Chrome inlays.
Explore the new Mokka X collection at
www.vauxhall.co.uk/mokkax

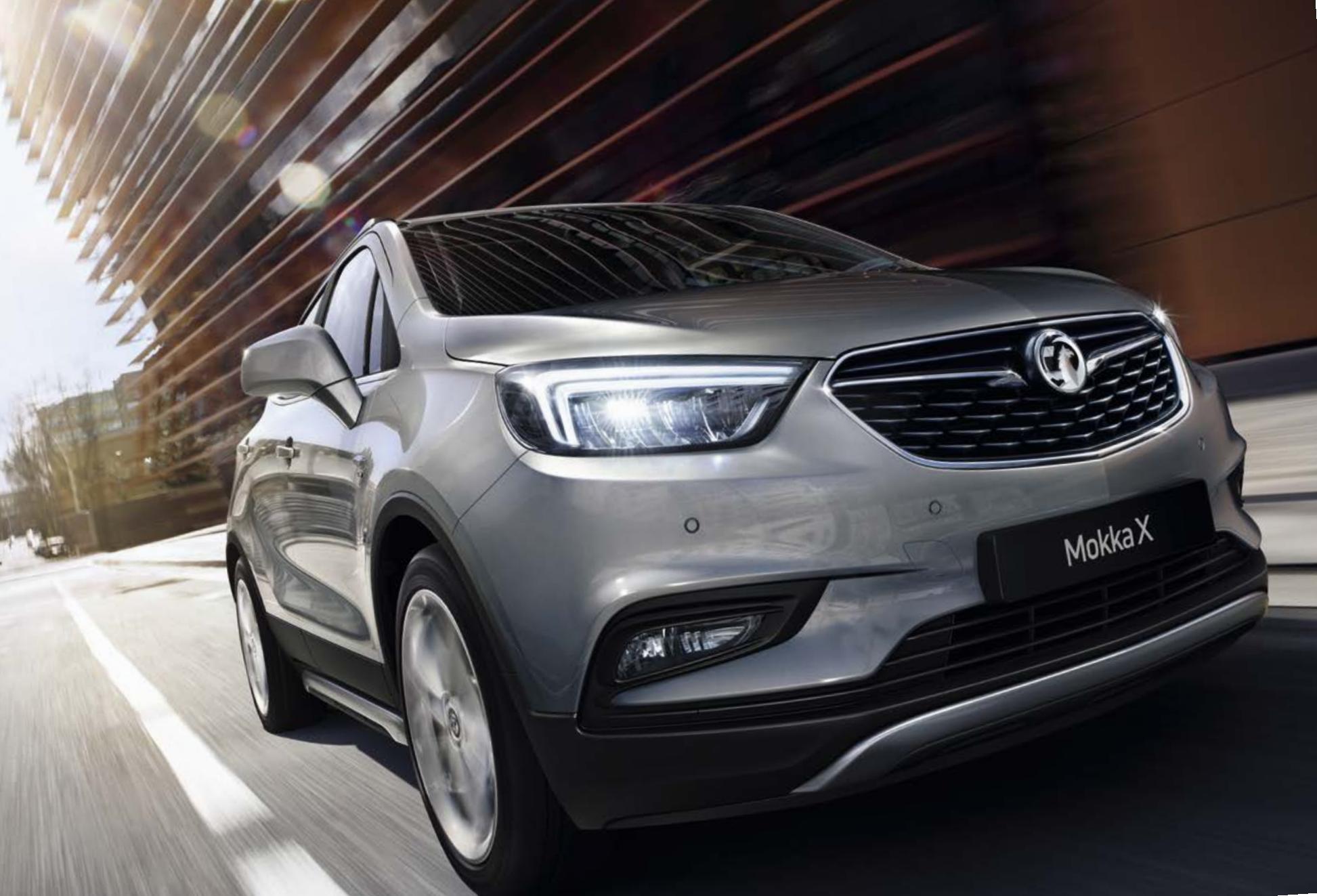

CREATE A CHARACTER.
Alloy wheels are the boots and shoes that finish off the look of your new Mokka X. And each model comes with its own distinct set of stylish alloys.
- 17-inch alloy wheels* with 215/60 R 17 tyres (Active, Design Nav and Elite models).
- 18-inch alloy wheels** with 215/55 R 18 tyres (Active and Design Nav models).

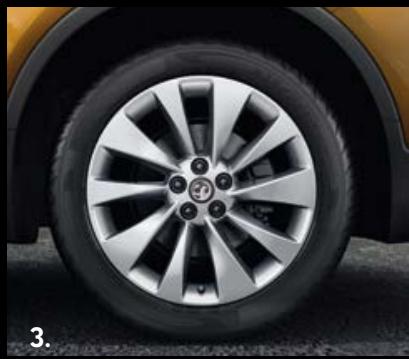

- 18-inch multi-spoke alloy wheels** with 215/55 R 18 tyres (Elite models).

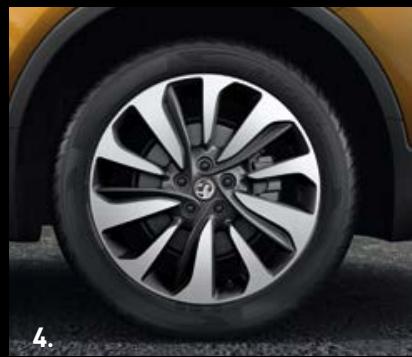

- 18-inch diamond-cut bi-colour 10-spoke alloy wheels** with 215/55 R 18 tyres (optional at extra cost on Elite models).
- 19-inch 5-twinspoke alloy wheels** with 225/45 R 19 tyres (optional at extra cost on Active, Design Nav and Elite models).
^* ecoFLEX models only.
**Not available on ecoFLEX models.
Please note: An emergency tyre inflation kit is standard on all new Mokka X models in lieu of a spare wheel. An emergency steel spare wheel and tyre is available on all models as an extra-cost option. Fitting this spare wheel and tyre will reduce luggage capacity.
STYLING ACCESSORIES.
Treat your new Mokka X to a powerful look with our range of tailored styling accessories to enhance its sporty look.
Styling accessories* for new Mokka X include sleek roof spoilers, anti-slip side steps and skid plate inserts for front and rear.

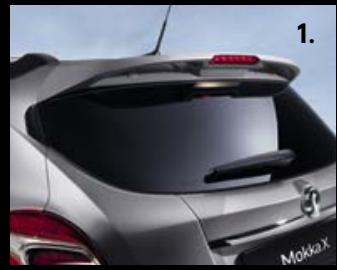

- Roof spoiler. Sleek and aerodynamic, this spectacular addition cranks up the downforce and tightens your grip.
- Anti-slip side steps. Stand on these to get things on or off the roof. Looks-wise, they add muscle and kids like to use them to get in and out.
- High but low. Styling inserts highlight the skid plates.
BRING IT ON.
New Mokka X is made for all kinds of adventures – big and small, extraordinary and day-to-day – so we’ve put together some accessories to make life on the road easier.
- Hard cargo tray. When you've lots of smaller items to load, this made-to-measure tray is a must. High-edged, flexible and washable, it has a non-skid surface to keep loads in one place, and to help keep the luggage area clean and tidy.
- Ski and snowboard carrier. Perfect for snow sports fans - carry up to six pairs of skis or up to four snowboards using this tough, secure carrier which is tailored for new Mokka X.

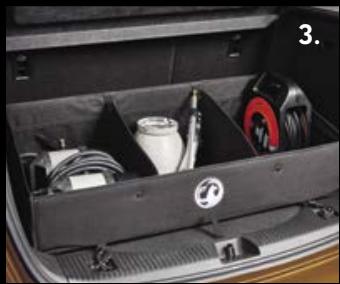

- Cargo organiser. This collapsible organiser stops things you're carrying from moving around when you're on the road, keeping everything in its right place.

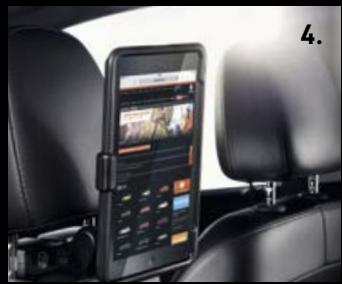

- FlexConnect tablet holder. Ideal device holder for passengers, so you can mount tablets up high to watch movies, or lower for reading and typing.

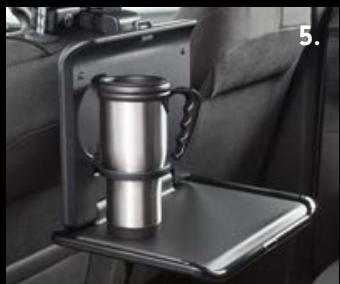

- FlexConnect folding table. Whatever your cup of tea, coffee or juice, snap down this foldaway table and it'll hold your drink nice and steady, with plenty of room to write, read or have a bite to eat.

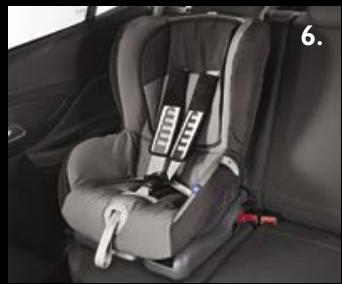

- DUO ISOFIX child seat. For young families on the go, a child seat is essential. Ideal for little ones weighing 9-18kg, can be attached using the standard ISOFIX child seat restraint fittings.
For a complete choice of our storage and FlexConnect accessories for the new Mokka X, visit vauxhall.co.uk/accessories
FIVE REASONS TO LOVE IT.
Like the look of new Mokka X?
Then you'll love to drive it.
Here's five reasons why (there's plenty more, believe us):
- The confident control of this compact SUV's full-on 4X4 drive and serious road grip
- The safer, smarter drive you get with intelligent tech like LED Adaptive Forward Lighting and descent control
- The super-comfortable and spacious interior with advanced ergonomic design and widenscreen views
- The entertainment of its 7-inch IntelliLink touchscreen with Bluetooth® streaming and loads more
- The useful connectivity of Vauxhall OnStar, with a 4G Wi-Fi hotspot and Automatic Crash Response
That's just five seriously great reasons. There's dozens more.
But don't just take our word for it.
Book yourself a test drive to see, feel and believe it for yourself.
SPECIFICATION
PERFORMANCE, FUEL ECONOMY AND EMISSIONS
| Wheel size (inches) | Performance (manufacturer's figures) | Fuel economy mpg(litres/100km)# | Benefit in kind company car taxation rates - 2016/17 tax year | |||||||
| Maximum speed (mph) | Acceleration 0-60mph (sec) | Urban driving | Extra- urban driving | Combined figure | \( CO_2 \) emissions g/km# | Vehicle Excise Duty* First year rate | Standard rate | |||
| Petrol models | ||||||||||
| 1.6i (115PS) S/S FWD | 18/19 | 106 | 11.8 | 32.8 (8.6) | 50.4 (5.6) | 42.2 (6.7) | 155 | £185 | £185 | 28% |
| 1.4i Turbo (140PS) S/S FWD | 18/19 | 122 | 9.3 | 37.2 (7.6) | 55.4 (5.1) | 47.1 (6.0) | 140 | £130 | £130 | 25% |
| 1.4i Turbo (140PS) auto FWD | 18/19 | 119 | 10.1 | 33.6 (8.4) | 52.3 (5.4) | 43.5 (6.5) | 149 | £145 | £145 | 26% |
| 1.4i Turbo (140PS) S/S 4X4 | 18/19 | 116 | 9.3 | 34.0 (8.3) | 50.4 (5.6) | 43.5 (6.5) | 152 | £185 | £185 | 27% |
| 1.4i Turbo (152PS) S/S auto 4X4 | 18/19 | 120 | 9.4 | 35.8 (7.9) | 49.6 (5.7) | 43.5 (6.5) | 150 | £145 | £145 | 27% |
| Diesel models | ||||||||||
| 1.6CDTi (110PS) S/S ecoFLEX FWD | 17 | 112 | 11.5 | 64.2 (4.4) | 78.5 (3.6) | 72.4 (3.9) | 103 | £0 | £20 | 20% |
| 1.6CDTi (110PS) S/S FWD | 18/19 | 112 | 11.5 | 64.2 (4.4) | 76.3 (3.7) | 70.6 (4.0) | 105 | £0 | £20 | 21% |
| 1.6CDTi (136PS) S/S ecoFLEX FWD | 17 | 118 | 9.3 | 61.4 (4.6) | 74.3 (3.8) | 68.9 (4.1) | 106 | £0 | £20 | 21% |
| 1.6CDTi (136PS) S/S FWD | 18/19 | 118 | 9.3 | 58.9 (4.8) | 70.6 (4.0) | 65.7 (4.3) | 114 | £0 | £30 | 22% |
| 1.6CDTi (136PS) auto FWD | 18/19 | 117 | 10.3 | 47.1 (6.0) | 64.2 (4.4) | 56.5 (5.0) | 132 | £130 | £130 | 26% |
| 1.6CDTi (136PS) S/S 4X4 | 18/19 | 116 | 9.7 | 54.3 (5.2) | 64.2 (4.4) | 60.1 (4.7) | 124 | £0 | £110 | 24% |
= Fuel consumption information is official government environmental data, tested in accordance with the relevant EU directive. Official EU-regulated test data is provided for comparison purposes and actual performance will depend on driving style, road conditions and other non-technical factors.
- = Correct at time of publication. FWD = Front-wheel drive. S/S = Start/Stop.
If you wish to view more comprehensive specifications and technical data this is available online. To download/request a Price and Specification guide or Brochure, please visit www.vauxhall.co.uk/brochure
WEIGHTS AND TOWING DATA kg
| Gross vehicle weight | Max. towing weightsTrailer with brakes(without brakes) | |
| 1.6i (115PS) FWD | 1789 | 1200 (500) |
| 1.4i Turbo (140PS) FWD | 1828 | 1200 (500) |
| 1.4i Turbo (140PS) FWD automatic | 1843 | 1200 (500) |
| 1.4i Turbo (140PS) 4X4 | 1879 | 1200 (500) |
| 1.4i Turbo (152PS) 4X4 automatic | 1915 | 1500 (500) |
| 1.6CDTi (110PS) ecoFLEX FWD manual | 1883 | 1500 (500) |
| 1.6CDTi (110PS) FWD manual | 1883 | 1500 (500) |
| 1.6CDTi (136PS) ecoFLEX FWD manual | 1883 | 1500 (500) |
| 1.6CDTi (136PS) FWD manual | 1883 | 1500 (500) |
| 1.6CDTi (136PS) FWD automatic | 1896 | 1500 (500) |
| 1.6CDTi (136PS) 4X4 | 1938 | 1500 (500) |
FWD = Front-wheel drive.
Gross vehicle weight is the total permissible weight of the vehicle including passengers and their luggage. The maximum roof rack loading should not exceed 75kg . The maximum towing weights are based on the ability of the car, with two occupants of 75kg each, to restart on a 12% gradient, which is approximately 1 in 8.3, at sea level. At altitudes above 1500 metres, the engine output may drop with a corresponding reduction in towing capability. Any extra weight, such as luggage or additional passengers, should be deducted from the maximum towing weight. Always fit Vauxhall towing attachments and accessories available from your Vauxhall Retailer. They are designed specifically for Vauxhall models and carry a 12-month guarantee.
TYRE RATINGS
| Tyre size | Fuel efficiency group | Wet grip performance | External noise | |
| Measured (dB) | Group | |||
| 215/60 R 17 | B-C | B | 71 | |
| 215/55 R 18 | E | B | 71 | |
| 225/45 R 19 | E | A | 71 | |
Tyre rating according to EU Regulation 1222/2009
Fuel tank capacity
- 53 litres (11.7 gallons)
SMARTER DRIVING TIPS
- Drive at an appropriate speed: Staying within the speed limit increases driver safety, reduces CO_2 emissions and saves fuel. At 70 mph you could be using up to 9% more fuel than at 60 mph and up to 15% more fuel than at 50 mph
- Drive smoothly at all times: Anticipate the ebb and flow of the traffic to avoid harsh acceleration and braking
- Reduce your revs: Change gear earlier to help reduce fuel consumption - try 2500rpm with petrol engines and 2000rpm with diesel
-
Idling is wasting fuel: If you're likely to be at a standstill for more than three minutes, switch off the engine to save fuel
-
Regularly check your tyre pressures: Under inflated tyres increase CO_2 emissions whilst incorrectly inflated tyres can be unsafe. Always check your handbook for the correct tyre pressure. This will also help to increase the life of your tyres
- Remove unnecessary items from the car: Extra weight increases the engine's workload, whilst roof racks and bike carriers increase wind resistance. All burn more fuel and increase CO_2 emissions
Trust Vauxhall
Company Car Driver 3 Day Test Drive
Our free* 3 Day Test Drive
programme is open to all Company Car Drivers which allows you to choose any model in the current Vauxhall line-up (excluding all VXR models and Commercial Vehicles). with full insurance cover provided, to give you a meaningful length of time to make an informed decision about your next company car.
To book your free test drive just log on to www.vauxhall3dtd.co.uk or call 0870 240 4848*
Fleet Customer Services
Our dedicated support services for fleet decision makers include factory demonstrators and information on whole life costs, company car taxation and finance.
For further information please call 0870 010 0651.
E10 Fuel
E10 fuel is cleared for use in all petrol-engined Vauxhall vehicles excluding models with the 2.2 litre direct injection petrol engine (code Z22YH) used in Vectra, Signum and Zafira models. Owners of these vehicles should continue to use regular unleaded or premium unleaded petrol.
For more information...
For a brochure on any Vauxhall model (up to a maximum of three per caller) or location of your nearest Vauxhall retailer please call 0345 600 1500.
Alternatively, details can be found on our website at www.vauxhall.co.uk
Join us online:
recycle
When you have finished with this brochure please recycle it
Proud Sponsor of Home Nations Football
Scan this QR code with your smartphone for more information. Don't forget to download a QR reader from your app store first.
Limited), your selected/prefered retailers, companies involved in providing or carrying out the OnStar Services and, at your request, to other service companies.
Privacy Policy – General Motors UK Ltd. General Motors Holdings LLC (Michigan, USA) and OnStar Europe Ltd may process your data for marketing, market research, tracking sales data and to contact you. On request, you can stop the processing of your personal data for marketing at any time. Your personal details may be shared within the General Motors Group and suppliers, retailers and agents for the above purposes – we will not share your personal details with third parties for their independent use. The data may be transferred outside the European Economic Area (EEA) All steps reasonably necessary will be taken to ensure that your data is treated securely and in accordance with applicable laws. Please read our privacy policy – www.vauxhall.co.uk/privacy for more detail.
The 3 Day Test Drive programme is open to Company Car Drivers and excludes fuel and lubricants; congestion charges, parking and speeding fines and the E250 insurance excess (if applicable). It features a wide selection of models from the Vauxhall range (excluding all VXR models and Commercial Vehicles and subject to availability). Drivers must be aged 25 years or over; have held a full driving licence for at least a year and hold a major credit card. You will need to have your driving licence (and proof of identity (i.e. passport) where the driving licence is not a photocard licence) when your car is delivered. While every effort will be made to ensure that at least 3 days are provided for the test drive, this cannot always be guaranteed due to delivery and collection dates and timings. Available for UK Mainland only. Terms and conditions apply. **Telephone lines open Monday- Friday 9:00am to 5:00pm excluding Bank Holidays. Calls may be recorded or monitored for quality and/or training purposes.
Every effort has been made to ensure that the contents of this publication were accurate and up-to-date at the time of going to press (August 2016). Vauxhall vehicles are equipped with components manufactured by various General Motors operating units and outside suppliers. The Company reserves the right to alter specifications and withdraw products from sale without notice. Any such alterations will be notified to Vauxhall retailers at the earliest opportunity, please consult your local retailer for the latest information. The specifications detailed within this brochure are not necessarily applicable to alternative models such as Special Editions. Details of any such models will be contained in specific literature or found on the Vauxhall website. Please note that Vauxhall retailers are not the agents of General Motors UK Limited and are not authorised to bind the Company by any specific or implied undertaking or representation. It is advisable to ensure that your motor insurance policy provides adequate cover for additional fitted options and accessories. Please note accessories shown are for illustrative purposes only. As part of Vauxhall's policy of environmental care, this brochure is printed on paper manufactured using Elemental Chlorine Free pulps from specially farmed, sustainable timber resources. All rights reserved. No part of this publication may be reproduced in any form or by any means, without the prior written permission of General Motors UK Limited.
