FOLD AND GO - Fauteuil roulant électrique CHICCO - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Fauteuil roulant électrique pliable
Marque	CHICCO
Modèle	FOLD AND GO
Poids net	25 kg (55 lb)
Capacité de charge maximale	181 kg (400 lb)
Dimensions déplié	Longueur : 96,5 cm (38 po), Largeur : 61 cm (24 po)
Dimensions plié	Largeur : 33 cm (13 po)
Vitesse maximale	6,4 km/h (4 mph)
Autonomie par batterie	25,7 km (16 mi)
Temps de charge	5 heures
Types de moteurs	2 moteurs sans balais de 180 W chacun
Batterie	Lithium-ion 24 V / 10 Ah standard
Rayon de braquage	80 cm (31,5 po)
Pente maximale	12 degrés
Freins	Électromagnétiques
Type de commande	Joystick amovible (montage à gauche ou à droite)
Modes de fonctionnement	Manuel (poussée manuelle avec débrayage) et électrique
Largeur de l'assise	48 cm (19 po)
Hauteur de l'assise	46 cm (18 po)
Hauteur du dossier	41 cm (16 po)
Matériau du cadre	Non spécifié
Entretien et nettoyage	Nettoyer avec un chiffon humide ; ne pas utiliser dans une forte pluie ou flaque d'eau ; garder les contacts de la batterie propres et secs.
Sécurité	Éteindre le joystick avant d'entrer/sortir ; ne pas utiliser sur des escaliers ou des escalators ; rétroviseurs ou vêtements réfléchissants recommandés la nuit.
Pièces détachées et réparabilité	Contacter le service client : [e-mail] ; modifications annulent la garantie.
Informations générales	Fabriqué par OneKubedDESIGNS ; manuel d'utilisation inclus ; code de diagnostic par clignotements LED.

FOIRE AUX QUESTIONS - FOLD AND GO CHICCO

Comment plier le fauteuil FOLD AND GO ?

Pour plier, éteignez d'abord le joystick et rangez-le dans le sac sous l'assise. Ensuite, repérez le loquet de sécurité noir à l'arrière du cadre et basculez-le vers le haut pour déverrouiller. Avec une main sur le cadre supérieur et l'autre sur le repose-pieds, rapprochez les deux extrémités du fauteuil. Le fauteuil se plie facilement en une ou deux mains.

Comment passer en mode manuel (poussée manuelle) ?

Déplacez le levier rouge situé à l'intérieur de chaque moteur de roue arrière, poussez-le vers l'avant jusqu'à entendre un clic. Les roues tourneront alors librement, permettant de pousser le fauteuil comme un fauteuil manuel. Répétez pour les deux roues.

Comment recharger les batteries ?

Utilisez le chargeur fourni. Branchez le chargeur au joystick, puis la fiche secteur dans une prise murale. Les deux batteries se chargent simultanément. Le temps de charge est d'environ 5 heures.

Que signifient les clignotements du joystick ?

Le joystick émet des clignotements pour indiquer un problème. Par exemple : un clignotement lent = moteur arrière gauche non connecté ; deux clignotements lents = moteur arrière droit non connecté ; trois clignotements lents = batterie non chargée ou câbles desserrés. Consultez la section des diagnostics du manuel pour tous les codes.

Puis-je utiliser ce fauteuil sous la pluie ?

Non, il est déconseillé d'utiliser le fauteuil par forte pluie ou de traverser des flaques d'eau. L'eau peut endommager les composants électriques.

Quelle est la capacité de charge maximale ?

Le poids maximal supporté est de 181 kg (400 lb). Ne pas dépasser cette limite pour éviter tout risque de basculement ou de dommage.

Comment installer le joystick ?

Insérez le joystick dans le tube de l'accoudoir (gauche ou droit). Serrez le boulon situé sous l'accoudoir pour le maintenir en place. Il peut être retiré et rangé dans le sac sous l'assise lors du pliage.

Le fauteuil peut-il monter des pentes ?

Oui, il peut gravir des pentes allant jusqu'à 12 degrés. Ne pas essayer au-delà pour garantir la sécurité et éviter le basculement.

Puis-je déplacer le fauteuil plié dans les escaliers ?

Le fauteuil plié peut être porté dans les escaliers. Il n'est pas adapté à une utilisation sur des escalators ou des escaliers lorsqu'il est déplié.

Comment entretenir les batteries ?

Gardez les contacts de la batterie propres et secs. Évitez de laisser les batteries se décharger complètement. Rechargez-les après chaque utilisation. Ne court-circuitez pas les bornes.

MODE D'EMPLOI FOLD AND GO CHICCO

FOLD&GO

ELECTRIC

WHEELCHAIRS

HEAVY-DUTY SIZE MODEL

User/Caregiver Manual

INTRODUCTION

Thank you for buying the FOLD-N-GO Wheelchair, which is designed and manufactured by OneKubedDESIGNS, which is Trademarked.

Why limit where you go and what you do? You can see the world, Disneyland, Six Flags or just your local shopping mall. Your new FOLD-N-GO Wheelchair gives you total FREEDOM! This chair is lightweight and portable, and it fits in the trunk of ANY sized automobile. This power wheelchair is the same weight and width of a regular fold up manual wheelchairs. Finally there is a solution to be more mobile and your FOLD-N-GO will quickly become your favorite mobility device that you will ever own.

Before operating this electric wheelchair for the first time, please read this manual carefully. This instruction manual will help you to understand the performance, operation, features, and routine maintenance. Please refer to this manual and or our website for how to videos on operating your new chair.

User Safety

Please don't use or operate this electric wheelchair until you have read and understand these instructions. If you can't understand these instructions, please contact us for technical guidance and help. Otherwise it may cause harm or danger to yourself by not operating the chair correctly.

Allways turn off the Joystick when entering and exiting the chair. Practice driving operations with the help of family, friends or a caregiver, until you are independent and skilled in performing these operations while you are exploring the world we live in.

Caregiver Safety

Each FOLD-N-GO Wheelchair can be operated in manual or power mode. If you wish to manually push your client make sure to move the red levers on each rear wheel motor to disengage the electromagnetic brakes. Also make sure that the top headrest frame is locked into place, and not in the downward storage position. Before each movement tell your client what you are doing to avoid any risk of accidental injury because they are not prepared to be moved. Cooperate with your client and their physical limitations.

WARNING

DO NOT OPERATE THE WHEELCHAIR IN HEAVY RAIN, OR DRIVE THE WHEELCHAIR THROUGH A PUDDLE. DO NOT USE THE BATTERY IN A DIFFERENT CAPACITY OTHER THAN WITH YOUR FOLD-N-GO WHEELCHAIR KEEP TOOLS AND OTHER METAL OBJECTS AWAY FROM THE POSITIVE AND NEGATIVE ENDS OF THE BATTERY.

MODEL COMPONENTS

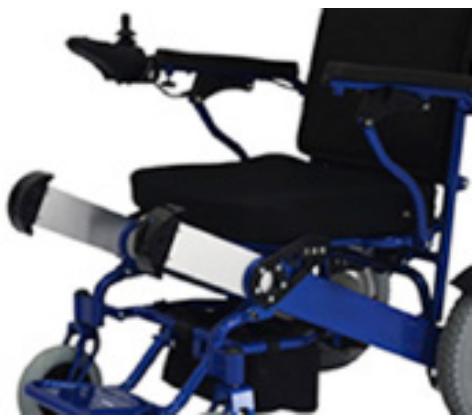

Please take a moment to make sure you have all of the following parts with your FOLD-N-GO Wheelchair. If you are missing ANY components please contact us immediately at [e-mail]. Accessories are sold separately.

HEAVY DUTY WHEELCHAIR

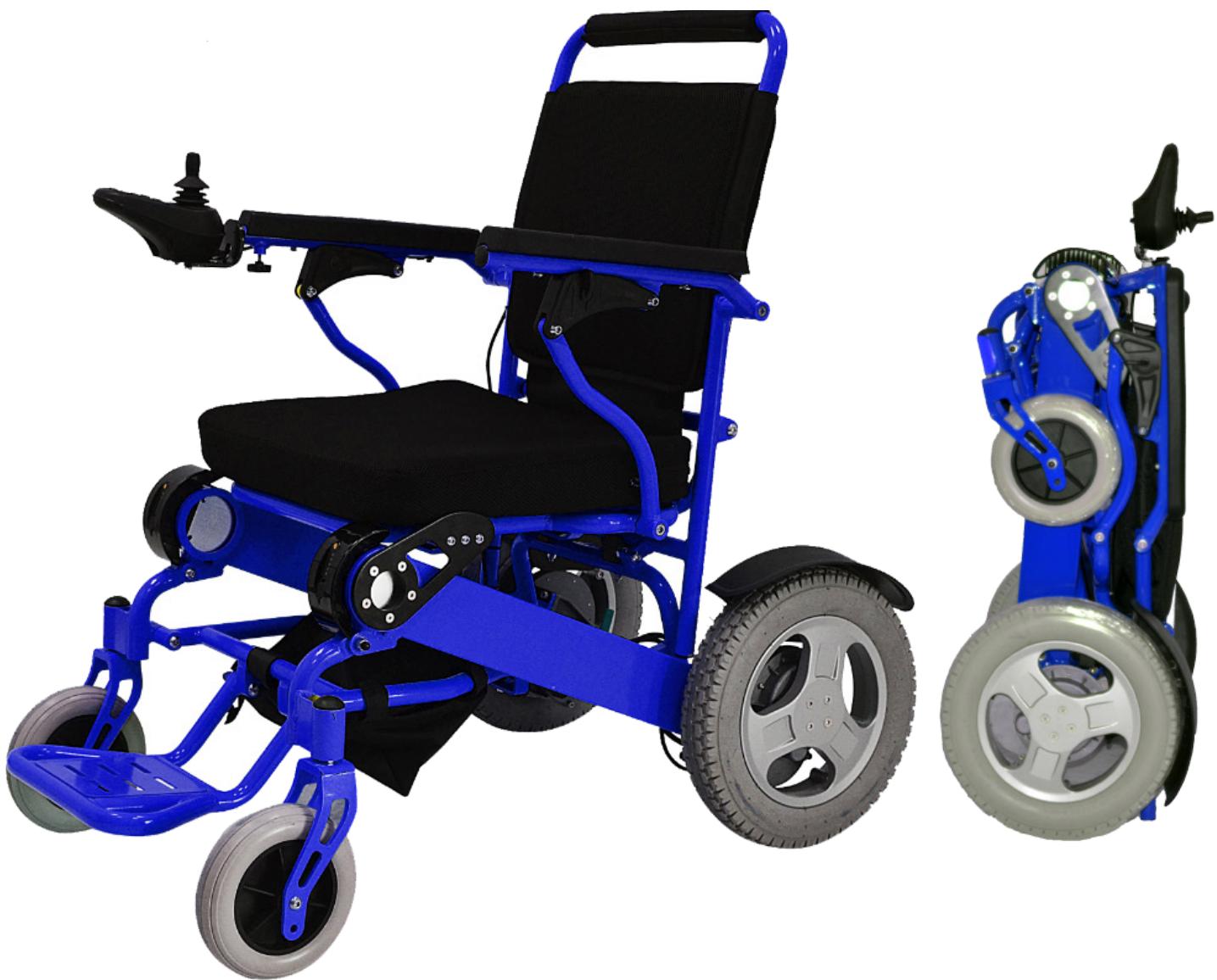

FOLD-N-GO Wheelchair in your desired color

SEAT CUSHIONS

Two cushions, one for your seat and one for the backrest

TWO BATTERIES

Both batteries already come inside the frame of the wheelchair.

CHARGER

Power charger with connection to joystick, and power cord to plug into the wall outlet

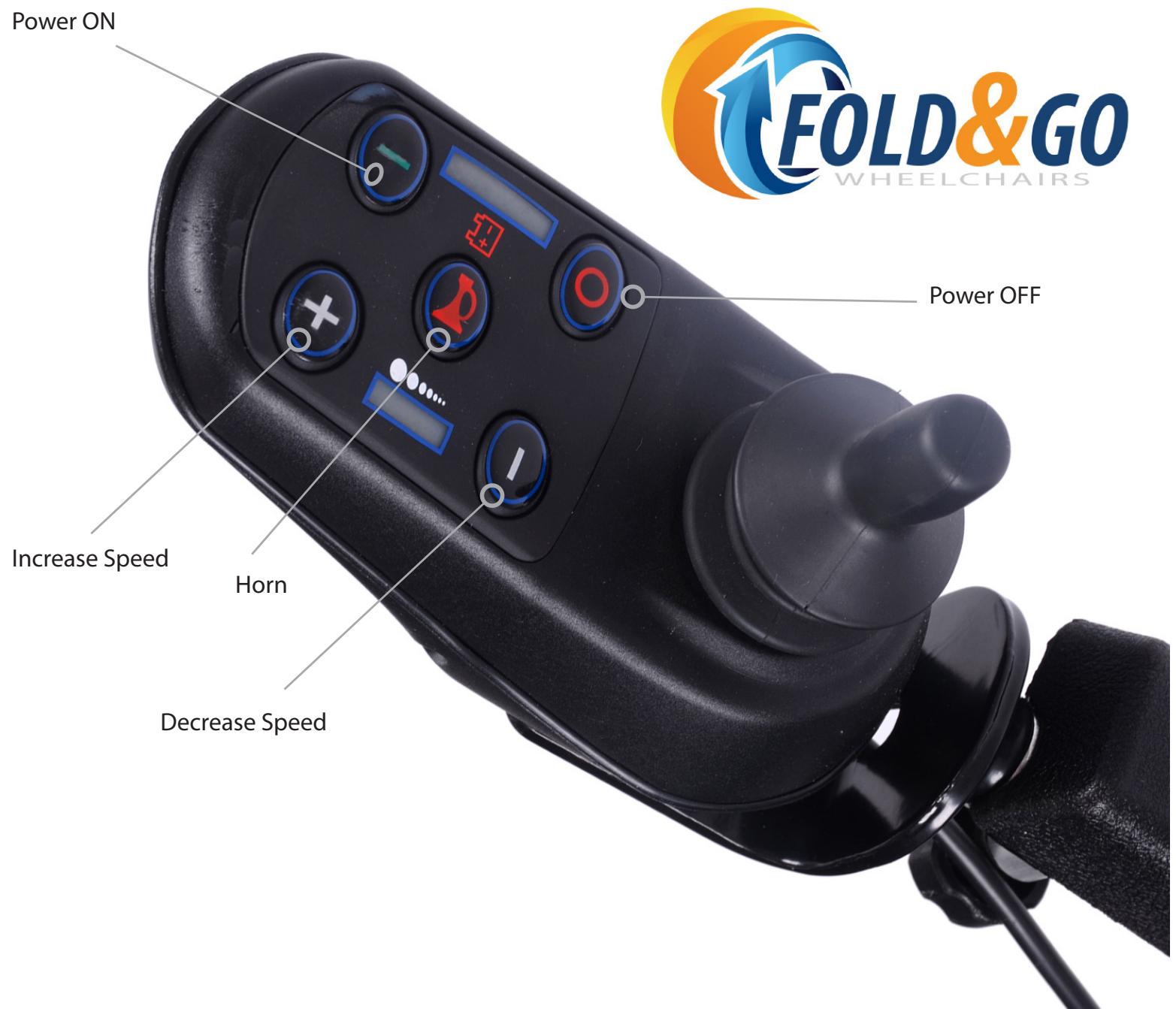

JOYSTICK CONTROLLER

One joystick to control movement of the chair. Can be placed on the either the right or left armrest

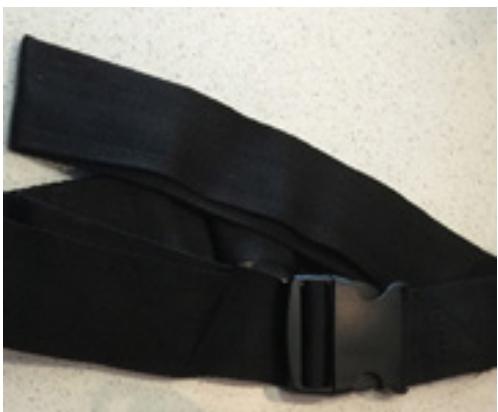

SELT BELT

Portable strap for safety while riding in your chair, and to wrap up the armrests when folded

How to Install & Operate

1. Batteries Already Installed

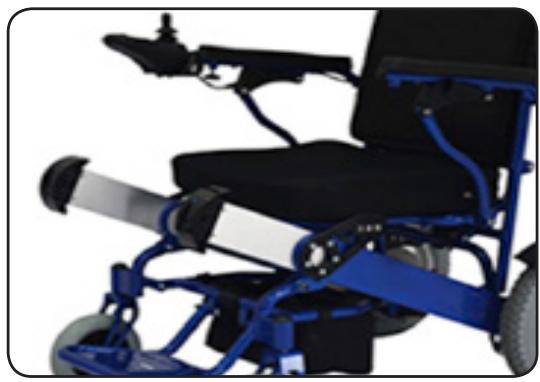

The Heavy-Duty model comes with two lithium-ion batteries. We ship the batteries with your wheelchair. We have already placed each battery inside the frame of the chair. You do not need to remove the batteries for any reason. You can charge both batteries at the same time, when plugging into the joystick.

2. Joystick Installation

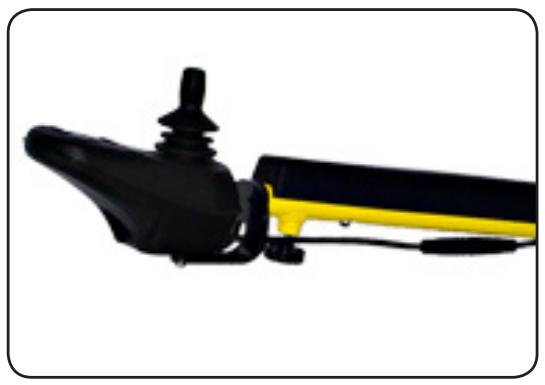

The Joystick can be installed on the left or right armrest. Insert the Joystick into the tube of the armrest. Tighten the Screw bolt on the bottomside of the armrest. Make sure this bolt is snug to hold the Joystick in place.

3. Manual Mode - No Brakes

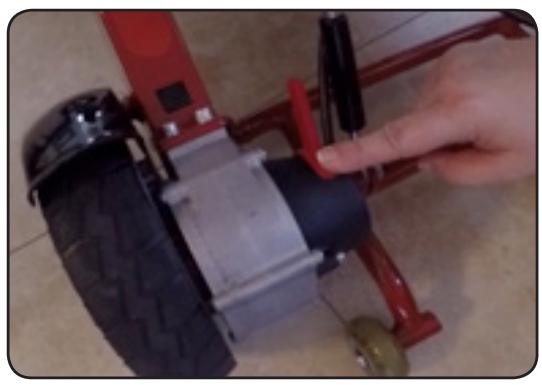

Move the red lever on the inside of each rear wheel motor, push it forward until you feel a click. Then the wheel will spin free, so the chair can be push just like a manual chair. Repeat the same process for both wheels.

4. Power Mode - Electromagnetic

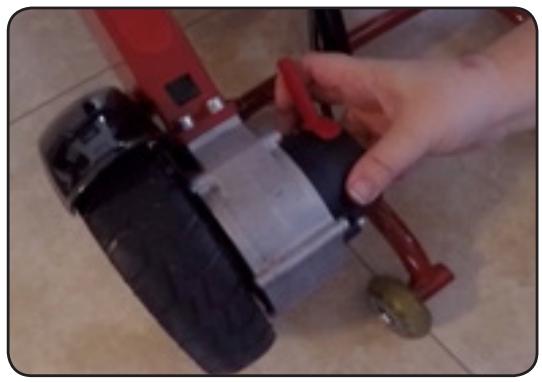

Move the red lever on the inside of each rear wheel motor, pull it backward until you feel a click. Then the wheel motor will be engaged and power will move each wheel. Repeat the same process for both wheels.

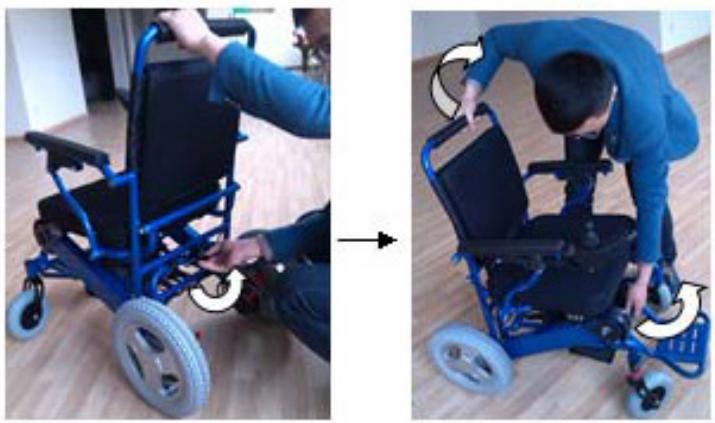

• Turn off the Joystick then remove it and put it in the storage bag under the seat for safe keeping.
• Locate the black safety latch on the back of the wheelchair.
• Flip the black latch up to unlock the frame
• With one hand on the top frame and one hand on the footrest, bring both ends of the wheelchair together.
• You can also fold with one hand by pushing to top part of the frame towards the ground. The wheelchair will fold up easily using one hand or two.

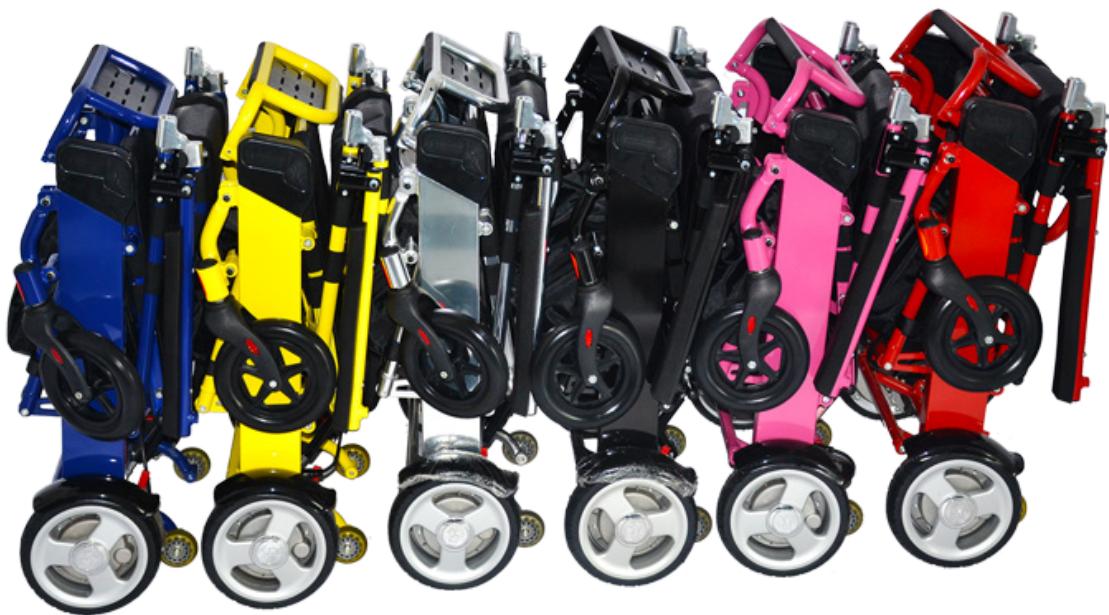

How to UNFOLD the FOLD & GO Electric Wheelchair

• Push apart the head rest and the footrest of the wheelchair.
• Place one hand on the top of the backrest, and with your other hand push the footrest down.
• Locate the black safety latch on the back of the frame.
• Puch the latch down to snap it into place to lock the frame.
• You can also unfold thw wheelchair with one hand. Simply place on hand on the headrest and lean the reat of the chair towards the ground. With a slight jerk, let gravity pull the chair apart for you.

Net Weight	55 LBS
Weight Capacity	400 LBS
Motor	180 Watt x2 Brushless
Battery	Lithium-Ion 24V/10AH Standard
Max Speed	4 MPH
Turning Radius	31.5 inches
Grade/Slope	12 degrees
Charging Time	5 Hours
Driving Range	16 Miles per Battery
Overall Length	38 inches
Unfolded Width	24 inches
Folded Width	13 inches
Seat Width	19 inches
Back Rest Height	16 inches
Seat Height	18 inches
Brake Type	Electromagnetic

Movement	Direction to Move Joystick
FORWARD	Move the joystick FORWARD
BACKWARD	Move the joystick BACKWARD
RIGHT	Move the joystick RIGHT
LEFT	Move the joystick LEFT
STOP	Release your hand from the joystick

Joystick Diagnostics

When the LED light on the Joystick flickers, it means that there is something wrong with the wheelchair. An alarm may also sound from the rear motor wheels, brakes, batteries, wire connections, or from the wheelchair itself. Below are the diagnostic codes to help you identify any problems you may be experiencing while using your FOLD & GO Electric Wheelchair:

Flash or Beep	Description & Troubleshoot
Flash Once Slowly	Left rear motor wheel is not connected
Flash Twice Slowly	Right rear motor wheel is not connected
Flash 3 Times Slowly	Battery is not charging, the cables to the battery may be loose
Flash 4 Times Slowly	Check left rear motor, power cable is loose or not connected
Flash 5 Times Slowly	Check right rear motor, power cable is loose or not connected
Flash 6 Times Slowly	Check left brake motor, power cable is loose or not connected
Flash 7 Times Slowly	Check right brake motor, power cable is loose or not connected
Flash 8 Times Slowly	Contact FOLD-N-GO Customer Service
Flash 9 Times Slowly	Joystick cable is loose to black junction box under the seat
One Short Beep	You are trying to move the chair with the Joystick before it is ready
Beep in Any Direction	The rear wheels are in manual mode. Move the red lever backwards
Flash 4 times Quickly	Left motor is over heated, disconnect cable for 30 seconds then reconnect
Flash 5 times Quickly	Right motor is over heated, disconnect cable for 30 seconds then reconnect

DRIVING CONDITIONS & ENVIRONMENT

• Don't try to drive the FOLD & GO Wheelchair when you are on a transport vehicle, like a bus, subway, trains, planes, etc.
  While using public transportation vehicles, look for a place to fix the wheels to the floor of the bus. This will help you avoid harm that can be caused by the vehicle's sudden stop or a traffic accident.
• In many countries and regions, power wheelchairs are not allowed on public roads. The user must realize that driving a wheelchair on the road instead of the sidewalk is dangerous.
• For easy recognition at night, a reflective article can be placed on the FOLD & GO Wheelchair. The user can also wear reflective clothing.
• When confronting with other vehicles, please ensure that the driver has noticed you. Before you continue to operate your wheelchair, make eye contact with the driver, and let the driver know your intention until you are sure that it is safe.
• When driving the FOLD & GO Wheelchair keep the chair in balance, in order to avoid being bent over in the forward or backward position.
  If you desire to modify or adjust the FOLD & GO Wheelchair, please consult a reputable dealer in advance. The modified wheelchair may need to have addictional adjustment to keep the chair working properly.
• Making any modifications to your FOLD & GO Wheelchair will void ALL warranties.
• When you are entering or exiting the FOLD & GO Wheelchair, you must turn off the power supply. Otherwise, if you touch the joystick, it may lead to the unexpected movement.
• The FOLD & GO Wheelchair is not suitable for staircases, or on an escalator. Pay attention when using the chair on the elevator.
• When an elevator is not available, fold up the chair to move it from floor to floor by way of the stairs.
