BRUKSANVISNING POE-GSH822-120 AIRLIVE

www.airlive.com

Quick Setup Guide

Declaration of Conformity

We, Manufacturer/Importer

AirLive Technology Corporation

4F, No.132, Lane 235, Baoqian Rd., Xindian Dist.,

New Taipei City 23145, Taiwan

Declare that the product

12-Port Gigabit PoE+ Switch

Including 2 x SFP port, 2 x 1000T port, 120W

POE-GSH822-120

20-Port Gigabit PoE+ Switch

Including 2 x SFP port, 2 x 1000T port, 200W

POE-GSH1622-200

28-Port Gigabit PoE+ Switch

Including 2 x SFP port, 2 x 1000T port, 300W

POE-GSH2422-200

is in conformity with

In accordance with 2014/30/EU and 2014/35/EU Directive

Clause

■ EN 55032:2015+A11:2020

Description

Electromagnetic compatibility (EMC)

■ EN 62368-1:2014+A11:2017

Electromagnetic compatibility (LVD)

■ CE marking

Manufacturer/Importer

Name : A van Rossem Position/ Title : Product Manager

Date : May 2024 Place : Republic of China (Taiwan)

Front view of a black networking device with four Ethernet ports and indicator lights (no visible text or labels)

POE-GSH822-120

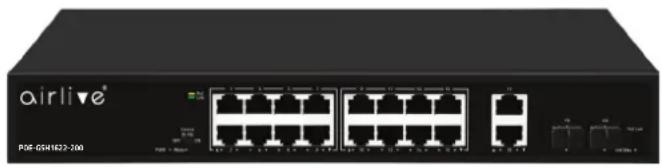

Front view of an airline network switch device (no visible text or labels on the device body)

POE-GSH1622-200

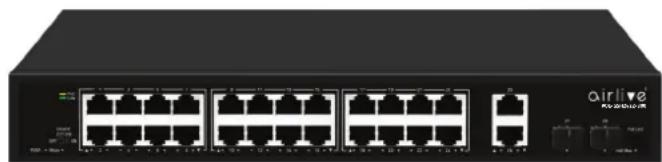

Front view of a black networking device with multiple Ethernet ports and indicator lights (no visible text or symbols)

POE-GSH2422-300

Regulatory Approvals

- CE Statement

This product complies with the 2014/30/EU and 2014/35/EU directives, including the following safety and EMC standards:

■ EN 55032:2015+A11:2020

Electromagnetic compatibility (EMC)

■ EN IEC 61000-3-2:2019

Electromagnetic compatibility (EMC)

■ EN 61000-3-3:2013+A1:2019

Electromagnetic compatibility (EMC)

■ EN 55035:2017+A11:2020

Electromagnetic compatibility (EMC)

■ EN 62368-1:2014+A11:2017

Electromagnetic compatibility (LVD) - Safety

- RoHS Statement

This product complies with RoHS directive 2011/65/EU and amendment Commission Delegated Directive (EU)2015/863.

■IEC 62321-3-1:2013

■IEC 62321-5:2013

■IEC 62321-4:2013+AMD1:2017

■IEC 62321-7-1:2015

■IEC 62321-7-2:2017

■IEC 62321-6:2015

■IEC 62321-8:2017

- CE Marking Warning

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

AirLive Technology Corporation declares that this device is in compliance with the essential requirements and other relevant provisions of directive 2014/30/EU.

▼ Installation Steps

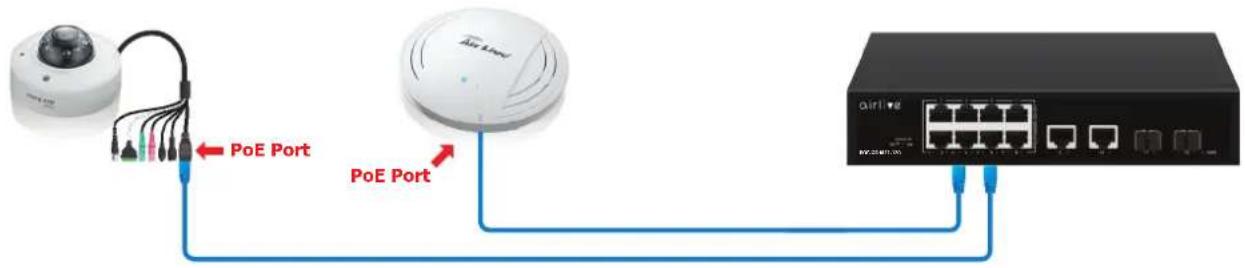

Figure A

LED DEFINITIONS

Power	Red ON	Power is on and normal.
	Red Off	The switch is not receiving power.
Link/Act	Green ON	The port Status LEDs ON Link Connection, LEDs Blinking Data transmission.
POE (GSH-1622/2422)	Yellow ON The port Status LEDs ON PoE Power is connected.
Mode (DIP Indicator)(GSH-1622/2422)	Green ON	Extend Mode On.
	Green OFF	Extend Mode Off.
POE Max LED(GSH-1622/2422)	Green OFF	Indicates PoE power usage is less than 90%.
	Green Flashing	Indicates PoE power usage of 90% ≤ P ≤ 95%.
	Green ON	Indicates that PoE power is used at 95% <P <100%.

Mode Extend Switch Control

OFF	Normal mode.
ON	Extension mode. PoE power supply and data transmission distance can be extended to 250meter at the transmission rate of 10Mbps Port (7~8 GSH822), (9~16 GSH1622) and (17~24 GSH2422) only.PoE Watchdog mode is enabled.

EN English

Installation Step:

1. Remove the switch and accessories from the package.
2. Connect power to the switch. Make sure that "Power" LED is on.
3. Connect your IEEE802.3af/at compliant Power Devices (PD) to Ports 1\~8 (GSH822), 1\~16 (GSH1622), 1\~24 (GSH2422) and the Switch will automatically supply power through these ports (see Figure A).
4. Check the Port LED indicator status. When a PoE device is connected and the port is supplying power, it light on.
5. For more product information visit www.airlive.com.
