BRUKSANVISNING B317 BOSS
IMPORTANT NOTICE:
HARDWARE PACKAGE IS ATTACHED
ON THE BOTTOM OF SEAT CUSHION.
MODEL:B315 B316 B317 B307 B305 B306 B325

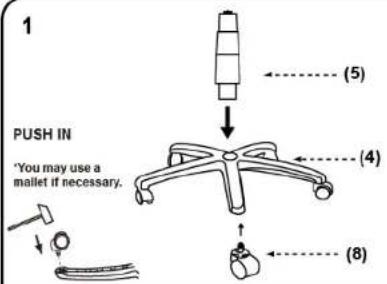

| (1)x1 | (2)x1 | (3)x1 |
Back CushionBack Support W/ Bellow | Seat Cushion | TU001-305 / mechanism |
| (4)x1 | (5)x1 | (6)X1(L) X1(R) |
TU005-305 – Nylon Base | TU026-305-Gas Lift | B316 / B317 Arms |
| (7)X1 | (8)X5 | |
TU305-Knob/Knob | TU015-Casters | |

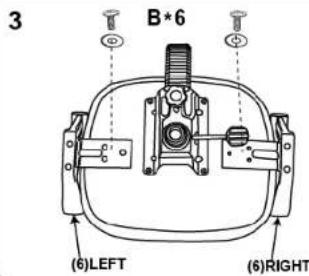

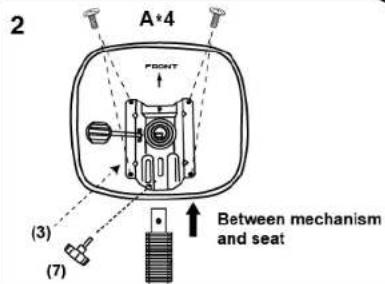

| (A)*4 M8*22 Mechanism Screws(B)*6 M6*28 Arm Screws | ||
Insert and loosely tighten all screws. When assembly is completed, fully tighten all screws before using. This chair is only intended for sitting. Any other use will void the warranty.
B317/307
Back CushionBack Support W/ Bellow
Seat Cushion
TU001-305 / mechanism
TU005-305 – Nylon Base
TU026-305-Gas Lift
B316 / B317 Arms
TU305-Knob/Knob
TU015-Casters
