dsPIC33CK256MC506 General Purpose Plug-In Module (PIM) Information Sheet

Overview

The dsPIC33CK256MC506 General Purpose Plug-In Module (EV16E47A) is designed to demonstrate the capabilities of the dsPIC33CK256MC506 family using the Explorer 16/32 Development Board. Refer to Table 1 and Table 2 for the mapping of the physical pins on the dsPIC33CK256MC506 device to the 100-pin PIM connector.

Not all predefined PIM signals found on the Explorer 16/32 are connected due to the limited number of I/O pins available.

Table 1: dsPIC33CK256MC506 PIM Mapping

PIM Pin #	Device Pin # ds	PIC33CK256MC506 I/Os Function		Explorer 16/32 Net Name
1 — P1_VBUS -NIC-
2 10, 19,25,41,57 V		DD/AVDD	VDD_PIM_VDD_PIM
3 4 RP61/RC13 P3 LCDD5 P3 LCDD5 RC13
4 5 RP82/RC14 P4 LCDD6 P4 LCDD6 RC14
5 6 RP63/RC15 P5 LCDD7 P5 LCDD7_RC15
6	62	TCK/RP43/PWM3L/RB11	P6	P6_RB11
7	63	TDI/RP44/PWM2H/RB12	P7	P7_RB12
8 — P6		-N/C-
9 — P9		-N/C-
10	50	RP52/RC4	P10_SCKA	P10_SCKA_RC4
11	51	RP53/RC5	P11_MISOA	P11_MISOA_RC5
12	24	AN19/BIAS1/RP54/RC6	P12_MOSIA	P12_MOSIA_RC6
13	7 MCLR	——	P13_MCLR_P13_MCLR
14	2 RP47/PWM1L/RB15 P14_CSA	P14_CSA	P14_CSA_RB15
15 9, 20,26,40,56 V		SS	GND	GND
16	10,19,25,41,57 V	DD/AVDD	VDD_PIM_VDD_PIM
17	60	RP64/PWM4L/RD0	P17_LED3	P17_LED3_RD0
18	32	AN7/SRC2/RP55/RC7	P18_INTB	P18_INTB_RC7
19	52	RP56/RC10_P19_RSTB P19_RSTB_RC	0
20	13	AN12/RP45/RC0	P20_POT_P20_POT_RC0
21	23	OA3IN-/AN14/CMP2B/ISRC1/RP50/RC2	P21_TEMP	P21_TEMP_RC2
22	38	RP73/PCI20/RD9	P22	P22_RD9
23	53	RP59/RC11	P23_CSB_P23_CSB_RC11
24	27	AN15/CMP2A/IBIAS2/RP51/RC3	P24_ANB	P24_ANB_RC3
25	22	OA3IN-/AN13/CMP1B/ISRC0/RP49/RC1	P25_ANA_USBOC	P25_ANA_USBOC_RC1
26	35	PGC2/OA2IN+/AN17/RP36/RB4	P26_PGC	P26_PGC_RB4
27	34	PGD2/OA2IN-/AN8/RP35/RB3	P27_PGD	P27_PGD_RB3
28	— — P28	-N/C-
29	— — P29	-N/C-
30	10,19,25,41,57 V	DD/AVDD	VDD_PIM_VDD_PIM
31 9, 20,26,40,56 AV		SS	GND	GND
32	— — P32	CC2-N/C-
33	— — P33	CC1-N/C-
34	— — P34	-N/C-
35	— — P35	-N/C-
36 9, 20,26,40,56 V		SS	GND	GND
37	10,19,25,41,57 V	DD/AVDD	VDD_PIM_VDD_PIM
38	59	RP65/PWM4H/RD1	P38_LED4	P38_LED4_RD1
39	— — P39	-N/C-
40	— — P40	-N/C-
41	— — P41	-N/C-
42	— — P42	-N/C-
43	— — P43	-N/C-
44	18	OA3OUT/AN4/IBIAS3/RA4	P44_LCDRS	P44_LCDRS_RA4
45	— — GND	GND
46	10,19,25,41,57 V	DD/AVDD	VDD_PIM_VDD_PIM
47	— — P47	-N/C-
48	16	OA1IN-/AN9/RA2	P48	P48_RA2
49	21	RP76/RD12_P49_RXB_P49_RXB_RD12
50	12	ANN0/RP77/RD13	P50_TXB	P50_TXB_RD13

Table 1: dsPIC33CK256MC506 PIM Mapping(Continued)

PIM Pin #	Device Pin #	dsPIC33CK256MP508 I/Os		Function	Explorer 16/32 Net Name
51	11	RP78/PCI21/RD14		P51_TXA	P51_TXA_RD14
52	6	RP78/PCI22/RD15		P52_RXA	P52_RXA_RD15
53	39	RP72/SDO2/PCI15/RD8		P53_MOSIB	P53_MOSIB_RD8
54	37	RP57/ASCL1/SDI2/RC9		P54_MISOB	P54_MISOB_RC9
55	36	RP56/ASDA1/SCK2/RC8		P55_SCKB	P55_SCKB_RC8
56	49	PGC1/AN11/RP41/SDA1/RB9		P56_SDA	P56_SDA_RB9
57	48	PGD1/AN10/RP40/SCL1/RB8		P57_SCL	P57_SCL_RB8
58 58	RP60/RD2		P58_LED6	P58_LED5_RD2
59 55	RP67/RD3		P59_LED6	P59_LED6_RD3
60 54	RP68/RD4		P60_LED7	P60_LED7_RD4
61 44	RP59/RD5		P61_LED8	P61_LED8_RD5
62	—	—		VDD_PIM_VDD_PIM
63 28	OSC1/CLKI/AN5/RP32/RB0 P63_OSCI		P63_OSCI_RB0
64	29	OSCO/CLKO/AN6/RP33/RB1		P64_OSCO	P64_OSCO_RB1
65	9.20,26,40,56	Vss		GND	GND
66 61	TMS/RP4	P/PWM3H/RB10	P65	P65_RB10
67	33	OA2OUT/AN1/CMP1D/CMP2D/RP34/INT0/RB2		P67_INTA	P67_INTA_RB2
68	—	—		P68	-N/C-
69	—	—		P69	-N/C-
70	—	—		P70	-N/C-
71	—	—		P71	-N/C-
72	64	RP45/PWM2L/RB13		P72_PWMA	P72_PWMA_RB13
73	—	—		P73_SOSCI	-N/C-
74	—	—		P74_SOSCO	-N/C-
75	9.20,26,40,56	Vss		GND	GND
76	—	—		P76	-N/C-
77	—	—		P77	-N/C-
78	1	RP46/PWM1H/RB14		P78_PWMB	P78_PWMB_RB14
79	15	OA1IN-/AN16/RA1		P79_EECS	P79_EECS_RA1
80 46	PGC3/RF	38/RB6	P80_S4	P80_S4_RB6
81	17	DACOUT1/AN3/CMP1C/RA3		P81_LCDE	P81_LCDE_RA3
82	—	To Vss via R1 (1k)		P82_LCDRW	P82_LCDRW
83 45	PGD3/RF	37/RB5	P83_S3	P83_S3_RB5
84	47	TDC/AN2/RP39/RB7		P84_S6	P84_S6_RB7
85	—	—		P85_VDDCORE	-N/C-
86	—	—		P86_ENVREG	-N/C-
87 31	AN18/ISR	C3/RP74/RD10	P87	P87_RD10
88 30	CMP2C/RF	P75/RD11	P86	P86_RD11
89	—	—		P89_USBDN	-N/C-
90	—	—		P89_USBDP	-N/C-
91 43	RP70/RD6		P91_LED9	P91_LED9_RD6
92	42	RP71/RD7		P92_S5_LED10	P92_S5_LED10_RD7
93	—	—		P93_LCDD0	-N/C-
94	—	—		P94_LCDD1	-N/C-
95	14	OA1OUT/AND/CMP1A/IBIASO/RAD		P95_RSTA	P95_RSTA_RA0
96	—	—		P96_VBUSON	-N/C-
97	—	—		P97	-N/C-
98	—	—		P98_LCDD2	-N/C-
99	—	—		P93_LCDD3	-N/C-
100	3	RP60/RC12		P100_LCDD4	P100_LCDD4_RC12

Table 2: dsPIC33CK256MC506 PIC ^ MCU Mapping

Device Pin #	PIM Pin #	dsPIC33CK256MP506 I/Os		Function	Explorer 16/32 Net Name
178	RP46\PWM	1H/RB14	P78_PWMB	P78_PWMB_RB14
2	14	RP47/PWM1L/RB15		P14_CSA	P14_CSA_RB15
3	100	RP60/RC12		P100_LCDD4	P100_LCDD4_RC12
4	3	RP61/RC13		P3_LCDD5	P3_LCDD5_RC13
5	4	RP62/RC14		P4_LCDD6	P4_LCDD6_RC14
6	5	RP63/RC15		P5_LCDD7	P5_LCDD7_RC15
7	13	MCLR		P13_MCLR	P13_MCLR
852	RP79\PCI2	RD15	P52_RXA	P52_RXA_RD15
9	15,31,36,65,75	Vss		GND_GND
10	2.16,30,37,46	Vpp		VDD_PIM_VDD_PIM
11	51	RP78\PCI21/RD14		P51_TXA	P51_TXA_RD14
12	50	ANN0\RP77/RD13		P50_TXB	P50_TXB_RD13
1320	AN12\RP48	RRC0	P20_POT	P20_POT_RC0
14	95	OA1OUT\AN0\CMP1A\IBIAS0\RA0		P95_RSTA	P95_RSTA_RA0
15	79	OA1IN-/AN16\RA1		P79_EECS	P79_EECS_RA1
1648	OA1IN+/AN0\RA2		P48	P48_RA2
17	81	DACOUT1\AN3\CMP1C\RA3		P81_LCDE	P81_LCDE_RA3
18	44	OA3OUT\AN4\IB\AS3\RA4		P44_LCDRS	P44_LCDRS_RA4
19	2.16,30,37,46	AVpp		VDD_PIM_VDD_PIM
20	15,31,36,65,75	AVss		GND_GND
2149	RP76/RD12		P49_RXB	P49_RXB_RD12
22	25	OA3IN-/AN13\CMP1B\ISRC0\RP49\RC1		P25_ANA_USBOC	P25_ANA_USBOC_RC1
23	21	OA3IN-/AN14\CMP2B\ISRC1\RP50\RC2		P21_TEMP	P21_TEMP_RC2
24	12	AN19\IBIAS1\RP54\RC6		P12_MOSIA	P12_MOSIA_RC6
25	2.16,30,37,46	Vpp		VDD_PIM_VDD_PIM
26	15,31,36,65,75	Vss		GND_GND
2724	AN15\CMF	2A\IBIAS2\RP51\RC3	P24_ANB	P24_ANB_RC3
28	63	OSCI\CLK1\AN5\RP32\RB0		P63_OSCI	P63_OSCI_RB0
29	64	OSCO\CLK0\AN6\RP33\RB1		P64_OSCO	P64_OSCO_RB1
3088	CMP2C\IR	P75/RD11	P88	P88_RD11
31	87	AN18\SRC3\RP74/RD10		P87	P87_RD10
32	18	AN7\SRC2\RP55\RC7		P18_INTB	P18_INTB_RC7

Table 2: dsPIC33CK256MC506 PIC ^ MCU Mapping (Continued)

Device Pin #	PIM Pin #	dsPIC33CK256MP508 IOs Function		Explorer 16/32 Net Name
33 67	OA2OUTIAN1/CMP	D:\CMP2D\RP34\INT0/RB2 P67_INTA P67_INTA_RB2
34 27	PGD2/OA2IN-/AN8R	RP35/RB3 P27 PGD P27 PGD_RB3
35 26	PGC2/OA2IN+/AN17	RP36/RB4 P26_PGC P26_PGC_RB4
36 55	RP56/ASDA1/SCK2	RC8 P55_SCKB P55_SCKB_RC8
37 54	RP57/ASCL1/SDI2	RC9 P54_MISOB P54_MISOB_RC9
38 22	RP73/PCI20/RD9 P22	P22_RD9
39 53	RP72/SDO2/PCI19/RD8	P53_MOSIB P53_MOSIB_RD8
40	15,31,36,65,75	Vss		GND GND
41	2,16,30,37,46	VDD		VDD_PIM VDD_PIM
42 92	RP71/RD7	P92_S5_LED10	P92_S5_LED10_RD7
43 91	RP70/RD6	P91_LED9	P91_LED9_RD6
44 01	RP69/RD6	P61_LED8	P61_LED8_RD5
45 83	PGD3/RP37/RB5	P63_S3	P63_S3_RB5
46 80	PGC3/RP38/RB6	P60_S4	P60_S4_RB6
47 84	TDO/AN2/RP39/RB7	P84_S6	P84_S6_RB7
48 57	PGD1/AN10/RP40/SCL1/RB8	P57_SCL	P57_SCL_RB8
49 56	PGC1/AN11/RP41/S	DA1/RB9 P56_SDA P56_SDA_RB9
50 10	RP52/RC4	P10_SCKA P10_SCKA_RC4
51	11	RP53/RC5	P11_MISOA	P11_MISOA_RC5
52 19	RP58/RC10	P19_RSTB	P19_RSTB_RC10
53 23	RP59/RC11	P23_CSB	P23_CSB_RC11
54 60	RP68/RD4	P60_LED7	P60_LED7_RD4
55 59	RP67/RD3	P59_LED6	P59_LED6_RD3
56	15,31,36,65,75	Vss	GND GND
57	2,16,30,37,46	VDD	VDD_PIM VDD_PIM
58 58	RP56/RD2	P58_LED5	P58_LED5_RD2
59 38	RP65/PWM4H/RD1	P38_LED4	P38_LED4_RD1
60 17	RP64/PWM4L/RD0	P17_LED3	P17_LED3_RD0
61 06	TMS/RP42/PWM3H/RB10	P66	P66_RB10
62	6	TCK/RP43/PWM3L/RB11	P6	P6_RB11
63	7	TDWRP44/PWM2H/RB12_P7	P7_RB12
64 72	RP45/PWM2L/RB13	P72_PWMA	P72_PWMA_RB13

Schematic Rev. 2.0

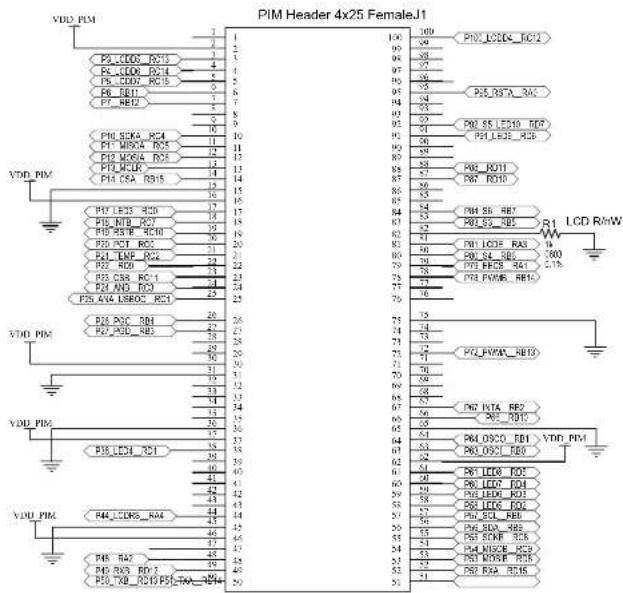

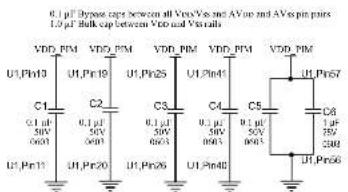

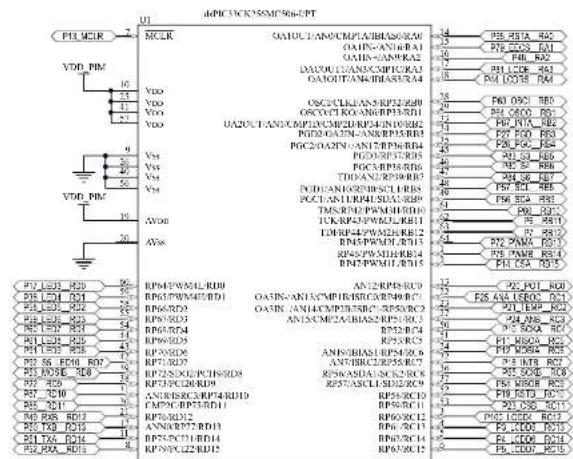

dsPIC33CK256MC506 General Purpose PIM
