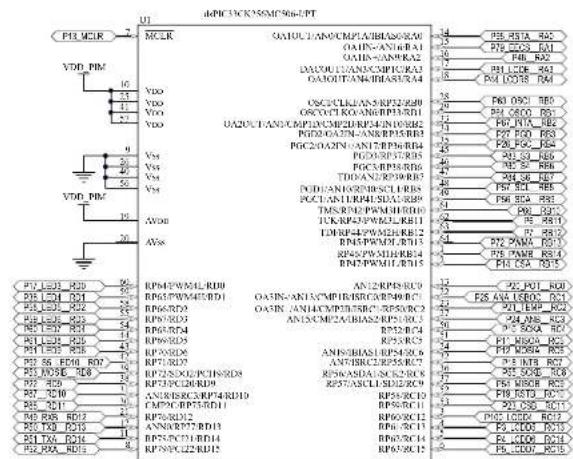

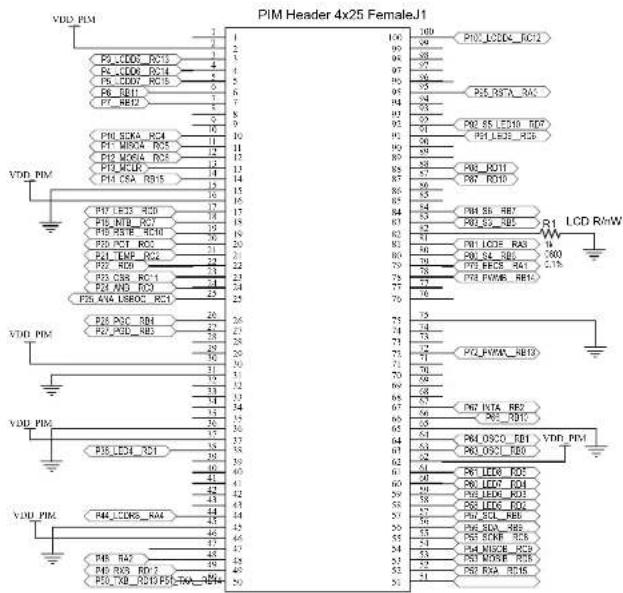

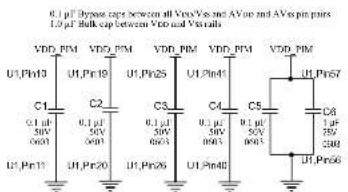

dsPIC33CK256MC506 General Purpose Plug-In Module (PIM) Information Sheet
Overview
The dsPIC33CK256MC506 General Purpose Plug-In Module (EV16E47A) is designed to demonstrate the capabilities of the dsPIC33CK256MC506 family using the Explorer 16/32 Development Board. Refer to Table 1 and Table 2 for the mapping of the physical pins on the dsPIC33CK256MC506 device to the 100-pin PIM connector.
Not all predefined PIM signals found on the Explorer 16/32 are connected due to the limited number of I/O pins available.
Table 1: dsPIC33CK256MC506 PIM Mapping
| PIM Pin # | Device Pin # ds | PIC33CK256MC506 I/Os Function | Explorer 16/32 Net Name | |
| 1 — P1_VBUS -NIC- | ||||
| 2 10, 19,25,41,57 V | DD/AVDD | VDD_PIM_VDD_PIM | ||
| 3 4 RP61/RC13 P3 LCDD5 P3 LCDD5 RC13 | ||||
| 4 5 RP82/RC14 P4 LCDD6 P4 LCDD6 RC14 | ||||
| 5 6 RP63/RC15 P5 LCDD7 P5 LCDD7_RC15 | ||||
| 6 | 62 | TCK/RP43/PWM3L/RB11 | P6 | P6_RB11 |
| 7 | 63 | TDI/RP44/PWM2H/RB12 | P7 | P7_RB12 |
| 8 — P6 | -N/C- | |||
| 9 — P9 | -N/C- | |||
| 10 | 50 | RP52/RC4 | P10_SCKA | P10_SCKA_RC4 |
| 11 | 51 | RP53/RC5 | P11_MISOA | P11_MISOA_RC5 |
| 12 | 24 | AN19/BIAS1/RP54/RC6 | P12_MOSIA | P12_MOSIA_RC6 |
| 13 | 7 MCLR | —— | P13_MCLR_P13_MCLR | |
| 14 | 2 RP47/PWM1L/RB15 P14_CSA | P14_CSA | P14_CSA_RB15 | |
| 15 9, 20,26,40,56 V | SS | GND | GND | |
| 16 | 10,19,25,41,57 V | DD/AVDD | VDD_PIM_VDD_PIM | |
| 17 | 60 | RP64/PWM4L/RD0 | P17_LED3 | P17_LED3_RD0 |
| 18 | 32 | AN7/SRC2/RP55/RC7 | P18_INTB | P18_INTB_RC7 |
| 19 | 52 | RP56/RC10_P19_RSTB P19_RSTB_RC | 0 | |
| 20 | 13 | AN12/RP45/RC0 | P20_POT_P20_POT_RC0 | |
| 21 | 23 | OA3IN-/AN14/CMP2B/ISRC1/RP50/RC2 | P21_TEMP | P21_TEMP_RC2 |
| 22 | 38 | RP73/PCI20/RD9 | P22 | P22_RD9 |
| 23 | 53 | RP59/RC11 | P23_CSB_P23_CSB_RC11 | |
| 24 | 27 | AN15/CMP2A/IBIAS2/RP51/RC3 | P24_ANB | P24_ANB_RC3 |
| 25 | 22 | OA3IN-/AN13/CMP1B/ISRC0/RP49/RC1 | P25_ANA_USBOC | P25_ANA_USBOC_RC1 |
| 26 | 35 | PGC2/OA2IN+/AN17/RP36/RB4 | P26_PGC | P26_PGC_RB4 |
| 27 | 34 | PGD2/OA2IN-/AN8/RP35/RB3 | P27_PGD | P27_PGD_RB3 |
| 28 | — — P28 | -N/C- | ||
| 29 | — — P29 | -N/C- | ||
| 30 | 10,19,25,41,57 V | DD/AVDD | VDD_PIM_VDD_PIM | |
| 31 9, 20,26,40,56 AV | SS | GND | GND | |
| 32 | — — P32 | CC2-N/C- | ||
| 33 | — — P33 | CC1-N/C- | ||
| 34 | — — P34 | -N/C- | ||
| 35 | — — P35 | -N/C- | ||
| 36 9, 20,26,40,56 V | SS | GND | GND | |
| 37 | 10,19,25,41,57 V | DD/AVDD | VDD_PIM_VDD_PIM | |
| 38 | 59 | RP65/PWM4H/RD1 | P38_LED4 | P38_LED4_RD1 |
| 39 | — — P39 | -N/C- | ||
| 40 | — — P40 | -N/C- | ||
| 41 | — — P41 | -N/C- | ||
| 42 | — — P42 | -N/C- | ||
| 43 | — — P43 | -N/C- | ||
| 44 | 18 | OA3OUT/AN4/IBIAS3/RA4 | P44_LCDRS | P44_LCDRS_RA4 |
| 45 | — — GND | GND | ||
| 46 | 10,19,25,41,57 V | DD/AVDD | VDD_PIM_VDD_PIM | |
| 47 | — — P47 | -N/C- | ||
| 48 | 16 | OA1IN-/AN9/RA2 | P48 | P48_RA2 |
| 49 | 21 | RP76/RD12_P49_RXB_P49_RXB_RD12 | ||
| 50 | 12 | ANN0/RP77/RD13 | P50_TXB | P50_TXB_RD13 |
Table 1: dsPIC33CK256MC506 PIM Mapping(Continued)
| PIM Pin # | Device Pin # | dsPIC33CK256MP508 I/Os | Function | Explorer 16/32 Net Name | |
| 51 | 11 | RP78/PCI21/RD14 | P51_TXA | P51_TXA_RD14 | |
| 52 | 6 | RP78/PCI22/RD15 | P52_RXA | P52_RXA_RD15 | |
| 53 | 39 | RP72/SDO2/PCI15/RD8 | P53_MOSIB | P53_MOSIB_RD8 | |
| 54 | 37 | RP57/ASCL1/SDI2/RC9 | P54_MISOB | P54_MISOB_RC9 | |
| 55 | 36 | RP56/ASDA1/SCK2/RC8 | P55_SCKB | P55_SCKB_RC8 | |
| 56 | 49 | PGC1/AN11/RP41/SDA1/RB9 | P56_SDA | P56_SDA_RB9 | |
| 57 | 48 | PGD1/AN10/RP40/SCL1/RB8 | P57_SCL | P57_SCL_RB8 | |
| 58 58 | RP60/RD2 | P58_LED6 | P58_LED5_RD2 | ||
| 59 55 | RP67/RD3 | P59_LED6 | P59_LED6_RD3 | ||
| 60 54 | RP68/RD4 | P60_LED7 | P60_LED7_RD4 | ||
| 61 44 | RP59/RD5 | P61_LED8 | P61_LED8_RD5 | ||
| 62 | — | — | VDD_PIM_VDD_PIM | ||
| 63 28 | OSC1/CLKI/AN5/RP32/RB0 P63_OSCI | P63_OSCI_RB0 | |||
| 64 | 29 | OSCO/CLKO/AN6/RP33/RB1 | P64_OSCO | P64_OSCO_RB1 | |
| 65 | 9.20,26,40,56 | Vss | GND | GND | |
| 66 61 | TMS/RP4 | P/PWM3H/RB10 | P65 | P65_RB10 | |
| 67 | 33 | OA2OUT/AN1/CMP1D/CMP2D/RP34/INT0/RB2 | P67_INTA | P67_INTA_RB2 | |
| 68 | — | — | P68 | -N/C- | |
| 69 | — | — | P69 | -N/C- | |
| 70 | — | — | P70 | -N/C- | |
| 71 | — | — | P71 | -N/C- | |
| 72 | 64 | RP45/PWM2L/RB13 | P72_PWMA | P72_PWMA_RB13 | |
| 73 | — | — | P73_SOSCI | -N/C- | |
| 74 | — | — | P74_SOSCO | -N/C- | |
| 75 | 9.20,26,40,56 | Vss | GND | GND | |
| 76 | — | — | P76 | -N/C- | |
| 77 | — | — | P77 | -N/C- | |
| 78 | 1 | RP46/PWM1H/RB14 | P78_PWMB | P78_PWMB_RB14 | |
| 79 | 15 | OA1N-/AN16/RA1 | P79_EECS | P79_EECS_RA1 | |
| 80 46 | PGC3/RF | 38/RB6 | P80_S4 | P80_S4_RB6 | |
| 81 | 17 | DACOUT1/AN3/CMP1C/RA3 | P81_LCDE | P81_LCDE_RA3 | |
| 82 | — | To Vss via R1 (1k) | P82_LCDRW | P82_LCDRW | |
| 83 45 | PGD3/RF | 37/RB5 | P83_S3 | P83_S3_RB5 | |
| 84 | 47 | TDC/AN2/RP39/RB7 | P84_S6 | P84_S6_RB7 | |
| 85 | — | — | P85_VDDCORE | -N/C- | |
| 86 | — | — | P86_ENVREG | -N/C- | |
| 87 31 | AN18/ISR | C3/RP74/RD10 | P87 | P87_RD10 | |
| 88 30 | CMP2C/RF | P75/RD11 | P86 | P86_RD11 | |
| 89 | — | — | P89_USBDN | -N/C- | |
| 90 | — | — | P89_USBDP | -N/C- | |
| 91 43 | RP70/RD6 | P91_LED9 | P91_LED9_RD6 | ||
| 92 | 42 | RP71/RD7 | P92_S5_LED10 | P92_S5_LED10_RD7 | |
| 93 | — | — | P93_LCDD0 | -N/C- | |
| 94 | — | — | P94_LCDD1 | -N/C- | |
| 95 | 14 | OA1OUT/AND/CMP1A/IBIASO/RAD | P95_RSTA | P95_RSTA_RA0 | |
| 96 | — | — | P96_VBUSON | -N/C- | |
| 97 | — | — | P97 | -N/C- | |
| 98 | — | — | P98_LCDD2 | -N/C- | |
| 99 | — | — | P93_LCDD3 | -N/C- | |
| 100 | 3 | RP60/RC12 | P100_LCDD4 | P100_LCDD4_RC12 | |
Table 2: dsPIC33CK256MC506 PIC ^ MCU Mapping
| Device Pin # | PIM Pin # | dsPIC33CK256MP506 I/Os | Function | Explorer 16/32 Net Name | |
| 178 | RP46\PWM | 1HRB14 | P78_PWMB | P78_PWMB_RB14 | |
| 2 | 14 | RP47/PWM1L/RB15 | P14_CSA | P14_CSA_RB15 | |
| 3 | 100 | RP60/RC12 | P100_LCDD4 | P100_LCDD4_RC12 | |
| 4 | 3 | RP61/RC13 | P3_LCDD5 | P3_LCDD5_RC13 | |
| 5 | 4 | RP62/RC14 | P4_LCDD6 | P4_LCDD6_RC14 | |
| 6 | 5 | RP63/RC15 | P5_LCDD7 | P5_LCDD7_RC15 | |
| 7 | 13 | MCLR | P13_MCLR | P13_MCLR | |
| 852 | RP79\PCI2 | RD15 | P52_RXA | P52_RXA_RD15 | |
| 9 | 15,31,36,65,75 | Vss | GND_GND | ||
| 10 | 2.16,30,37,46 | Vpp | VDD_PIM_VDD_PIM | ||
| 11 | 51 | RP78\PCI21/RD14 | P51_TXA | P51_TXA_RD14 | |
| 12 | 50 | ANN0\RP77/RD13 | P50_TXB | P50_TXB_RD13 | |
| 1320 | AN12\RP48 | RRC0 | P20_POT | P20_POT_RC0 | |
| 14 | 95 | OA1OUT\AN0\CMP1A\IBIAS0\RA0 | P95_RSTA | P95_RSTA_RA0 | |
| 15 | 79 | OA1IN-/AN16\RA1 | P79_EECS | P79_EECS_RA1 | |
| 1648 | OA1IN+/AN0\RA2 | P48 | P48_RA2 | ||
| 17 | 81 | DACOUT1\AN3\CMP1C\RA3 | P81_LCDE | P81_LCDE_RA3 | |
| 18 | 44 | OA3OUT\AN4\IBIAS3\RA4 | P44_LCDRS | P44_LCDRS_RA4 | |
| 19 | 2.16,30,37,46 | AVpp | VDD_PIM_VDD_PIM | ||
| 20 | 15,31,36,65,75 | AVss | GND_GND | ||
| 2149 | RP76/RD12 | P49_RXB | P49_RXB_RD12 | ||
| 22 | 25 | OA3IN-/AN13\CMP1B\ISRC0\RP49\RC1 | P25_ANA_USBOC | P25_ANA_USBOC_RC1 | |
| 23 | 21 | OA3IN-/AN14\CMP2B\ISRC1\RP50\RC2 | P21_TEMP | P21_TEMP_RC2 | |
| 24 | 12 | AN19\IBIAS1\RP54\RC6 | P12_MOSIA | P12_MOSIA_RC6 | |
| 25 | 2.16,30,37,46 | Vpp | VDD_PIM_VDD_PIM | ||
| 26 | 15,31,36,65,75 | Vss | GND_GND | ||
| 2724 | AN15\CMF | 2A\IBIAS2\RP51\RC3 | P24_ANB | P24_ANB_RC3 | |
| 28 | 63 | OSCI\CLK1\AN5\RP32\RB0 | P63_OSCI | P63_OSCI_RB0 | |
| 29 | 64 | OSCO\CLK0\AN6\RP33\RB1 | P64_OSCO | P64_OSCO_RB1 | |
| 3088 | CMP2C\IR | P75/RD11 | P88 | P88_RD11 | |
| 31 | 87 | AN18\SRC3\RP74/RD10 | P87 | P87_RD10 | |
| 32 | 18 | AN7\SRC2\RP55\RC7 | P18_INTB | P18_INTB_RC7 | |
Table 2: dsPIC33CK256MC506 PIC ^ MCU Mapping (Continued)
| Device Pin # | PIM Pin # | dsPIC33CK256MP508 IOs Function | Explorer 16/32 Net Name | |
| 33 67 | OA2OUTIAN1/CMP | D:\CMP2D\RP34\INT0/RB2 P67_INTA P67_INTA_RB2 | ||
| 34 27 | PGD2/OA2IN-/AN8R | RP35/RB3 P27 PGD P27 PGD_RB3 | ||
| 35 26 | PGC2/OA2IN+/AN17 | RP36/RB4 P26_PGC P26_PGC_RB4 | ||
| 36 55 | RP56/ASDA1/SCK2 | RC8 P55_SCKB P55_SCKB_RC8 | ||
| 37 54 | RP57/ASCL1/SDI2 | RC9 P54_MISOB P54_MISOB_RC9 | ||
| 38 22 | RP73/PCI20/RD9 P22 | P22_RD9 | ||
| 39 53 | RP72/SDO2/PCI19/RD8 | P53_MOSIB P53_MOSIB_RD8 | ||
| 40 | 15,31,36,65,75 | Vss | GND GND | |
| 41 | 2,16,30,37,46 | VDD | VDD_PIM VDD_PIM | |
| 42 92 | RP71/RD7 | P92_S5_LED10 | P92_S5_LED10_RD7 | |
| 43 91 | RP70/RD6 | P91_LED9 | P91_LED9_RD6 | |
| 44 01 | RP69/RD6 | P61_LED8 | P61_LED8_RD5 | |
| 45 83 | PGD3/RP37/RB5 | P63_S3 | P63_S3_RB5 | |
| 46 80 | PGC3/RP38/RB6 | P60_S4 | P60_S4_RB6 | |
| 47 84 | TDO/AN2/RP39/RB7 | P84_S6 | P84_S6_RB7 | |
| 48 57 | PGD1/AN10/RP40/SCL1/RB8 | P57_SCL | P57_SCL_RB8 | |
| 49 56 | PGC1/AN11/RP41/S | DA1/RB9 P56_SDA P56_SDA_RB9 | ||
| 50 10 | RP52/RC4 | P10_SCKA P10_SCKA_RC4 | ||
| 51 | 11 | RP53/RC5 | P11_MISOA | P11_MISOA_RC5 |
| 52 19 | RP58/RC10 | P19_RSTB | P19_RSTB_RC10 | |
| 53 23 | RP59/RC11 | P23_CSB | P23_CSB_RC11 | |
| 54 60 | RP68/RD4 | P60_LED7 | P60_LED7_RD4 | |
| 55 59 | RP67/RD3 | P59_LED6 | P59_LED6_RD3 | |
| 56 | 15,31,36,65,75 | Vss | GND GND | |
| 57 | 2,16,30,37,46 | VDD | VDD_PIM VDD_PIM | |
| 58 58 | RP56/RD2 | P58_LED5 | P58_LED5_RD2 | |
| 59 38 | RP65/PWM4H/RD1 | P38_LED4 | P38_LED4_RD1 | |
| 60 17 | RP64/PWM4L/RD0 | P17_LED3 | P17_LED3_RD0 | |
| 61 06 | TMS/RP42/PWM3H/RB10 | P66 | P66_RB10 | |
| 62 | 6 | TCK/RP43/PWM3L/RB11 | P6 | P6_RB11 |
| 63 | 7 | TDWRP44/PWM2H/RB12_P7 | P7_RB12 | |
| 64 72 | RP45/PWM2L/RB13 | P72_PWMA | P72_PWMA_RB13 |
Schematic Rev. 2.0
dsPIC33CK256MC506 General Purpose PIM
