BRUKSANVISNING MTB-5PSSKR Micro Matic

• Distinctive spun metal style – adds a classic touch.
• The draft tower is a marketing tool, not just a bar fixture.
• Commanding presence on the bar top.
• All stainless steel contact with the beer for the ultimate in draft purity.

Stainless steel pour dispenser with three vertical valves and a base, no visible text or symbols on the device itself.

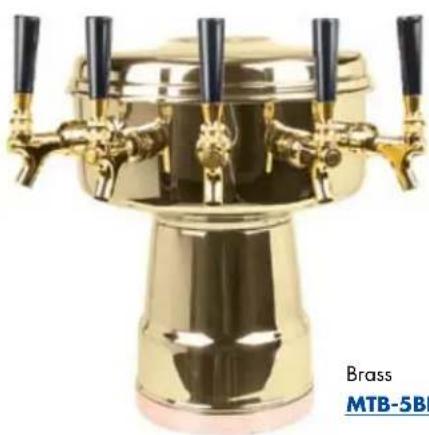

Close-up of a brass water tap shaker with three black valves (no text or symbols visible)

Brass
MTB-5BRKR

Features

Certified

by the National

Sanitation Foundation.

Stainless Steel

beer contact for the pure

taste of fresh draft beer.

The integrated Kool-Rite module provides

optimum cooling at the point of dispense.

Modular construction makes the installation

process as simple as PLUG "N" POUR.

Part No. Faucets Finish Dispense System Shipping Weight Box Dimensions

MTB-5PSSKR*	5	Polished S/S	Kool-Rite (Glycol)	15 kg	1245mm L x 610mm W x 356mm H
				34 lbs	40"L x 24"W x 21"L
MTB-5BRKR*	5	Brass	Kool-Rite (Glycol)	15 kg	1245mm L x 610mm W x 356mm H
				34 lbs	40"L x 24"W x 21"L

Certified

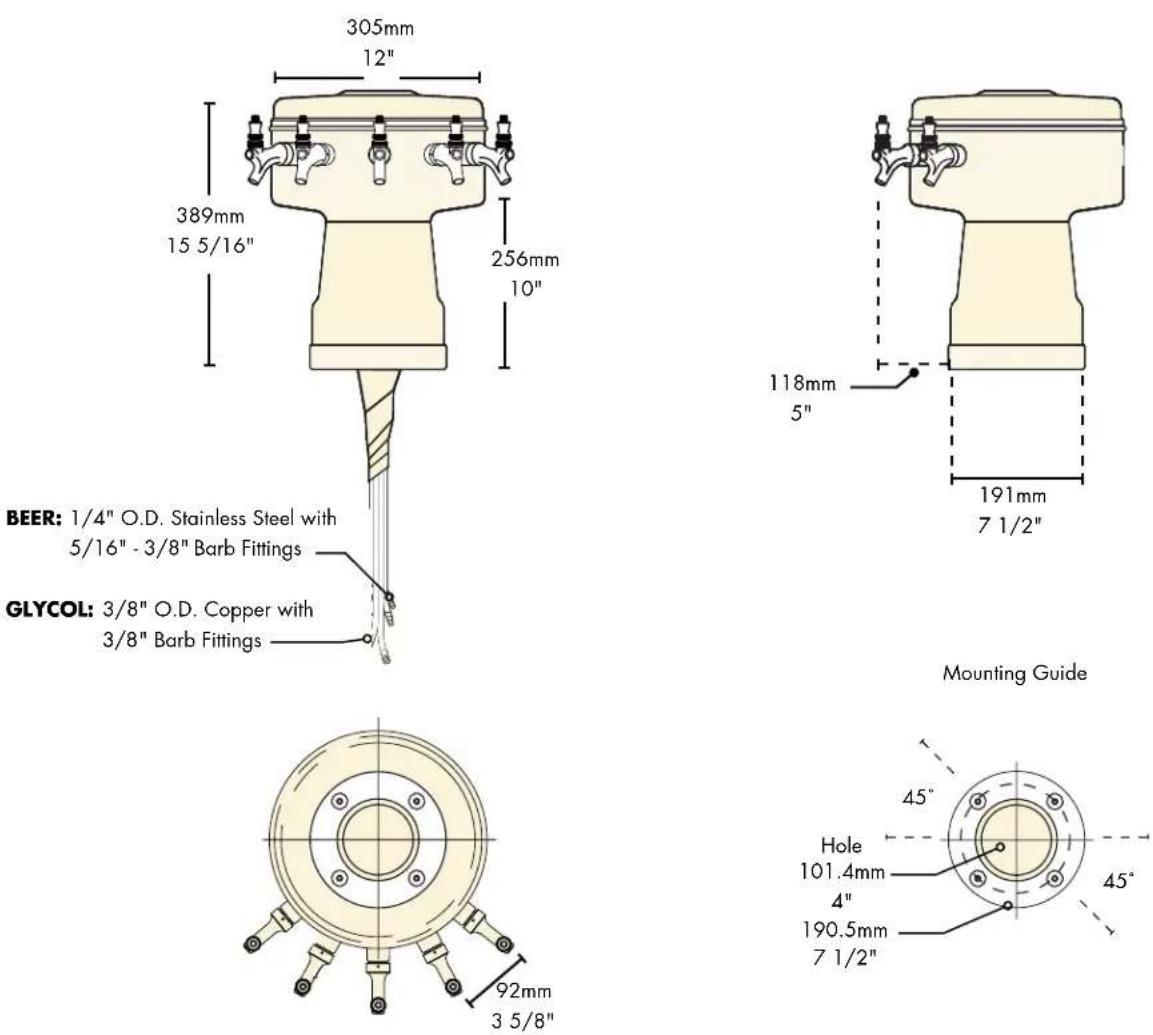

Dimensions
