BRUKSANVISNING DP-MET-H-40GR-Z Micro Matic

SURFACE MOUNT SERIES WITH CUTOUT 8 1/2" X 40"

  • Designed specifically for Metropolis H draft towers
  • Add European style while creating dispense excitement
  • Condition the glass before pouring - invert glass, push down on sprayer for cold water rinsing
  • Robust 18 gauge stainless steel construction

Micro Matic DP-MET-H-40GR-Z - SURFACE MOUNT SERIES WITH CUTOUT 8 1/2" X 40" - 1

natural_image Metal perforated plate with circular holes and a circular hole on the right side (no text or symbols visible)

DP-MET-H-40GR-Z
Stainless Steel

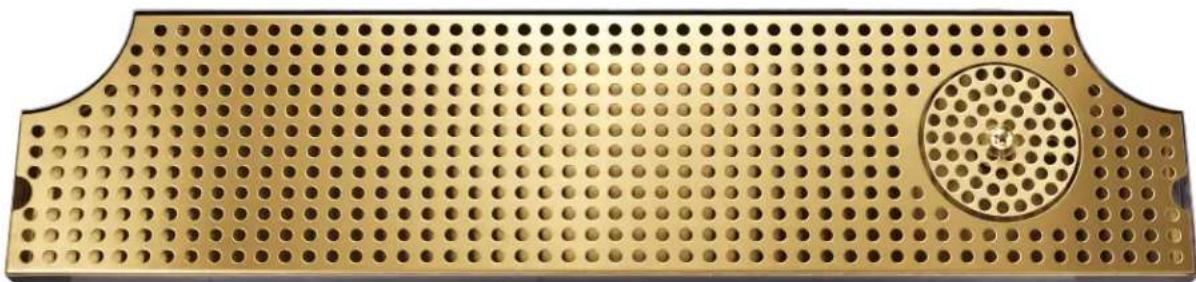

Micro Matic DP-MET-H-40GR-Z - SURFACE MOUNT SERIES WITH CUTOUT 8 1/2" X 40" - 2

natural_image Metal perforated plate with a circular vent, no text or symbols visible

DP-MET-H-PVD-40GR-Z
PVD Brass / Stainless Steel

Micro Matic DP-MET-H-40GR-Z - SURFACE MOUNT SERIES WITH CUTOUT 8 1/2" X 40" - 3

NSF Certified

(Rinser Only)

www.micromatic.com • 1 (866) 327-4159

SURFACE MOUNT SERIES DRIP TRAY

Part No.DimensionsFinishShipping Weight
DP-MET-H-40GR-Z8 1/2"W x 40"L x 3/4"H Stainless SteelTBD
TBD
DP-MET-H-PVD-40GR-Z8 1/2"W x 40"L x 3/4"H PVD Brass / Stainless SteelTBD
TBD

Rinser Water Inlet Installation

• Always check local plumbing codes first
• Install in-line water regulator set at 15 PSI from the street water supply (no greater, perfect operating pressure)
• Install in-line one way check valve from the street water supply (prevents pressure drop which can cause leaking)
• Install in-line shut off for the rinser system from the street water supply (this must be turned off nightly)
- If teed into soda system make sure system can handle the increased water demand. Have plumber install a 45° 1/2" O.D. barb for the drains if line is not hard plumbed into the system.
• Install a shut off for the rinser water supply if line is not hard plumbed into the system

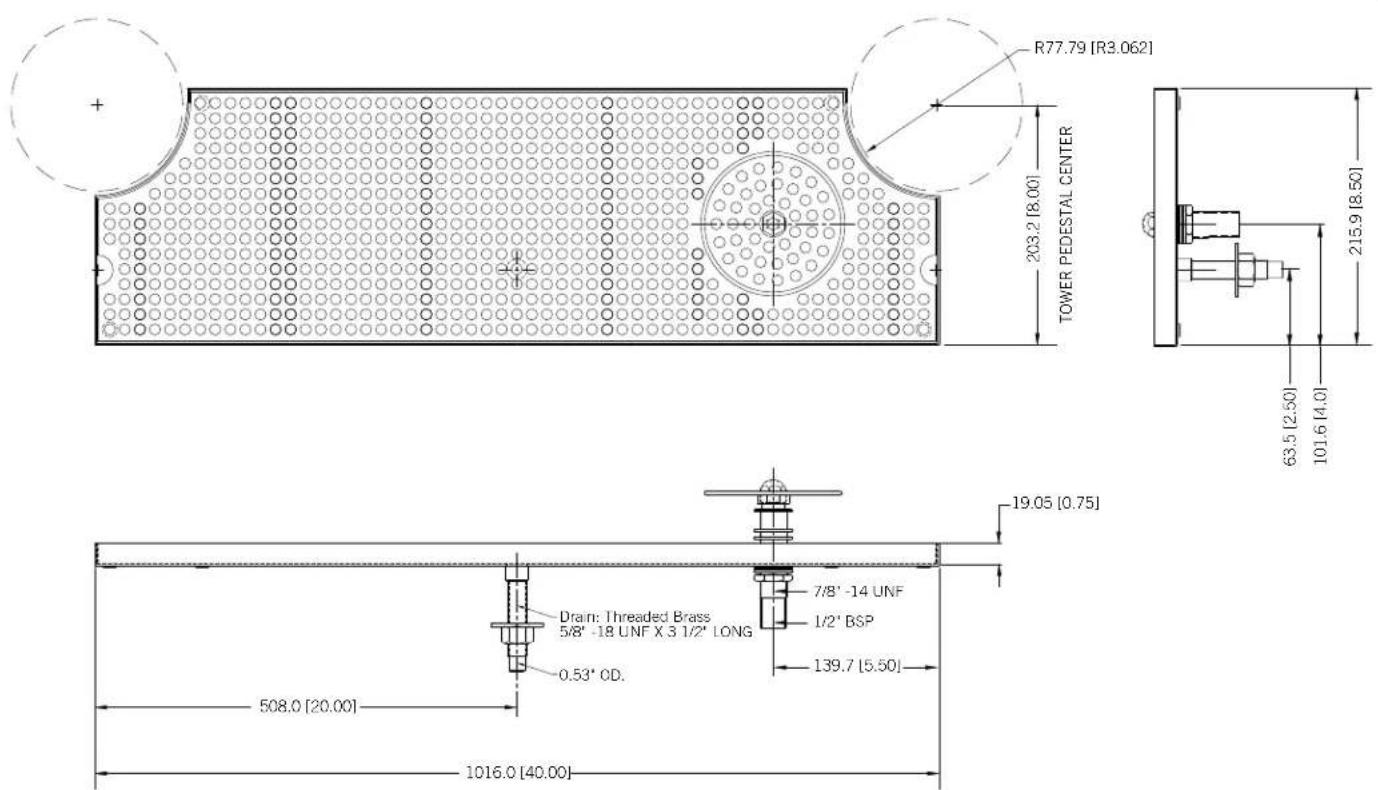

Dimensions

R77.79 [R3.062] TOWER PEDESTAL CENTER 203.2 [8.00] 215.9 [8.50] 63.5 [2.50] 101.6 [4.0] Drain: Threaded Brass 5/8" -18 UNF X 3 1/2" LONG 7/8" -14 UNF 1/2" BSP 0.53" OD. 19.05 [0.75] 139.7 [5.50] 508.0 [20.00] 1016.0 [40.00]

Micro Matic DP-MET-H-40GR-Z - Dimensions - 2

MICRO MATIC

Micro Matic DP-MET-H-40GR-Z - Dimensions - 3

Toll-Free: 1-866-327-4159

www.micromatic.com

West

19791 Bahama St.

Northridge, CA 91324

Tel. (818) 701-9765

Fax. (818) 701-9844

Central

10726 North Second St.

Machesney Park, IL 61115

Tel. (815) 968-7557

Fax. (815) 968-0363

Southeast

2386 Simon Ct.

Brooksville, FL 34604

Tel. (352) 799-6331

Fax. (352) 796-2429

Northeast

4601 Saucon Creek Rd.

Center Valley, PA 18034

Tel. (610) 625-4464

Fax. (610) 625-4466
