BRUKSANVISNING PLP-V4X2 Peerless-AV
Installation and Assembly - Adapter Bracket for VESA® 400 x 200 Screens
Model: PLP V4X2
IMPORTANT! Read instruction sheet before you start installation and assembly.
Before you start make sure all parts listed are included with your product.
This product is UL Listed. It must be installed by a qualified professional installer.
Parts List
| Description | Qty | Part # | |
| A | adapter bracket | 1 | 201-1589 |
| B | spacer | 4 | 540-9416 |
| C | M6 x 12 mm socket pin serrated washer head screw | 4 | 510-1050 |
| D | 4 mm allen wrench | 1 | 560-9646 |
| E | M6 x 20 mm socket pin serrated washer head screw | 4 | 510-9554 |
| F | M5 x 12 mm socket pin serrated washer head screw | 4 | 510-1064 |
| G | M4 x 12 mm socket pin serrated washer head screw | 4 | 510-1079 |
| H | M5 x 10 mm socket pin screw | 4 | 520-1063 |
| I | washer | 4 | 580-1036 |
| J | M8 x 15 mm socket pin security bolt | 4 | 520-1068 |
J
B
C
F
E
G
Used with specific mounts only
H
WARNING
- Do not overtighten! Overtightening may cause permanent damage to the screen. Torque to 26-35 in • lb (30-40 kg • cm).

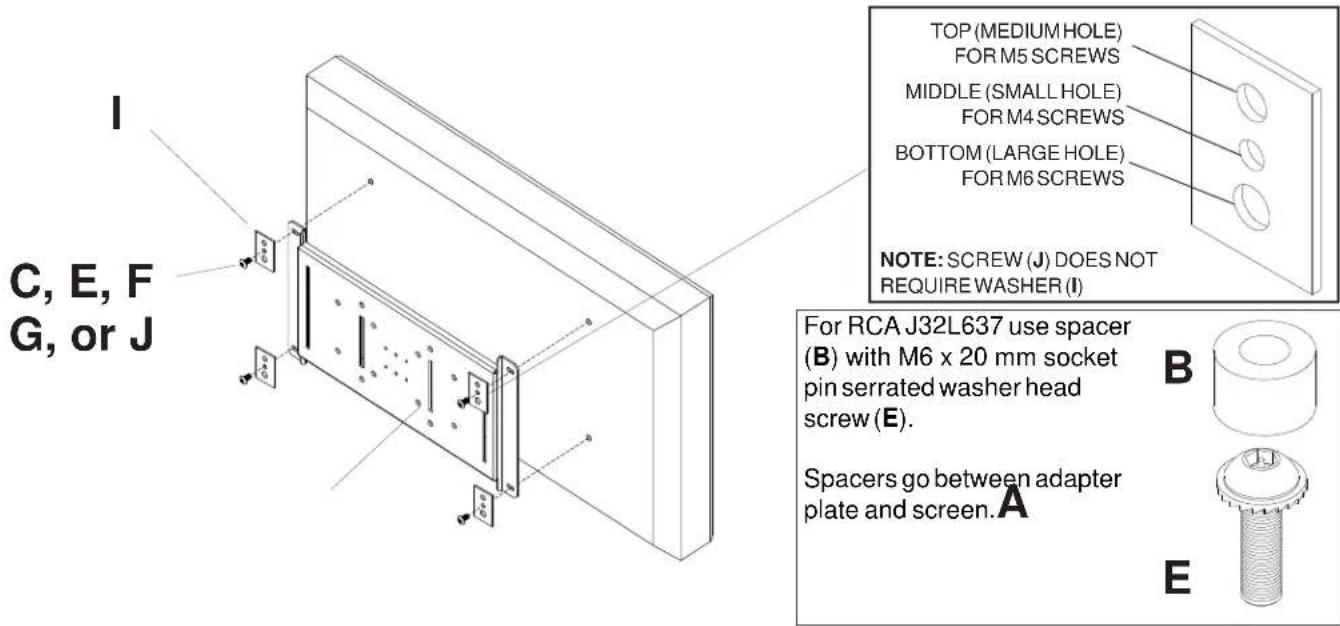

Begin with shortest length screw (C, F, G, or J), hand thread through washer (I) and adapter plate into screen as shown below. Screw must make at least three full turns into screen insert and fit snug into place. Do not over tighten. If screw cannot make three full turns into screen insert, select a longer length screw (E). Repeat for remaining holes. If you have any questions, please call Peerless customer care at 1-800-865-2112.
