BRUKSANVISNING DST940-BTB Peerless-AV

peerless-AV®

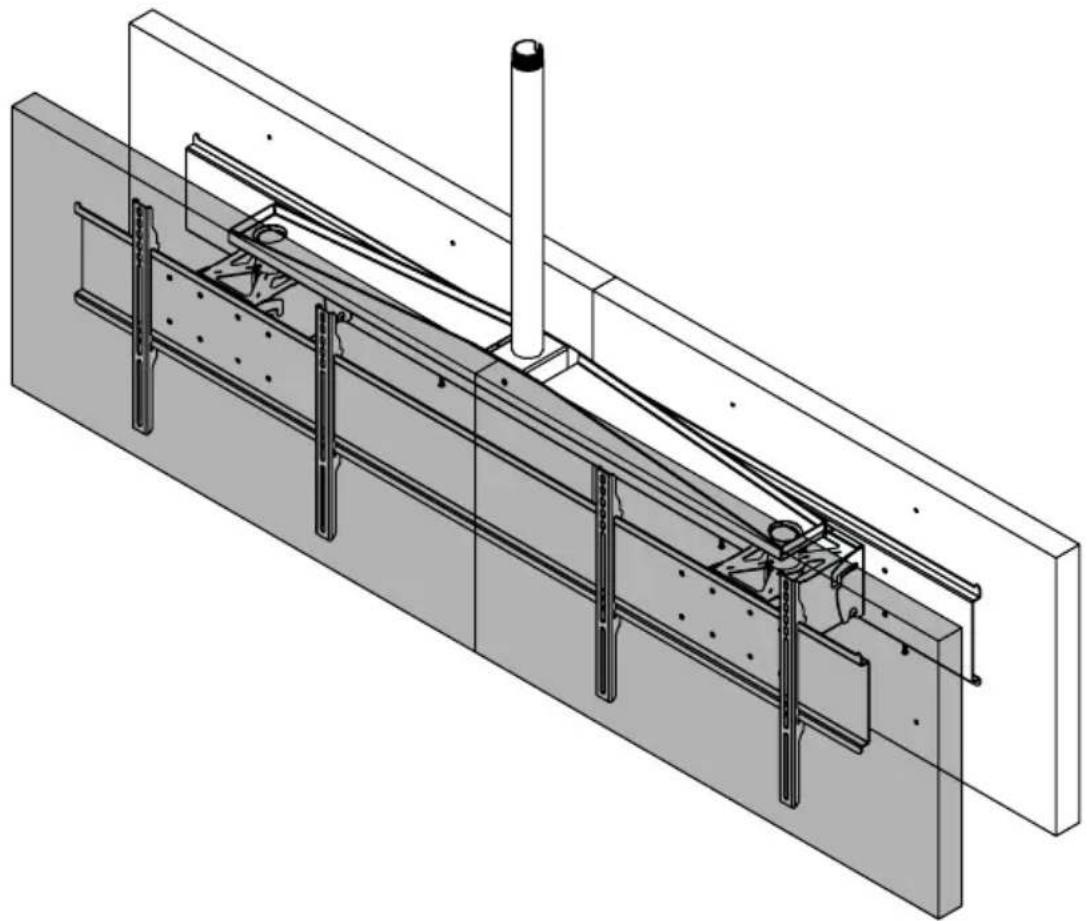

DST940-BTB

37" - 46" (94 - 117 cm)

75 lb x4 (34 kg) x4

Technical line drawing of a structural assembly with beams, columns, and a pipe (no text or symbols)

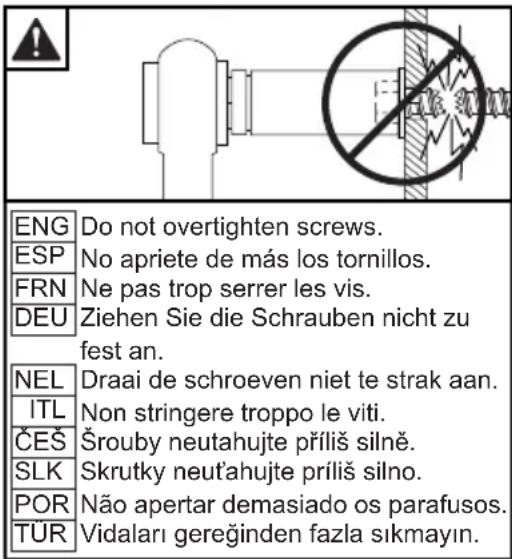

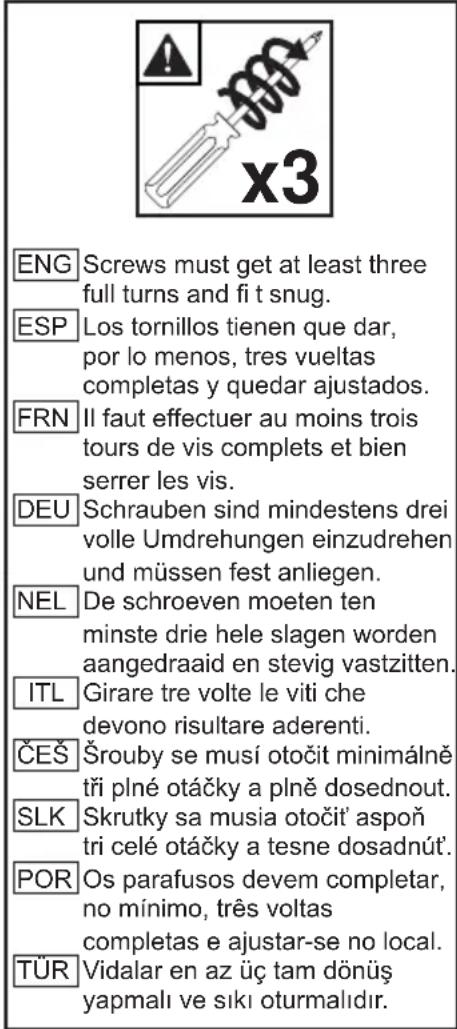

WARNING

ENG - Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury. For support please call customer care at 1-800-865-2112.

Parts List
PLB-1
Part #Description

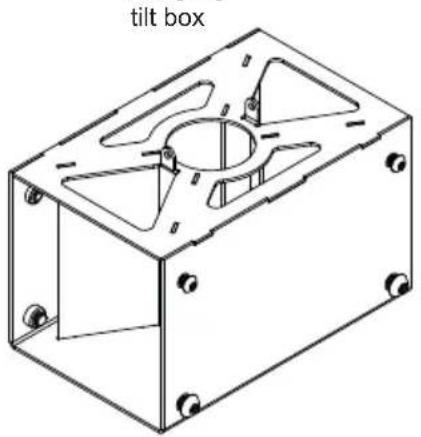

A tilt box 2 100-1128
B tilt plate 4 100-1047

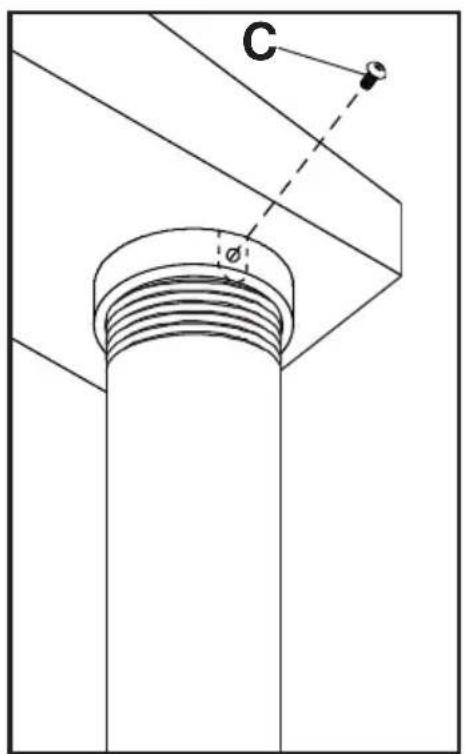

C M5 x 12mm socket pin screw 8 520-1064
D washer 2 540-9432
E retaining collar 3 1800-375

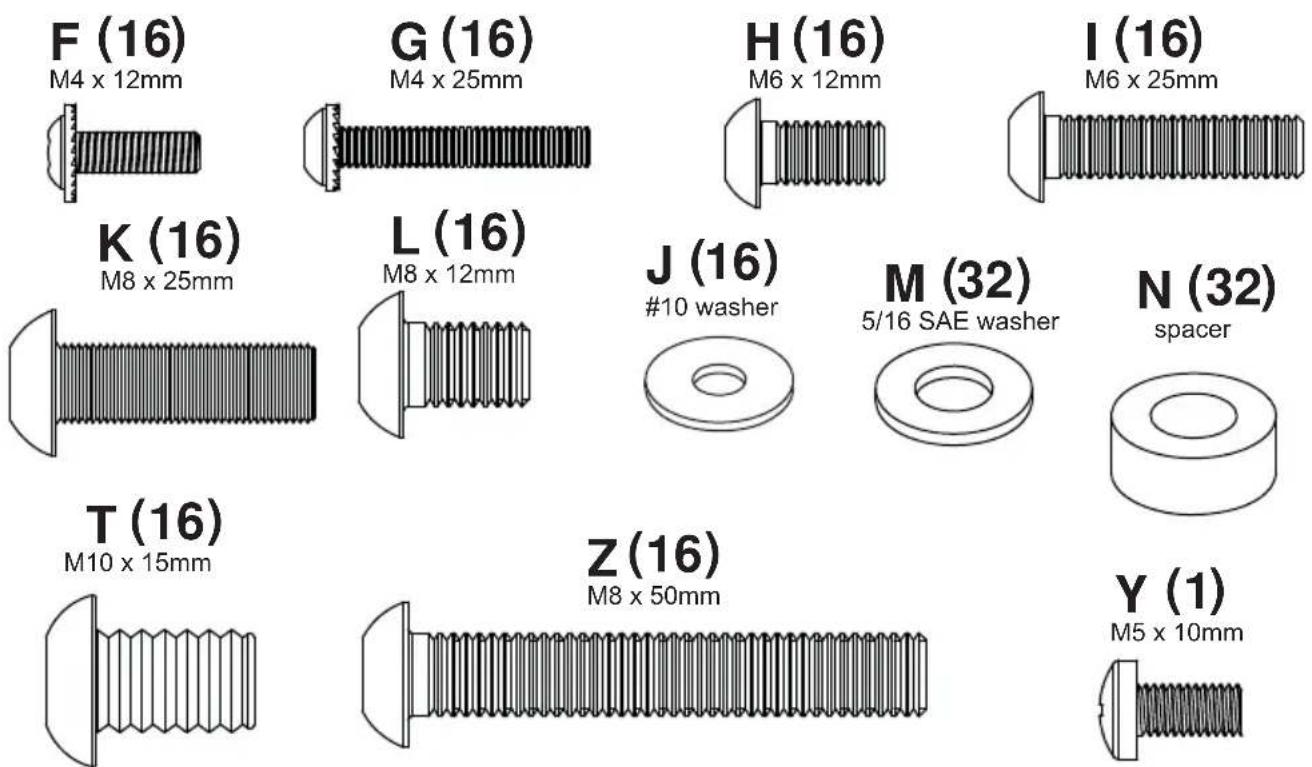

F M4 x 12mm socket pin serrated washer screw 16 520-1079
G M4 x 25mm socket pin serrated washer screw 16 520-1082
H M6 x 12mm socket pin screw 16 520-1050
I M6 x 25mm socket pin screw 16 520-1211
J #10 washer	16 540-9400
K M8 x 25mm socket pin screw 16 520-1101
L M8 x 12mm socket pin screw 16 520-1724
M 5/16 SAE washer	32 540-9406
N spacer	32 600-1215

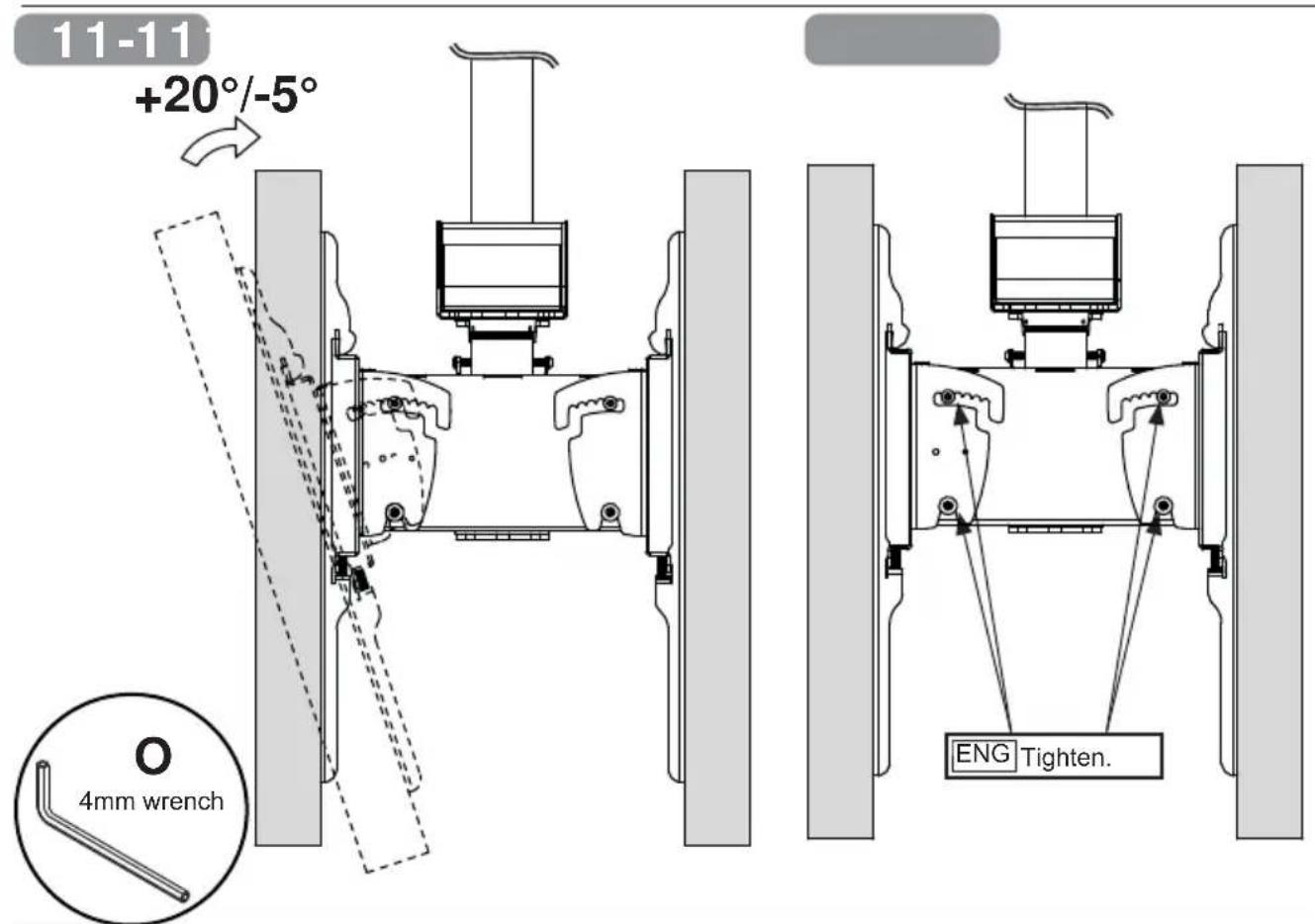

O 4mm allen wrench	1 560-9646
P 6" extension column	2 026-1014

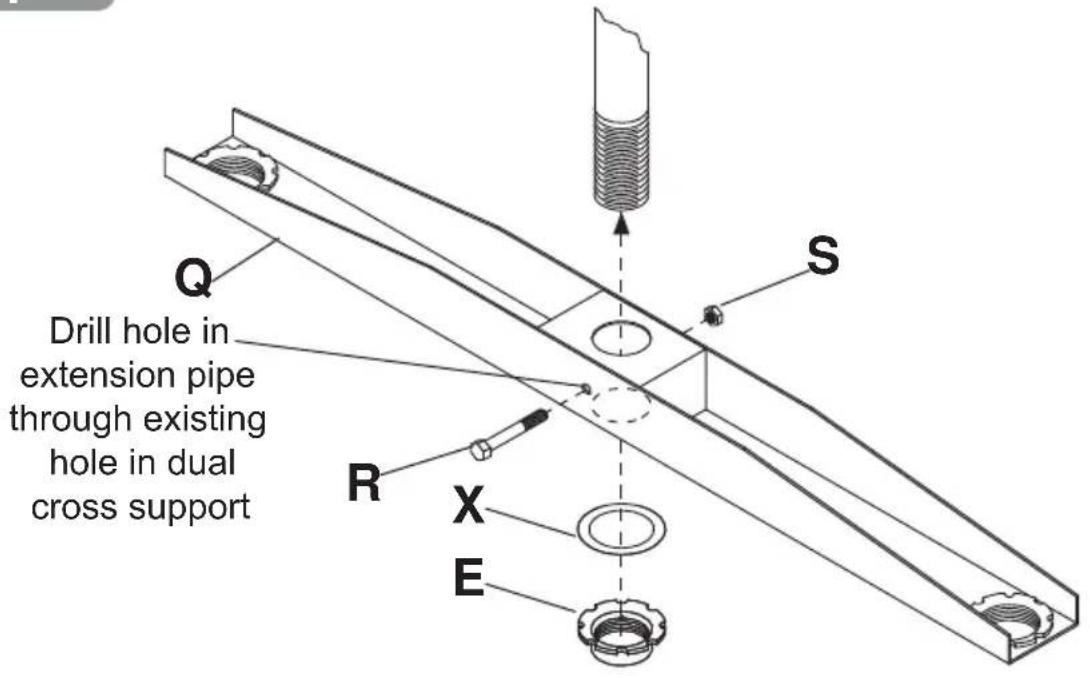

Q dual cross support	1 139-1015
R 4.5" hex bolt	1 520-9548
S 3/8"-16 nylock nut	1 530-9310
T M10 x 15mm penta pin screw	16 520-9263
U adapter bracket	8 202-1655
V M10 x 2" tool driver penta pin	1 520-9260

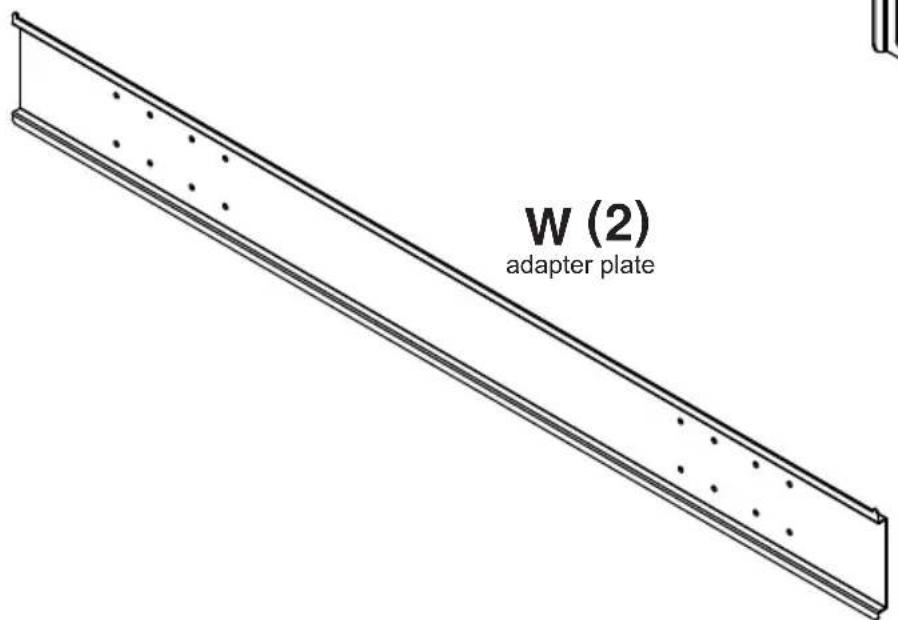

W adapter plate	2 125-1545
X fiber washer	1 540-9431
Y M5 x 10mm phillips screw	1 520-9250
Z M8 x 50mm socket pin screw 16 521-1013

A (2)

Isometric line drawing of a rectangular mechanical part with internal cavities and mounting holes (no text or symbols)

S(1)

nylock nut

C (8)

M5 x 12mm screw

B (4)
tilt plate

Technical line drawing of a mechanical bracket with mounting holes and internal cavity (no text or symbols)

X (1)

Fiber washer

Simple line drawing of two concentric ovals (no text or symbols)

D (2)

washer

P (2)
extension column

Pure mechanical component diagram with no text, numbers, or symbols

retaining collar

Q (1)
cross support

Technical line drawing of a mechanical bracket with two circular holes and a central hole (no text or symbols)

V (1)

U (8)
adapter bracket

R (1)
hex boltM10 penta pin t

Line drawing of a hexagonal bolt with threaded shaft (no text or symbols)

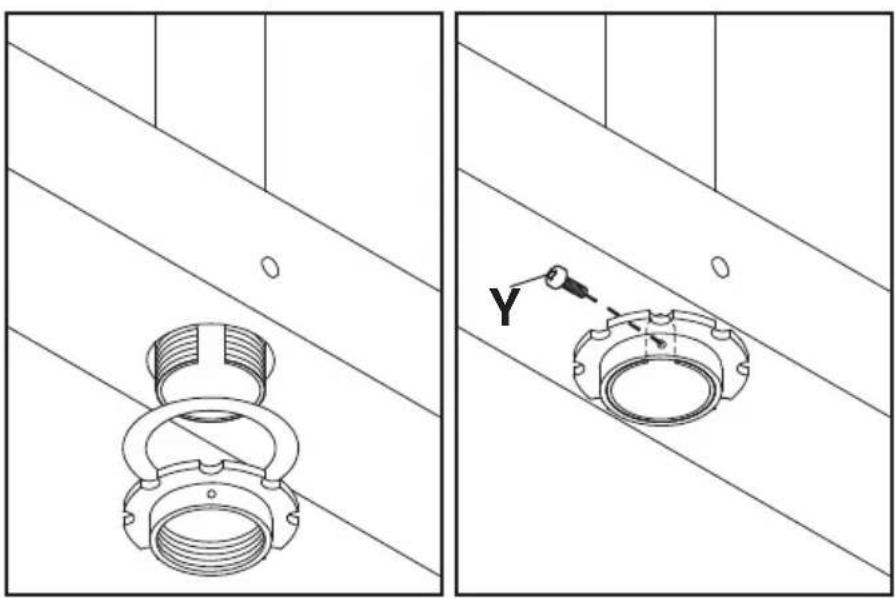

1

Technical line drawing of a mechanical component with two views: top shows threaded ring assembly, bottom shows flanged circular housing with a Y-shaped tool (no text or symbols)

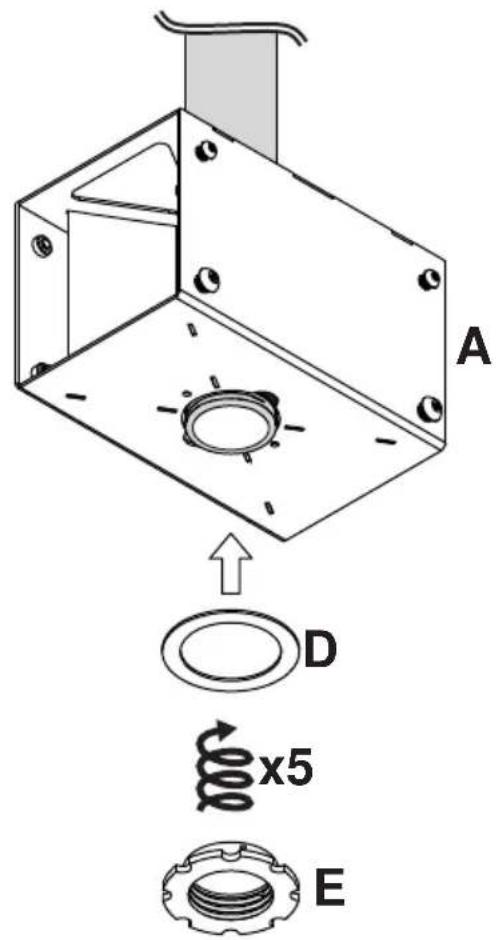

2

x2

Technical diagram of a mechanical spring assembly with threaded base and housing (no text or symbols)

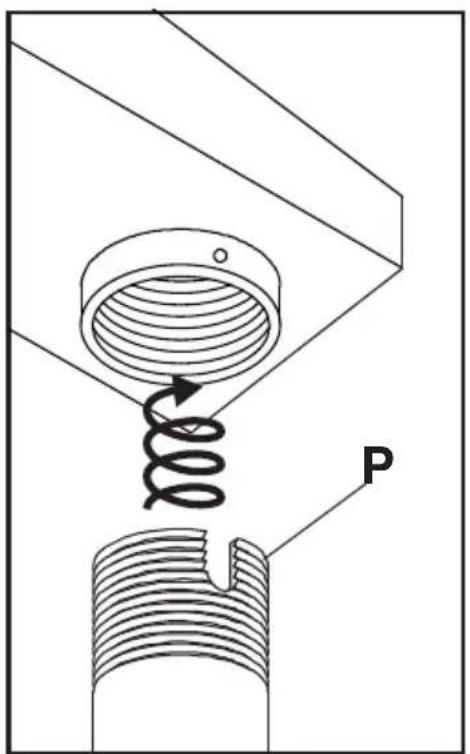

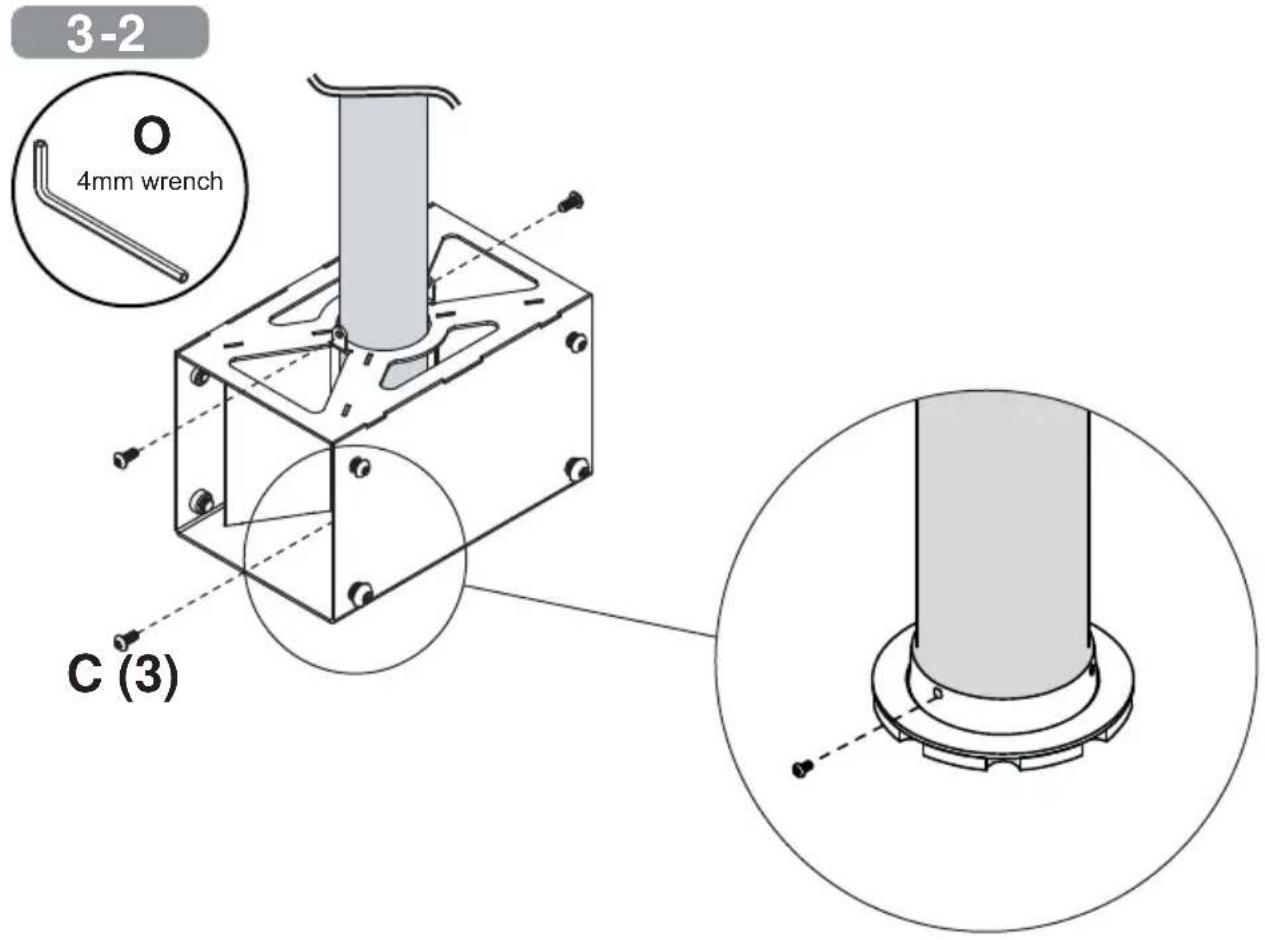

3-1

x2

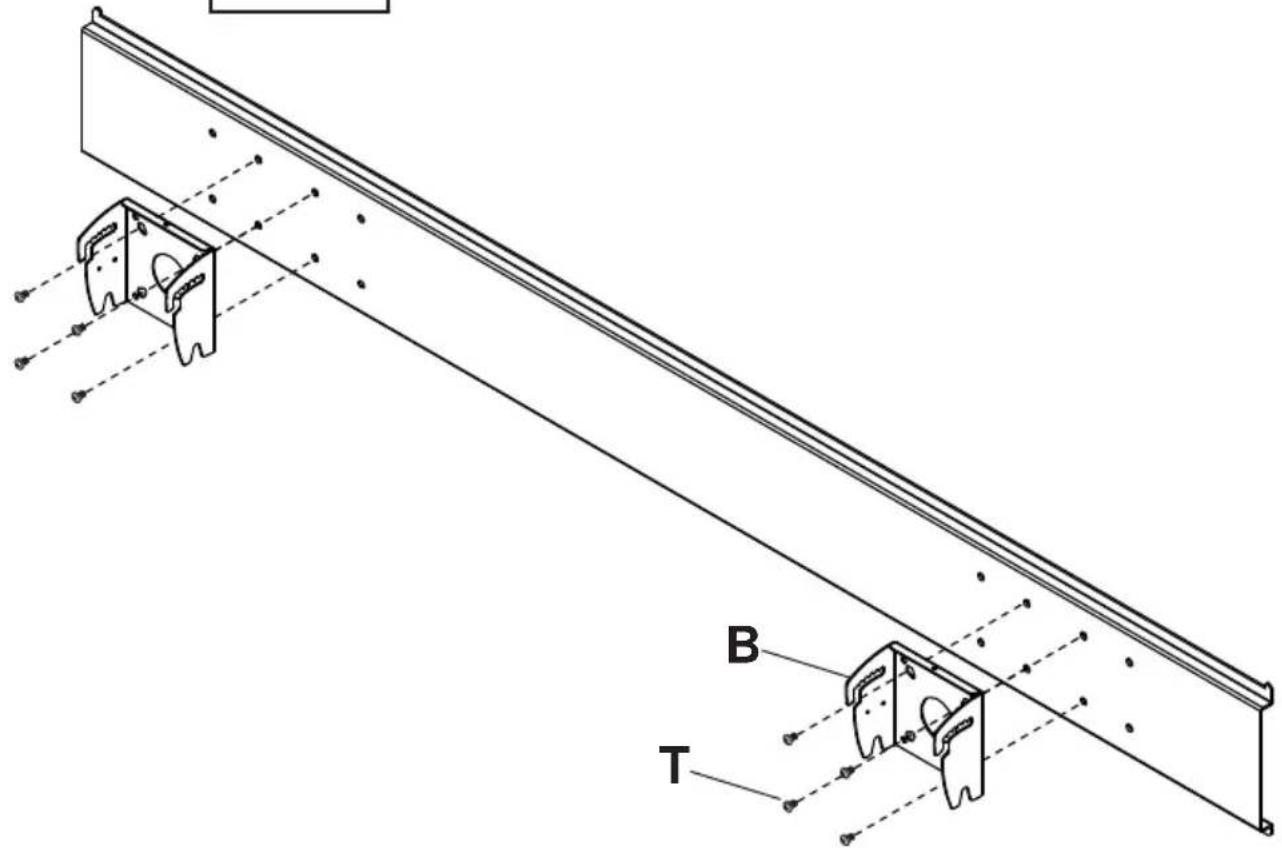

4
x2

5

Technical line drawing of a mechanical assembly with no visible text or symbols

6

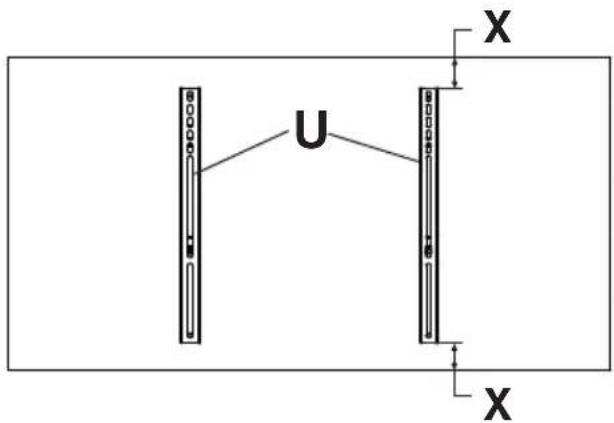

Center adaptor brackets vertically on back of screen.

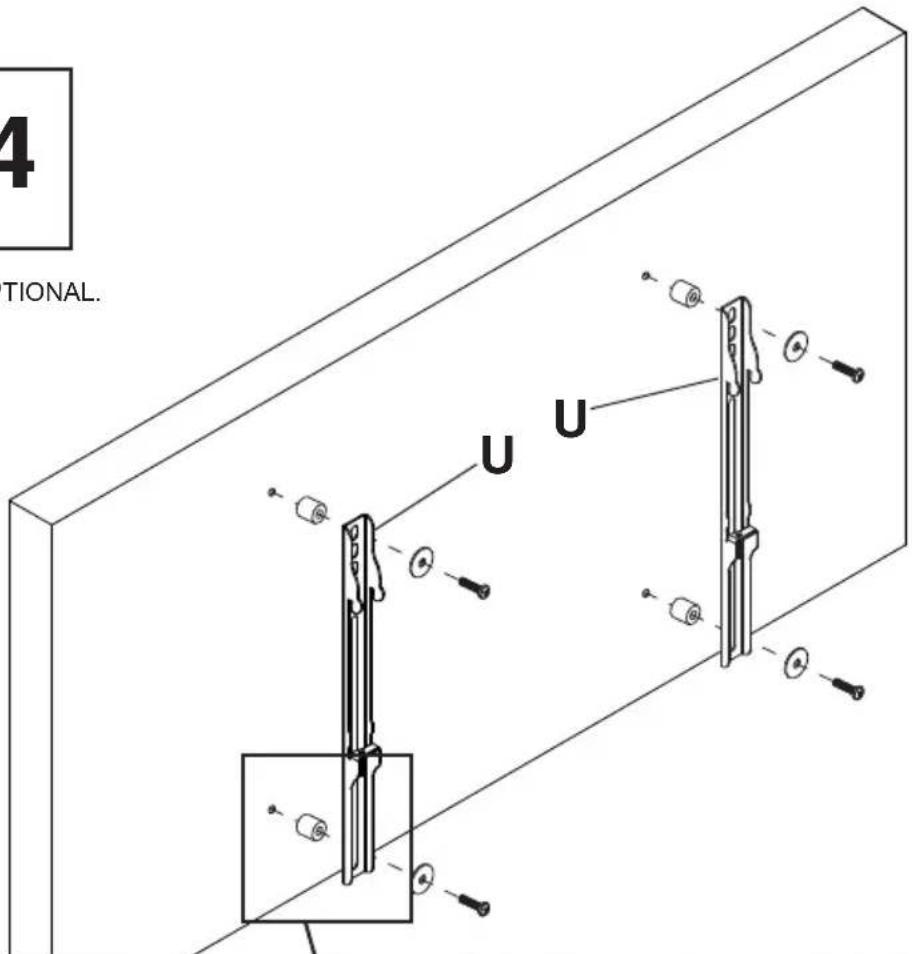

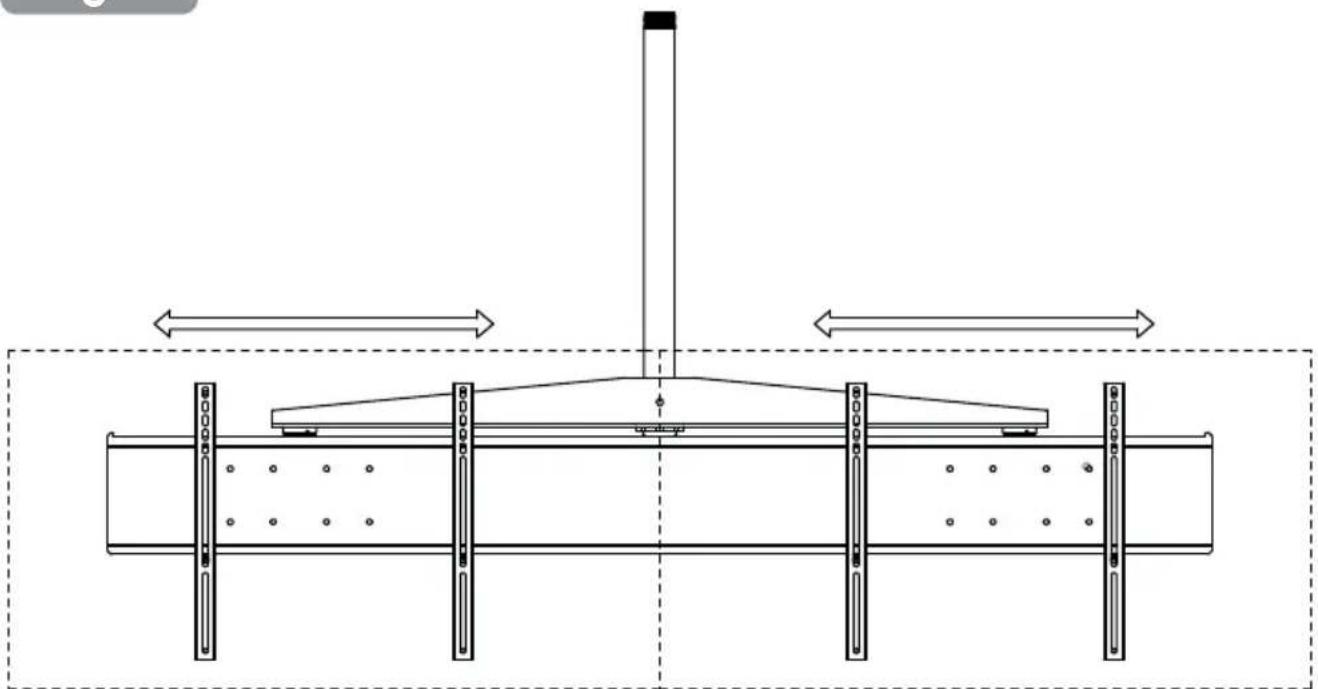

7

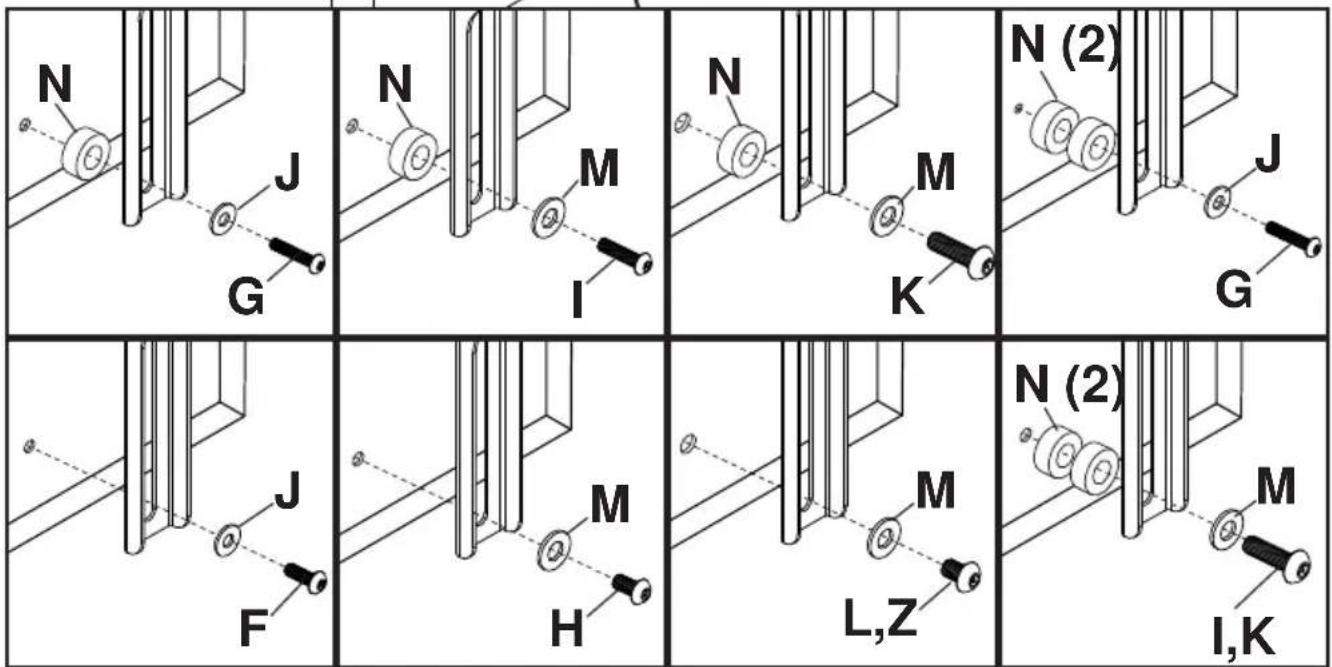

Use of spacers is OPTIONAL.

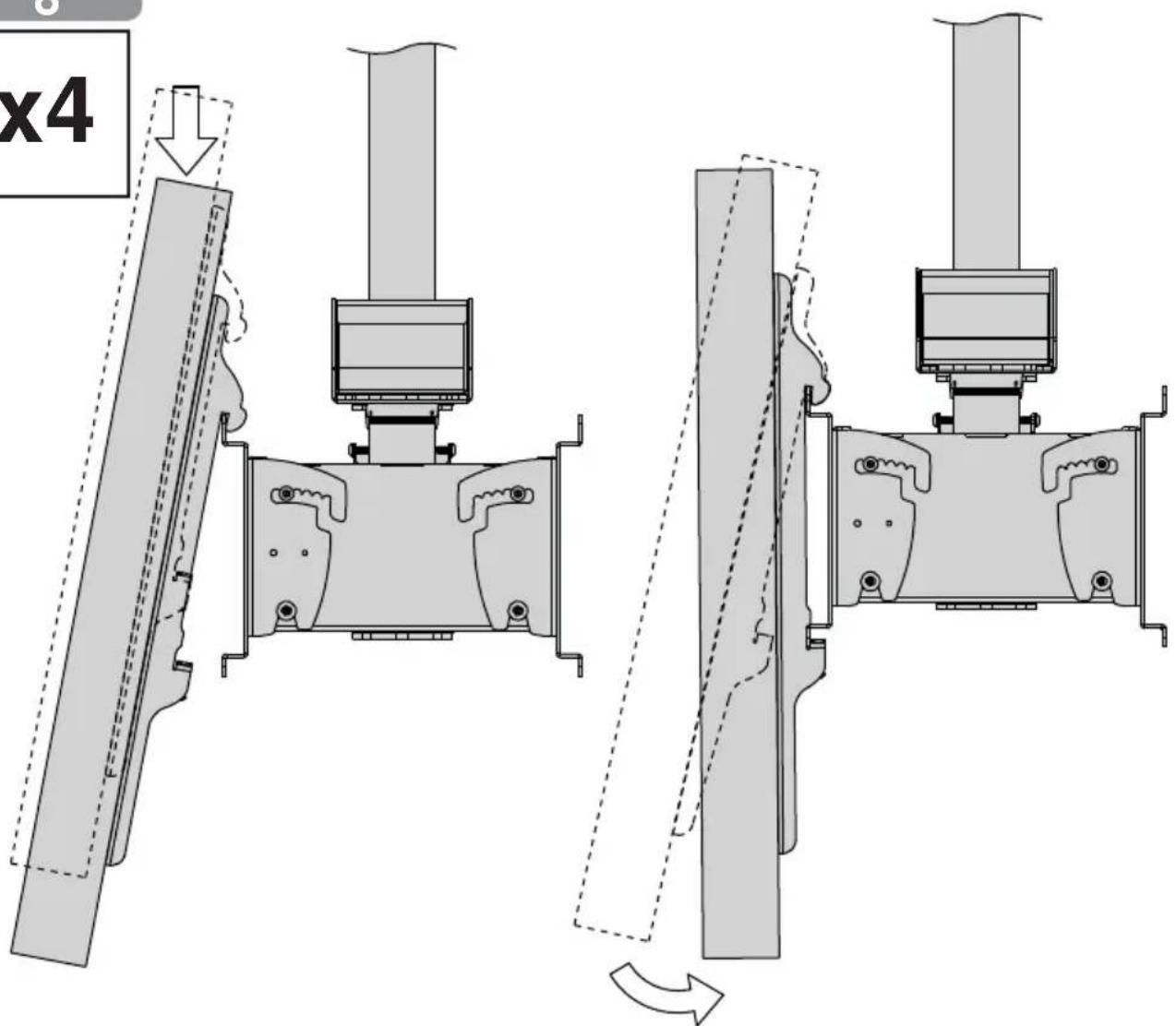

8
x4

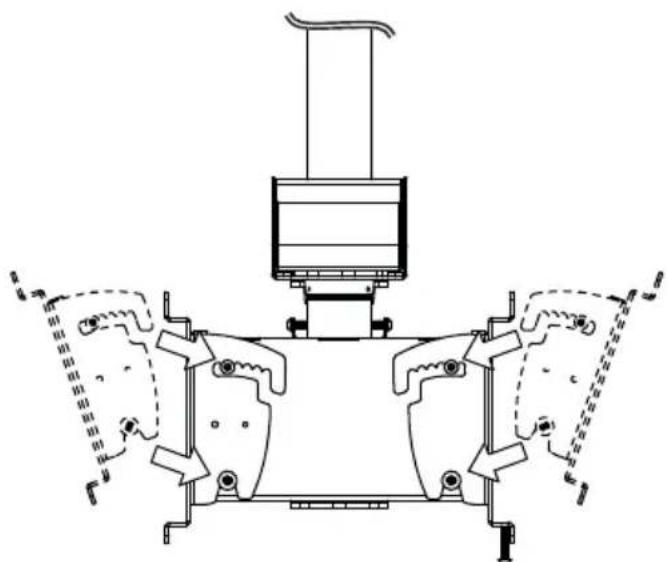

9

Technical diagram of a mechanical or structural assembly with symmetrical components and directional arrows (no text or symbols)

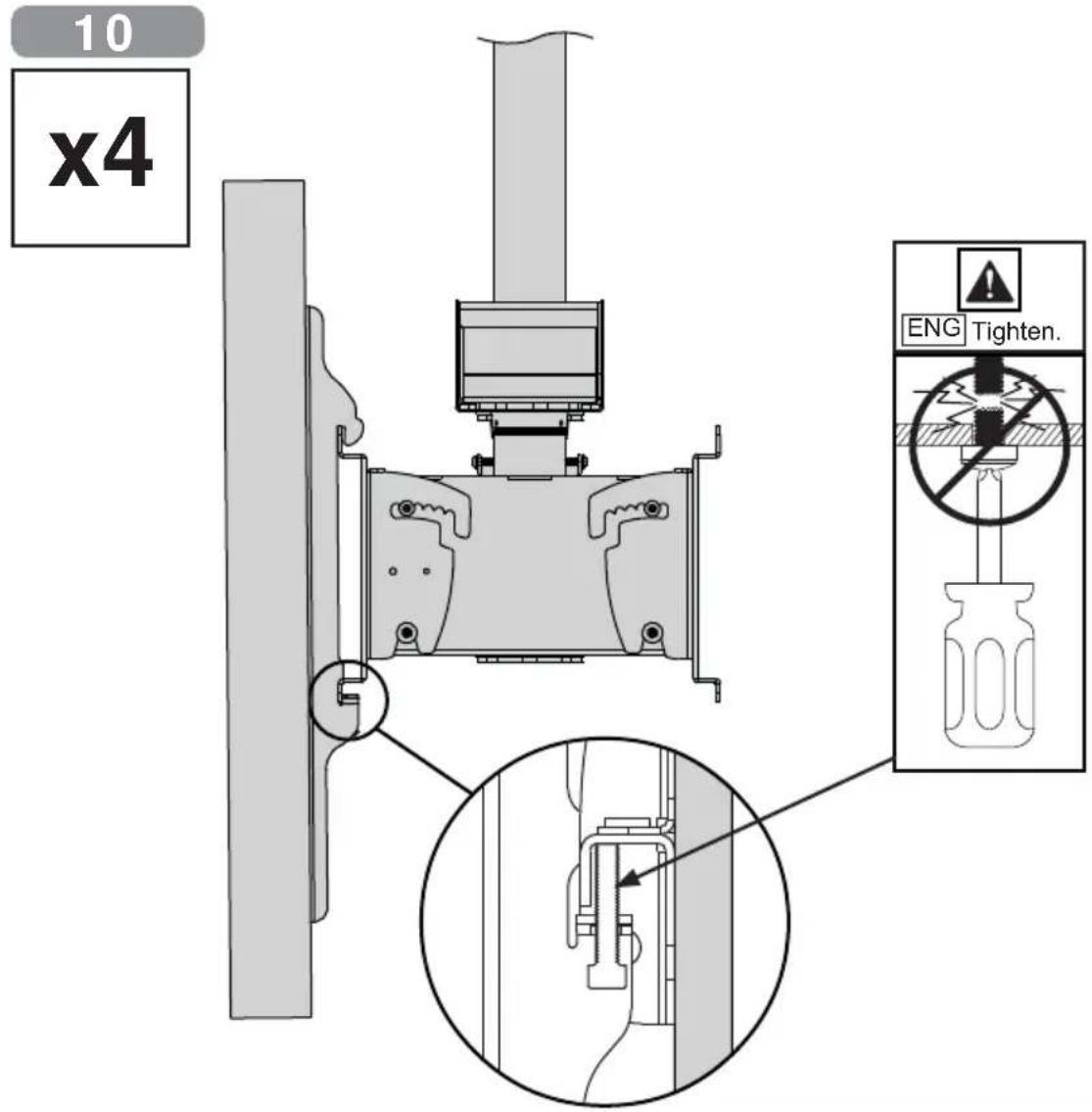

LIMITED FIVE-YEAR WARRANTY

Peerless Industries, Inc. ("Peerless") warrants to original end-users of Peerless ^® products will be free from defects in material and workmanship, under normal use, for a period of five years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product's manufacture). At its option, Peerless will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.

In no event shall the duration of any implied warranty of merchantability or fitness for a particular purpose be longer than the period of the applicable express warranty set forth above. Some states do not allow limitations on how long a implied warranty lasts, so the above limitation may not apply to you.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless, (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless' instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third party actions and force majeure.

In no event shall Peerless be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured by a security device which may be included with the Peerless® product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty is in lieu of all other warranties, expressed or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless in connection with the sale of any Peerless ^® product.

This warranty gives specific legal rights, and you may also have other rights which vary from state to state.
