BRUKSANVISNING BGx 2652 C BLAUPUNKT

BLAUPUNKT

POWER SPEAKERS BGx 2xxx SERIES

BGx 2402 N

Two black speaker speakers with mounting brackets, shown from different angles (no text or symbols visible)

BGx 2652 N

Two black speaker amplifiers with reflective surfaces, no visible text or symbols

BGx 2693 N

Two black oval-shaped speakers with visible internal components, no text or symbols present.

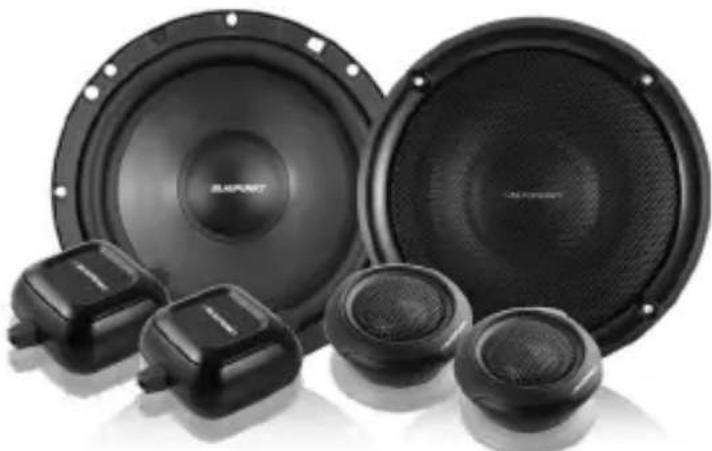

BGx 2652 C

Exterior view of a black speaker with multiple speakers and connectors (no text or symbols visible)

Enjoy it.

Proper system planning is vital in order to maximize the device's performance and road safety. Plan your installation carefully to avoid compromising performance reliability of the system. Consult an authorized Blaupunkt delaler for installation or reparation. Read the manual carefully before operating the device for the first time.

Safety Notes

Ensure to follow below safety notes during installation and wiring connection: -

• Disconnect the negative terminal of the battery. Refer to the safety notes of the vehicle manufacturer.
• Ensure positions of the holes are nowhere near the vehicle component to avoid any damage during drilling.
• Ensure cross section of the cable is no less than 2.5mm^2 if the positive and negative cables are too long.
• Incorrect installation may result in malfunction of the device or the car sound system.

Installation and Connection Instructions

• Select a dry and well-ventilated location to install the device.
• The device must not be installed in overly exposed location such on the rear shelf, rear seat etc.
• The installation location must be suitable for screw holes and have stable ground support.

Voltage Supply

• Use the supplied power extension cable to connect to the positive battery terminal.
• Firmly and carefully connect the ground lead to a bare metal point on the vehicle chassis.
  • The control of the device should be a

two-channel control, either via the preamplifier output of the car sound system. A control solely via the right or left channel is also possible since the low-frequency portion of the music is generally identical on both channels.

Disclaimer

In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential damages to property or life and whatsoever arising out of or connected with the use or misuse of our products.

USA & CANADA: This product is not intended for sale in the United States and Canada. If purchased in the U.S. or Canada, this product is purchased on as-is basis. No warranty, whether expressed or implied is provided in the U.S. or Canada.

Recycling and Disposal

Do not dispose your old unit in the household trash! Use the return and collection items available to dispose of the old device.

This manual may be updated from time to time without any notice.

BGx 2402 N

Pair of 4.0" 2-way coaxial speakers with injected cone including mounting hardware

• Max. Power Handling : 70W
• Normal Output Power (RMS) : 20W
- Impedence: 4ohms
• Frequency Response : 100-20,000Hz
- Sensitivity : 86dB
- Mounting Depth : 46mm
- Mounting Hole Diameter : 95mm
- Surround : Rubber Edge

60mm 45.5mm 63mm 70mm 95mm

95mm 116mm 130.69mm 4.5mm

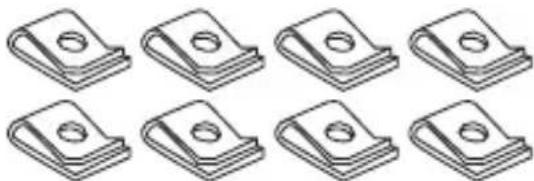

Accessories

Grid of nine identical mechanical clip components with circular holes, no text or symbols present

Simple line drawing of a bundle of bundled fibers (no text or symbols)

Screws (4x25mm) x8 Cable Clip x8 1.8m Wire

BGx 2652 N

Pair of 6.5" 2-way coaxial speakers with injected cone including mounting hardware

• Max. Power Handling : 105W
• Normal Output Power (RMS) : 35W
- Impedence: 4ohms
• Frequency Response : 70-20,000Hz
- Sensitivity : 88dB
- Mounting Depth: 59mm
- Mounting Hole Diameter : 141mm
- Surround : Rubber Edge

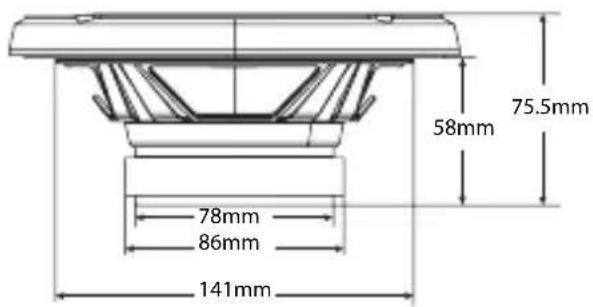

75.5mm 58mm 78mm 86mm 141mm

14mm 158mm 177.2mm 4.3mm

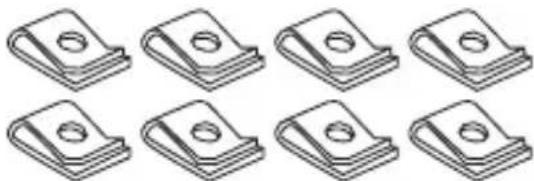

Accessories

Grid of nine identical mechanical clip or bracket components with circular holes, no text or symbols present

Simple line drawing of a bundle of bundled cables (no text or symbols)

Screws (4x35mm) x8 Cable Clip x8 2.5m Wire

BGx 2693 N

Pair of 6.0" x 9.0" 3-way triaxial speakers with injected cone including mounting hardware

• Max. Power Handling : 135W
• Normal Output Power (RMS) : 45W
- Impedence: 4ohms
• Frequency Response : 55-20,000Hz
- Sensitivity : 88dB
- Mounting Hole Diameter: 82mm
• Diameter Hole : 222x149mm
- Surround : Rubber Edge

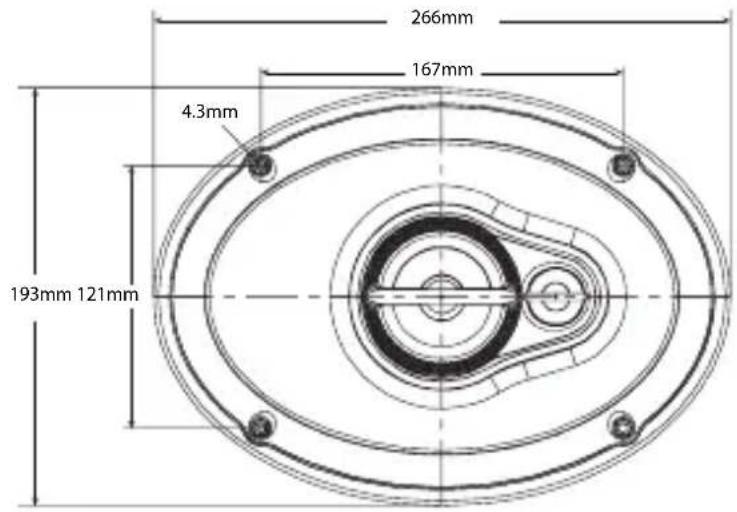

266mm 167mm 4.3mm 193mm 121mm

149mm

103mm 81.5mm 92mm 100mm 222mm

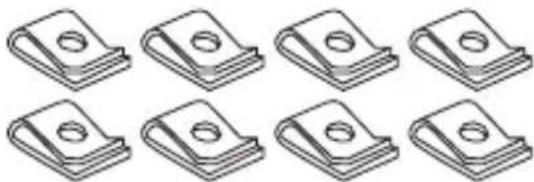

Accessories

Grid of nine identical mechanical clip or bracket components with circular holes, no text or symbols present

Simple line drawing of a bundle of bundled fibers (no text or symbols)

Screws (4x35mm) x8 Cable Clip x8 2.8m Wire

BGx 2652 C

Pair of 6.5" 2-way component speakers with injected cone including mounting hardware

• Max. Power Handling : 130W
• Normal Output Power (RMS) : 40W
- Impedence: 4ohms
• Frequency Response : 70-20,000Hz
- Sensitivity : 88dB
- Mounting Depth: 59mm
- Mounting Hole Diameter: 141mm
• Surround : Rubber Edge

Woofer Tweeter

BLAUPUNKT 166mm 158mm 5mm

58.37mm

50.3mm 16.1mm 27.3mm

Crossover

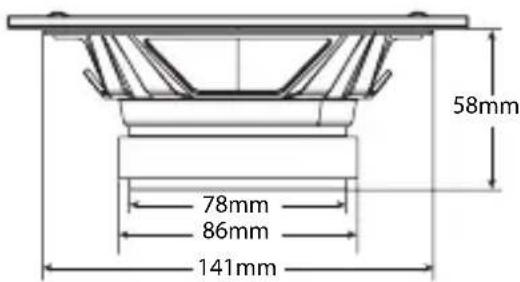

58mm 78mm 86mm 141mm

61mm 64.5mm

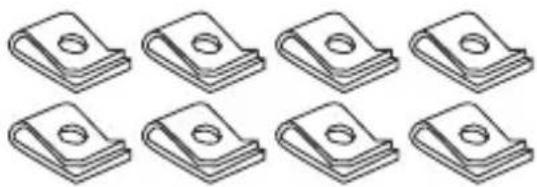

Accessories

Nine identical isometric panels of folded paper or documents, each with a circular hole on top (no text or symbols)

Screws (4x35mm) x8 Cable Clip x8

Technical line drawing of a mechanical assembly with no visible text or symbols

TROUBLESHOOTING

If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist.

Problems Possible Causes Solutions
Speaker does not work	Incorrect or loose wiring connection.	Ensure proper wiring connections of speaker.
	Fraying or broken cables. Repair or replace if the cables are damaged.
	Speaker is damaged. Replace with a new speaker.
Distorted and hissing sound	Voice coil or speaker cone is damaged.	Replace with a new speaker.

QR code image containing encoded data, no visible human-readable text

Designed and engineered by Blaupunkt Competence Centre

BGx 2402 N

1 111 20 030 07 01

BGx 2652 N

1 111 20 031 07 01

BGx 2693 N

1 111 20 032 07 01

BGx 2652 C

1 111 20 033 07 01
