BRUKSANVISNING MPD 101280 A BLAUPUNKT

BLAUPUNKT

BLAUPUNKT Brand established 1924 GERMANY

CLASS D AMPLIFIER WITH DSP MPD 101280 A

BLAUPUNKT 12-CH DIGITAL SIGNAL PROCESSOR AMPLIFIER MPD 101280 A

Enjoy it.

This device has been manufactured according to established safety guidelines. However, dangers may still occur if the safety notes in this manual is not observed. This manual is intended to familiarize the user with the device's important functions. Read this carefully, prior to using the car radio. Keep this manual in an easily accessible location. In addition, do observe the instructions of other devices used in conjunction with this device.

Installation Safety Notes

Always observe the following safety notes:

• Device must be used in a way that compliments safety of the user when driving the vehicle. It is recommended for the user to install at an appropriate location when operating the device. While driving, user is not recommended to use applications that can be prone to distraction.
- Before installation, disconnect the negative terminal of the battery. Refer to the safety vehicle manufacturer's user manual.
- Ensure positions of the holes are nowhere near the vehicle component to avoid any damage during drilling.
- Ensure cross section of the cables is not more than 5mm if the positive and the negative cables are too long. Incorrect installation may result in malfunction of the device or the car sound system.
- Select a dry and well-ventilated location to install the device.
• The device must not be installed in overly exposed location.
• The installation location must be suitable for screw holes and stable ground support

General Safety Notes:

Observe the following for protection against injuries:

- User is advised to keep the volume of the car radio to a moderate level for the protection of the ears and to increase the ability to hear any emergency warning signals (e.g. police and ambulance sirens). Do not increase the car radio volume while the car radio is muted as it is not audible. The car radio volume can be too loud when the car radio is unmuted.

Disclaimer

• Blaupunkt is not liable for any loss or damage caused or resulting from unauthorized disassembly or modification to the product.
• In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential damages, to property or life, improper storage, whatsoever arising out of or connected with the use or misuse of our products.
  • USA & CANADA: This product is not intended for sale in the United States and Canada. If purchased in the U.S. or Canada, this product is purchased on as-is basis. No warranty, whether expressed or implied is provided in the U.S. or Canada.

Voltage Supply

• +12V: Positive connection terminal for car 12V power supply.
• GND : Power supply negative connection terminal.
• Firmly and carefully connect the ground lead to a bare metal point on the vehicle chassis.
• Operation temperature : 0° - 70°C

Compatible PC OS

• PC - with or higher than Windows XP

Scope of Delivery

• Digital Signal Processor (254 x 186.3 x 46.7mm)
2.0m USB Cable
• Remote Controller (optional)
• 4x Parker Type Screws (4 x 20mm)
• 1x 12P Speaker Output Cable
• 1x 16P Speaker Output Cable
• 1x 20P High Level Input Input Cable

Disposal Notes

Do not dispose of your old unit in the household trash!

Use the return and collection systems available to dispose of the old device.

This manual may be updated from time to time without any notice. Visit www.blaupunkt.com for more info.

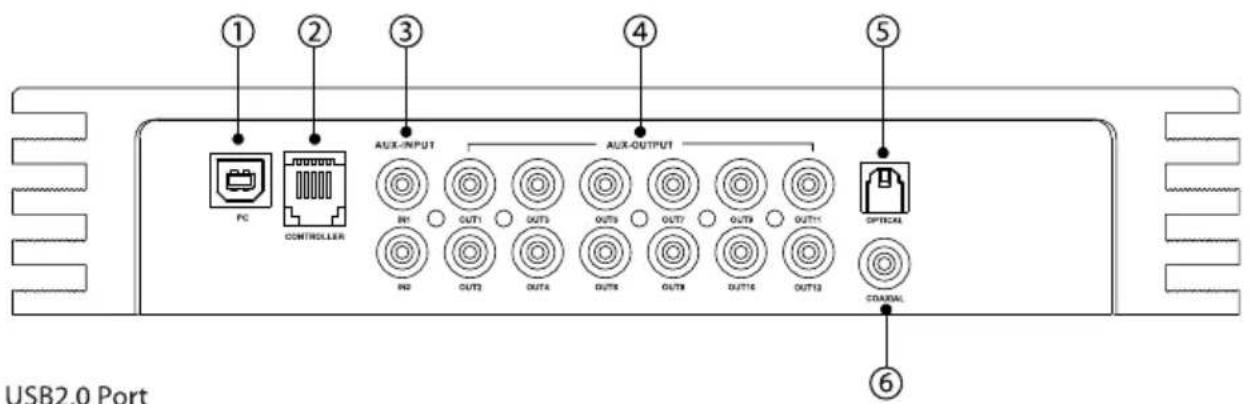

① ② ③ ④ ⑤ PC CONTROLLER AUX-INPUT AUX-OUTPUT OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 OPTICAL PRO OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 COARVAL ⑥ USB2.0 Port

1. USB2.0 Port
2. Remote Control
3. Low Level RCA Input
4. Low Level RCA Output
5. Optical Input
6. Coaxial Input

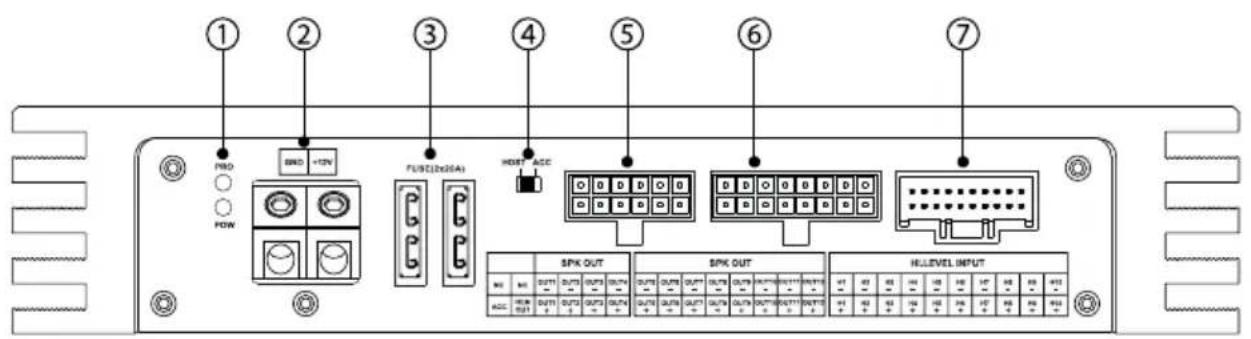

① PRO ○ ○ HW ② BWD +12V ③ FUS(2x026A) ④ HDT ACC ⑤ ⑥ ⑦ SPK OUT SPK OUT HULLEVEL INPUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 ACC OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT OUTOUT UNT ① ② ③ ④ ⑤ ⑥ ⑦

1. Power & Protection LED
2. Power Input (GND & +12V)
3. Fuse (2x20A)
4. HOST/ACC Converter
5. CH1\~CH4 Speaker Output/ ACC/ Remote Out
6. CH5\~CH12 Speaker Output
7. CH1\~CH10 Hi Level Input

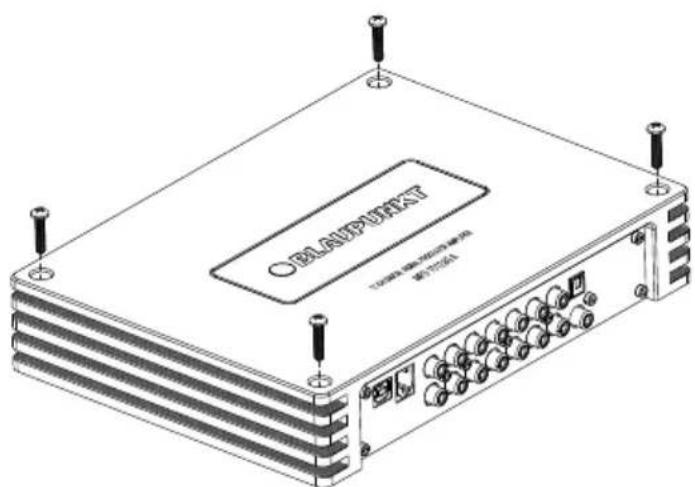

INSTALLATION

BLA000PUMRXT 12.5V 8.5V 12.5V 12.5V 12.5V MOS 17.5V 12.5V

BLAUPUNKT 12-CH DIGITAL SIGNAL PROCESSOR AMPLIFER MPD 101280 A 254mm 186.3mm

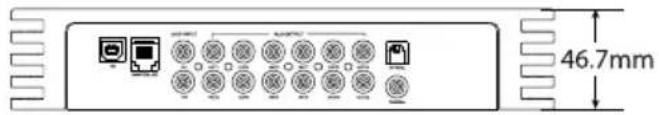

46.7mm

Audio

• RMS Power: 40Wx12(4Ω)
• DSP Resolution : 32 Bit
• DSP Power : 295 MHz
• Output Power RMS @ 4 Ohms (≤% THD +N) : 40Wx12
• Distortion (THD) : <0.05%
• Damping Factor: 11
- Operating Voltage: 9-16V
• Sampling Rate : 96kHz/24Bit
• Signal Converter A/D PCM1840
• Signal Converter D/A PCM1681

• High Level Input Sensitivity : 28VPP
• Input Impedance : 10k Ohms
• Impedance High Level : 16 Ohms
• S/N Ratio Digital-in : ≥97dB
• S/N Ratio Analog-in : ≥95dB

Output

• 12 x RCA/ Cinch
• 12 High Level Speaker Output
• 1 x Remote-out
• Voltage RCA/ Cinch : 7V

Input

• 2 x RCA/ Aux-in
• 1 x COAX-in
  • 10 High Level Speaker Input
  • 1 x Optical SDPIF
• 1 x Remote-in
• 1 x USB
  • RCA/Cinch Sensitivity : 7VP

Feature

• Class D Amplifier
• Max. Output Power : 960W
• Frequency Response : 20Hz-20kHz
• Max. Current Consumption : 40A
• Dimension (W x H x D) : 254 x 186.3 x 46.7mm
• Weight: 2.9kg

Accessories

4 x Parker Type Screws (4x20mm)

1 x 12P Speaker Output Cable

1 x 16P Speaker Output Cable

1x 1.5m USB Cable

1 x 20P High Level Input Cable

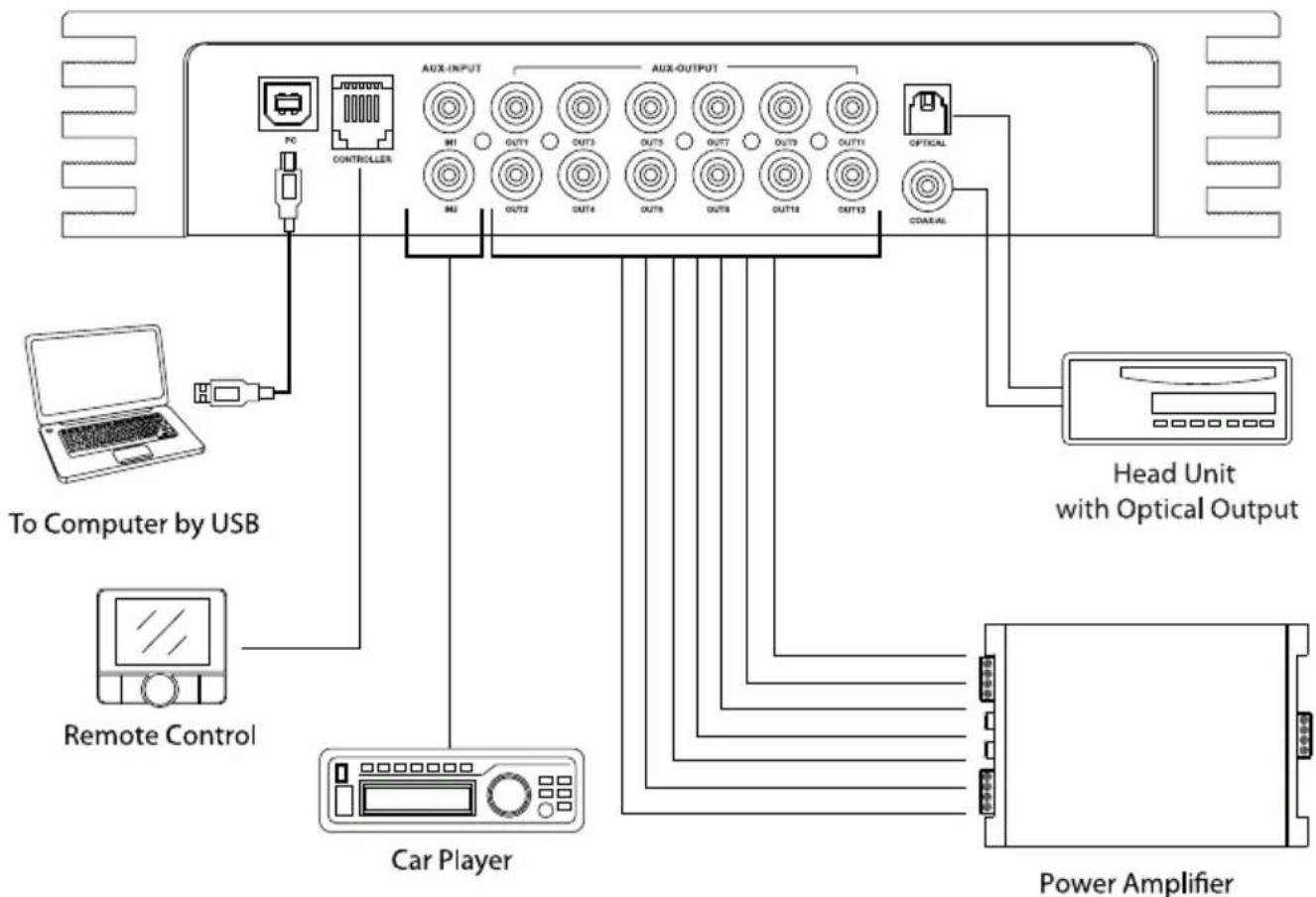

Universal Wiring Method

Iversal Wiring Method Battery 12V F50 GND +12V FUSE(2x20A) HDBT ACC SPK OUT SPK OUT HELLEVEL INPUT CAR Player


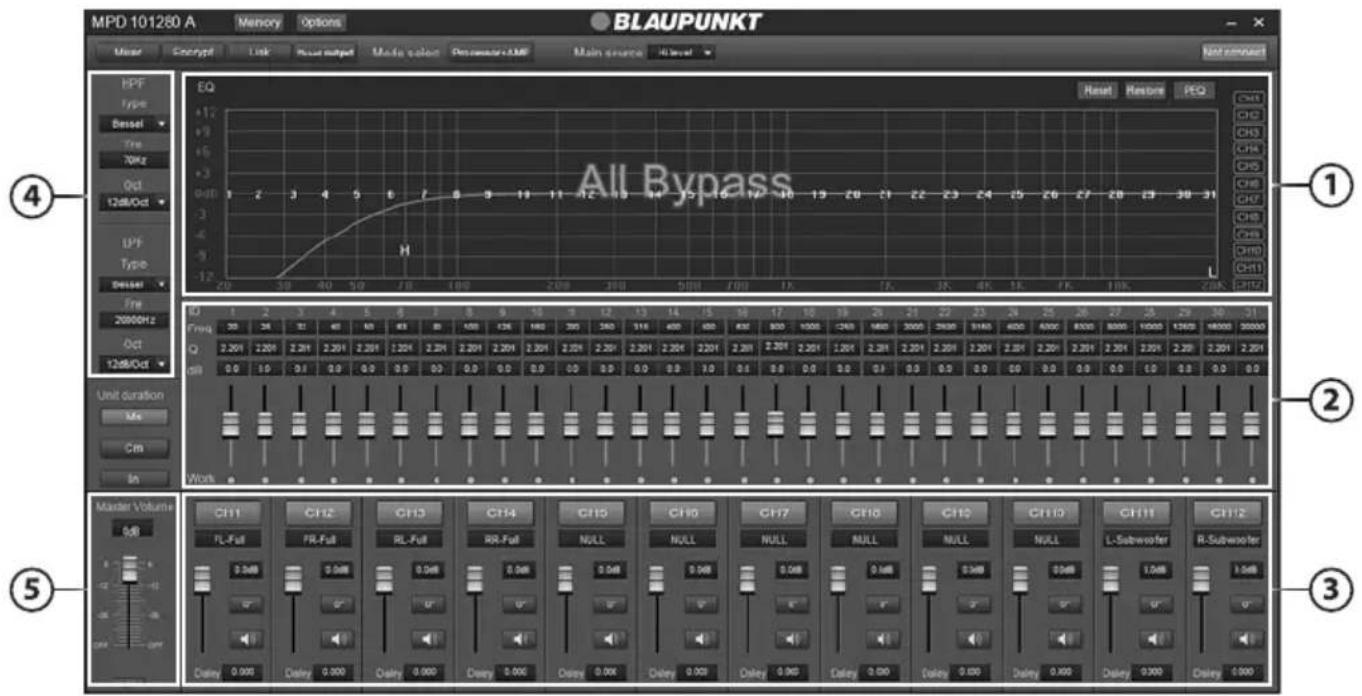

Blaupunkt MPD 101280 A Software

Visit www.blaupunkt.com to download the software.

MPD 101280 A.exe

Car entertainment enthusiast / experts may now begin to tone signal details. Enhance the sound effect according to your very own preference for optimum music enjoyment with the DSP software.

MPD 101280 A Memory Options BLAUPUNKT ④ HPF Type Bessel Type 70Kg Oct 12dB/Oct LPF Type Dissel Fine 2000Hz Oct 12dB/Oct Unit duration Me Cm In Master Volume 0.68 ⑤ ① ② ③ ④ ⑤ All Bypass H Reset Restore PEQ Ch1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11 CH12 Ch13 Ch14 Ch15 Ch16 Ch17 Ch18 Ch19 Ch20 Ch21 Ch22 Ch23 Ch24 Ch25 Ch26 Ch27 Ch28 Ch29 Ch30 Ch31 Ch32 Ch33 Ch34 Ch35 Ch36 Ch37 Ch38 Ch39 Ch40 Ch41 Ch42 Ch43 Ch44 Ch45 Ch46 Ch47 Ch48 Ch49 Ch50 Ch51 Ch52 Ch53 Ch54 Ch55 Ch56 Ch57 Ch58 Ch59 Ch60 Ch61 Ch62 Ch63 Ch64 Ch65 Ch66 Ch67 Ch68 Ch69 Ch70 Ch71 Ch72 Ch73 Ch74 Ch75 Ch76 Ch77 Ch78 Ch79 Ch80 Ch81 Ch82 Ch83 Ch84 Ch85 Ch86 Ch87 Ch88 Ch89 Ch90 Ch91 Ch92 Ch93 Ch94 Ch95 Ch96 Ch97 Ch98 Ch99 Ch100 Ch101 Ch102 Ch103 Ch104 Ch105 Ch106 Ch107 Ch108 Ch109 Ch110 Ch111 L-Subwoofer R-Subwoofer

Channel Panel (31-band Tuning)

1. 31-Band Tuning Waveform

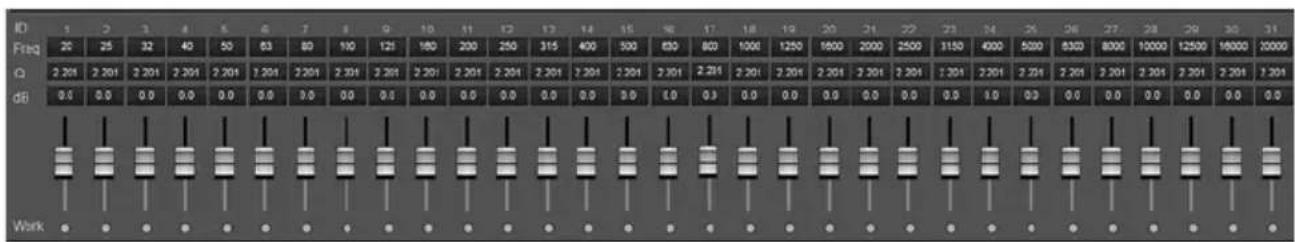

2. 31-Band Equalizer Control

ID Freq Q dB 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 20 25 32 40 50 63 80 100 125 180 200 250 315 400 500 650 800 1000 1250 1600 2000 2500 3150 4000 5000 6300 8000 10000 12500 16000 20000 2.201 2.201 2.201 2.201 2.201 2.201 2.201 2.201 2.201 2.201 2.201 2.201 2.201 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 Work

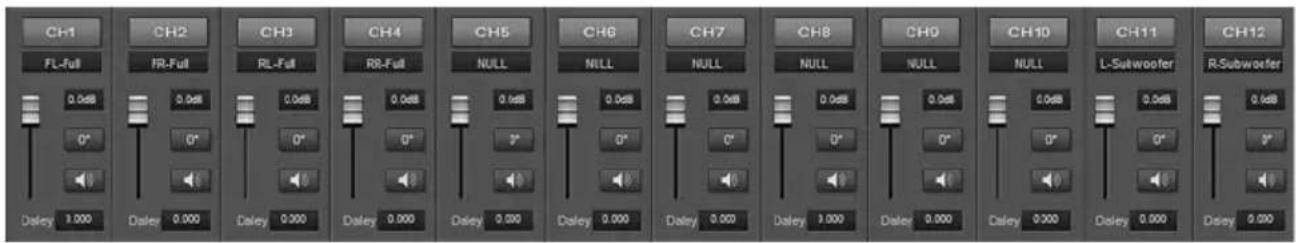

3. 10-Channel Control

CH1 FL-Full 0.06B 0° Daley 1.000 CH2 FR-Full 0.06B 0° Daler 0.000 CH3 RL-Full 0.06B 0° Daley 0.000 CH4 RB-Full 0.06B 0° Daley 0.000 CH5 NULL 0.06B 0° Daley 0.000 CH6 NULL 0.06B 0° Daley 0.000 CH7 NULL 0.06B 0° Daley 0.000 CH8 NULL 0.06B 0° Daley 1.000 CH9 NULL 0.06B 0° Daler 0.000 CH10 NULL 0.06B 0° Daley 0.300 CH11 L-Subwoofer 0.06B 0° Daley 0.000 CH12 R-Subwoofer 0.06B 0°

4. Crossover Frequency Setting :

• 3 Types of High-pass Frequency
• 3 Types of Low-pass Frequency

5. Main Volume Control

If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist.

Problem	Solution
Amplifier power up failure	Examine if the ground connection is intact.
	Examine if remote input has at least 5V DC.
	Examine if battery power is connected correctly to the + terminal.
	Ensure supplied voltage is minimum 12V.
	Examine if fuse is broken and replace if necessary.
	Restart the device if protection LED light is on.
No sound output	Examine fuses and replace if necessary.
	Examine if ground connection is intact.
	Examine if remote input has at least 5V DC.
	Examine if RCA audio cables are connected to the right inputs.
	Examine if speaker wiring is intact.
Low sound output	Reset Level Control
	Examine the Crossover Control setting.
Buzzing noise	Observe if the device is still producing noise after turning on and off the amplifier. If yes, examine if the cables are correctly connected and if the cables and radio are in good condition.
	Repair or replace if the cables or the radio are not in good condition.
Squealing noise interference	Ensure RCA connections are properly connected.
Distorted sound output	Ensure input level of the device matches the signal level of the head unit.
	Always set the input level to the lowest.
	Examine if crossover frequency is set correctly.
	Examine if speaker wire had short-circuit.
Amplifier temperature increased	Examine if the minimum speaker impedance for the amp models is correct.
	Ensure good air ventilation around the device. Add external cooling fan if necessary.
Engine noise (static sound) interference	Usually caused by poor RCA cable quality, which release noise. Use only the best quality cables, and route them away from power cables.
Engine noise (alternator whine) interference	Examine if RCA cable are nowhere near or attached to the vehicle chassis. Examine if head unit is properly connected to the wires.

QR code image containing encoded data, no visible human-readable text

Designed and engineered by Blaupunkt Competence Centre
