BRUKSANVISNING ZPIE30AG Zephyr
PISA under-cabinet
Tucked neatly out of sight within your cabinetry, Pisa is a minimal alternative to your typical under-cabinet range hood. Powered by the strength of its 290-CFM blower, Pisa's low-profile body delivers stunning design and quality performance. Its retractable visor helps in the capture of air and puts control at your fingertips. Pisa is perfect for kitchens that require a more discreet look.
MODELSIZEINTERNAL BLOWER
Min.-Max. CFM Min.-Max. Sones
ZPI-E30AG290 30" 180 - 290 1.3 - 3.2


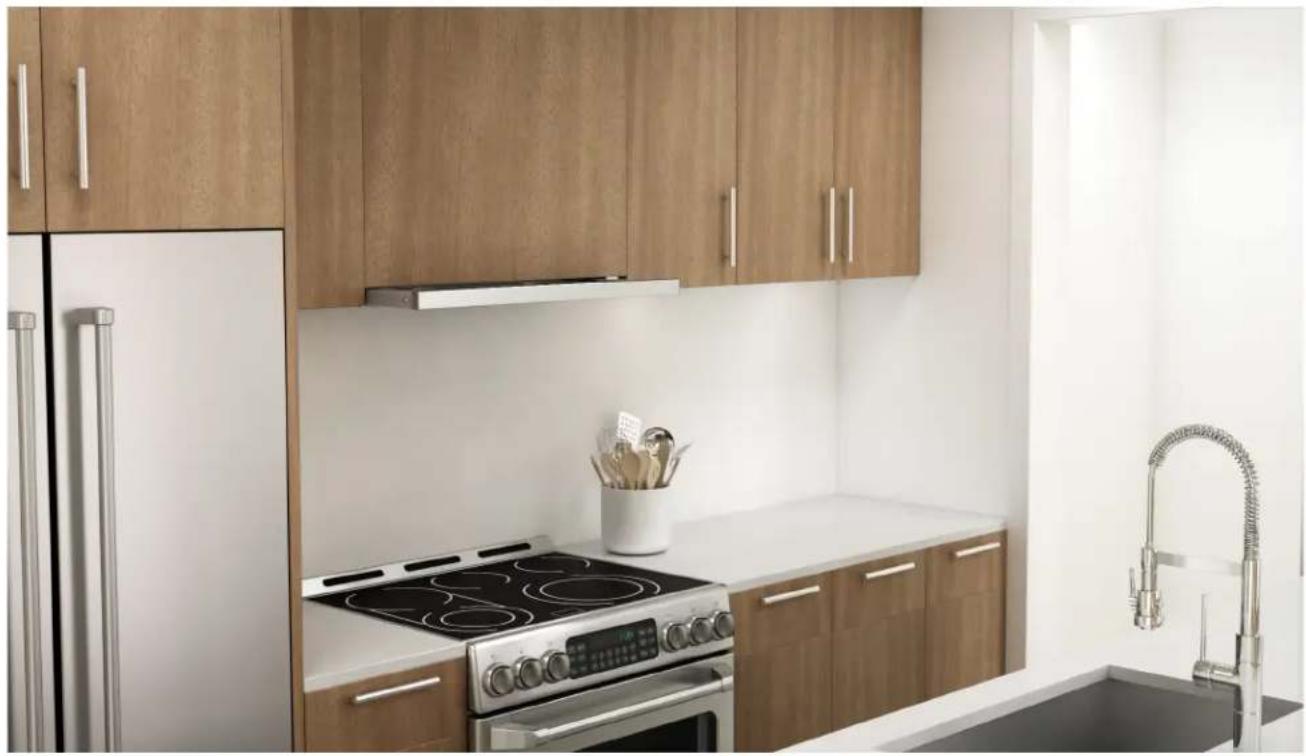

Modern kitchen interior with wooden cabinets, a stovetop, and a stainless steel sink (no visible text or symbols)


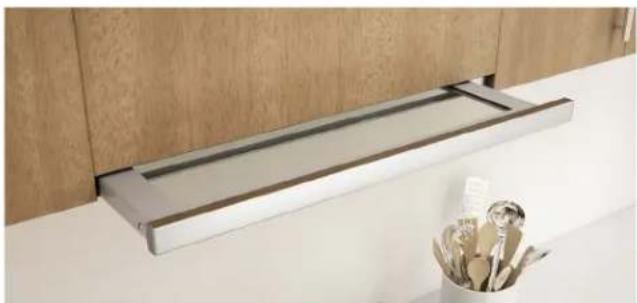

Modern kitchen sink with stainless steel tray and wooden cabinet background (no text or symbols visible)


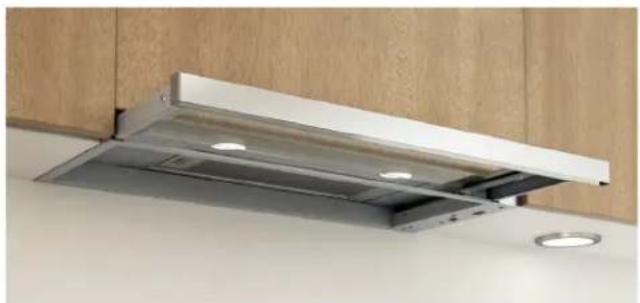

Exterior view of a stainless steel kitchen ventilation duct mounted on a light fixture, with no visible text or symbols.PISA UNDER-CABINET | EUROPA
| SIZEZPI-E30AG290 | 30" |
| PERFORMANCE | |
| INTERNAL, MIN.-MAX. BLOWER CFM | 180 - 290 |
| INTERNAL, MIN.-MAX. SONES 1.3 - 3.2 | |
| COLOR | |
| STAINLESS STEEL | SS + Glass |
| FEATURES | |
| CONTROLS | Mechanical Slide |
| SPEED LEVELS 3 | |
| LIGHTING Halogen x 2 | |
| DUAL LEVEL LIGHTING Yes | |
| FILTER Aluminum Mesh | |
| RECIRCULATING OPTION Yes | |
| DUCT SPECIFICATIONS | |
| VERTICAL - INTERNAL | 6" Round |
| HORIZONTAL - INTERNAL 6" Round | |
| AC POWER 120V, 60Hz at Max. 1.55A | |
| OPTIONAL ACCESSORIES | |
| RECIRCULATING KIT | ZRC-00PI |
| OPTIONAL ACCESSORIES 3 Years Parts, 1 Year Labor | |
| MOUNTING HEIGHT* 24" - 32" | |
*Mounting height refers to distance between top of cooking surface and bottom of hood.


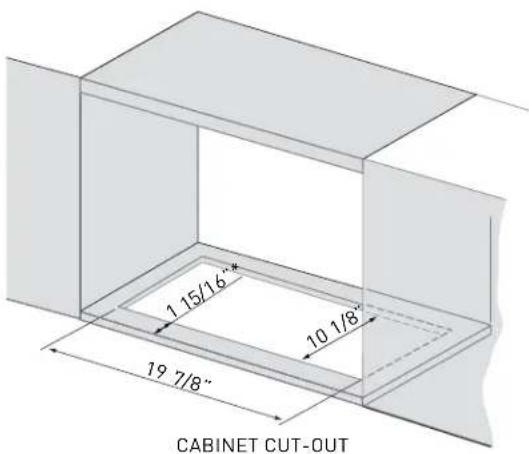

1 15/16" 10 1/8" 19 7/8" CABINET CUT-OUT*Measured from front of doors in a frameless cabinet or front of cabinet bottom in a framed cabinet.
ESSENTIALS
EUROPA POWER BREEZE


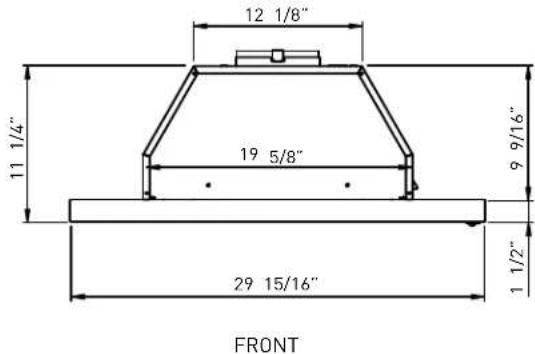

12 1/8" 19 5/8" 11 1/4" 9 9/16" 29 15/16" FRONT


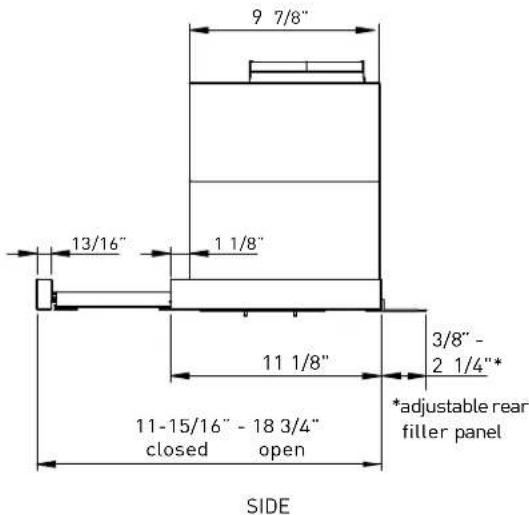

9 7/8" 13/16" 1 1/8" 11 1/8" 3/8" - 2 1/4"* *adjustable rear filler panel 11-15/16" - 18 3/4" closed open SIDE


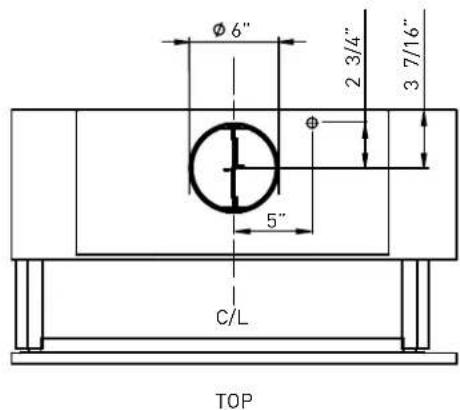

Ø 6" 2 3/4" 3 7/16" 5" C/L TOP
