BRUKSANVISNING SSM018 Chief
INSTALLATION INSTRUCTIONS
SSB-018, SSM-018, SLB-018 and SLM-018 Interface Brackets
SSB-018, SSM-018, SLB-018 and SLM-018 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific installation instructions provided with the mount for additional installation information.
Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
(1) Interface Bracket (4) 10 Flat Washers
(4) 10 - 24 Thumb Nuts** (4) 10 - 32 x 1/2" Pan Head Screws
(1) All-Points Security Kit
**Only used when installing SLB/SSB interface brackets.

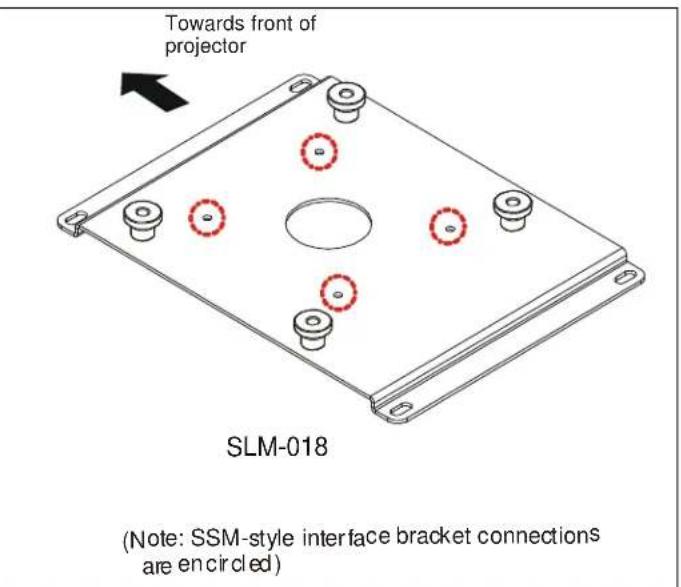

NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the encircled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style interface bracket installation.
Installation Instructions
WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing interface bracket.
NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.
- Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
- Turn projector upside down on a flat surface.
- Place the interface bracket onto the bottom of the projector so the large hole is closer to the front of the projector.
- Align the slotted holes in the bracket with the threaded inserts in the bottom of the projector.
- Using the 10-32 x 1/2" mounting screws and washers, secure interface bracket to projector and tighten all fasteners at this time.
NOTE: Security screws can be substituted when mounting interface bracket to projector by using the parts and installation instructions in the All-Points Security Kit.
