BRUKSANVISNING P463 SST NEC

NEC

"MultiSync® P403 SST"

"MultiSync® P463 SST"

"MultiSync® P553 SST"

"MultiSync® P703 SST"

"MultiSync® P801 SST"

User's Manual

User's Ma

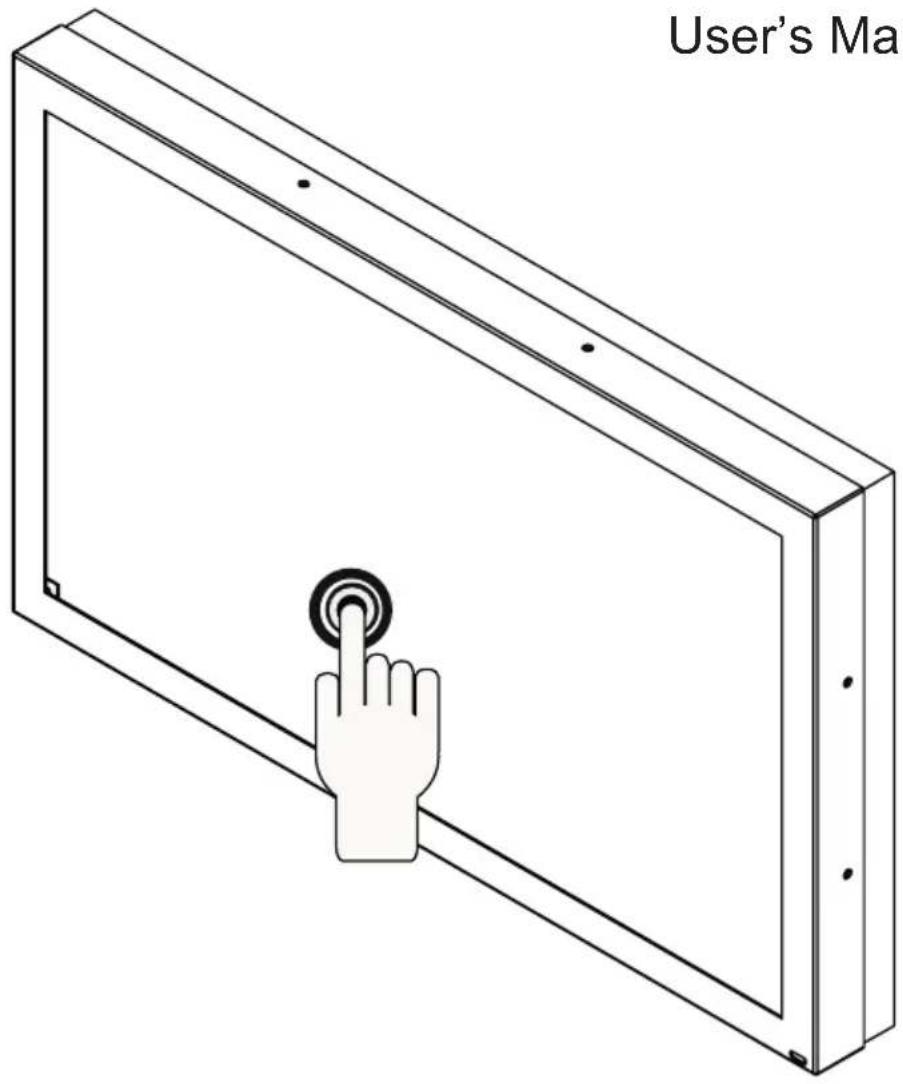

For using Touch Panel

1. Turn off the monitor.
2. Install the equipment.* 1

- Using slot 2 type PC:

Connect the slot 2 type PC into the option board slot. Connect the B type connector to the USB upstream port on the left back side of the monitor and the A type connector to the downstream port on the slot 2 type PC.

NOTE: Please refer to the slot 2 type PC's manual for connection.

NOTE: When you set option board accessory other then slot 2 type PC, touch function may not work.

- Using external computer:

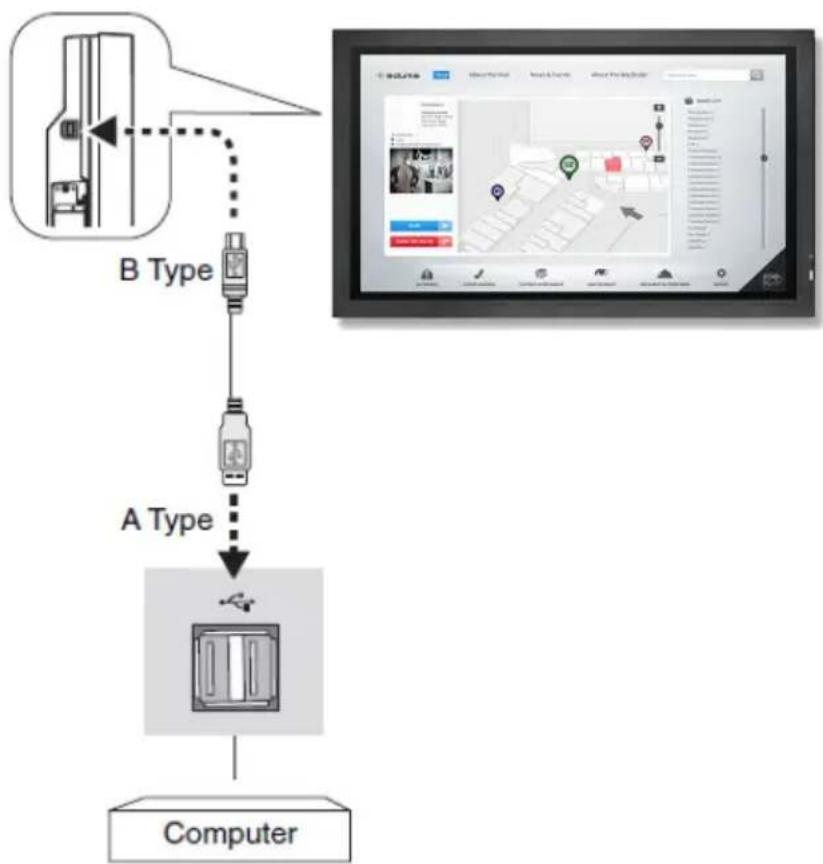

Connect the B type connector to the USB upstream port on the left back side of the monitor and the A type connector to the downstream port on the external computer (Figure 1).

3. Turn on the monitor.

*1: Please contact your NEC customer support for more detailed information.

Figure 1

NOTE: Intelligent Wireless Data (NFC) communication is not supported with NEC ShadowSense touch screens.

Operating System Support Summary

OS	Single Touch	Native Multi-Touch Support	Custom Multi-Touch Support	Comments
Win XP, Win XP Embedded	Yes, mouse emulation	NO	Yes, through Baanto SW Development Kit (SDK)
Win 7 (all)	Yes Yes		Yes, through Baanto SW Development Kit (SDK)
Win8 (all)	Yes Yes		Yes, through Baanto SW Development Kit (SDK)
Mac OSX	Yes, with special EEPROM setting, R6.00 firmware	NO	Yes, through Baanto SW Development Kit (SDK)	Mouse data needs to be adjusted in MAC Os's to work propely. R6.00 Firmware allows user to configure MAC compatibility mode via Dashboard
Linux	Yes Yes		Yes, through Baanto SW Development Kit (SDK)	All Linux variants (Fedora, Ubuntu, etc.) require a base Linux kernel of 3.4 for native support. Otherwise, support is not guaranteed but might still be possible with analysis
Android	Yes Yes		Yes, through Baanto SW Development Kit (SDK)	Requires base kernel to be 3.4 or above for support

Monitor Setting

Select the input signal.

- Using slot 2 type PC. Select [OPTION] - Using external computer:

Select the input signal which is supplied by the PC connected to USB connector.

NOTE: Touch function does not work in PIP mode.

NOTE: Calibration under Windows is an option which can only make the touch screen work more accurate but it is not required.

Re-Calibrated

If the cursor fails to follow exact finger position, the screen can be re-calibrated in the following way:

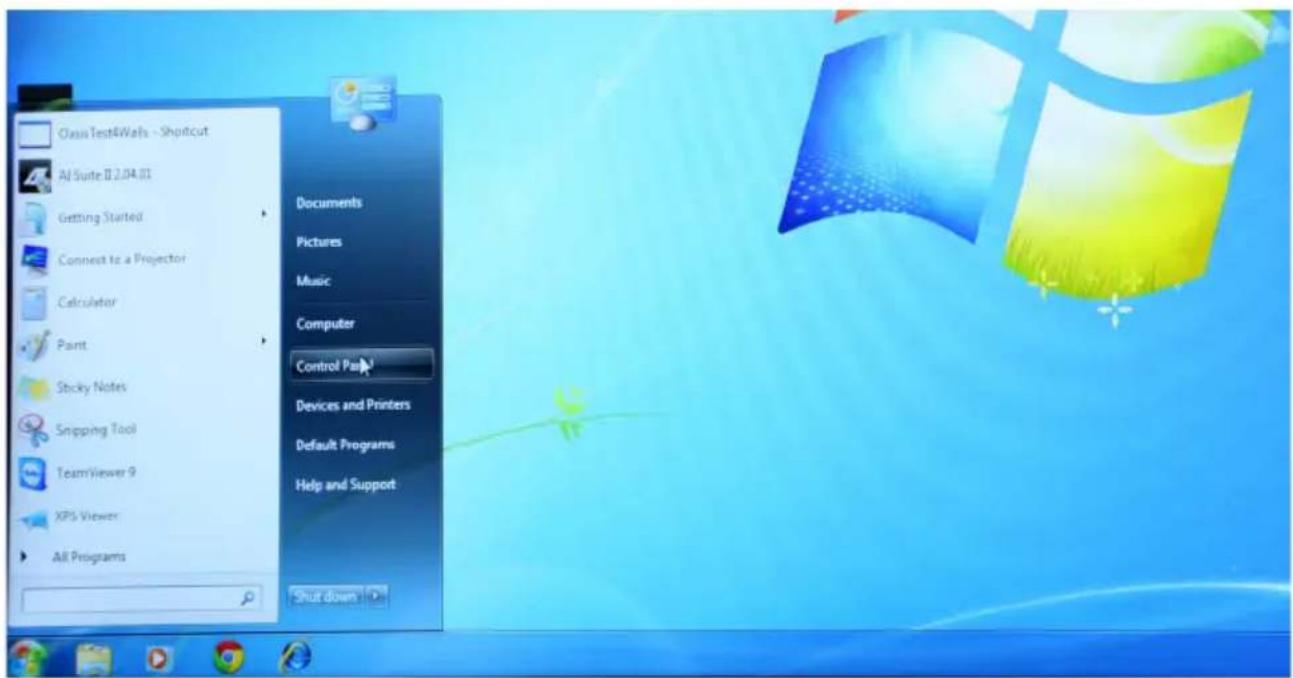

1. Open start menu in Windows and select Control Panel.

OasisTest&Walls - Shpcut Al Suite II 2.04.01 Getting Started Connect to a Projector Calculator Paint Sticky Notes Snipping Tool TeamViewer 9 XPS Viewer All Programs Documents Pictures Music Computer Control Panel Devices and Printers Default Programs Help and Support Shut down

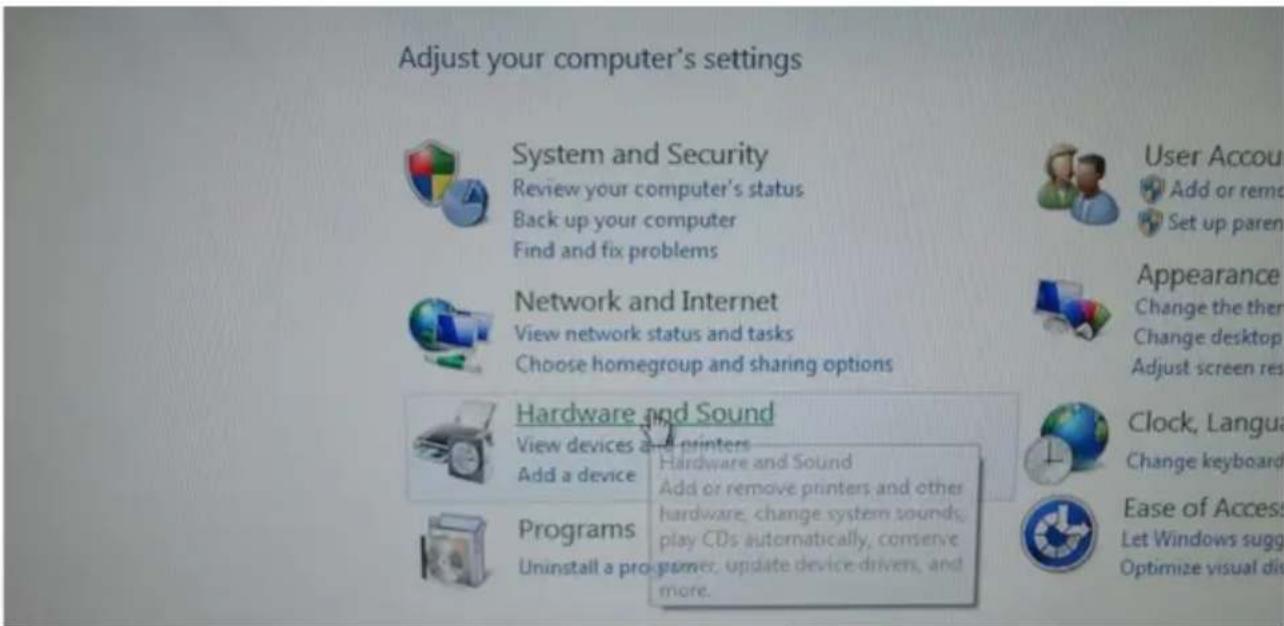

1. Open Hardware and Sound settings.

Adjust your computer's settings System and Security Review your computer's status Back up your computer Find and fix problems Network and Internet View network status and tasks Choose homegroup and sharing options Hardware and Sound View devices and printers Add a device Hardware and Sound Add or remove printers and other hardware, change system sounds, play CDs automatically, conserve program, update device drivers, and more. Programs Uninstall a pro

3. Open Tablet PC Settings.

Pen and Touch

Change tablet pen settings | Change settings for Set flicks to perform certain tasks | Change touch

Tablet PC Settings

Calibrate the screen for pen or touch input Choose the order of how your screen rotates

Panel sterowania NVIDIA

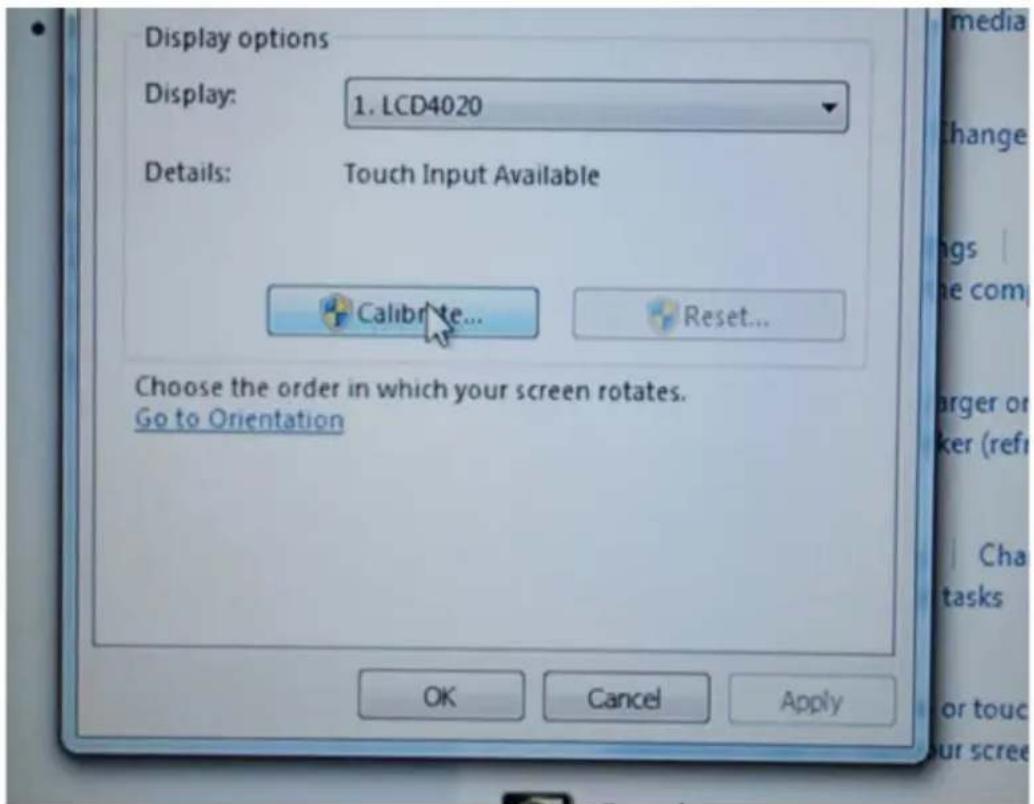

4. Press Calibrate button.

Display options Display: 1. LCD4020 Details: Touch Input Available Calibrate... Reset... Choose the order in which your screen rotates. Go to Orientation OK Cancel Apply

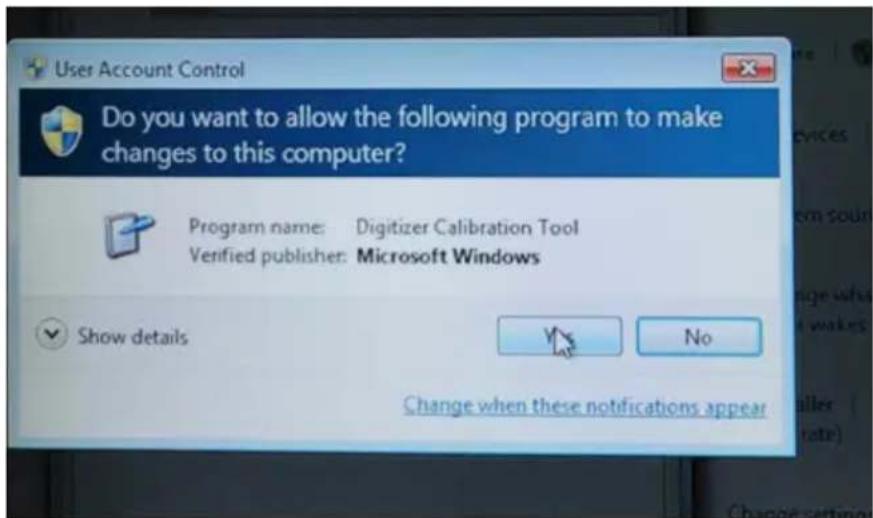

1. If User Account Control window pops up, click yes.

User Account Control Do you want to allow the following program to make changes to this computer? Program name: Digitizer Calibration Tool Verified publisher: Microsoft Windows Show details No Change when these notifications appear

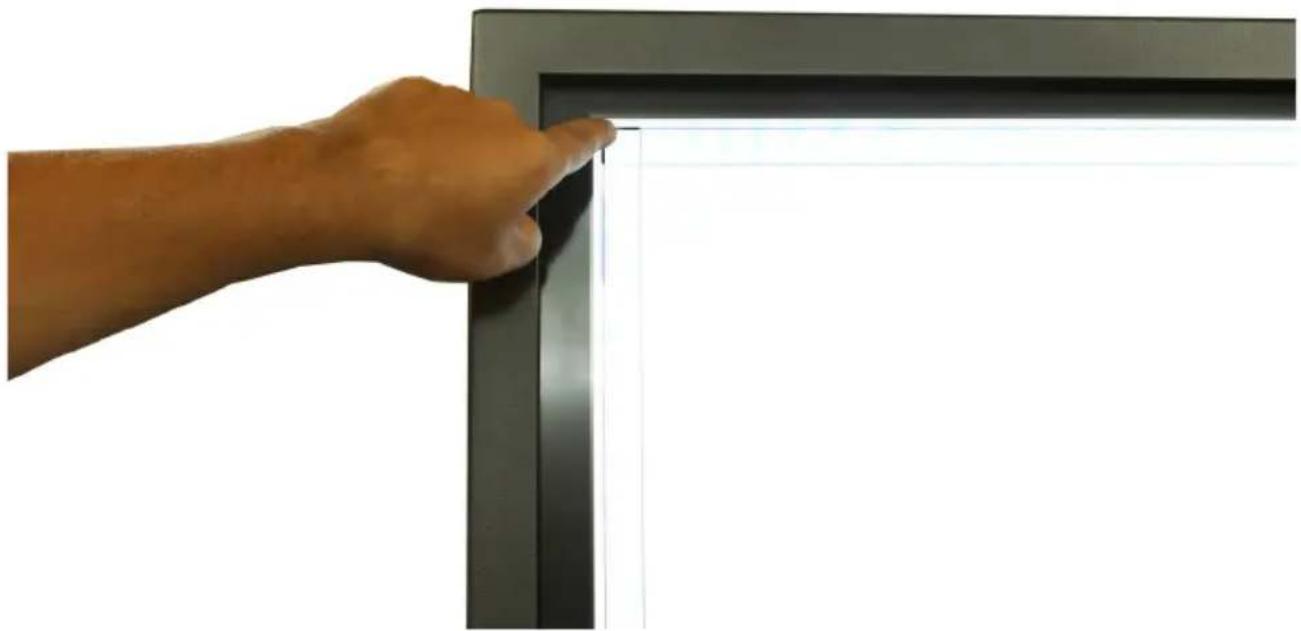

1. When the calibration process begins, touch the middle of each cross that appears in bold on the screen; crosses shall appear several times in each corner of the screen. After touching the last cross, the calibration process ends.

NOTE: If the touch is still not precise enough, the whole action can be repeated.

Hand holding a black rectangular object with a small white mark, against a white background (no text or symbols visible)

Disposal Instruction

NEC products are meeting all EU norms regarding safety, health and environmental requirements.

WEEE Mark (European Directive 2002/96/EC) Within the European Union

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

WEEE Mark (European Directive 2002/96/EC)

Within the European Union

EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste.

This includes monitors and electrical accessories, such as signal cables or power cords. When you need to dispose of your NEC display products, please follow the guidance of your local authority, or ask the shop where you purchased the product, or if applicable, follow any agreements made between yourself and NEC.

The mark on electrical and electronic products only applies to the current European Union Member States.

Outside the European Union

If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.
