BRUKSANVISNING SR-SA4 TOA
STAND ADAPTER
SR-SA4
The SR-SA4 is designed to be used exclusively to mount the SR-S4L or SR-S4S Line Array speaker on the ST-32 Speaker Stand.
1. SAFETY PRECAUTIONS
- Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation.
- Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or cautions regarding safety.
• After reading, keep this manual handy for future reference.
WARNING
Indicates a potentially hazardous situation which, if mishandled, could result in death or serious personal injury.
- Do not use other methods than specified to mount the unit. Extreme force is applied to the unit and the speaker could fall off, possibly resulting in personal injuries.
- Tighten each nut and bolt securely. Ensure that the unit has no loose joints after installation to prevent accidents that could result in personal injury.
- Use the ST-32 Speaker Stand in combination. Doing otherwise may cause the unit or component to fall off, resulting in personal injury.
CAUTION
Indicates a potentially hazardous situation which, if mishandled, could result in moderate or minor personal injury, and/or property damage.
- Avoid touching the unit's sharp metal edge to prevent injury.

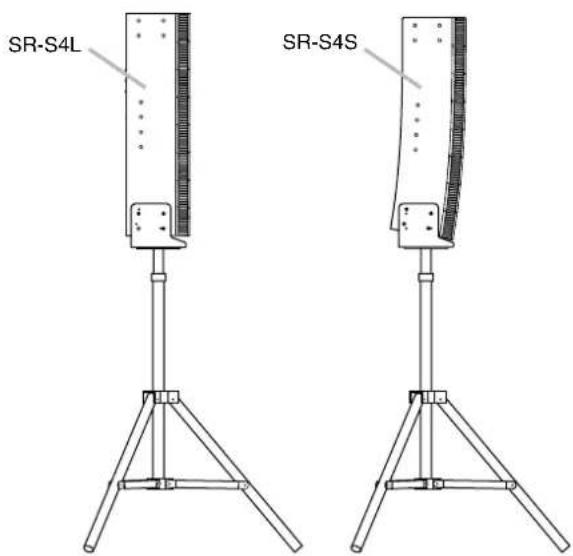

2. SPEAKER MOUNTING VIEW

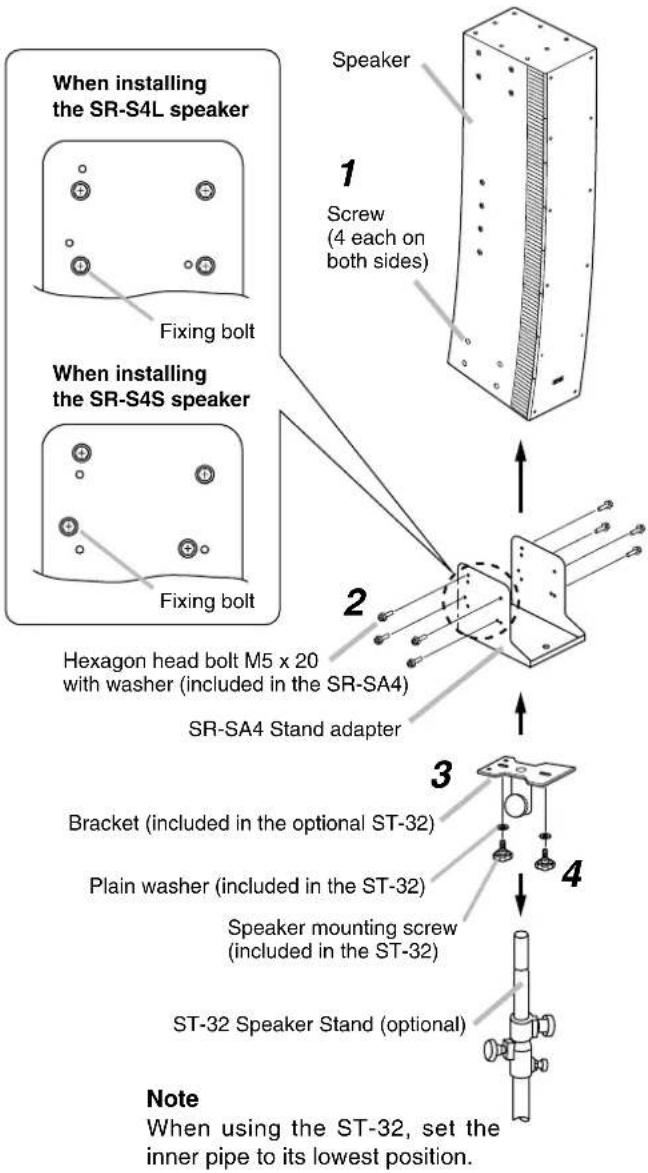

3. SPEAKER MOUNTING
For step 3 and 4 below, refer to the instruction manual attached to the ST-32.
Step 1. Remove the screws on both sides of the speaker. Note: The removed screws are not used.
Step 2. Install the SR-SA4 Stand Adapter to the speaker.
Step 3. Attach the bracket (included in the ST-32) to the SR-SA4 Stand Adapter.
Step 4. Mount the bracket onto the stand.
4. SPECIFICATIONS
| Number of Speakers to be Mounted | 1 |
| Finish | Steel plate, white, paint |
| Dimensions | 165 (w) x 175 (h) x 220 (d) mm |
| Weight | 1.7 kg (including accessories) |
| Applicable Stand (option) | ST-32 |
| Accessories | Hexagon head bolt M5 x 20 with washer ..... 8 |
Note: The design and specifications are subject to change without notice for improvement.
