BRUKSANVISNING Tempo Ultra Integra 572 Morel
empoUltra
INTEGRA
402 / 502 / 602 / 572 / 692
Installation Instructions

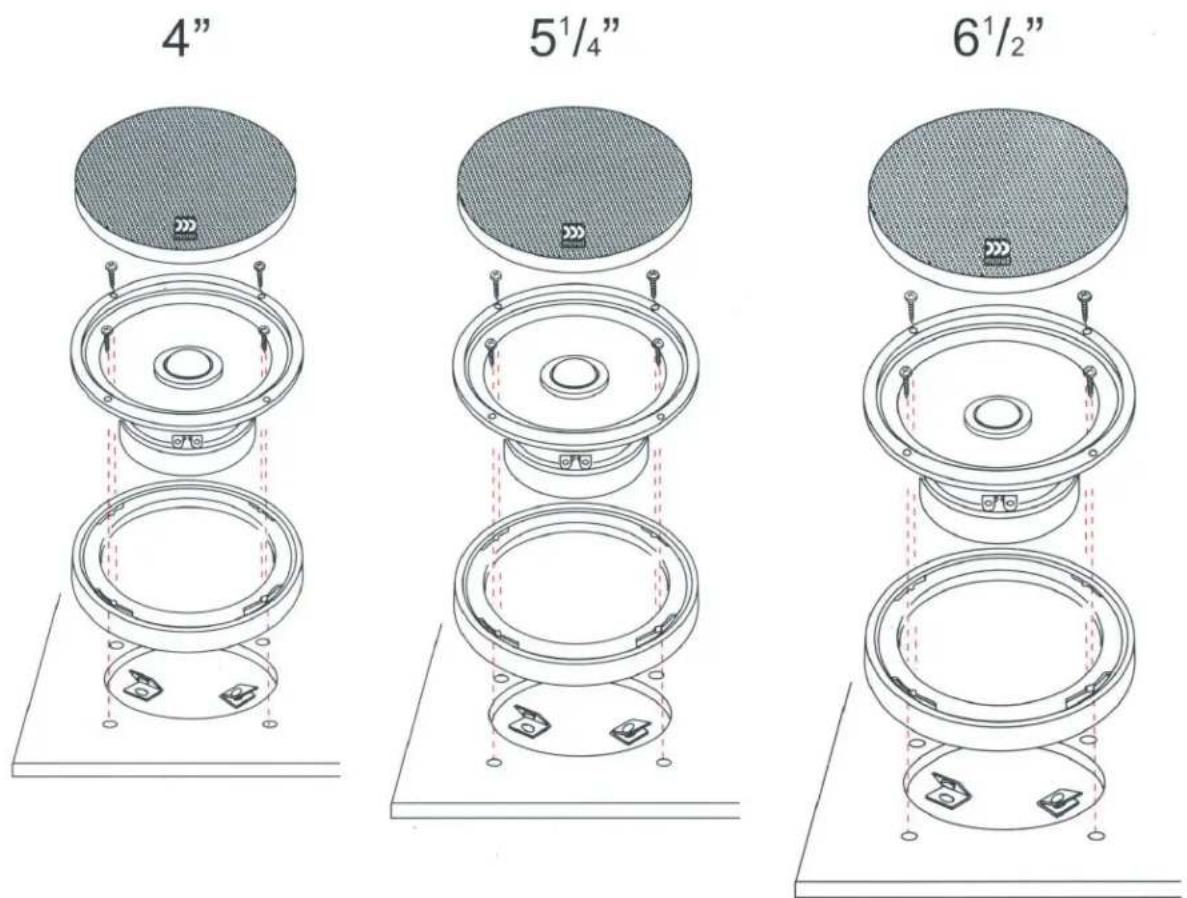

Content - 4" / 5 ^1 / 4 " / 6 ^1 / 2 "


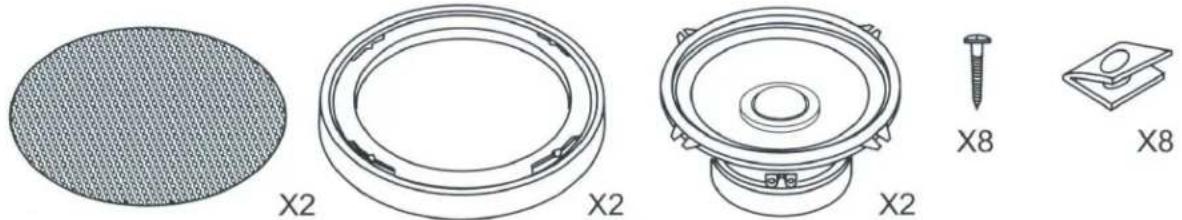

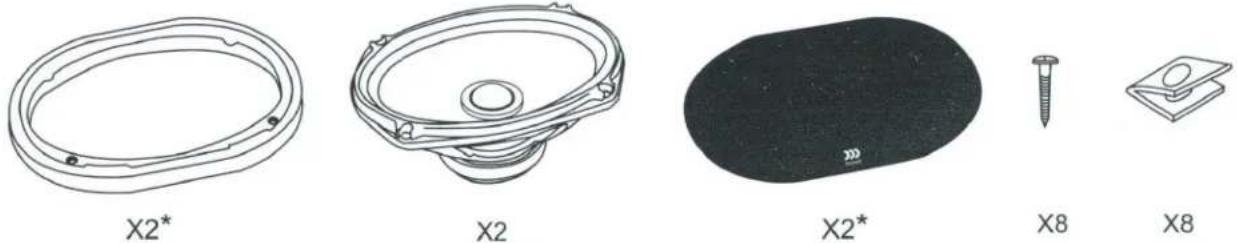

Technical line drawings of a speaker component with labeled parts (X2, X8) and a screw, showing cross-sectional views without any text or symbols beyond labels.Content - 6x9" / 5x7"
*Grills puchased separately

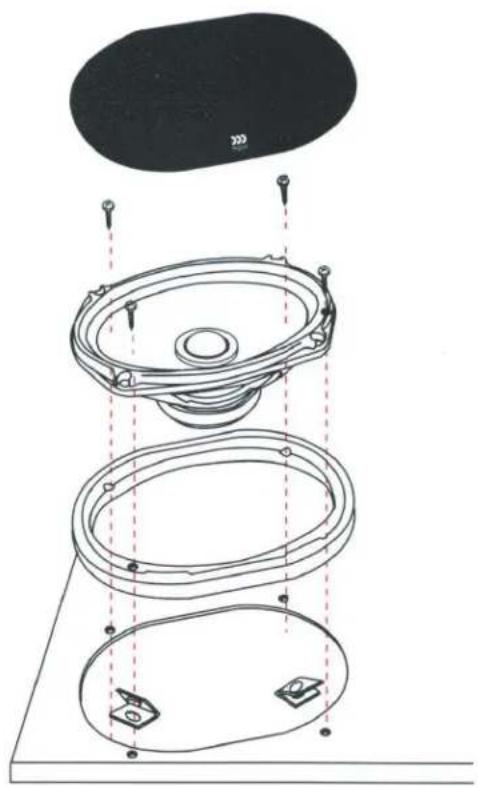

Woofer Mounting
6×9" / 5×7"


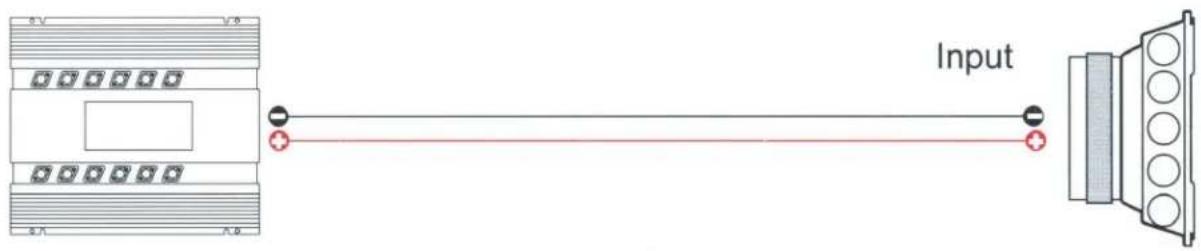

Exploded view diagram of a speaker assembly showing top, front, and side views (no text or labels)Connection Diagram
Amplifire/Head unit
Specifications
| Tempo Integra | 402 | 502 | 602 | |
| Nominal Impedance | 4 ohm | 4 ohm | 4 ohm | |
| Power Handling | 60W | 100W | 110W | |
| Max. Transient Power Handling | 140W | 220W | 220W | |
| Sensitivity (2.83V/1M) | 85dB | 89dB | 90dB | |
| Frequency Response | 80-22000Hz | 55-22000Hz | 50-22000Hz | |
| Voice Coil Diameter | Woofer: | 32 mm (1.30") | 38 mm (1.50") | 38 mm (1.50") |
| Tweeter: | 19 mm (1.00") | 25 mm (1.00") | 25 mm (1.00") | |
| Voice Coil Wire | Woofer: | Copper | Copper | Copper |
| Tweeter: | Copper | Copper | Copper | |
| Magnet System | Woofer: | high-grade ferrite | high-grade ferrite | high-grade ferrite |
| Tweeter: | Neodymium | Neodymium | Neodymium | |
| Mounting Depth | 57 mm (2.25") | 57 mm (2.25") | 64 mm (2.52") | |
| Tempo Integra | 572 | 692 | |
| Nominal Impedance | 4 ohm | 4 ohm | |
| Power Handling | 100W | 140W | |
| Max. Transient Power Handling | 220W | 250W | |
| Sensitivity (2.83V/1M) | 90dB | 92dB | |
| Frequency Response | 60-22000Hz | 35-22000Hz | |
| Voice Coil Diameter | Woofer: | 38 mm (1.50") | 38 mm (1.50") |
| Tweeter: | 25 mm (1.00") | 25 mm (1.00") | |
| Voice Coil Wire | Woofer: | Copper | Copper |
| Tweeter: | Copper | Copper | |
| Magnet System | Woofer: | high-grade ferrite | high-grade ferrite |
| Tweeter: | Neodymium | Neodymium | |
| Mounting Depth | 62 mm (2.45") | 85 mm (3.35") | |
