BRUKSANVISNING HDM2.0-FIB-II-HID-SM Apantac
MAZAMA
HDM2.0-FIB-II-HID-SM
HDMI 2.0 Fiber Extenders with HID support, can be used as a KVM Extender
HDM2.0-FIB-II-E-HID-SM
HDM2.0-FIB-II-R-HID-SM
Key Features
• HDMI 2.0 to fiber extenders
• Supports USB 1.1 HID for keyboard and mouse
• Supports up to 10 Km on single-mode fiber cable
• Supports 4096x2160@60Hz 8 bit(4:4:4), 3840x2160@60Hz 8 bit(4:4:4)
• Supports all resolution up to 594MHz
• HDCP 1.4 and 2.2 compliant
• Supports CEC transfer
• Supports RS-232 transfer
• Supports 38KHz frequency IR control
• Supports multi-channel PCM, Dolby True-HD and DTS HD master audio
MAZAMA
HDM2.0-FIB-II-HID-SM

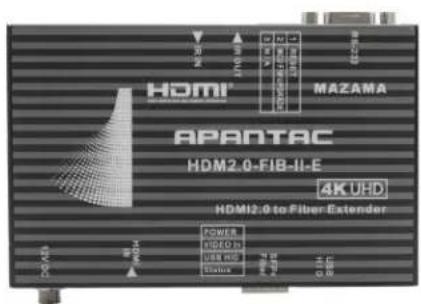

HDM2.0-FIB-II-E-HID-SM
Front View
RS-232
DIP Switch
IR OUT (for IR blaster)
IR IN (for IR receiver)
Rear View
1 × 12V DC
HDMI IN
POWER/Video USB-HID Status
SFP+ Fiber module

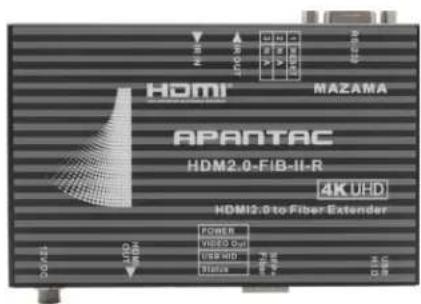

HDM2.0-FIB-II-R-HID-SM
Front View
RS-232
DIP Switch
IR OUT (for IR blaster)
IR IN (for IR receiver)
Rear View
1 x 12V DC
HDMI OUT
POWER/Video USB-HID Status
SFP+ Fiber module
Related Products
HDM2.0-FIB-II-HID
Display Port (DP 1 2) Fiber
Extenders with HID
HDM2.0-FIB-II-SM
Display Port (DP 1 2) Fiber
Extenders on single mode fiber
DP-FIB-II
Display Port (DP 1 2) Fiber
Extenders
Specifications
| Models HDM2.0-FIB-II-E-HID-SM HDM2.0-FIB-II-R-HID-SM | |||
| Video | Input HDMI LC fiber | ||
| Output LC fiber HDMI | |||
| Audio Supports multi-channel PCM, Dolby True-HD and DTS HD master Audio | |||
| RS-232 For FW upgrade | |||
| IR In/Out 1 x 3/5 mm stereo jack each. IR blaster and IR receiver cables are optional | |||
| Video Resolution Up to 4096x2160 @ 60Hz | |||
| Interconnect Cable LC fiber, single mode | |||
| Maximum Cable Length 10 Km on single-mode fiber | |||
| Temperatures Operating temperature: 0 ~ 50 C, storage temperature: -20 ~ 85C | |||
| Environmental Humidity 0 ~ 80% (non-condensing) | |||
| Power Consumption 1.155 mW | |||
| Power / Weight / Dimension DC 12V, 1.5A, 600g, 122 x 74 x 29 mm | |||
