BRUKSANVISNING ES-5260GM Edimax


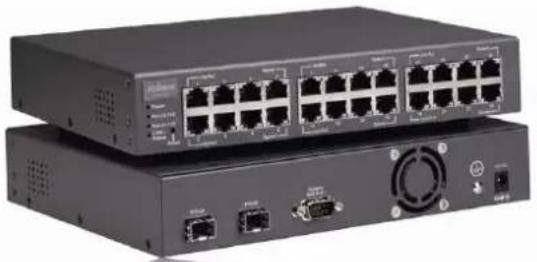

Two gray network switches with multiple Ethernet ports and ventilation grilles (no visible text or labels)ES-5260GM
24-Port Gigabit Ethernet Management Switch with 2 SFP Slots
Product Description
The ES-5260GM 24-Port Gigabit Ethernet Management Switch is a standard switch that meets all gigabit and Fast Ethernet specifications. This switch has 22 gigabit TP and 2 gigabit TP/SFP fiber dual-media ports, enabling it to be managed through an RS-232 serial port or an Ethernet port using CLI or a web-based management interface associated with an SNMP agent. With the SNMP agent, the network administrator can access the switch to monitor, configure, and control each port's activity for enhanced network management and improved network efficiency. In addition, this switch features a comprehensive range of functions such as Quality of Service, Spanning Tree Protocol, VLAN, port trunking, bandwidth control, port security, SNMP/RMON, and IGMP snooping. The ES-5260GM is suitable for both metro-LAN and office applications.
Key Features
• 2 SFP slots for flexible fiber connections
• 9K jumbo frame support
- IEEE 802.1x port-based network access control to improve network security
• Port mirroring for network traffic monitoring
• Q-in-Q VLAN for enhanced performance and security
• 4,094 VLAN groups
- Unknown-unicast/broadcast/multicast storm control
• MulticastVLANregistration.. forIPT.V.
• QCL based on application traffic for QoS and rate limitation management
- ACL based on Ethernet Type, ARP, and IPv4 for rate limitation and port copying
• DHCP Option 82 relay agent
The QoS Control List (QCL) feature provides 4 internal queues to support 4 different classifications of traffic. High priority packet streams will experience less delay inside the switch, which provides a lower latency level for certain delay-sensitive traffic. The ES-5260GM is able to assign different priorities to data packets according to port, 802.1p priority tag, D iffServ and/or IP TOS, IPv4, and UDP/TCP application traffic. The QoS operates at full wire speed, and the actual scheduling at each egress port can be based upon a strict weighted round robin.
Port Mirroring
The port mirroring feature allows the ingress traffic to execute port copying. This mechanism helps track network errors or abnormal packet transmission without interrupting the flow of data, allowing ingress traffic to be monitored by a single port that is defined as a mirror capture port. The mirror capture port can be any 10/100/1000 port. Mirroring multiple ports is possible, but can create congestion at the mirror capture port.
Q-in-Q VLAN for Improved Performance & Security
The VLAN feature in the switch offers the benefit of improved security and performance. VLAN is used to isolate traffic between different users, thus providing better security. Limiting the broadcast traffic within the same VLAN broadcast domain also enhances performance. Q-in-Q, the use of double VLAN tags, is an efficient method to enable subscriber aggregation.
Isolated Group for Port Protection
The isolated group feature allows certain ports to be designated as protected ports. All other ports are non-isolated. Traffic between isolated group members are blocked. Traffic can only be sent from the isolated group to the non-isolated group.
802.3ad LACP with Dynamic Link Fail-Over
Dynamic fail-over means packets will not be assigned to any trunk member port that has failed. If one of the ports were to fail, traffic will automatically be distributed to the remaining active ports.
802.1x Port-Based Network Access Control for Improved Network Security
The 802.1x feature enables user authentication for every network access attempt. The port security feature allows users to limit network access to non-registered users. By enabling these features, users can establish an access mechanism based on user and machine identities, as well as control the number of access stations.
For environments with multiple switches supporting 'STP, users can configure the switches with a backup bridge path, so transmission and reception of packets can be guaranteed in the event of a switch fail-over.
2 Dual-Media Ports for Flexible Fiber Connections
2 dual-media ports are available for flexible fiber connections. Users can install transceiver modules in these slots for short, medium, or long distance fiber backbone attachment. The RJ-45 module will then be disabled in the corresponding 10/100/1000Base-T connections.
Broadcast/Multicast/Unknown-Unicast StormControl
To prevent broadcast, multicast, or unknown-unicast flooding in the network, the storm control function can be used to restrict excess traffic. Threshold values are available to control the limit rate for each port. Packets will be discarded if the count exceeds the designated upper threshold.
Access Control List (ACL)
The ACLs are divided into different EtherTypes: IPv4, ARP protocol, MAC, VLAN, etc. As you create an ACL for ingress classification, you can assign a policy for each port. Each policy can be applied to any port. This makes it very easy to determine what type of ACL policy you will be working with.
Technical Specifications
Complied Standards
- IEEE 802.3x flow control
- IEEE 302.1q VLAN
- IEEE 802.1p
Switching Capacity
• 24 gigabit Ethernet ports with non-blocking wire speed performance
- 8K MAC addresses
•9K jumbo frame support
- Unknown-unicast/Broadcast/Multicast storm control
- Port mirroring
VLAN
- Port-based VLAN
• IEEE 802.1q tag-based VLAN (up to 4,094 VLANs)
• Q-in-Q'för enabling subscriber aggregation
• Multicast VLAN management
QoS
• Supports QCL for Layer 4 TCP/UDP ports and ToS classification
• Supports 802.1p QoS with 4 priority queues
•Su pports priority in a VLAN tag
Bandwidth Control
• Supports bandwidth rating
• Per port ingress
- Egress rate limit
LACP
• Port trunking with 12 trunking groups (up to 16 ports for each group)
Tag VLAN
• 802.1q, Q-in-Q double tag
Multicasting
• IGMP snooping V1, V2
- Fast leave
• Filtering via filtering profile
• Per port channel limitation
• MVR (Multicast VLAN Registration)
STP/RSTP
•802.1d/1w
Network Security
• 802.1x port based network access control
•Isolated group
• Management access policy control
•Static MAC
- Access control List
•DHCP snooping
- DHCP relay agent
- Storm control
SNMPv1/v2c Network Management
MIB Files: interface MIB RFC 1213 MIB (MIB-II), RFC 1757 RMON MIB, private MIB
Network Interface
| InterfaceConn | ectorPort | |
| 10/100/1000Mbps TP Jack (RJ-45) | TP (RJ-45)1 to 22 | |
| 100/1000Mbps SFP Fiber Module Dual-Media Auto-Detection | TP (RJ-45) / SFP | 23 to 24 |
Hardware Specifications
| FeatureDescription | |
| Voltage | 100~240V |
| Frequency | 50~60 Hz |
| Consumption | 35W |
| Ambient Temperature | 0° to 50°C |
| Humidity5% to 90% | |
| Dimensions | 240 (W) × 44 (H) × 200 (D) mm |
| Weight | Principal: 1.64KgPackage: 2.90Kg |
| SafetyComplies with F | CC Part 15 Class A & CE Mark approval |
Packing Information
| CartonDimensions (mm) | Pcs / Carton | N.W(KG) | G.W(KG) |
| 420 (W) x 370 (D) x 300 (H) | 5 | 12.514.5 |
