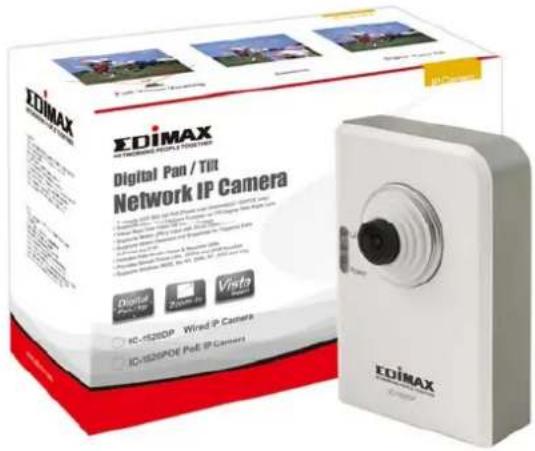

IC - 1520DP

Full Vision Viewing and Digital Pan/Tilt Mode

This is a compact 1.3 Megapixel Network Camera with digital pan-tilt-zoom that enhances viewing and monitoring. The IC-1520DP uses 179 degrees Wide Angle Lens to view Horizontal:128/ Vertical:99 degrees of the actual vision. IC-1520DP lets you move around using a smaller viewing windows. You can even define a preset path, and the camera will cruise along the path you defined.

Action photo of two American football players competing for the ball during a game (no visible text or symbols)

Digital Pan / Tilt

Two American football players in action on a field, one mid-air and one forward, with no visible text or symbols.

Full Vision Viewing

Fast Center Zoom-in

When you see something that catch your attention, this allows you to zoom-in to see the details and you won't miss even a tinny thing. It also allows you to do recording at the same time.

Motion Detection and Snapshots the Triggered Event by E-mail and FTP

The IC-1520DP is a powerful mobile surveillance system. When a motion is being detected, the IP camera is capable to capture the picture and send it to an Email or FTP server. This is very useful and convenient because the IP camera will guard the environment automatically for you, and you don't have to look at the monitor all the time

Supports DDNS & UPnP

IC-1520DP can be viewed over a Local Area Network (LAN), Wide Area Network (WAN) or via the Internet. Also supports UPnP and DDNS. DDNS allows the camera to use an easier to remember naming format rather than an IP address. UPnP will allow users of Windows XP to access the camera with the click of a mouse without knowing IP address of the camera.

Taiwan / Headquarters

Edimax Technology Co., LTD.

TEL: [phone]

FAX: [phone]

[e-mail]

Europe

Edimax Technology Europe B.V.

TEL: [phone]

FAX: [phone]

[e-mail]

U.K.

Edimax Technology (UK) Ltd.

TEL: [phone]

FAX: [phone]

[e-mail]

Poland

Edimax Technology Europe

B.V. SP. ZO.O.

Tel: [phone]

Fax: [phone]

[e-mail]

U.S.A.

Edimax Computer Company

TEL: [phone]

FAX: [phone]

[e-mail]

Latin America

TEL:[phone]

FAX: [phone]

[e-mail]

China

TEL: [phone]

FAX: [phone]

[e-mail]

Russia

Edimax Technology Russia

Tel: [phone]

Fax:[phone]

[e-mail]

Feature

- Camera / Image:

• Motion-JPEG Image Video with 24-bit Digital Color
• Provides Manual Focus Lens
• Provides 179 degrees Wide Angle Lens
• Supports Digital Pan-Tilt-Zoom function via Wide Angle Lens
• Recording Format - Video (AVI), Snapshot (JPEG)
• High Speed Hardware-Based Image Compression

- HTTP / Utility:

• Includes easy-to-use Viewer & Recorder utility
• Provide Admin utility, Camera Viewer & WEB browser Management
• View multiple cameras simultaneously - Up to 4 at a time
• Supports four additional user accounts for viewing camera
• Manual / Schedule /Cycle Record, Video Playback, Forward, Pause and Stop
• Auto sending Snapshot by E-mail and FTP
• Supports Login Free and Snapshot by Schedule
• Supports Motion-Detection and Snapshots the Triggered Event by E-mail and FTP
• Supports Windows 98/ME/2000/XP/2003/Vista
• Firmware Upgradeable

Specification:

Model NO. IC-1520DP
Interface 1 10/100Mbps UTP Port
Flash 2 MB Flash
RAM 16 MB SDFAM
	1.3M Pixels CMOS SensorImage Sensor
	Manual Focus , F= 2.0Lens
FOV	Horizontal: 128 degreesVertical: 99 degrees
	< 98%Distortion
Button Reset
Power DC12V , 0	4 A Power Adapter
LED Indicators Power , LAN
Dimension 113 x 79 x 50 mm
Humidity 10~90% (Non-Condensing)
Temperature 0 ~ 45 °C
Certifications CE, FCC
