BRUKSANVISNING XpressKit 650T Diode Viper
Diode FAQ
Published 05/05/2006 08:15 PM | Updated 07/18/2014 08:03 AM
How do diodes work, and what are they used for?
Diodes are an electrical device which are used to isolate current flow by controlling (blocking or passing) its flow. Diodes introduce a 0.7 volt drop in voltage to the circuit in which they are installed. There is a band, or stripe, on one end of the diode, which is used to identify its polarity. The direction that it will be oriented will depend on the polarity of the system involved:


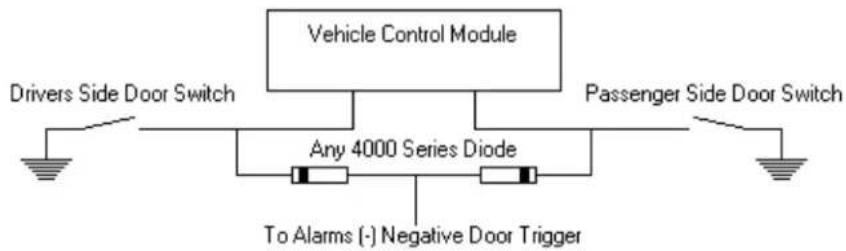

• Using Diodes To Isolate Between Multiple Negative(-) Door Triggers


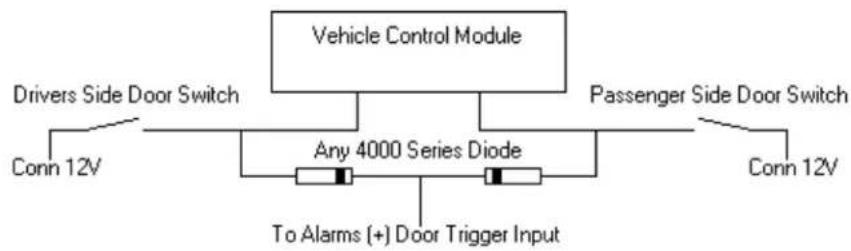

• Using Diodes To Isolate Between Multiple Positive(+) Door Triggers


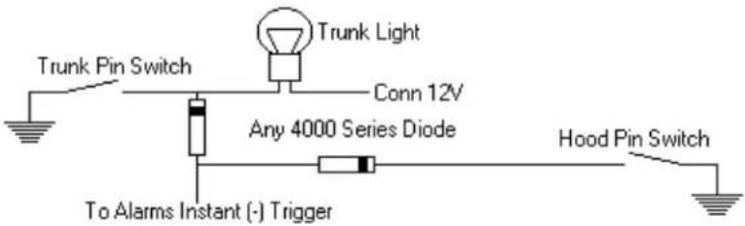

• Using Diodes To Isolate Between Hood And Trunk Pin Switches


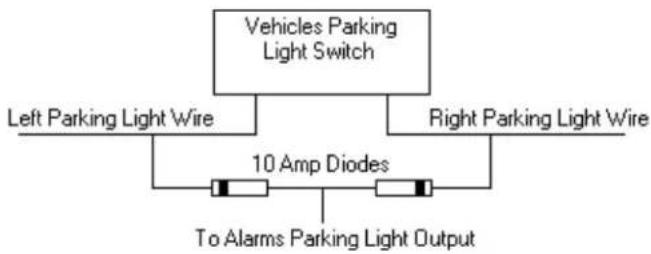

Trunk Pin Switch Trunk Light Conn 12V Any 4000 Series Diode To Alarms Instant (-) Trigger Hood Pin Switch- Using Diodes To Interface With Separate Left And Right Parking Light Circuits


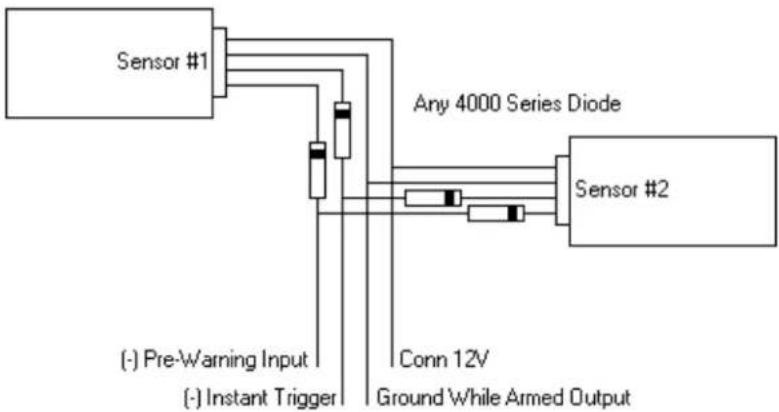

• Using Diodes To Isolate Between Multiple Sensors

