BRUKSANVISNING RTAFHD3-50 Emerson
GEIST™ TEMPERATURE, AIRFLOW, HUMIDITY AND DEW POINT SENSOR
Quick Installation Guide
Part Number:
RTAFHD3
Description
The RTAFHD3 is a temperature, airflow, humidity and dew point sensor.
NOTE: This sensor can span a total cable distance up to 600 ft from the Geist environmental monitoring device.
NOTE: The sensor must be mounted perpendicular to the airflow for effective measurement.
Installation
- Mount the sensor anywhere in the data center with zip ties or Velcro tape.
- Plug the uplink cable into sensor port (RJ12/2) of the Geist environmental monitoring device or rack PDU.
Once connected, the Geist environmental monitoring device automatically detects and identifies the sensor.

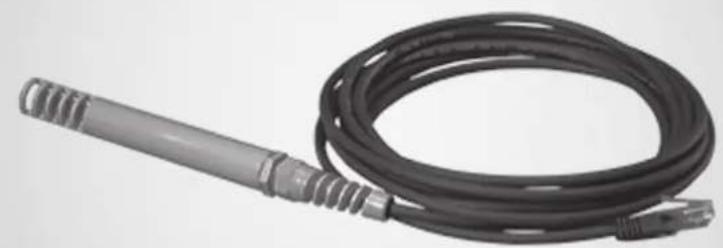

Geist™ Temperature, Airflow, Humidity and Dew Point Sensor


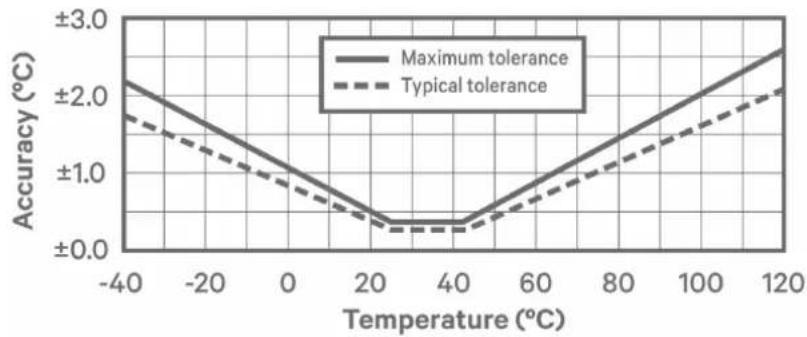

Coiled black cable with threaded connectors, no visible text or symbolsTemperature Accuracy Charts
line
| Temperature (°C) | Maximum tolerance | Typical tolerance | | ---------------- | ----------------- | ----------------- | | -40 | ±2.2 | ±1.8 | | 0 | ±1.5 | ±1.2 | | 20 | ±0.5 | ±0.3 | | 40 | ±0.5 | ±0.3 | | 60 | ±1.0 | ±0.7 | | 80 | ±1.5 | ±1.2 | | 100 | ±2.0 | ±1.7 | | 120 | ±2.5 | ±2.0 |
line

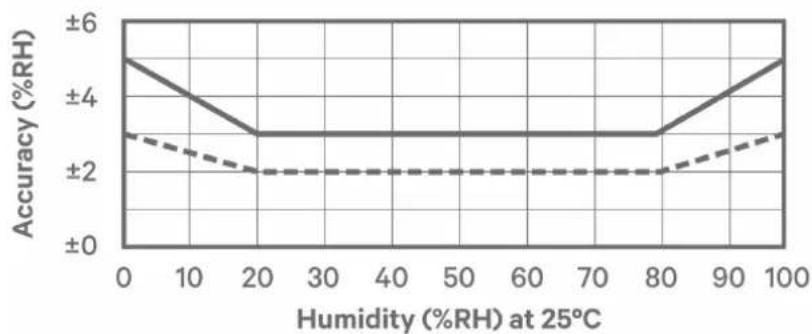

| Humidity (%RH) at 25°C | Accuracy (%RH) | | ----------------------- | -------------- | | 0 | ±5 | | 20 | ±3 | | 80 | ±3 | | 100 | ±5 |
