Speed Queen

A Raytheon Company

OPERATION INSTRUCTIONS AND WARRANTY For Home Laundry Automatic Washer

Model NA 5721

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. (If the washer changes ownership, be sure this manual accompanies the washer.)

WARNING

FOR YOUR SAFETY and to reduce the risk of fire or an explosion, do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Operation Instructions

To Wash Clothes

IMPORTANT: Before using your new washer, make sure the washer cord is plugged into a 120 Volt electrical outlet that has the proper grounding and polarity, that washer hoses are connected to hot and cold water faucets, and that faucets are turned on. Be sure the drain hose is not kinked and is inserted into a drain. See INSTALLATION INSTRUCTIONS for details of proper washer installation. Keep these instructions for future reference.

1 Get clothes ready for washing. Empty pockets and cuffs. Sort items into separate loads. Pretreat stains and heavily soiled areas. Consult the Handbook (supplied with the washer) for information on how to get the best cleaning results.
2 Measure and add detergent to the washtub.
3 Add clothes loosely into the washtub. The bulk of the clothes rather than the weight will determine load size.
4 Close the loading door. The washer will not agitate or spin with the loading door open.

WARNING

DO NOT by-pass the loading door switch by permitting the washer to agitate or spin with the loading door open.

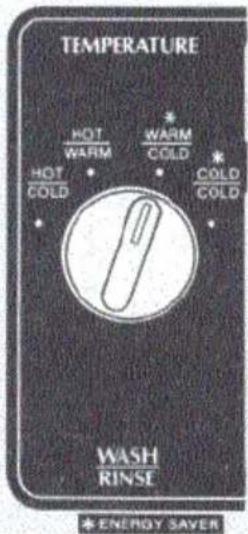

5 Set WASH/RINSE temperatures.

TEMPERATURE HOT WARM * WARM COLD * COLD COLD HOT COLD WASH RINSE * ENERGY SAYER

NOTE: The washer will provide a cold rinse in all TEMPERATURE settings except in the HOT wash WARM rinse setting. DO NOT use a warm rinse with permanent press or other synthetic fabrics. A warm rinse can cause wrinkling in some garments. Cold rinses will save you money and energy and cold rinses help reduce wrinkling in permanent press and synthetics.

6 Set LOAD SIZE WATER LEVEL control. Use RESET if agitation has started and more water is needed.

LOAD SIZE MEDIUM LARGE SMALL EXT LARGE RESET WATER LEVEL

IMPORTANT: Holding the LOAD SIZE WATER LEVEL control in the RESET position can cause flooding of the washer.

(continued)

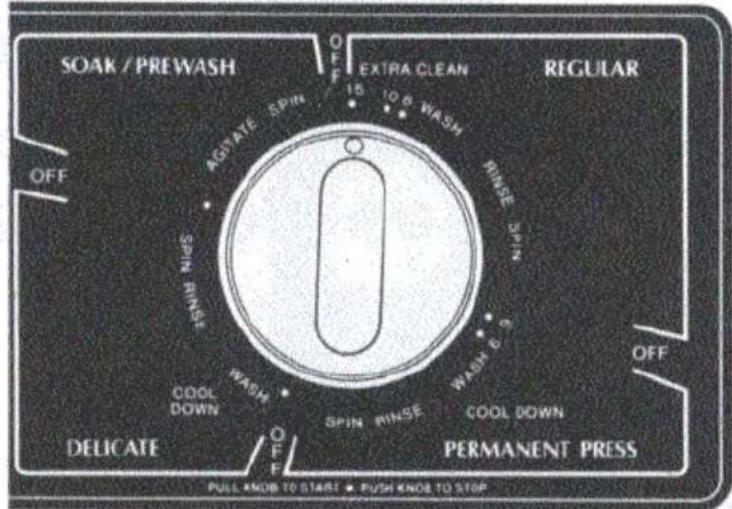

7 Select cycle according to the type of fabric being washed. Push the timer knob in and turn clockwise to the desired cycle and wash time.

SOAK / PREWASH OFF AGYATE SPIN 15 10.6 WASH RINSE SPIN WASH COOL DOWN SPIN RINSE COOL DOWN OFF DEPLICATE OFF EXTRA CLEAN REGULAR PULL KNOB TO START • PUSH KNOB TO STOP PERMANENT PRESS

8 Pull the timer knob out to start the water fill. Agitation will begin when the water reaches the level you selected.

The washer will stop (pause) for approximately two minutes before the wash and rinse spins. Do not turn the timer through these pauses. They are part of the cycle.

Timer

Although the washer cycles are automatic, the timer may be reset to lengthen, shorten or repeat a portion of a cycle.

To set or reset the timer, push timer knob in to stop the washer. Hold timer knob in firmly while turning it clockwise to the setting desired. Pull timer knob out to start the washer.

Automatic Cycles

REGULAR

Use for sturdy items, like play or work clothes, towels, T-shirts, etc. The wash time selection will depend on the type of fabric and the amount of soil. For the best results when cleaning heavily soiled items, use a longer wash time (15 minutes maximum). Lightly soiled items require less wash time.

SOAK / PREWASH OFF ADJATE SIN 15 10.9 WASH RINSE SPIN WASH 6.9 COOL DOWN COOL DOWN SPIN RINSE PERMANENT PRESS FULL KNOW TO START • PUSH KNOW TO STOP REGULAR OFF DELICATE

PERMANENT PRESS

Use for permanent press items and synthetics. The wash time selection will depend upon the type of fabric and amount of soil. The PERMANENT PRESS cycle automatically cools the temperature of the fibers before the spin. After wash the agitation stops, the washtub spins slowly, partially drains and then stops. Cold water will then be automatically added to the washtub until the proper water level is reached. This happens one or two times, depending on the size of the load and type of drain the washer is connected to. When the COOL DOWN is complete, the washer will pause for approximately one minute before continuing the cycle.

SOAK / PREWASH OFF AGNATE SPIN 15 10.8 WASH EXTRACLEAN RINSE SPIN WASH 6.9 REGULAR OFF SPIN RINSE COOL DOWN COOL DOWN SPIN RINSE WHASH DELECCATE OFF PERMANENT PRESS PULL KNOB TO START • PUSH KNOB TO STOP

DELICATE

Wash delicate items usually washed by hand on this cycle. A full tub of warm water is recommended (even for small load) to allow the delicate items to move freely through the water. More water helps reduce fabric wear, wrinkling and provides for a clean wash.

The wash portion of this cycle alternates between short periods of agitation and longer periods of soaking. Cycle includes a cold water rinse.

SOAK / PREWASH OFF KOTATE SPIN 15 10 B WASH EXTRA CLEAN RANGE SPIN WASH COOL DOWN SPIN RANGE WASH 8.8 COOL DOWN FULL ANOOR TO START • PUSH ANOOR TO STOP REGULAR OFF DEPLICATE PERMANENT PRESS

SOAK/ PREWASH

Soak or prewash items that are heavily soiled or stained. First add detergent to the washtub then place the load into the tub. Turn timer knob to the beginning of the SOAK/PREWASH cycle. Pull timer knob out to start the water fill. After fill is completed, agitation will begin. This cycle has alternate periods of agitation and soaking. Refer to the CYCLE CHART for detailed information. After the soak/agitation period is over the washer will go into the spin portion of the cycle. Wash clothes immediately after soaking.

SOAK / PREWASH OFF REGATE SPIN 15 TO 8 WASH EXTRA CLEAN RINSE SPIN WASH 6.0 Regular OFF SPIN RINSE COOL DOWN COOL DOWN PERMANENT PRESS DEPLICATE OFF PULL ANDER TO START • PUSH ANDER TO STOP
