Producttype	Televisie
Beeldschermdiagonaal	48 cm (19 inch)
Paneeltechnologie	a-Si TFT actieve matrix
Maximale resolutie	1600 x 1200
Pixelafstand	0,2415 mm (H) x 0,2415 mm (V)
Kijkhoek (typisch)	85° links/rechts/boven/onder
Responstijd (typisch)	25 ms
Contrastverhouding	Hoog contrast
Weergavekleuren	16,7 miljoen (maximaal)

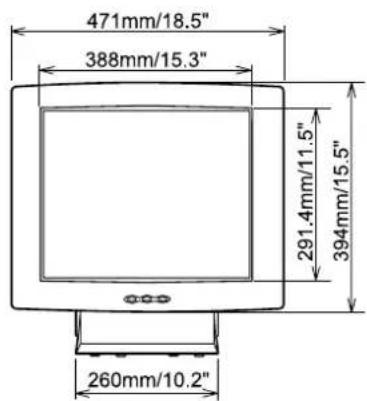

Afmetingen (B x H x D)	471 x 460 x 220 mm
Gewicht	9,5 kg
Netvoeding	100-240 V AC, 50/60 Hz, 1,4-0,6 A
Energieverbruik (maximaal)	110 W
Energieverbruik (stand-by)	< 5 W
Aansluitingen video	D-Sub 15-pins (analoog), DVI-D 24-pins (digitaal)
Aansluitingen audio	Audio-ingang (3,5 mm mini-jack), koptelefoonuitgang (3,5 mm mini-jack)
Luidsprekers	2 x 1 W stereo
USB-hub	1 upstream, 4 downstream

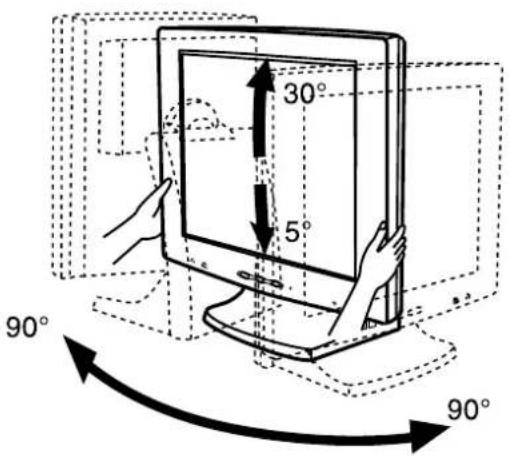

Kantelbereik	Omhoog 30°, omlaag 5°, links/rechts 90°
Paneelrotatie	Ja, 90° draaibaar
VESA-montage	Ja, VESA standaard
Goedkeuringen	TCO'99, CE, TÜV-GS, MPR3, FCC-B, UL/C-UL, VCCI-B

Veelgestelde vragen - ProLite AU4831D IIYAMA

Hoe schakel ik tussen analoge en digitale ingang?

Druk op de Input Select-knop op de monitor om te schakelen tussen VIDEO IN 1 (analoog) en VIDEO IN 2 (digitaal).

Wat moet ik doen als het beeld niet wordt weergegeven?

Controleer of de stroomkabel goed is aangesloten en de monitor is ingeschakeld. Controleer ook de signaalkabel en of de computer aan staat. Als de indicator oranje is, raak dan het toetsenbord of de muis aan om de energiebesparingsmodus te verlaten.

Hoe pas ik de beeldpositie aan?

Ga naar het menu via de Menu-knop, selecteer GEOMETRIC en pas de H-POSITION en V-POSITION aan met de +/- knoppen.

Hoe reinig ik het scherm?

Schakel de monitor uit en haal de stekker uit het stopcontact. Gebruik een zachte droge doek om het scherm schoon te maken. Gebruik geen agressieve schoonmaakmiddelen zoals thinner of benzine.

Wat is de maximale resolutie van deze monitor?

De maximale resolutie is 1600 x 1200 pixels. Voor de beste prestaties wordt aanbevolen deze resolutie te gebruiken.

Kan ik de monitor aan de muur bevestigen?

Ja, de monitor is VESA-compatibel voor wand- of armbevestiging. Gebruik een VESA-montageset die geschikt is voor het gewicht van de monitor.

Wat betekenen de groene en oranje stroomindicatoren?

Groen betekent normale werking. Oranje geeft aan dat de monitor in de energiebesparingsmodus staat (stroomverbruik < 5 W).

Hoe draai ik het scherm 90 graden?

Kantel het paneel volledig omhoog (30°), draai het dan met de klok mee voor portretmodus of tegen de klok in voor landschap. Gebruik de meegeleverde Pivot®-software om het beeld aan te passen.

Het beeld flikkert of is wazig. Wat moet ik doen?

Voer eerst een Auto Adjust uit (houd de Menu-knop 2 seconden ingedrukt). Als dat niet helpt, pas dan handmatig de Clock en Phase aan in het menu tot het beeld stabiel is.

Hoe sluit ik externe luidsprekers of een koptelefoon aan?

Sluit een koptelefoon aan op de 3,5 mm jack-uitgang. Voor externe luidsprekers gebruikt u de audio-uitgang (indien aanwezig) of sluit u de koptelefoonuitgang aan op een versterker.

GEBRUIKSAANWIJZING ProLite AU4831D IIYAMA

AU4831D

USER MANUAL

TABLE OF CONTENTS

FOR YOUR SAFETY 1

SAFETY PRECAUTIONS 1

SPECIAL NOTES ON LCD MONITORS 3

CUSTOMER SERVICE 3

CLEANING 3

BEFORE YOU OPERATE THE MONITOR 4

FEATURES 4

CHECKING THE CONTENTS OF THE PACKAGE 4

CONTROLS AND CONNECTORS 5

CONNECTING YOUR MONITOR 6

COMPUTER SETTING 7

ADJUSTING THE VIEWING ANGLE 8

PANEL ROTATION 8

OPERATING THE MONITOR 9

ADJUSTMENT MENU CONTENTS 10

SCREENADJUSTMENTS 13

POWER MANAGEMENT FEATURE 16

TROUBLE SHOOTING 17

APPENDIX 18

SPECIFICATIONS 18

COMPLIANT TIMING 19

CONNECTOR PIN ASSIGNMENT 20

ENGLISH

DEUTSCH

FRANCAIS

NEDERLANDS

SVENSKA

日本語

Thank you very much for choosing the iiyama LCD monitor.

We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe place for your future reference.

Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled products may also be

obtained via the Internet, using the address: http://www.tco-info.com/

Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

FCC DECLARATION OF CONFORMITY

Model Number: AU4831D

Trade Name: iiyama

Responsible party: Iiyama North America, Inc.

Address: 1560 Brookhollow Drive, Suite 208, Santa Ana, CA 92705 U.S.A.

Telephone number: 714-437-5111

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device has been tested and found to comply with the limits for Class B Personal Computers and peripherals, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the device is operated in a residential environment. This device generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If you determine the device does cause harmful interference to radio or television reception (this may be determined by monitoring the interference while turning the device off and on), you are encouraged to try to correct the interference by one of the following measures:

n Reorient or relocate the receiving antenna.
n Increase the separation between the device and receiver.
n Connect the device into an outlet on a circuit different from that to which the receiver is connected.
n Consult the dealer or an experienced radio or TV technician for help.

To meet the FCC requirements, you should use a signal cable with ferrite core at both ends.

CAUTION

Changes or modifications not expressly approved by liyama Electric Co., Ltd. could void the user's authority to operate the device.

CANADIAN DEPARTMENT OF COMMUNICATIONS COMPLIANCE STATEMENT

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulation of the Canadian department of communications.

CE MARKING DECLARATION OF CONFORMITY

This LCD monitor complies with the requirements of the EC Directive 89/336/EEC "EMC Directive" and 73/23/EEC "Low Voltage Directive" as amended by Directive 93/68/EEC.

The electro-magnetic susceptibility has been chosen at a level that gives correct operation in residential areas, business and light industrial premises and small-scale enterprises, inside as well as outside of the buildings. All places of operation are characterised by their connection to the public low voltage power supply system.

FOR YOUR SAFETY

SAFETY PRECAUTIONS

WARNING

STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE

If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock.

NEVER REMOVE THE CABINET

High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of fire or electric shock.

DO NOT PUT ANY OBJECT INTO THE MONITOR

Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage.

INSTALL THE MONITOR ON A FLAT, STABLE SURFACE

The monitor may cause an injury if it falls or is dropped.

DO NOT USE THE MONITOR NEAR WATER

Do not use where water may be splashed or spilt onto the monitor as it may cause fire or electric shock.

OPERATE UNDER THE SPECIFIED POWER SUPPLY

Be sure to operate the monitor only with the specified power supply. Use of an incorrect voltage will cause malfunction and may cause fire or electric shock.

PROTECT THE CABLES

Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy objects on the cables. If damaged, the cables may cause fire or electric shock.

ADVERSE WEATHER CONDITIONS

It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in power may cause malfunction. It is also advised not to touch the plug in these circumstances as it may cause electric shock.

CAUTION

INSTALLATION LOCATION

Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor.

DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION

The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.

MAINTAIN GOOD VENTILATION

Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause fire. To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls. Do not remove the tilt stand when operating the monitor. Ventilation slots on the back of the cabinet will be blocked and the monitor may overheat if the stand is removed. This may cause fire or damage. Operating the monitor on its back, side, upside down or on a carpet or any other soft material may also cause damage.

DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR

When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal cable is disconnected. If you do not disconnect them, it may cause fire or electric shock.

UNPLUG THE MONITOR

If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid accidents.

HOLD THE PLUG WHEN DISCONNECTING

To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable itself as this may cause fire or electric shock.

DO NOT TOUCH THE PLUG WITH WET HANDS

Pulling or inserting the plug with wet hands may cause electric shock.

WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER

Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may damage your computer.

OTHERS

ERGONOMIC RECOMMENDATIONS

To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room. For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches) away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour is recommended as looking at the screen continuously can cause eye strain.

SPECIAL NOTES ON LCD MONITORS

The following symptoms are normal with LCD monitors and do not indicate a problem.

NOTE

When you first turn on the LCD monitor, the picture may not fit in the display area because of the type of computer that is used. In this case, adjust the picture position to its correct position.
n Due to the nature of the backlight, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears.
n You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
n Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power Switch for hours.
n Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself.

CUSTOMER SERVICE

NOTE

n The fluorescent light used in the LCD monitor may have to be periodically replaced. For the warranty coverage on this component, please check with local iiyama service center.
n If you have to return your unit for service and the original packaging has been discarded, please contact your dealer or iiyama service center for advice or replacement packaging.

CLEANING

WARNING

n If you drop any materials or liquids such as water into the monitor when cleaning, unplug the power cable immediately and contact your dealer or iiyama service center.

CAUTION

n For safety reasons, turn off the power switch and unplug the monitor before you clean it.

NOTE

n To protect the LCD panel, do not scratch or rub the screen with a hard object.

n Never use any of the following strong solvents. These will damage the cabinet and the LCD screen.

Thinner	Spray-type cleaner
Benzine	Wax
Abrasive cleaner	Acid or Alkaline solvent

n Touching the cabinet with any product made from rubber or plastic for a long time may cause degeneration or loss of paint on the cabinet.

CABINET

Stains can be removed with a cloth lightly moistened with a mild detergent solvent. Then wipe the cabinet with a soft dry cloth.

LCD

Periodic cleaning with a soft dry cloth is recommended.

SCREEN

Don't use tissue paper etc. because these will damage the LCD screen.

BEFORE YOU OPERATE THE MONITOR

The stand functions as a hub when connected to a USB compliant computer and USB peripherals. However, with older operating systems and/or BIOS settings in your computer, the USB hub may not operate. In this case, please contact your computer dealer first for advice.

FEATURES

u 48cm (19") TFT Color LCD Monitor
u Supports Resolutions up to 1600 × 1200
u Super Wide Viewing Angle and High Contrast
u Digital Character Smoothing
u Automatic Set-up
u Windows® 95/98/Me/2000 Plug & Play Compliant
u Power Management (ENERGY STAR® and VESA DPMS Compliant)
u Ergonomic Design: TCO '99 and MPR 3 Approved
u Digital Input (DVI-D) for Clear Display
u USB Hub Function & Stereo Speakers
u 90° Panel Rotation Design
u VESA Standard Compliant for Arm or Wall Mounting

CHECKING THE CONTENTS OF THE PACKAGE

The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office.

n Power Cable*
n D-SUB Signal Cable
n DVI-D Signal Cable
n USB Cable
n Audio Cable (RCA to mini jack)
n Tie-wrap: 2 pieces (For cable tying)
n Sample: Pivot® software (CD)

This software enables to rotate the orientation of the screen to display in portrait or landscape mode.

Consult the user manual for CD-ROM or Engman.rtf in CD-ROM for installation, etc.

n User Manual

CAUTION

\* TO USERS IN 120V AREA

The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using a power supply higher than this rating, then a power cable with a rating of 10A/250V must be used.

CONTROLS AND CONNECTORS

A Menu Button
B - Button
C + Button
D Power Indicator

NOTE

Green: Normal operation

Orange: Power Management

The monitor enters into power management mode which reduces the power consumption to less than 5W when receiving no horizontal and/or vertical sync signal.

E Power Switch
F USB-UP

Connect with a USB compliant computer by the USB Cable attached to the monitor.

G USB-DOWN

Connect any cables from USB compliant peripherals such as mouse, keyboard, etc.

H Speakers
I Input Select Button (VIDEO 1/2)*

*VIDEO IN 1: Analog signal (D-Sub)

VIDEO IN 2: Digital signal (DVI-D)

Select either VIDEO IN 1 or 2 for the signal input when both of the signal inputs are connected to a signal source. Switch VIDEO IN 1 and 2 whenever pressing Input Select Button.

NOTE

Input Select Button factory setting is set to VIDEO IN 1.

J Volume Control
K Headphone Connector
L DVI-D 24pin Connector (VIDEO IN 2)
M D-sub mini 15pin Connector (VIDEO IN 1)
N Audio Connector (AUDIO IN)
○ AC Connector (AC IN)

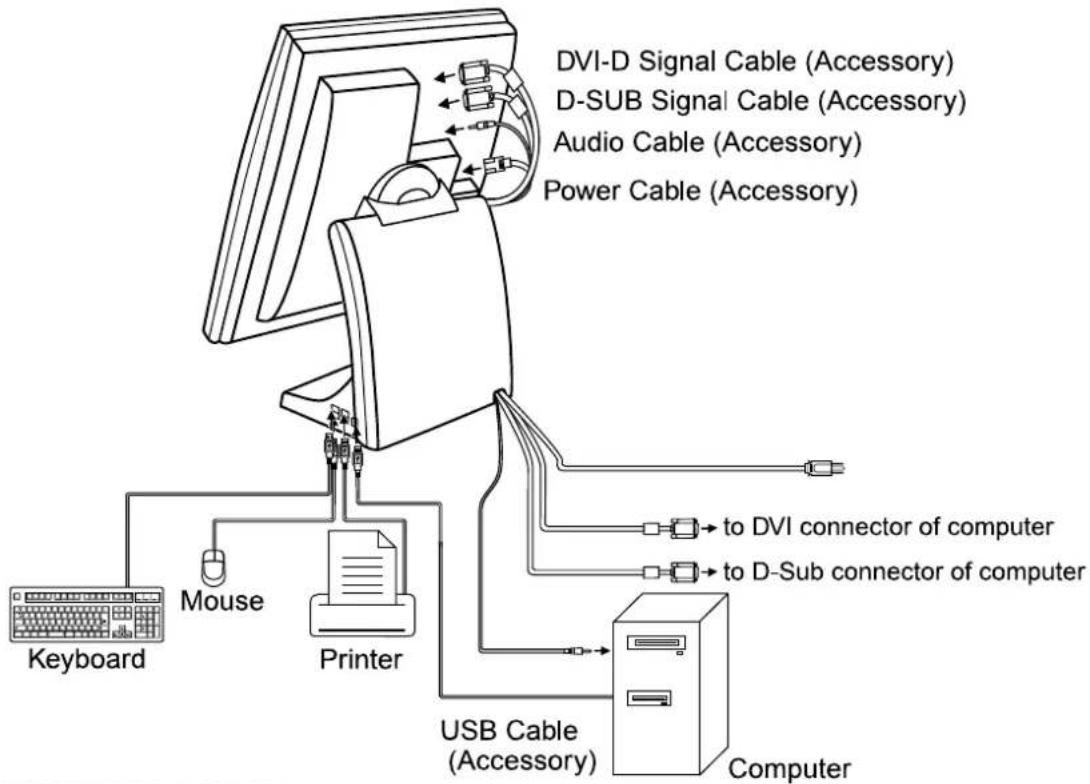

CONNECTING YOUR MONITOR

A Ensure that both the computer and the monitor are switched off.
B Rotate the panel portrait. Connecting the cables in portrait orientation will prevent the cables from being stretched by force in any orientation.

NOTE See PANEL ROTATION on page 8 for rotating the panel, and next page for cable wiring.

c Connect the computer to the monitor with the signal cable. (See page 20 for CONNECTOR PIN ASSIGNMENT.)
NOTE Input Select Button factory setting is set to VIDEO IN 1(D-sub mini 15pin).
D Connect the monitor to the audio equipment with the Audio Cable when using the audio features.
E Connect the monitor to the USB compliant computer with the USB Cable when using the USB hub features.
F Connect the Power Cable to the monitor first and then to the power supply.

NOTE

n The signal cables used for connecting the computer and monitor vary by the type of computer used. An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office.
n For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor.
n Make sure you tighten the finger screws at each end of the signal cable.

[Example of Connection]

[Cable Wiring]

A Rotate the panel portrait. (See page 8 for PANEL ROTATION.)
B Remove the back cover from the stand. Pull top of cover outward to open.

c Pass the cables through the hole.
D Connect the cables to the monitor.
E Put the cables in clips located inside the stand.
F Replace back cover by inserting bottom of cover into guide holes. Push forward to close, making sure the top 'clicks' into place.
G Tie the cables at upper and lower exits of the stand with Tie-wraps as required.

COMPUTER SETTING

n Signal Timing When you connect the monitor to the computer for the first time, set the signal timing of the computer to VGA before connection. Change to the desired signal timings listed on page 19 in COMPLIANT TIMING, after you confirm that the picture appears normally at VGA.
n Windows 95/98/Me/2000 Plug & Play The iiyama LCD monitor complies with DDC1/2B of VESA standard. The Plug & Play function runs on Windows 95/98/Me/2000 by connecting the monitor to DDC1/2B compliant computer with the Signal Cable supplied. Windows 95/98/Me/2000 Monitor Information File for iiyama monitors may be necessary for your computer and obtained via the Internet, using the address:

http://www.iiyama.com (U.S.A.)

http://www.iiyama.co.uk (U.K.)

NOTE

For additional information on how to download the driver for your monitor, please access one of the internet sites noted above.

ADJUSTING THE VIEWING ANGLE

n For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference.
n Hold the panel so that the monitor does not topple when you change the monitor's angle.
n You are able to adjust the monitor's angle up to 90 degrees right and left, 30 degrees upward, 5 degrees downward.

NOTE

n Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.
n Careful attention is required not to catch your fingers or hands when you change the angle.

Simple line drawing of a tilted rectangular object with an arrow indicating light reflection (no text or symbols)

PANEL ROTATION

A Tilt the panel from bottom of the front cabinet fully upwards (30 degrees).

NOTE

Panel will not rotate if not fully extended upward. Attempting to rotate without fully extending upward may cause damage to stand.

B Rotate the panel 90 degrees.

Portrait: Turn clockwise.

Landscape: Turn counter clockwise.

NOTE

Please use attached Pivot® software for rotating the image on the screen.

c Adjust the monitor's angle to your preference.

OPERATING THE MONITOR

The iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 19 to create the best picture. You are also able to adjust the picture by following the button operation below. For detail adjustments, see page 13 for SCREEN ADJUSTMENTS.

After selecting an item in the Main Menu, the adjustments and settings are made in the Sub-Menu.

( Main Menu appears on the screen when you press the Menu Button.

B For example, to adjust the vertical position, select (GEOMETRIC) on the Main Menu by using the +/- Buttons. The Sub-Menu appears when you press the Menu Button.

C Select (V-POSITION) on the Sub-Menu by using the +/- Buttons. An adjustment icon will turn blue when you press the Menu Button. Use the +/ - Buttons to adjust the vertical position. See ADJUSTMENT MENU CONTENTS on next page for further information.

NOTE

n The On Screen Display disappears several seconds after you stop pressing the buttons while performing an adjustment. Any changes are automatically saved in the memory when the On Screen Display disappears. Turning off the power should be avoided while using the Menu.
n To help you to operate the monitor more efficiently, press the Menu and – Buttons at the same time so that the On Screen Display will disappear and save your settings.
n Adjustments for Clock, Phase and Position are saved for each signal timing. Except for these adjustments, all other adjustments have only one setting which applies to all signal timings.

ADJUSTMENT MENU CONTENTS

D sub Input

Main Menu	Sub-Menu			Problem / Option	Button to Press
		CONTRAST		Too dull		[YSAK]
				Too intense
DISPLAY		BRIGHTNESS *1		Too dark
				Too bright
		DOS MODE
		Correct resolution of the two preset timings at 70Hz is selected.
		AUTO ADJUST *2		The picture position is centered in shorter time.
		EXIT		Return to Main Menu.
[8YDS]
GEOMETRIC		Adjust the screen size at resolutions of less than 1600 × 1200. Displayed text or lines may be blurred, or brightness may not be uniform when inputting stripe pattern signal or the like.

*1 Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright.
*2 See page 13 for SCREEN ADJUSTMENTS.

Direct

You can skip the Menu pages and display an adjustment scale directly by

using the following button operations.

1 CONTRAST: Press the +/- Buttons and then the Menu Button continuously when the Menu is not displayed.

1 BRIGHTNESS: Press the +/- Buttons when the Menu is not displayed.
1 AUTO ADJUST: Press the Menu Button for more than 2 seconds when the Menu is not displayed.

NOTE

SWITCHING CONTRAST / BRIGHTNESS ADJUSTMENT

To switch between Brightness and Contrast adjustments, press the Menu Button within

2 seconds after pressing the +/- Buttons during the direct adjustments above.

Main Menu	Sub-Menu			Problem / Option	Button to Press
OSD ADJUST	OSD H-POSITION			Too far to the leftToo far to the right
	OSD V-POSITION			Too lowToo high
	LANGUAGE	LANGUAGE	LANGUAGE	ENGLISH	English
		言語		日本語	Japanese
		SPRACHE		DEUTSCH	German
		LANGUAGES		FRANSAIS	French
		TAAL		NEDERLANDS	Dutch
		SPRACK		SVENSKA	Swedish
	INFORMATION			The current resolution, vertical refresh rate and Analog/Digital signal is displayed.
	RESET			Factory-preset data is restored.
	EXIT			Return to Main Menu.
COLOR	USER(in K: kelvin)		9300	Bluish white
			6500	Reddish white
			USER	User color adjustment
	NOTE The setting by User color function is changed to 6500K or 9300K when you perform this operation.
	USER			Too weakToo strong
	USER			Too weakToo strong
	USER			Too weakToo strong
	EXIT			Return to Main Menu.
EXIT	Close OSD window.

DVI Input

Main Menu	Sub-Menu		Problem / Option	Button to Press
DISPLAY	CONTRAST		Too dull Too intense
	BRIGHTNESS *1		Too dark Too bright
	LANGUAGE	LANGUAGE	ENGLISH	English
		言語	日本語	Japanese
		SPRACHE	DEUTSCH	German
		LANGUAGES	FRANSAIS	French
		TAAL	NEDERLANDS	Dutch
		SPRACK	SVENSKA	Swedish
	SCALE		Strech the picture to fit the full screen.
	Adjust the screen size at resolutions of less than 1600 × 1200. Displayed text or lines may be blurred, or brightness may not be uniform when inputting stripe pattern signal or the like.
	EXIT		Return to Main Menu.
OSD ADJUST	OSD H-POSITION		Too far to the left Too far to the right
	OSD V-POSITION		Too low Too high
	INFORMATION		The current resolution, vertical refresh rate and Analog/Digital signal is displayed.
	RESET		Factory-preset data is restored.
	EXIT		Return to Main Menu.
EXIT EXIT	OSD window.

*1 Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright.

Direct You can skip the Menu pages and display an adjustment scale directly by using the following button operations.

1 CONTRAST: Press the +/- Buttons and then the Menu Button continuously when the Menu is not displayed.
1 BRIGHTNESS: Press the + /-Buttons when the Menu is not displayed.

NOTE

SWITCHING CONTRAST / BRIGHTNESS ADJUSTMENT

To switch between Brightness and Contrast adjustments, press the Menu Button within 2 seconds after pressing the +/- Buttons during the direct adjustments above.

n The screen adjustments described in this manual are designed to set image position and minimize flicker or blur for the particular computer in use. They are unlike the adjustments you would make on a CRT monitor.
n The monitor is designed to provide the best performance at resolution of 1600 × 1200 , but can not provide the best at resolutions of less than 1600 × 1200 because the picture is automatically stretched to fit the full screen or displayed at optimum resolution. It is recommended to operate at resolution of 1600 × 1200 in normal use.
n Displayed text or lines will be blurred or irregular in thickness when the picture is stretched due to the screen enlargement process.
n It is preferable to adjust the image position and frequency with the monitor controls, rather than the computer software or utilities.
n Perform adjustments after a warm-up period of at least thirty minutes.
n Additional adjustments may be required after the Auto Set-up depending on the resolution or signal timing.
n The Auto Set-up may not work correctly when displaying the picture other than the Test.bmp (screen adjustment pattern). In this case, manual adjustments are required.

There are two ways to adjust the screen. One way is automatic adjustment for Clock, Phase and Position. Another way is performing each adjustment manually.

Perform the Auto Set-up first when the monitor is connected to a new computer, or resolution is changed. If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Set-up, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the iiyama web site (http://www.iiyama.com or http://www.iiyama.co.uk).

Adjust the image by following the procedure below to get the desired picture.

This manual explains adjustment under Windows 95/98/Me/2000.

A Set the Scale feature to Off and display the picture at the optimum resolution.

B Enter the Test.bmp (screen adjustment pattern) to wallpaper.

n Consult the appropriate documentation for doing this.
n Test.bmp is made at resolution of 1280 × 1024. Set the display position to center in the wallpaper setting dialogue box. If you use Microsoft® PLUS! 95/98 cancel the setting of "Stretch desktop wallpaper to fit the screen".

[Adjustment pattern]

c Perform the Auto Adjust.
Or press the Menu Button for more than 2 seconds. (Direct adjustment)
D Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust.
E Adjust the V-Position so that the top and bottom of the picture frame will fit to the display area.

F 1) Adjust the H-Position so that the left side of the picture frame will move to the left edge of the display area.

2) Stretch the right side of the picture frame to the right edge of the display area by adjusting the Clock.

NOTE

n When the left side of the picture frame moves apart from the left edge of the display area during the Clock adjustment, adjust steps 1) and 2).
n Another way to make the Clock adjustment is to correct the vertical wavy lines in the zebra pattern.
n The picture may flicker during the Clock, H-Position and V-Position adjustment.

G Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern.

Two abstract diagrams showing layered rectangular structures with a plus sign and a dot, no text or symbols present.

NOTE

In case the strong flicker or blurs remain on a part of the screen, repeat steps F and G because the Clock may not be adjusted correctly. If the flicker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from C again.
n Adjust the H-Position after the Phase adjustment if the horizontal position moves during the adjustment.

H Adjust the Brightness and Color Temp. to get the desired picture after you complete the Clock and Phase adjustments.

Put back your favorite wallpaper.

POWER MANAGEMENT FEATURE

The power management feature of this product complies with every power saving requirement of ENERGY STAR® and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use.

To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. The power management function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured.

n Power Management Mode

When the H-sync signal / V-sync signal / H and V sync signals from the computer are off, the monitor enters into Power Management Mode which reduces the power consumption to less than 5W. The screen becomes dark, and the power indicator turns to orange. From Power Management Mode, the image reappears in 10 seconds when either the keyboard or the mouse are touched again.

NOTE

n Even when using the power management mode, the monitor consumes electricity. Turn off the Power Switch whenever the monitor is not in use, during the night and weekends, to avoid unnecessary power consumption.
n It is possible that the video signal from the computer may be on while the H or V sync signal is missing. In this instance, the POWER MANAGEMENT feature may not work properly.

TROUBLE SHOOTING

If the monitor fails to operate correctly, please follow the steps below for a possible solution.

1. Perform the adjustments described in OPERATING THE MONITOR, depending on the problem you have.
2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists.
3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance.

Problem

A The picture does not appear.

(Power indicator does not light up.)

(Power indicator is green.)

(Power indicator is orange.)

B The screen is not synchronized.

c The screen position is not in the center.

D The screen is too bright or too dark.

E The screen is shaking.

Check

• The Power Cable is firmly seated in the socket.
• The Power Switch is turned ON.
• The AC socket is live. Please check with another piece of equipment.

○ If the blank screen saver is in active mode, touch the keyboard or the mouse.
○ Increase the Contrast and/or Brightness.
- The computer is ON.
- The Signal Cable is properly connected.
- The signal timing of the computer is within the specification of the monitor.
○ If the monitor is in power management mode, touch the keyboard or the mouse.
○ If the input video signal selection is different, switch VIDEO IN 1 and 2 pressing Input Select Button.
- The computer is ON.
- The Signal Cable is properly connected.
- The signal timing of the computer is within the specification of the monitor.

• The Signal Cable is properly connected.
• The signal timing of the computer is within the specification of the monitor.
• The video output level of the computer is within the specification of the monitor.
• The signal timing of the computer is within the specification of the monitor.
• The video output level of the computer is within the specification of the monitor.
• The power voltage is within the specification of the monitor.
• The signal timing of the computer is within the specification of the monitor.

LCD Panel	Driving system	a-Si TFT Active Matrix
	Size	Diagonal: 48cm / 19"
	Pixel pitch	0.2415mm H × 0.2415mm V
	Viewable angle	Right / Left / Up / Down: 85 degrees each (Typical)
	Response time	25ms (Typical) 50ms (Maximum) (Black, white, black)
Display Colors		16,777,216 maximum
Sync Frequency		Horizontal: 24-80kHz, Vertical: 50-85Hz
Dot Clock		162MHz maximum
Maximum Resolution		1600 × 1200
Input Connector		D-Sub mini 15pin / DVI-D 24 pin
Plug & Play		VESA DDC1/2BTM
Input Sync Signal		Separate sync: TTL, Positive or NegativeComposite sync: TTL, Positive or NegativeSync on green: 0.3Vp-p, Negative
Input Video Signal		Analog: 0.7Vp-p (Standard), 75Ω, PositiveDigital: DVI (Digital Visual Interface standard Rev.1.0) compliance
Input Audio Connector		ø 3.5mm mini jack (Stereo)
Input Audio Signal		0.7Vrms maximum
Speakers		1W × 2 (Stereo speakers)
Headphone Connector		ø 3.5mm mini jack (Stereo)
Maximum Screen Size		386.4mm W × 289.8mm H / 15.2" W × 11.4" H
USB StandardConnectors		Rev. 1.1 compliance Self-powered hubUpstream: Series B, Downstream: Series A
Number of USB Ports		1 Upstream (For computer), 4 Downstream (For peripherals)
Power Source		100-240VAC, 50 / 60Hz 1.4-0.6A
Power Consumption		110W maximum, Power management: 5W maximum*
Dimensions		471 × 460 × 220mm / 18.5 × 18.1 × 8.7" (W×H×D)
Net Weight		9.5kg / 20.9lbs
Tilt Angle		Right / Left: 90 degrees each, Up: 30 degrees, Downward: 5 degrees
EnvironmentalConsiderations		Operating: Temperature 5 to 35°C / 41 to 95°FHumidity 20 to 85% (No condensation)Storage: Temperature -20 to 60°C / -4 to 140°FHumidity 20 to 55% (No condensation)
Approvals		TCO '99, CE, TÜV-GS / MPR3 (prEN50279) / ISO 13406-2, FCC-B, UL/C-UL, VCCI-B

NOTE

* Condition: USB peripherals or audio equipment are not connected.

Technical line drawing of a mechanical component with a 220mm dimension label (no other text or symbols)

COMPLIANT TIMING

Video Mode			Horizontal Frequency	Vertical Frequency	Dot Clock
VESA	VGA 640 × 480		31.469kHz	59.940Hz	25.175MHz
			37.861kHz	72.809Hz	31.500MHz
			37.500kHz	75.000Hz	31.500MHz
			43.269kHz	85.008Hz	36.000MHz
	SVGA 800 × 600		35.156kHz	56.250Hz	36.000MHz
			37.879kHz	60.317Hz	40.000MHz
			48.077kHz	72.188Hz	50.000MHz
			46.875kHz	75.000Hz	49.500MHz
			53.674kHz	85.061Hz	56.250MHz
	XGA 1024 × 768		48.363kHz	60.004Hz	65.000MHz
			56.476kHz	70.069Hz	75.000MHz
			60.023kHz	75.029Hz	78.750MHz
			68.677kHz	84.997Hz	94.500MHz
	SXGA	1152 × 864	67.500kHz	75.000Hz	108.000MHz
		1280 × 1024	63.981kHz	60.020Hz	108.000MHz
			79.976kHz	75.025Hz	135.000MHz
	UXGA 1600 × 1200		75.000kHz	60.000Hz	162.000MHz
VGA TEXT	640 × 400		31.469kHz	70.087Hz	25.175MHz
	720 × 400		31.469kHz	70.087Hz	28.322MHz
Macintosh	640 × 480		35.000kHz	66.667Hz	30.240MHz
	832 × 624		49.725kHz	74.500Hz	57.283MHz
	1024 × 768		60.150kHz	74.720Hz	80.000MHz
PC9801	640 × 400		24.827kHz	56.424Hz	21.053MHz

NOTE

* DVI input is not compliant.

CONNECTOR PIN ASSIGNMENT

n D-Sub mini 15pin Connector

D-SUB

Pin	Input Signal	Pin	Input Signal
1	Red video	9
2	Green video / Sync on green	10	Ground
3	Blue video	11	Ground
4		12	Data line (SDA)*
5		13	H-Sync/HV-Sync
6	Red video ground	14	V-Sync
7	Green video ground	15	Clock line (SCL)*
8	Blue video ground	* Compliant to VESA DDC.

n DVI-D 24pin Connector

DV|-D

Pin	Input Signal	Pin	Input Signal
1	T.M.D.S Data 2–	13
2	T.M.D.S Data 2+	14
3	T.M.D.S Data 2 Ground	15	Ground
4		16	Hot Plug Detect
5		17	T.M.D.S Data 0–
6	Clock line (SCL) *	18	T.M.D.S Data 0+
7	Data line (SDA) *	19	T.M.D.S Data 0 Ground
8		20
9	T.M.D.S Data 1–	21
10	T.M.D.S Data 1+	22	T.M.D.S Clock Ground
11	T.M.D.S Data 1 Ground	23	T.M.D.S Clock +
12		24	T.M.D.S Clock –

* Compliant to VESA DDC.
