Producttype	In-ear monitor (IEM)
Model	F9 SE
Merk	FiiO
Driverconfiguratie	Hybride: 1 dynamische driver + 1 gebalanceerde ankerdriver
Frequentierespons	15 Hz - 40 kHz
Impedantie	28 Ω
Gevoeligheid	106 dB/mW
Connectortype	MMCX (afneembaar)
Kabellengte	1,2 m
Gewicht (per oortelefoon)	6 g
Gewicht (met kabel)	26 g
Behuizingsmateriaal	Aluminium-magnesiumlegering
Accessoires	Opbergkoffer, siliconen oordopjes (S/M/L), schuimrubberen oordopjes, shirtclip, gebruikershandleiding
Geschikt voor	Draagbare audiospelers, smartphones met 3,5 mm jack
Onderhoud	Reinig met een droge, zachte doek; bewaar in de bijgeleverde koffer
Garantie	2 jaar (afhankelijk van regio)

Veelgestelde vragen - F9 SE FiiO

Hoe vervang ik de kabel van de FiiO F9 SE?

De kabel is afneembaar via de MMCX-connector. Trek de oude kabel voorzichtig los en klik de nieuwe kabel op zijn plaats. Let op de markering voor links/rechts.

Zijn de oordopjes universeel?

Ja, de F9 SE gebruikt standaard MMCX-oordopjes, dus je kunt elke MMCX-compatibele kabel gebruiken.

Hebben de F9 SE een microfoon?

Nee, de standaardkabel heeft geen microfoon. Er zijn echter aparte kabels met microfoon verkrijgbaar.

Kan ik de F9 SE gebruiken met een smartphone zonder koptelefoonaansluiting?

Ja, met een USB-C naar 3,5 mm adapter of een Bluetooth-adapter. De F9 SE is passief en heeft geen stroom nodig.

Hoe reinig ik de FiiO F9 SE?

Gebruik een droge, zachte doek voor de behuizing. Voor de oordopjes en het gaas kunt u een zachte borstel of plakband gebruiken om stof te verwijderen.

Wat is de inlooptijd (burn-in) voor de F9 SE?

Hoewel niet strikt noodzakelijk, kan een inlooptijd van 50-100 uur de geluidskwaliteit iets verbeteren door de drivers soepeler te laten werken.

Zijn de F9 SE geschikt voor monitoring?

Ja, de neutrale geluidssignatuur en hybride drivers maken ze geschikt voor studio- en live-monitoring.

Wat is de impedantie en waarom is dit belangrijk?

De impedantie is 28 Ω. Dit betekent dat ze gemakkelijk aan te sturen zijn met de meeste apparaten, maar een goede audiobron levert wel betere prestaties.

Zijn vervangende oordopjes inbegrepen?

Ja, de F9 SE wordt geleverd met meerdere maten siliconen en schuimrubberen oordopjes voor een optimale pasvorm.

Hoe draag ik de F9 SE correct?

Steek het oortelefoon voorzichtig in de gehoorgang en draai het iets naar voren voor een goede afdichting. Gebruik de juiste maat oordopjes voor comfort en geluidsisolatie.

GEBRUIKSAANWIJZING F9 SE FiiO

音乐.乐无限 BORN FOR MUSIC

About FiiO

FiiO is a high-tech enterprise focusing on researching and developing portable music products, with current mainstay products being Hi-Res music players, portable headphone amplifier & DAC and headphones/earphones.

FiiO is specialized in self research and development, and sells FiiO-branded products through sales agents worldwide. By virtue of high quality products and great customer service, FiiO enjoys high reputation in the industry and has received countless well-known awards.

FiiO is committed to its brand proposition “Born for Music” and ceaselessly pursues perfection in product design and manufacturing, to supply users with the best audio products at the best prices.

Wearing Instructions

Simple line drawing of a curved tube with a blue connector (no text or symbols)

Simple line drawing of a curved cable or wire with a red component labeled '70' (no text or symbols beyond the label)

Before getting started, please make sure the L and R marking on the earpiece is consistent with that on the cable (Blue on the L side and Red on the R side).

Line drawing of two hands holding a small object with a blue handle, no text or symbols present

Illustration of two hands performing a knot or rope manipulation technique with red arrows indicating rotation (no text or symbols)

Grasp the earpiece and cable connector firmly and then attach the connector to the earpiece by straightly pushing the connector in until they click (if necessary, give it a little rotating force).

Diagram of a medical device with red arrows indicating movement and a checkmark (no text or symbols)

Simple line drawing of a medical device with a blue patch and a red X mark (no text or symbols)

Identify the L (blue) and R (red) marking before wearing, and then adjust the cable and earpiece to the right angle.

Line drawing of a hand holding a spiral earbell with a blue clip, no text or symbols present

Line drawing of a hand holding a small earpiece with a blue clip, no text or symbols present

Loop the cable around the top of your ear and then insert the earpiece into the ear, maintaining the correct angle for a secure and comfortable fit.

Illustration of two hands performing a finger manipulation technique with red arrows indicating rotation (no text or symbols)

Line drawing of two hands holding a small object, no text or symbols present

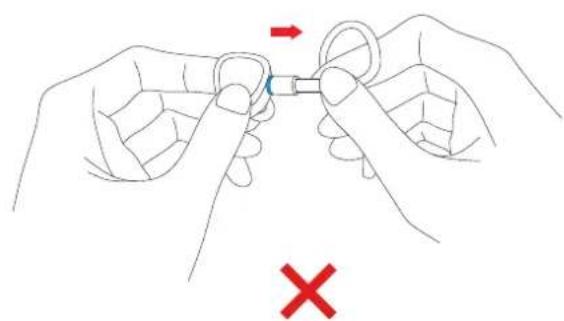

To detach the cable, grasp the earpiece and cable connector firmly and pull straight apart (if necessary, give it a little rotating force).

Illustration of two hands holding a small object with red arrows indicating motion or force direction (no text or symbols)

Illustration of two hands holding a small object with a red arrow and a red X mark indicating a defect or failure (no text or symbols present)

Please DO NOT insert or detach the cable with a tilted angle, it may damage the MMCX connector components.

Please DO NOT pull the wire to avoid fracture.

* If you find it difficult to pull the MMCX connector out of the earpiece, please DO NOT pull them apart by violent force; if necessary, please reach out to our customer service.

Precautions

1. For your safety, please avoid using earphones in dangerous environments.
2. Please set the volume to a suitable level to protect your hearing.
3. Please do not expose your earphones to damp or strong magnetic environment for a long time.
4. If the unit is to be left unused for a long time, please unplug your earphones from the playing device.
   5.Do not disassemble the earphones on your own.

Warranty Terms and Conditions

1 FiiO provides one-month direct replacement guarantee and one year of free maintenance for product against defectives in material and workmanship under proper operation. (You may be asked to provide proof of purchase for after-sales service, so keep your purchase invoice / receipt in safe place.)

Note: The warranty service is applied to authentic product brought from FiiO authorized sales agents with valid security code.

② The warranty is null and void under the following circumstances:

• Defects or damage caused by improper operations such as vibrating, bumping, falling to the ground, buckling, excessive pulling, etc.
• Defects or damage caused by disassembly of the product by user or unauthorized repair personnel.
• Defects or damage caused by natural disaster.
• Unable to provide proof of purchase, such as purchase invoice / receipt from FiiO authorized dealers.

Note: Man-made damage is determined by the judge of FiiO's maintenance personnel.

3 Free replacement or repair is only applied to earphones, excluding any accessories or gifts.

4 Send inquiry to [e-mail] to get the related maintenance cost.

Note: The above guarantees start from the issue date of the sales invoice / receipt.FiiO warranty is just for your reference, while local sales agents have the right to determine the specific details. FiiO Company reserves the final interpretation and amendment for the above warranty terms.

Authenticity-Checking

1 Scratch off the coating to get a 20-bit security code.

② Please open this link: http://check.fiio.com/, and then enter your 20-bit security code and the captcha shown on the website, . You will get the checking result after click the 'magnifying glass' icon.

3 Checking result:

A. The product you arechecking is genuine. The product is manufactured by FiiO Company, thanks for choosing us.

B. The number you arechecking does not exist. The product is not manufactured by FiiO Company.

C. The number has been checked. If this is the first time you enter the security code after scratched the coating personally, it means the product is not an authentic one.

D. The security code you input is less than 20 bits, please try it again.

Procedures of How to Get After-sales Service

① Please contact local dealer first once you find problem with the product. If they refuse to give related after-sales service, please give feedback to FiiO Company by sending email to [e-mail]. We would handle it properly to ensure customer's satisfaction.
② For repair maintenance, you are supposed to send the defective product to FiiO Company with freight paid. After it has been repaired, we will send the product back to you with freight paid by FiiO.
③ It is highly suggested to buy from local authorized sales agent to get better, faster before and after sales service.
④ Please do not maintain or dismantle the product on your own and keep it away from water.
5 In case of abnormal working or any further questions, please log in official website at the Support area to get related information or send email to [e-mail] to consult.

Contact Information for After-sales Service

FiiO Electronics Technology Co., Ltd.

Address: 2/F, F Building, Hougang Industrial Zone, Shigang

Village, Huangshi West Road, Baiyun District, GuangZhou, China.

Postcode: 510430

Web: www.fiio.com

Facebook: www.facebook.com/FIIOAUDIO

WEEE Directive & Product Disposal

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal.

Internal/Supplied Batteries

This symbol on the battery indicates that the battery is to be collected separately. This battery is designed for separate collection at an appropriate collection point.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including interference that may cause undesired operation.
