GEBRUIKSAANWIJZING Hydan 12-36x50 Praktica
Thank you for purchasing a PRAKTICA Hydan spotting scope. Please read the instructions carefully before using the spotting scope to ensure proper use and care. For more information, visit www.praktica.com
Operation
Before Use
Attach your spotting scope to a sturdy tripod to achieve clear, sharp images. The scope has a rotating tripod mounting collar. Loosen the tripod collar and twist the scope to the desired position, then tighten clockwise to secure the scope in place.
This spotting scope features twist up rubber eyecups to accommodate both eyeglass and non-eyeglass wearers. If you do not wear eyeglasses, leave the rubber eyecups in the up position. If you wear eyeglasses, make sure that the eyecups are down to obtain the maximum field of view. When you are done observing, make sure the rubber eyecups are in the up position for storage.
Increase magnification by turning the adjustment ring to the left (anticlockwise)
Decrease magnification by turning the adjustment ring to the right (clockwise)


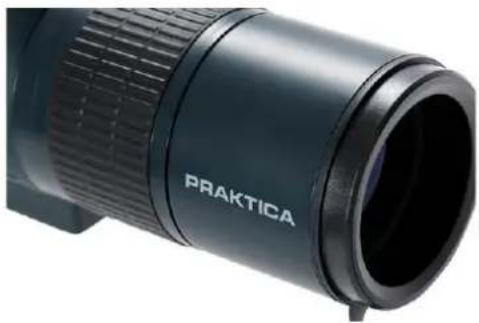

Close-up of a black mechanical component with a textured grip and an arrow pointing to it (no visible text or symbols)Focusing
To focus the spotting scope, slowly rotate the focus wheel until the image in the eyepiece is clear and sharp.


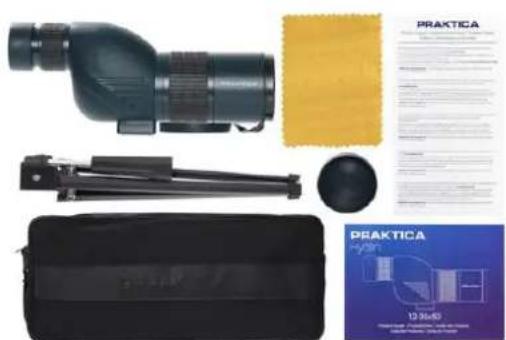

Cleaning
Remove any dust on the lenses with a soft lens brush. To remove any dirt or finger prints, clean with the supplied micro-fibre cloth rubbing in a circular motion. Use of a coarse cloth or unnecessary rubbing may scratch the lens surface and will eventually cause permanent damage. The included washable microfiber cleaning cloth is ideal for routine cleaning.
The housing is best cleansed with a soft, moist cloth (don't use the lens-cleaning cloth).
Storage
Please protect your spotting scope from jolts and jars and do not force any of the moving parts beyond their limits. Protect the optics of your spotting scope by applying all lens caps when not in use.
You should also store your spotting scope in a well-ventilated and dark place. A wet spotting scope should be dried before storage.
When storing for an extended period of time, place the spotting scope in a plastic bag or airtight container with a desiccant.
