GEBRUIKSAANWIJZING Joya Lux Chipolino

IMPORTANT! READ CAREFULLY THESE INSTRUCTIONS AND KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE!

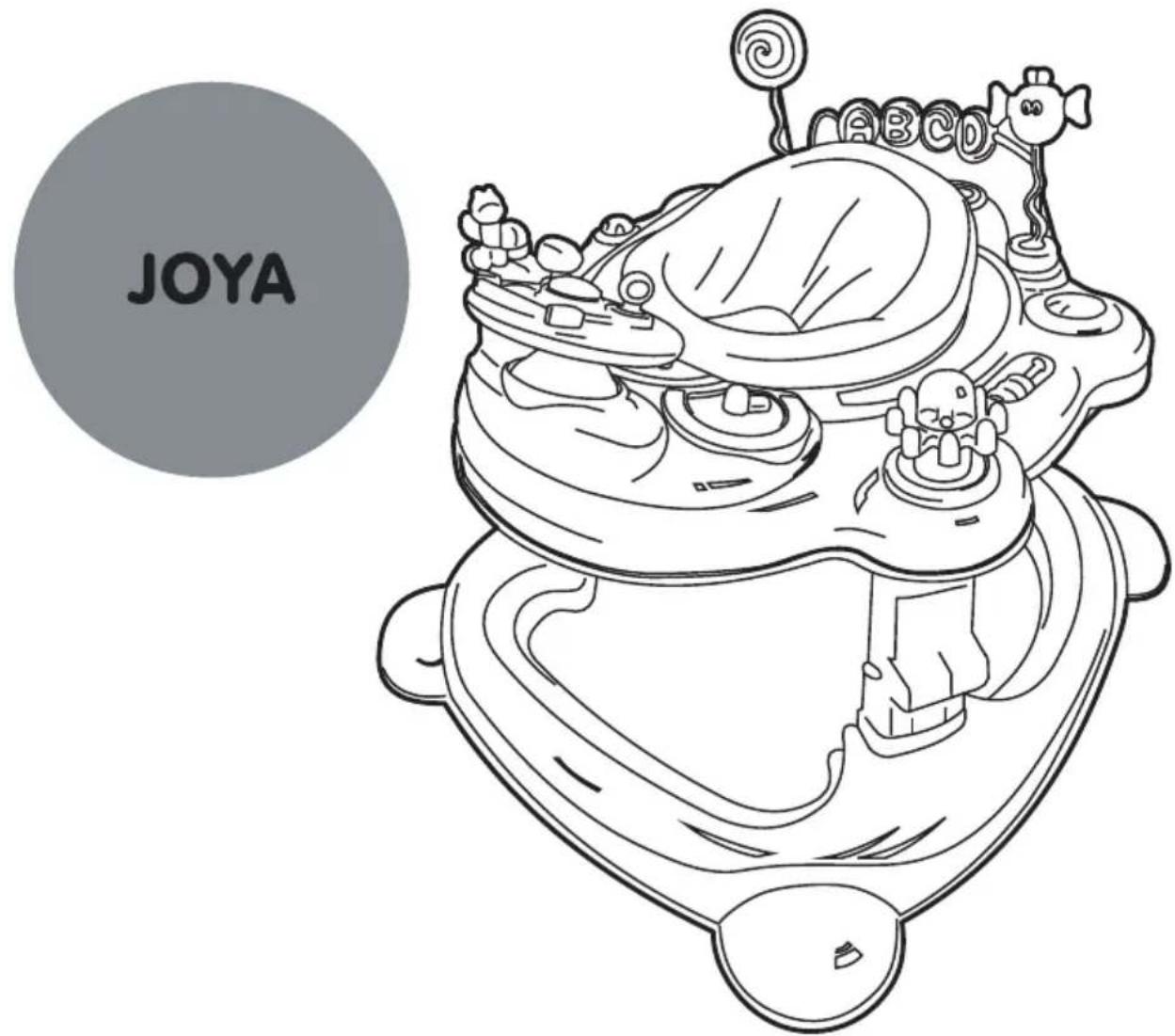

USER MANUAL FOR BABY WALKER JOYA LUX 4 IN 1

JOYA

This Chipolino baby walker is manufactured in accordance with the Product Safety Directive 2001/95/EU of the European Parliament and the Council, to European standard EN 1273 “Child use and care articles Baby walking frames. Safety requirements and test methods” as well as Consumer Protection Law from national legislation.

TO ENSURE THE SAFE USE OF THIS PRODUCT AND PREVENT THE BABY FROM INJURY, FOLLOW CAREFULLY THE WARNINGS, GUIDELINES AND RECOMMENDATIONS IN THIS MANUAL!

WARNING! NEVER LEAVE THE CHILD UNATTENDED.
✿ WARNING! BABY WALKER IS NOT FOR CHILDREN, WHO CAN WALK ALONE!
✿ WARNING! BABY WALKER IS NOT FOR CHILDREN WEIGHING MORE THAN 12 kg!
WARNING! BABY WALKER IS NOT FOR CHILDREN, WHO CANNOT SIT IN IT UNAIDED!
WARNING! THE CHILD IN BABY WALKER CAN REACH MORE OBJECTS, MOVE FASTER AND AT BIGGER DISTANCES. TO PROTECT THE CHILD FROM INJURY:

• DO NOT ALOW ACCESS TO STAIRS, STAIRCASES, UNEVEN SURFACES!
- KEEP AWAY FROM FIRE, SOURCES OF HEAT, COOKING APPLIANCES!
- KEEP AWAY FROM CHILDREN HOT LIQUIDS, ELECTRIC CORDS AND OTHER DANGEROUS OBJECTS!
- AVOID IMPACTS WITH DOOR GLASSES, WINDOWS AND FURNITURE!

✿ WARNING! THE SET IN THIS PACKAGE CONTAINS SMALL PARTS! DO NOT ALLOW CHILDREN AGED LESS THAN 3 YEARS NEAR THE PRODUCT DURING ITS ASSEMBLY!
Do not use the baby walker if you find broken, unstable or missing parts.
- Adult assembly of the walker and its accessories is required!
◆ Height of the seat must be according to child's needs.
You should use this baby walker only for short periods. Recommended duration is 20 minutes!
When the child is in the walker, its feet must touch the floor.
Before usage the walker must be completely unfolded and all parts must be fixed. Make sure that all locking mechanisms are engaged!
Use the walker only at home, on even (not sloped) surface and only for its purpose!
Do not lift and do not move the walker while the child is in it!
❖ Stick or remove any loose stickers to avoid them being swallowed by small children!
Do not use spare parts or components different from the ones supplied by the producer! The producer is not liable in case you use parts other than the original or approved by him.
Do not make changes or modifications to the frame! If necessary, contact the retailer or an authorized service for advice and repair.
- Keep the nylon package away from children to avoid the risk of suffocation!
This baby walking frame is intended for indoor use only.
As the child is able to move rapidly when in a baby walking frame, be aware that the child can reach hazardous areas in the house, like a bathtub, household kitchen/laundry appliances, heating devices, bookshelves/furniture from which an object can fall.

This product conforms to EN 1273:2020+A1:2023

Prohibition sign with pictograms of a person and a child crossing a red circle, indicating no violation or prohibition.

IMPORTANT! WARNINGS AND GUIDELINES FOR BATTERY USE

• After inserting batteries, always secure the battery compartment with the cover.
• Do not allow children to access or play with the batteries!
• Use only batteries of the designated type and power.
• Do not use batteries of different types.
• Do not short circuit the contact surfaces!
• Follow the designated polarity in the battery compartment.
- Remove damaged or depleted batteries.
- Remove the batteries when the product will not be used for long time.
- Do not throw the batteries in open fire. Do not take the batteries to pieces.
- CAUTION! Waste from depleted or unusable batteries must be disposed of separately. It is forbidden to throw them out in containers for household waste. Dispose of the batteries only at the specified places.

MAIN FEATURES

Baby walker JOYA 4 in 1 encourages baby's attempts to make his first steps and improves his balance and coordination. Bright colors and sounds of the tray with toys and musical panel stimulate the creativity of the child and develop his hearing and vision skills.

• INTENDED FOR CHILDREN UP TO 12 KG, WHO CANNOT WALK ALONE, BUT CAN SIT UNAIDED.
  • Top tray may be height adjusted at 3 levels;
  • Anti-slip stoppers that prevent falling off stars or tip over (6 pieces).
• Seat rotates at 360^
• Necessary batteries: 2 pcs type AAA/1,5V. Batteries are not included and are sold separately.

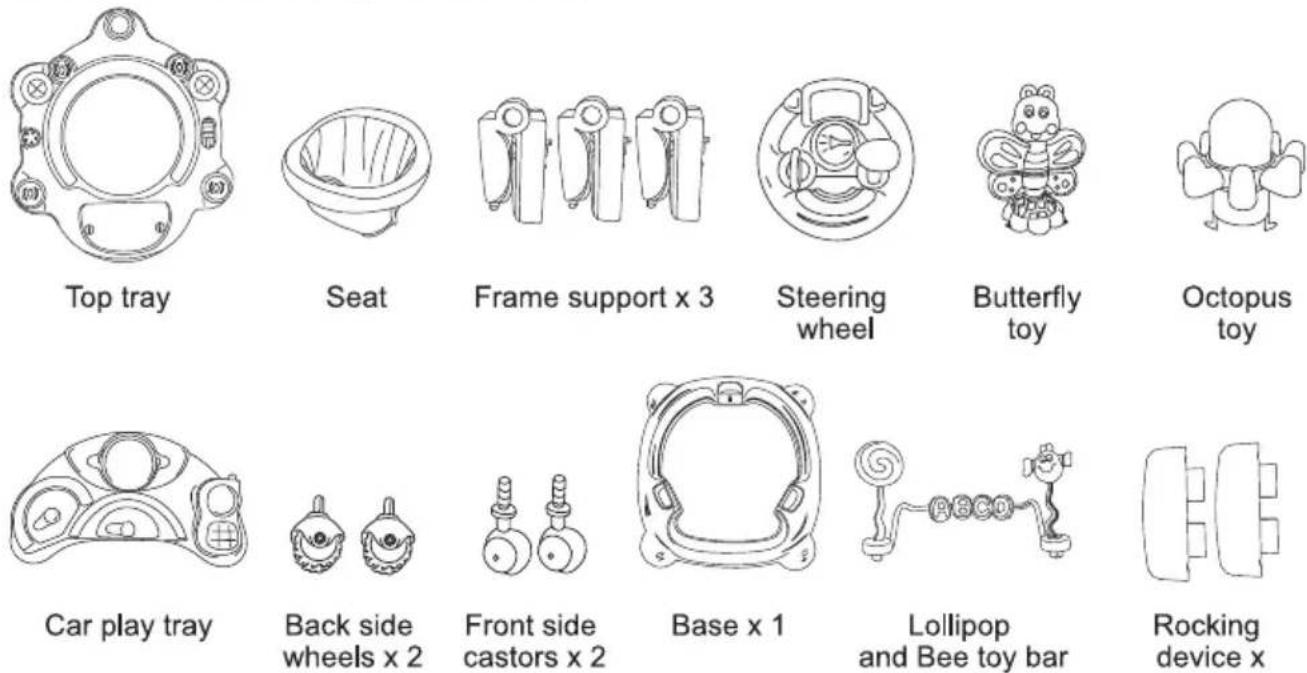

MAIN PARTS

Please, make sure that all parts are available!

ASSEMBLY INSTRUCTIONS

CAUTION! Follow exactly the guidelines and the sequence of assembly and use which you will find in the figures in the manual.

CAUTION! AFTER EACH STEP, MAKE SURE THAT THE FIXING IS STABLE!

CAUTION! KEEP YOUR FINGERS FROM ENTRAPMENT WHEN OPERATING THE WALKER, ESPECIALLY DURING ITS UNFOLDING AND FOLDING!

The product is delivered partially assembled. In order to complete the assembly no tools are required.

The assembly steps are numbered from 1 to 10. Use the descriptions below along with the figure of the same number.

1 - Assembly of frame

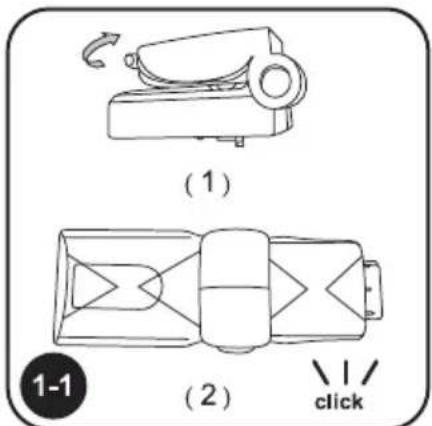

1-1 Unfolding the frame supports

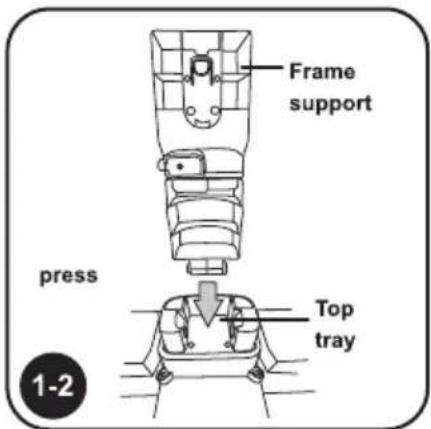

1-2 Installing the frame supports to the top tray

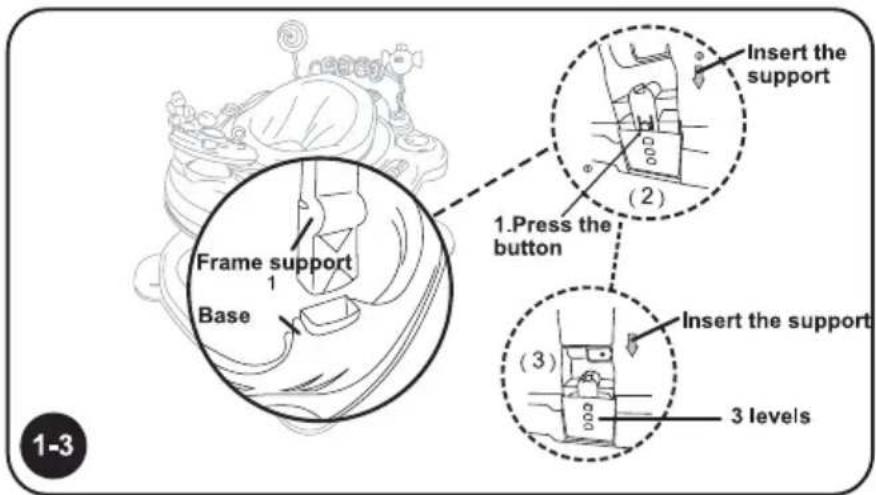

1-3 Installing the base to the top tray

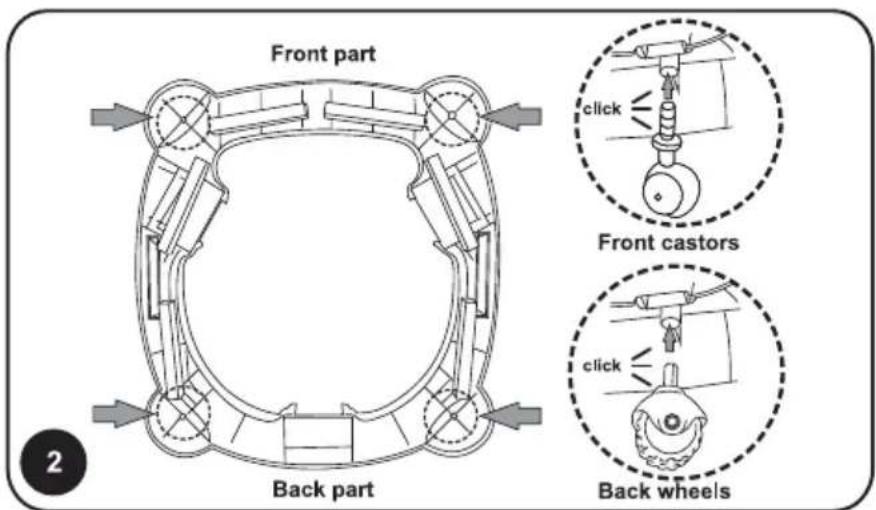

2 – Installing the wheels and castors
IMPORTANT! Never use the walker without its wheels!
3 – Installing the seat

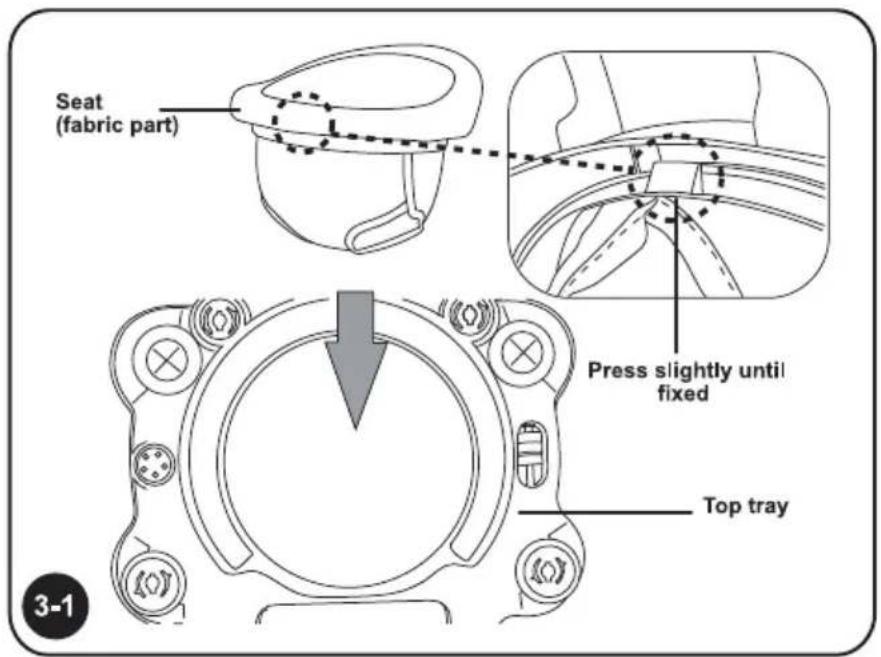

3-1 Dressing the seat

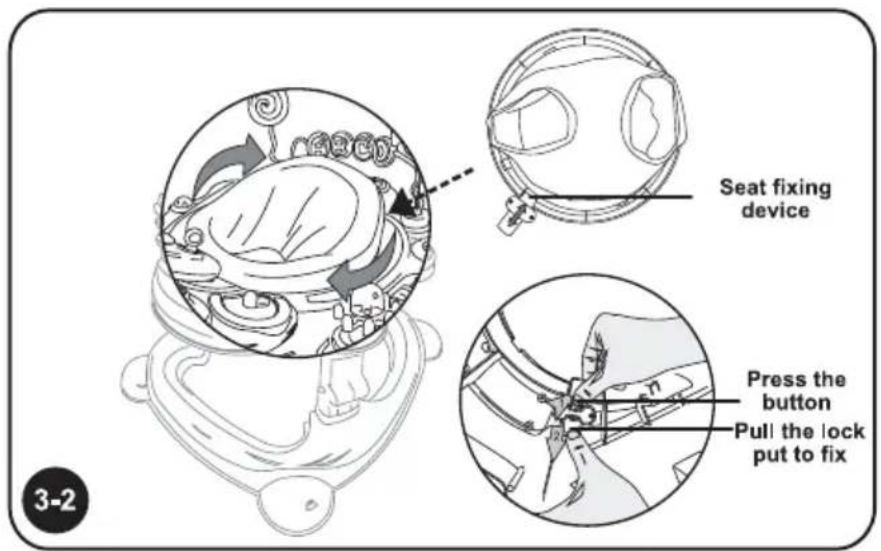

3-2 Fixing the seat

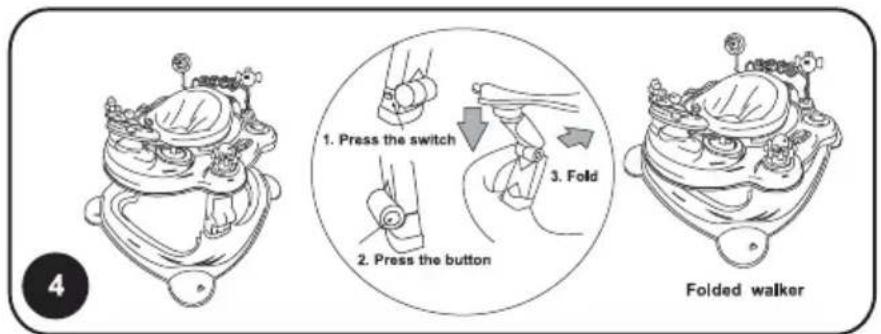

4-Folding the walker

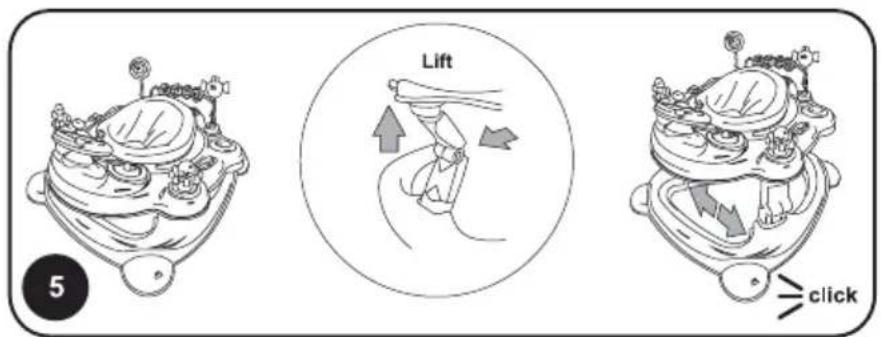

5 – Unfolding the walker

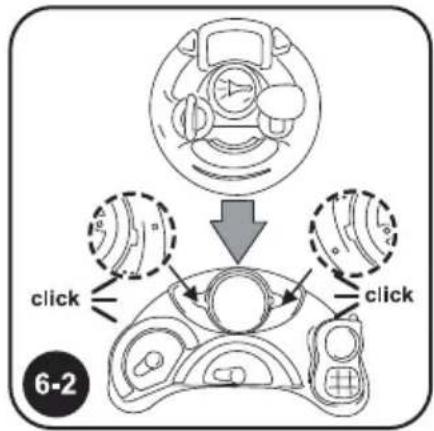

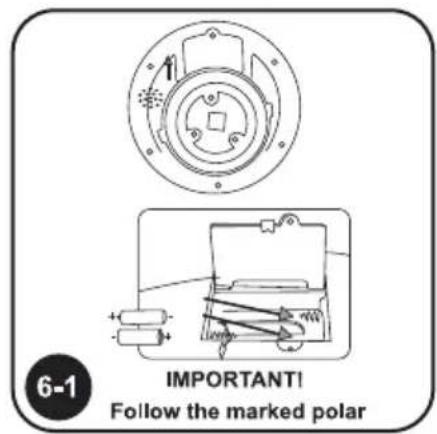

6 - Installing the batteries and the steering wheel

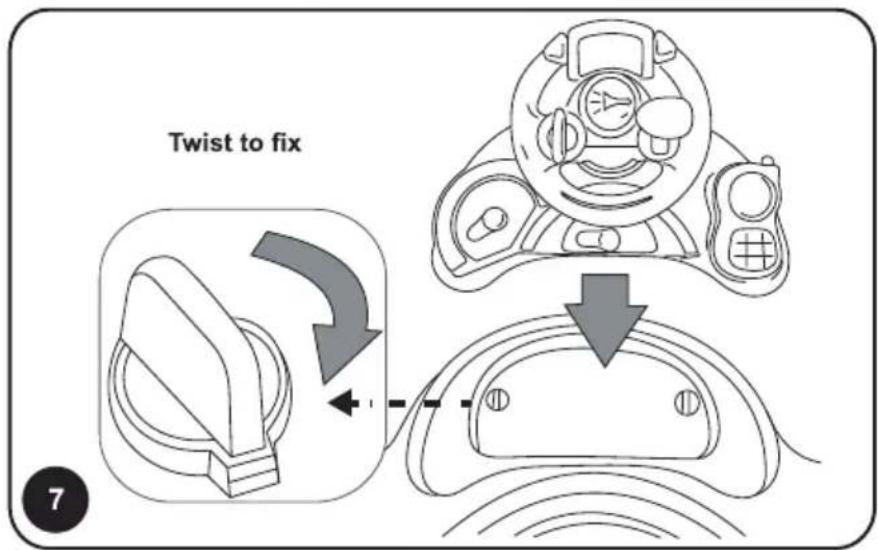

7 - Installing the car play tray

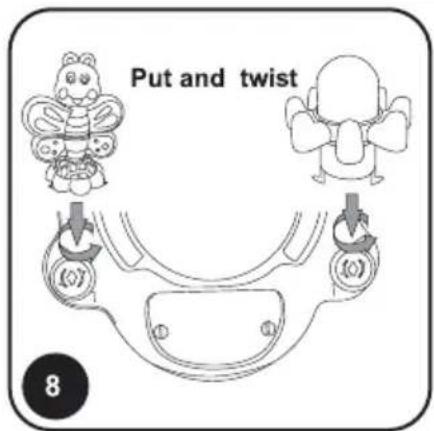

8 – Installing the butterfly and octopus toys

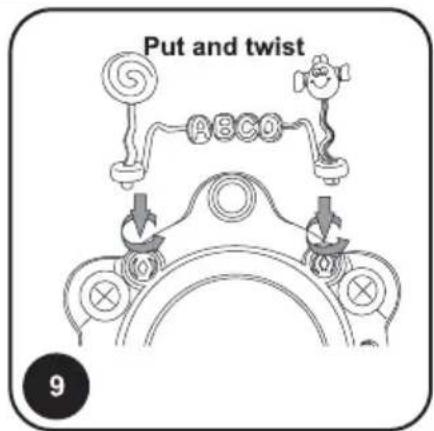

9 – Installing the toy bar
10 - Rocking function

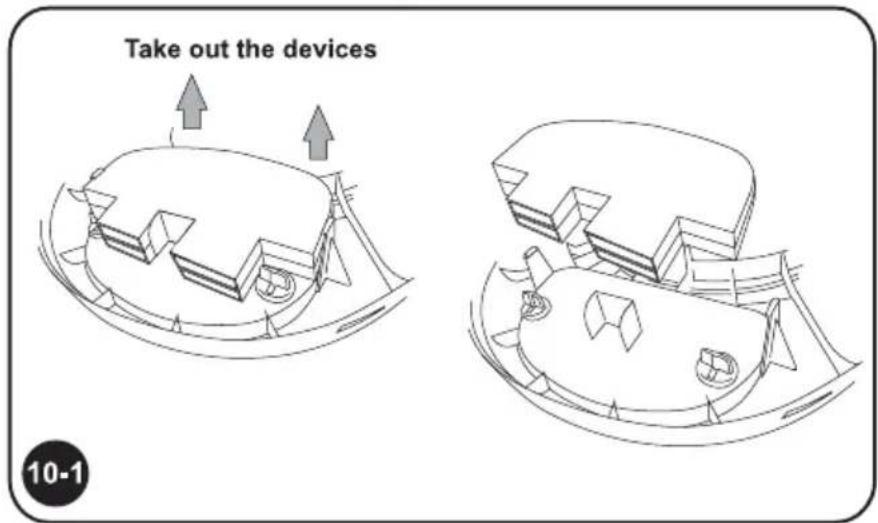

10-1 When not in use the rocking devices are stored in front part of the base (fig. 10.1).

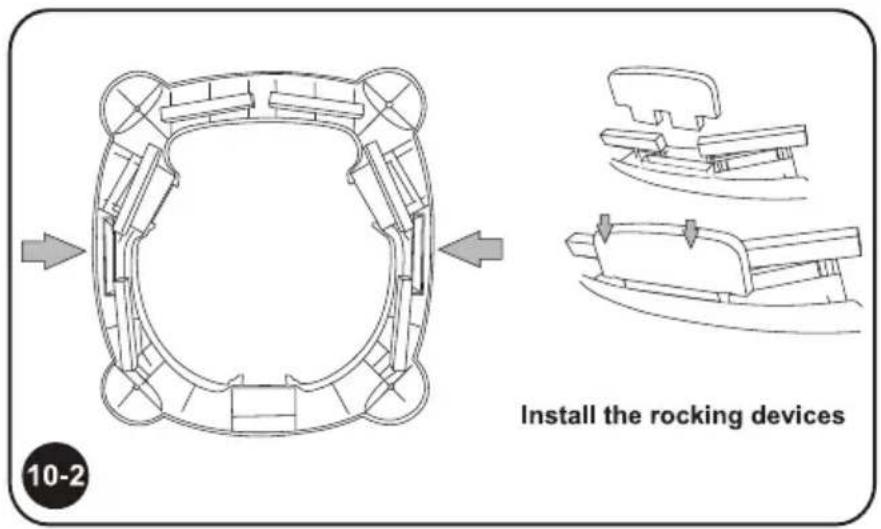

10-2 Installing the rocking device.

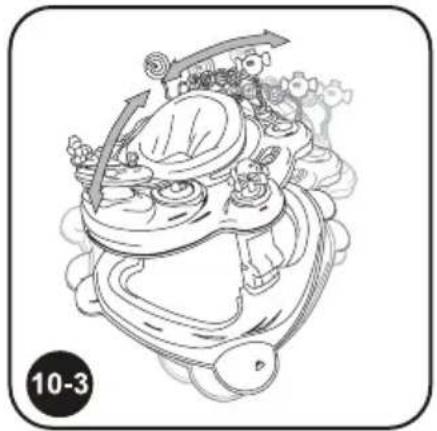

10-3 Rocking function

(1) (2) 1-1 click

Frame support press Top tray 1-2

Frame support 1 Base 1.Press the button Insert the support (2) Insert the support (3) 3 levels 1-3

Front part click Front castors back part click Back wheels 2

Seat (fabric part) Press slightly until fixed Top tray 3-1

Seat fixing device Press the button Pull the lock put to fix 3-2

1. Press the switch 2. Press the button 3. Fold Folded walker

5 Lift click

6-1 IMPORTANT! Follow the marked polar

click click 6-2

Twist to fix 7

Put and twist 8

Put and twist 9

Take out the devices 10-1

10-2 Install the rocking devices

Illustration of a stylized, ornamental object resembling a helmet or mask with floral motifs and a curved arrow (no text or symbols)

CARE AND MAINTENANCE ISNSTRUCTIONS

• Do not pour water on the product. Clean the using a damp soft towel or sponge and a mild soap.
• Do not use aggressive detergents, containing abrasive particles, ammonia, bleach or spirits.
• Fabric part may be hand washed at 30°C.
• Always let the tproduct dry out fully before storing or using it, in order to avoid mould and rust.
• Discontinue using the product if you find any damage.
• Do not store in hot environment or near strong heat sources in order to avoid deforming.
- Store in clean and dry place. Do not expose the product to direct sunshine, rain, moist or harsh temperature changes!
- Do not put heavy objects on top of the product druing its storage or transporting as this may damage it.
- Contact your authorized dealer if consultation or repair is needed.

Used materials: 100% polyester (fabric part and filling), plastic, metal.

30° ©

PRJL01xxxxx/CD-W341C/555320W
