NAUDOJIMO INSTRUKCIJA AEM416T HAGER

:hager

6LE003161Aa

Technical line drawing of an electrical circuit breaker (no text or symbols)

AU

Miniature circuit breakers residual current devices RCBO 6 to 40A

This device is to be installed only by a professional electrician fitter according to local applicable installation standards. For use with neutral on the right only.

Protection against dust

In case of work activities nearby, make sure that the electrical installation is protected against dust if the enclosure is not IP5x.

Electrical connection Earth leakage fault indication

1 3 5 7 N 2 4 6 8 N E T

Please note the following:

1- If RCBO trips OFF after installation,
2 possibilities:
- overloads/short-circuits → MCB trips.
- fault to earth → RCD trips.
2- The "main neutral" and "main earth" should be checked to ensure good connection.
3- If test button test fails, check for a presence of voltage on line side terminals.

Diagram of an electrical circuit breaker with labeled components and a hand pointing to the component.

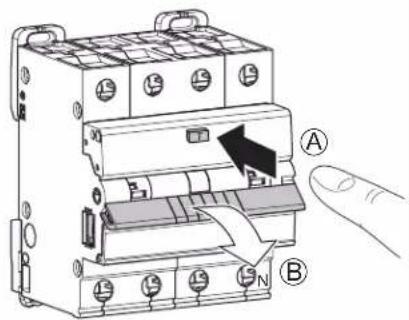

Test the Safety Switch periodically (approximately every three months) by pressing Test button marked "T".

Positive contact indication

Technical line drawing of an electrical circuit breaker with mounting holes and a switch (no text or symbols)

If the RCBO trips OFF, the yellow window indicates an earth fault.

Three phase connection KDN380A KDN380G

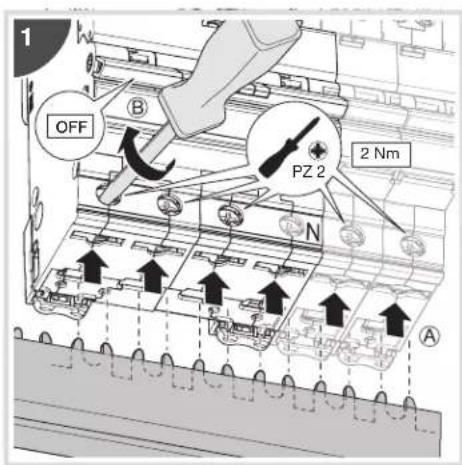

1 OFF B PZ 2 2 Nm N A

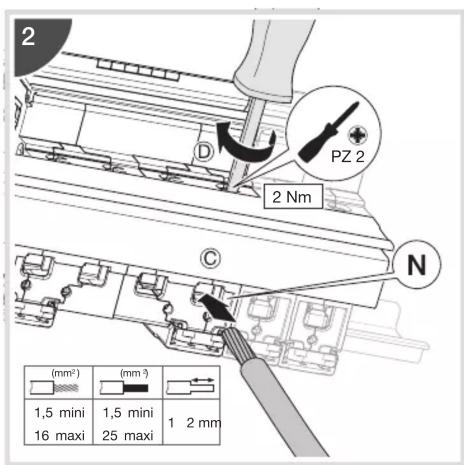

2 D PZ 2 2 Nm C N 1,5 mini 16 maxi 1,5 mini 25 maxi 1 2 mm

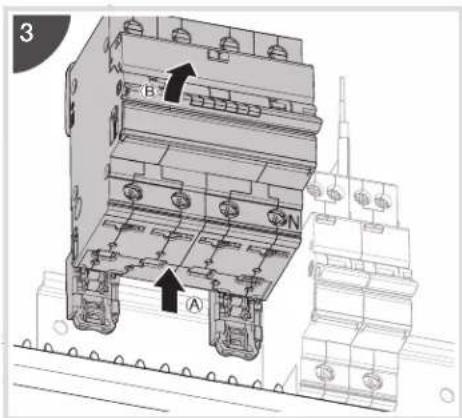

Easy device removal with the DIN rail clip

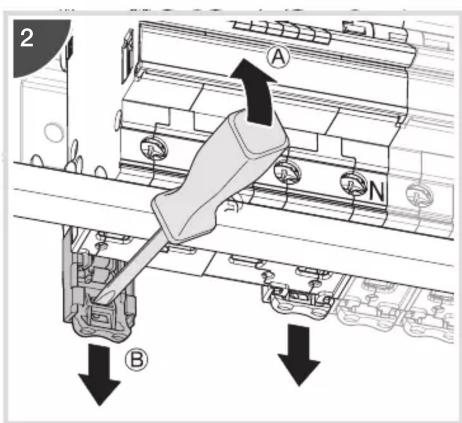

OFF PZ 2

2 A B

3 A B N
