NAUDOJIMO INSTRUKCIJA HWX029H HAGER
HW2/HW4
HWX02xHSA-HWX02xH
HWX03xHSA-HWX03xH
:hager
01


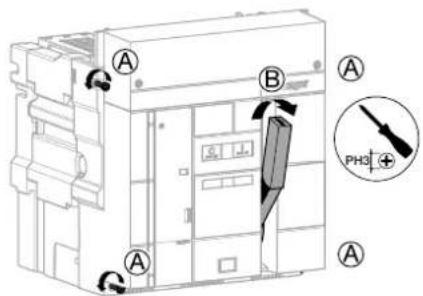

Technical diagram of an electrical switchgear box with labeled components and a close-up view showing a screwdriver inserted into the main panel.
SH
| 24-30V AC/DC | HWX020HSA | HWX020H |
| 48-60V AC/DC | HWX021HSA | HWX021H |
| 100-130V AC/DC | HWX022HSA | HWX022H |
| 200-250V AC/DC | HWX023HSA | HWX023H |
| 380-480V AC | HWX024HSA | HWX024H |
| 24-30V AC/DC | HWX025HSA | HWX025H |
| 48-60V AC/DC | HWX026HSA | HWX026H |
| 100-130V AC/DC | HWX027HSA | HWX027H |
| 200-250V AC/DC | HWX028HSA | HWX028H |
| 380-480V AC | HWX029HSA | HWX029H |
| 24-30V AC/DC | HWX030HSA | HWX030H |
| 48-60V AC/DC | HWX031HSA | HWX031H |
| 100-130V AC/DC | HWX032HSA | HWX032H |
| 200-250V AC/DC | HWX033HSA | HWX033H |
| 380-480V AC | HWX034HSA | HWX034H |
CC
| 24-30V AC/DC | HWX030HSA | HWX030H |
| 48-60V AC/DC | HWX031HSA | HWX031H |
| 100-130V AC/DC | HWX032HSA | HWX032H |
| 200-250V AC/DC | HWX033HSA | HWX033H |
| 380-480V AC | HWX034HSA | HWX034H |
UV
| 100-130V AC/DC | HWX032HSA | HWX032H |
| 200-250V AC/DC | HWX033HSA | HWX033H |
| 380-480V AC | HWX034HSA | HWX034H |


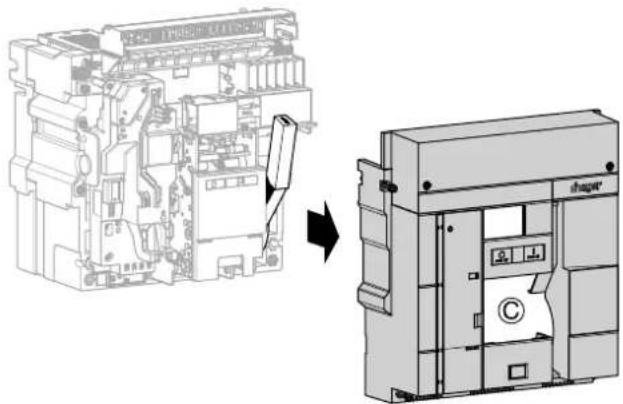

Technical diagram showing a mechanical assembly before and after transformation, with labeled components and directional arrow.01


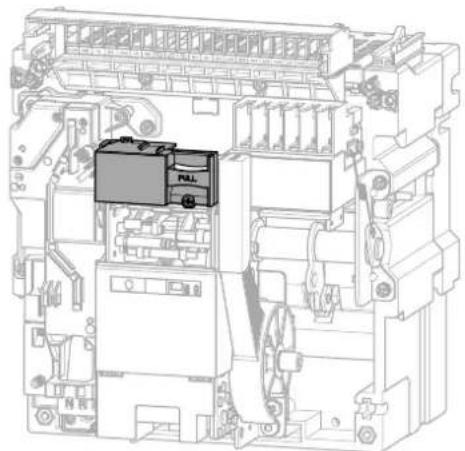

Technical line drawing of an electrical circuit board with no visible text or symbols


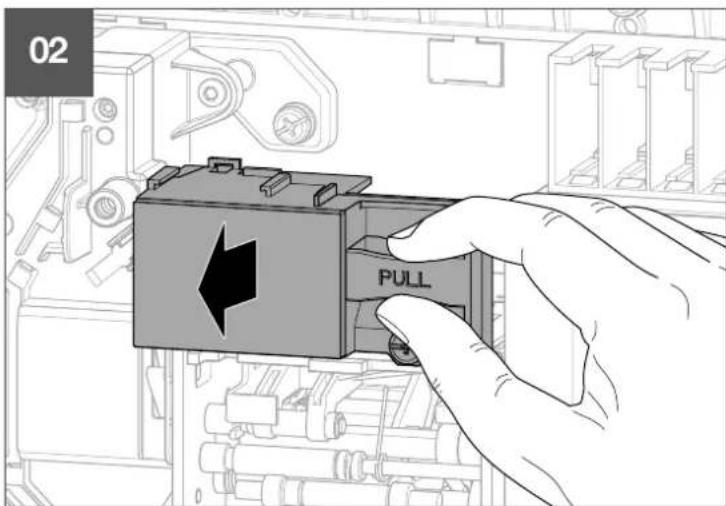

02 PULL


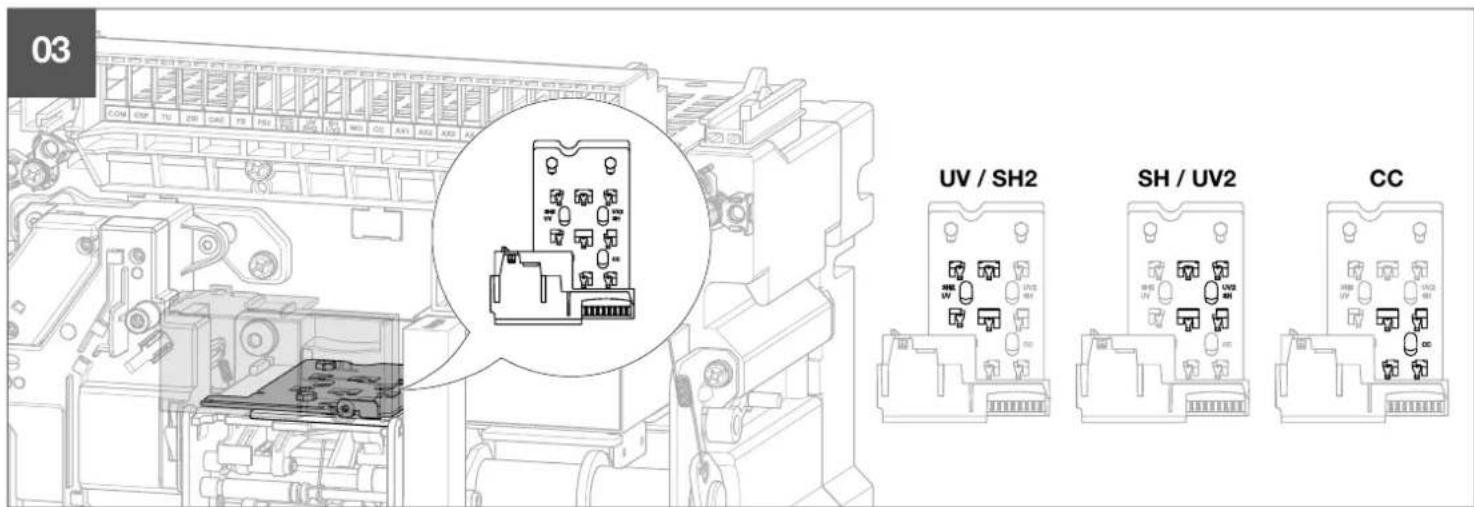

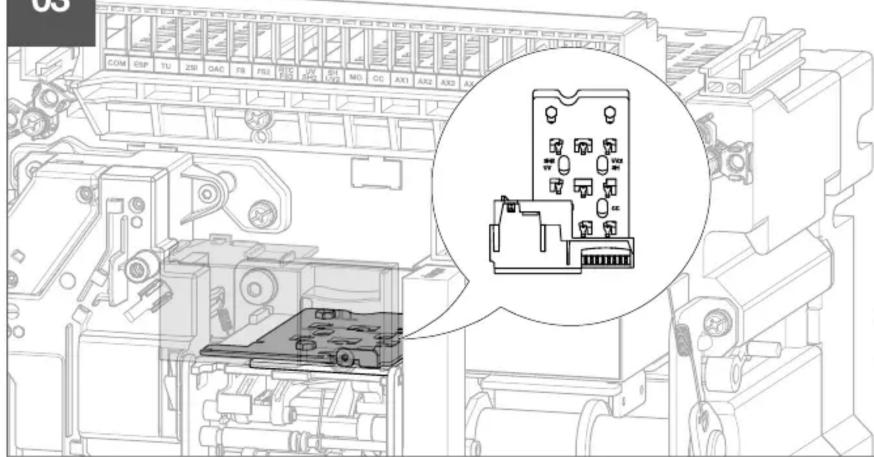

03 UV / SH2 SH / UV2 CC


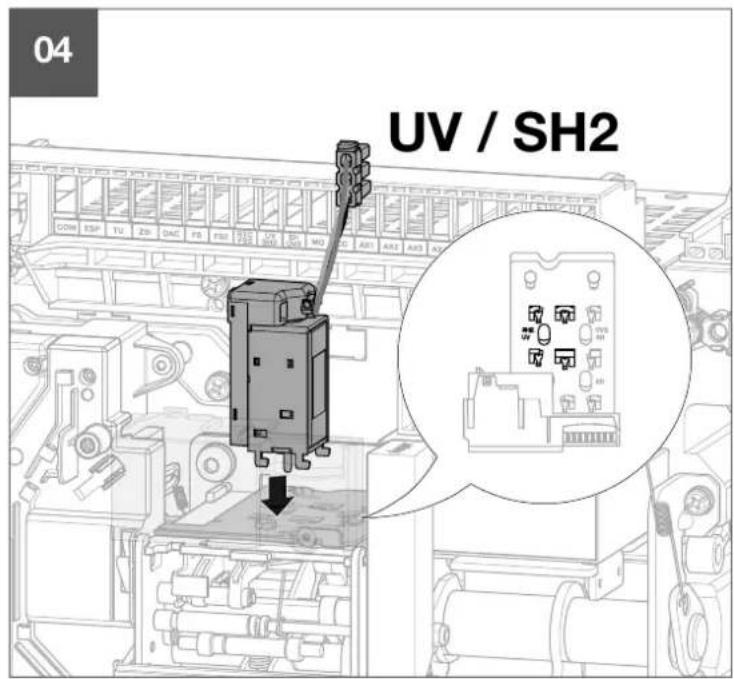

04 UV / SH2


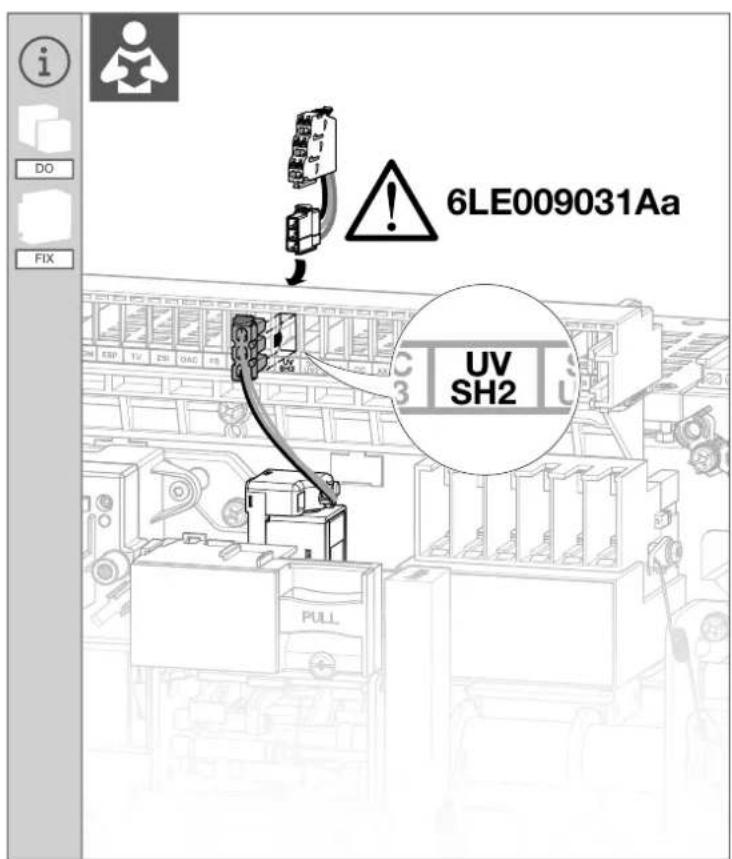

6LE009031Aa UV SH2 PULL


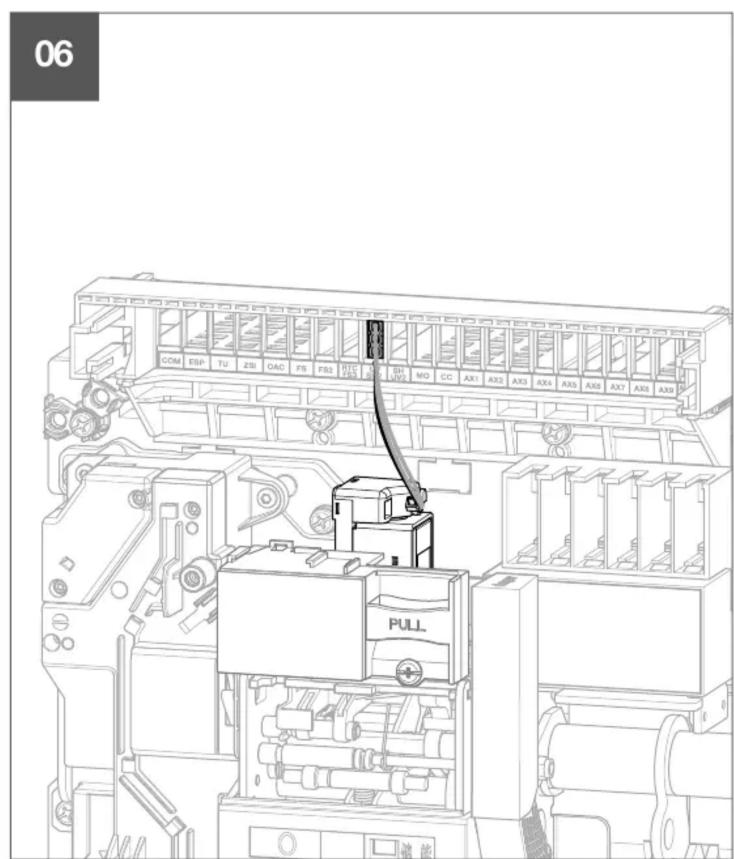

06 COM EM TU ZB OAC FS FBS WEL PULL


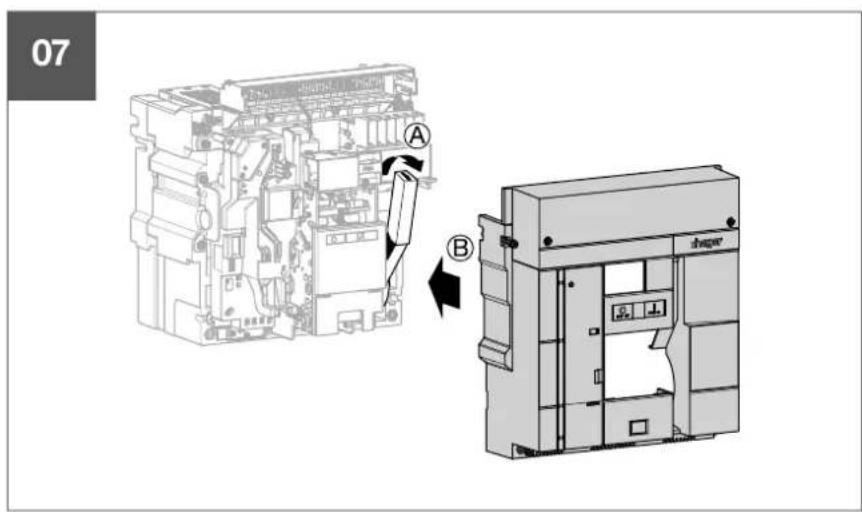

07 A B
