HASZNÁLATI ÚTMUTATÓ RC-1407 SPT

SPT®

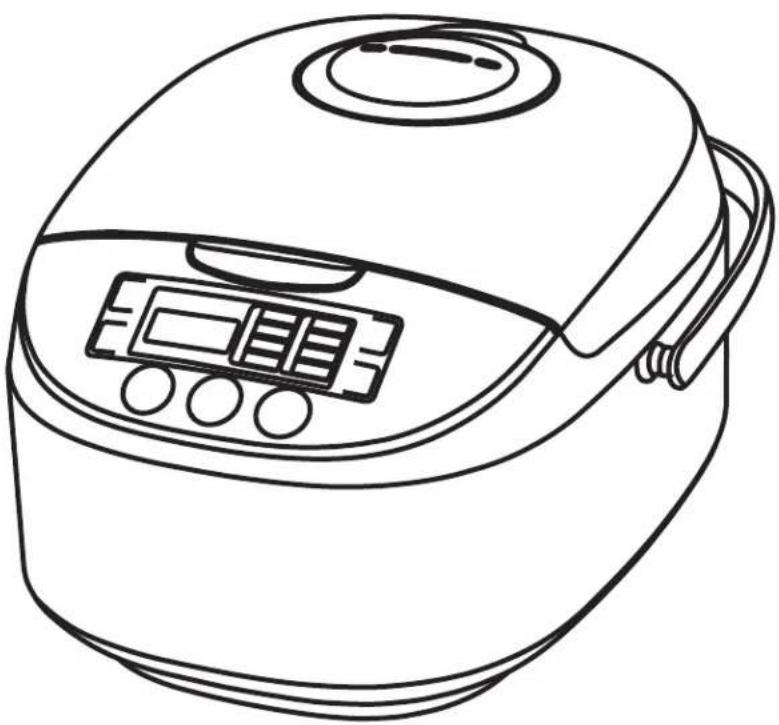

Line drawing of a rice cooker with digital display and control buttons (no text or symbols)

RC-1407

8-Cups Rice Cooker

Please read the Operation Instructions carefully before using and keep it cautiously after reading for future reference. Pictures are for reference only, subject to our available products.

IMPORTANT SAFEGUARDS

Basic safety precautions should always be followed when using electrical appliances, including the following:

1. Important: Read all instructions carefully before first use.
2. Do not touch hot surfaces. Use the handles or knobs.
3. Use only on a level, dry and heat-resistant surface.
4. To protect against fire, electric shock and injury to persons, do not immerse cord, plug or the appliance in water or any other liquid. See instructions for cleaning.
5. Close supervision is necessary when the appliance is used by or near children.
6. Unplug from outlet when not in use and before cleaning. Allow unit to cool before putting on or taking off parts and before cleaning the appliance.

7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.

8. Do not use outdoors.

9. Do not touch hot surfaces or let the cord hang over the edge of a counter or table.

10. Do not place on or near a hot gas or electric burner or in a heated oven.
11. Do not use the appliance for other than its intended use.
12. Extreme caution must be used when moving the appliance containing rice, hot oil or other liquids.

13. Do not touch, cover or obstruct the steam vent on the top of the rice cooker as it is extremely hot and may cause scalding.

14. Use only with a 120V AC power outlet.

15. Always unplug from the base of the wall outlet. Never pull on the cord.

16. The rice cooker should be operated on a separate electrical circuit from other operating appliances. If the electrical circuit is overloaded with other appliances, the appliance may not operate properly.

17. Always make sure the outside of the inner cooking pot is dry prior to use. If the inner pot is returned to the cooker when wet, it may damage or cause the product to malfunction.

18. Use extreme caution when opening the lid during or after cooking. Hot steam will escape and may cause scalding.

19. Rice should not be left in the inner cooking pot with the Keep-Warm function on for more than 12 hours.
20. To prevent damage or deformation, do not use the inner cooking pot on a stovetop or burner.
21. To disconnect, turn any control to OFF, then remove the plug from the wall outlet.
22. CAUTION: To reduce the risk of electrical shock, cook only in the removable inner cooking pot provided.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFEGUARDS

Short Cord Instructions

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. Longer extension cords are available and may be used if care is exercised in their use.
3. If a longer extension cord is used:
   a. The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance.

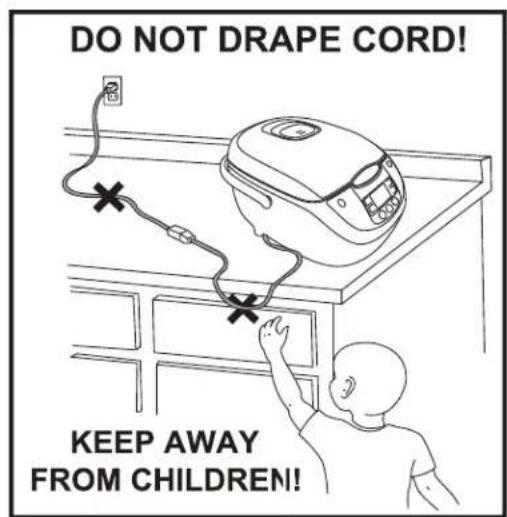

   b. The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled by children or tripped over unintentionally.

Polarized Plug

This appliance has a polarized plug (one blade is wider than the other); follow the instructions below:

To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid hazard.

THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY.

Product Instructions

Accessories

Scoop

Spoon

Measuring cup

Steamer

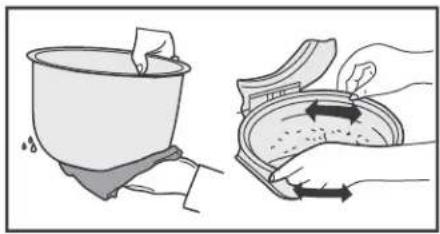

Illustration showing a hand holding a cloth next to a bowl and a magnified view of the lid with arrows indicating motion (no text or symbols)

Solid black rounded rectangle with no text or symbols

Usage Instructions

Proportion		Min Rice Amount	Max Rice Amount	Cooking Time
Rice (Cup)	Water (Mark)
2	2	2 cups	8 cups	About 45min

Proportion		Min Rice Amount	Max Rice Amount	Cooking Time
Rice (Cup)	Water (Mark)
2	2	2 cups	8 cups	About 55min

Usage Instructions

Proportion		Min Rice Amount	Max Rice Amount	Cooking Time
Rice (Cup)	Water (Mark)

-

Proportion		Min Rice Amount	Max Rice Amount	Cooking Time
Rice (Cup)	Water (Mark)
2	2	2 cups	8cup	About 80 min

Usage Instructions

Usage Instructions

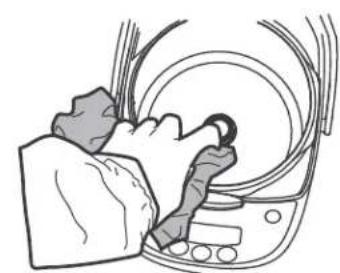

Cleaning and Maintenance

Line drawing of a mechanical device with no visible text or symbols

● Dry the water storage tank with dry dishcloth.

Illustration of a hand using a tool to lift a circular component (no text or symbols visible)

Illustration of a hand holding a small object over a car wheel (no text or symbols)

Illustration of a hand cleaning a car's dashboard area (no text or symbols)

Line drawing of a person cleaning a car interior with a bag attached (no text or symbols)

Illustration of a hand holding a rectangular object, no text or symbols present

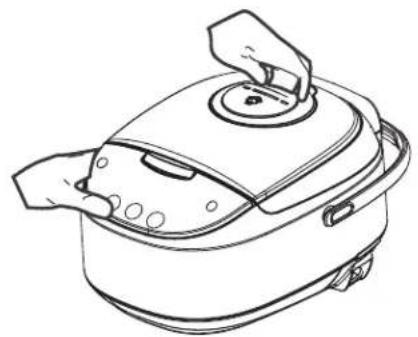

● Hold the handle of the steam valve and lift it up.

Line drawing of a cooking pot with lid and handles (no text or symbols)

●

Technical line drawing of a spiral mechanical component with mounting holes and a curved handle (no text or symbols)

●

●

Diagram of a mechanical component with a central shaft and circular base (no text or symbols)

●

Simple line drawing of concentric circular layers with a central arrow-like shape (no text or symbols)

●

Line drawing of a hand holding a circular device with a small icon, no text or symbols present

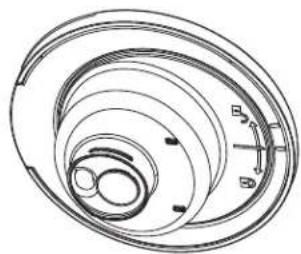

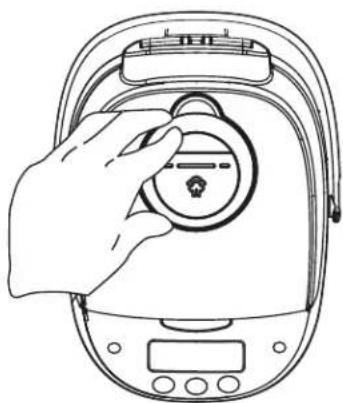

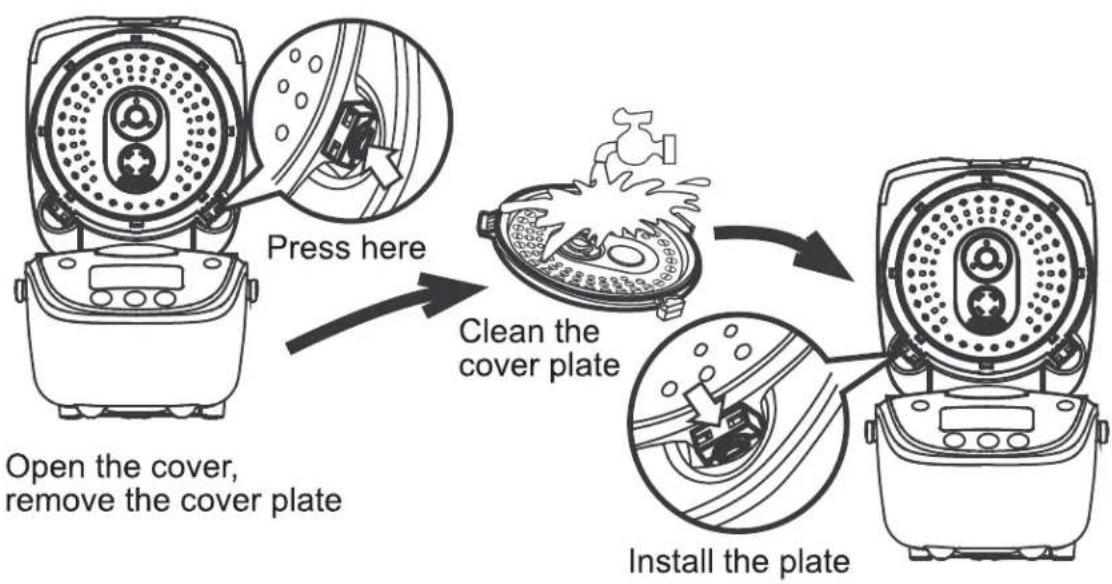

Method of disassembling and cleaning the cover plate


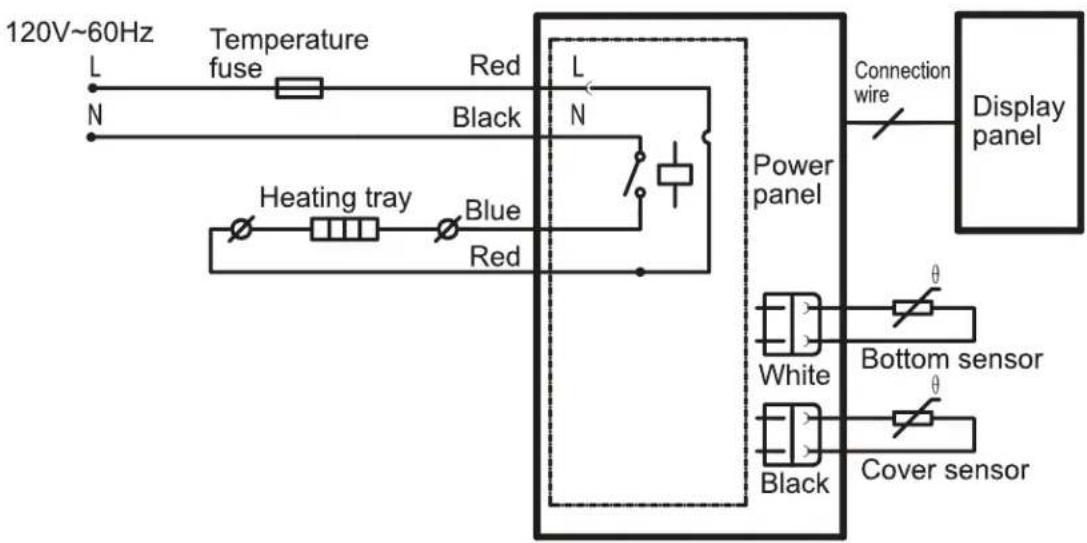

Schematic circuit diagram
