HASZNÁLATI ÚTMUTATÓ Tempo Ultra 572 MKII Morel


mpoUltra MkII
Component System




502/602/572/692 2 way

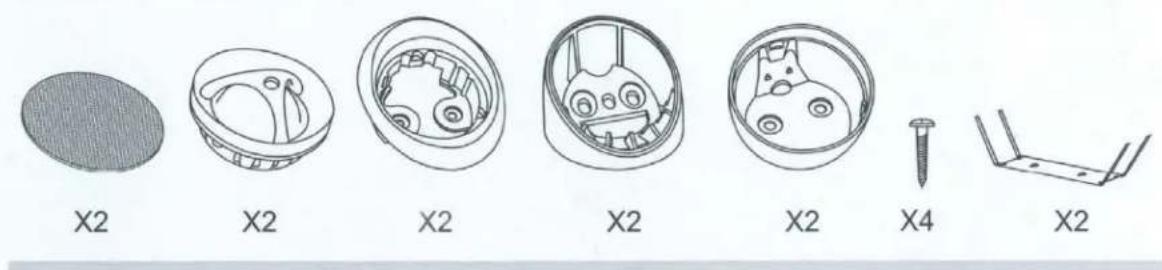

Content - Tweeter

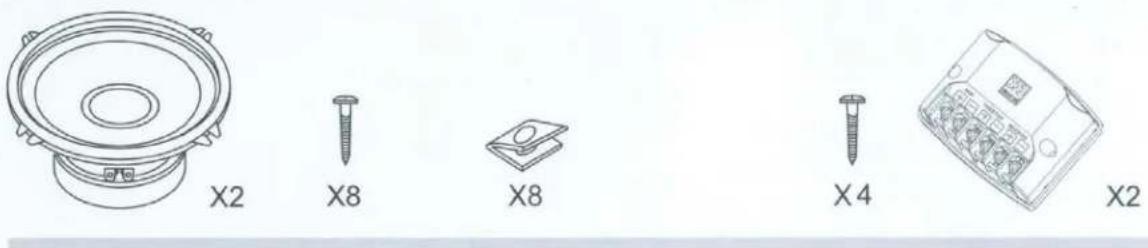

Content - Woofer

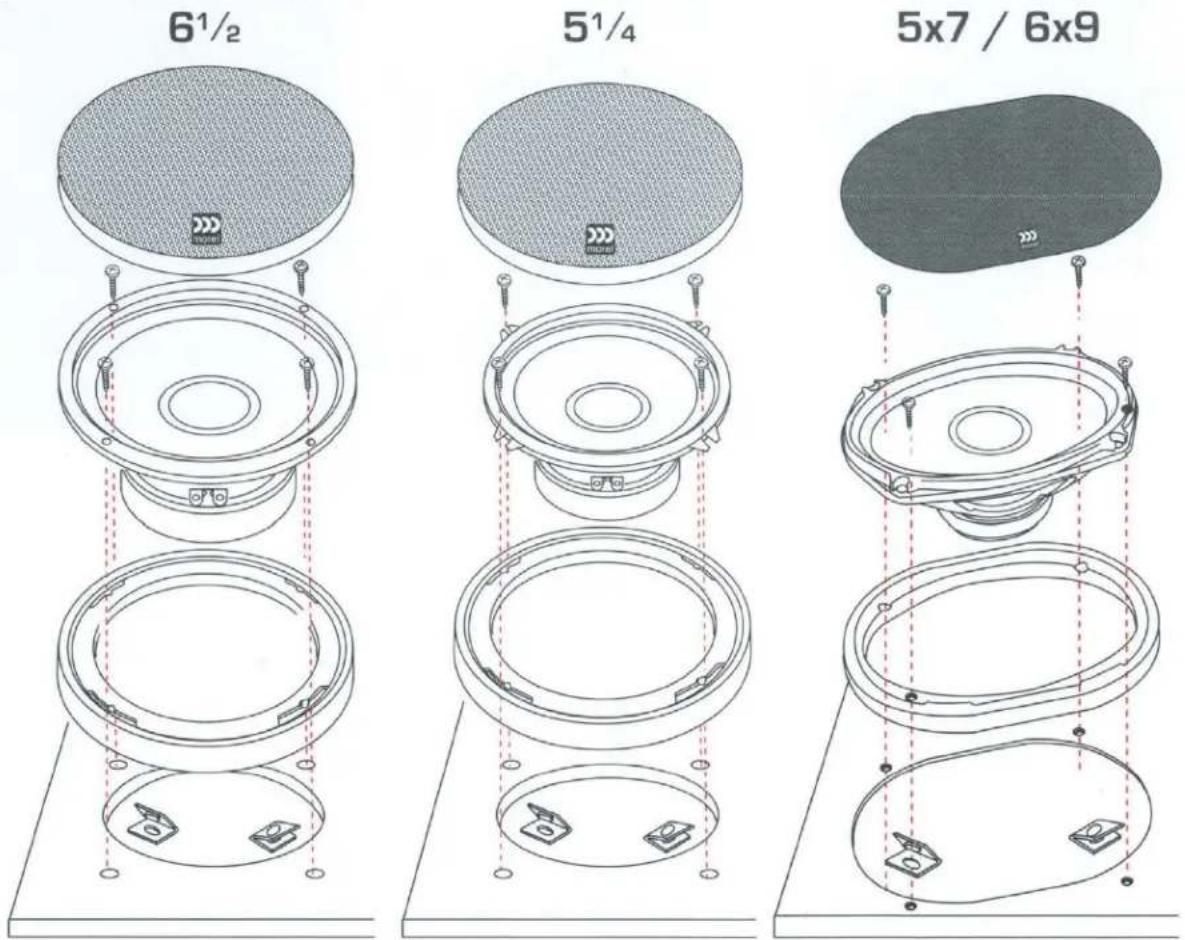

Woofer mounting

*Grills purchased separately

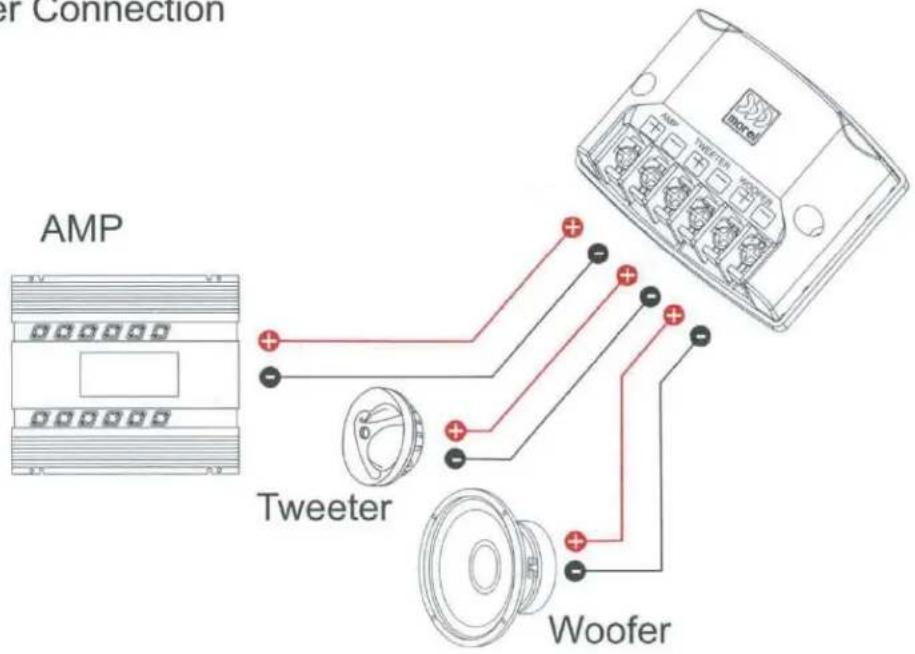

Crossover Connection

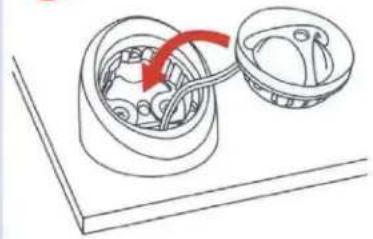

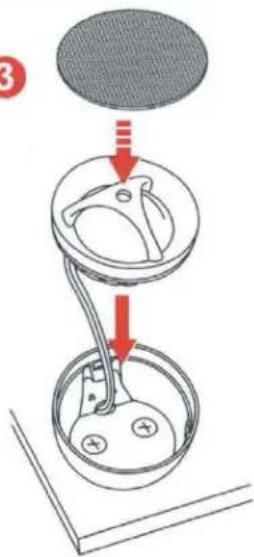

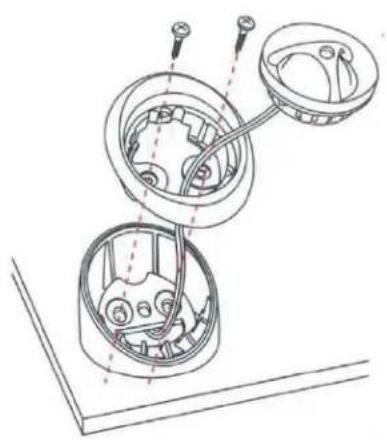

Surface mounting
1

3


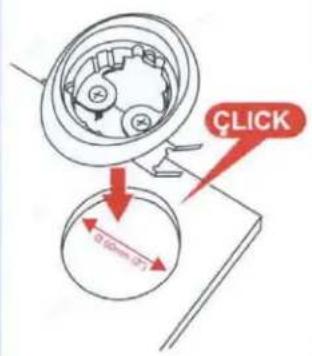

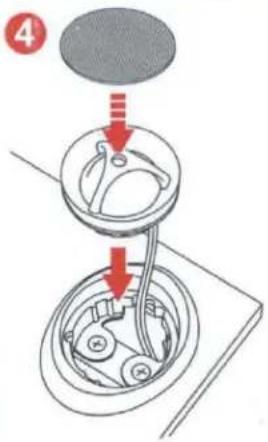

Isometric line drawing of a mechanical component with a red arrow pointing to a circular feature (no text or symbols)Flush mounting for 50 mm (1.96") cutout
1

2

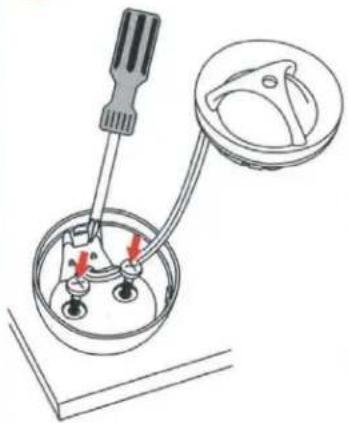

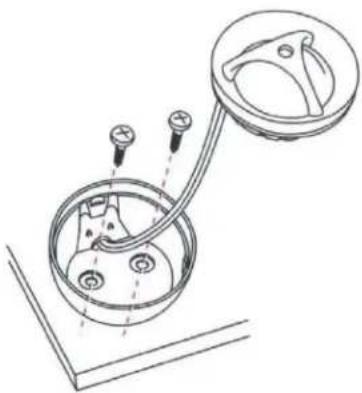

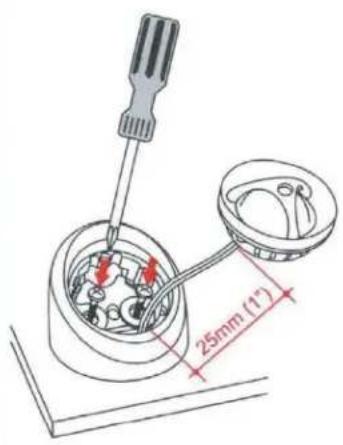

Surface mounting option 2
1

Specifications
| Two way system | Tempo 502 | Tempo 602 | Tempo 572 | Tempo 692 | |
| Nominal Impedance | 4 ohm | 4 ohm | 4 ohm | 4 ohm | |
| Power Handling | 110W | 130W | 120W | 150W | |
| Max. Transient Power Handling | 250W | 250W | 250W | 280W | |
| Sensitivity (2.83V/1M) | 89db | 90db | 90db | 91db | |
| Frequency Response | 65-22000 | 55-22000Hz | 60-22000Hz | 50-22000Hz | |
| Voice Coil Diameter | Woofer: | 38 mm [1.50"] | 38 mm [1.50"] | 38 mm [1.50"] | 38 mm [1.50"] |
| Tweeter: | 28 mm [1.125"] | 28 mm [1.125"] | 28 mm [1.125"] | 28 mm [1.125"] | |
| Voice Coil Wire | Woofer: | Copper | Copper | Copper | Copper |
| Tweeter: | Copper | Copper | Copper | Copper | |
| Magnet System | Woofer: | high-grade ferrite | high-grade ferrite | high-grade ferrite | high-grade ferrite |
| Tweeter: | Neodymium | Neodymium | Neodymium | Neodymium | |
| Mounting Depth | Woofer: | 57 mm [2.25"] | 64 mm [2.52"] | 62 mm [2.45"] | 85 mm [3.35"] |
| Tweeter: | 20 mm [0.80] | 20 mm [0.80] | 20 mm [0.80] | 20 mm [0.80] | |
