HASZNÁLATI ÚTMUTATÓ IB-AC638 Icy Box

Mechanical assembly diagram showing three articulated arms with mounting flanges and joints (no text or symbols visible)

ICY BOX

IB-AC638

Full metal holder for two screens with size up to 24" with a free standing base

Key features

• The IB-AC638 remains the classic multiple stand design and makes it more slim and ergonomic
• Easy Cable™ Management cover & column to make the cables tidy & well arranged
• Smart Torque Adjust ^TM is always available at every Hinge Module to meet various weights implemented.
• Horizontally adjustable VESA ^ support for a wide range of screen dimensions
  • For screens size up to 24" diagonal screen measurement
  • Special metal foot design to guarantee stability
  • Simple monitor height setup
  • Supports 100x100 and 75x75 VESA ^® standards

Mechanical device with dual arms and a central vertical shaft (no text or symbols visible)

Packing content

IB-AC638, allen wrench, set of screws, quick installation guide

Technical data

Model IB-AC638

Article no. 70557

EAN 4250078161035

Brand ICY BOX

Colour Silver

Material Steel / plastic / aluminium alloy

Maximum size of monitor 24"

Number of monitors 2

Max weight arm total 6 kg / monitor

VESA - Swivel (Hinge) +/- 15° horizontal

VESA - Tilt (Hinge) +/- 15° vertical

VESA - Rotate (Pivot) 360° horizontal

Base - Rotate (Pivot) 360° vertical

Mounting Full metal base

Mechanical component diagram showing a lever mechanism with a highlighted arrow (no text or symbols)

Torque adjustment Easy mount adjustment Cable management and

Mechanical assembly diagram showing a shaft with a central component and directional arrows (no text or symbols)

Close-up of a mechanical device with black connectors and tubing, enclosed in a purple circular border (no text or symbols visible)

hight adjustment

Close-up of a mechanical clamp or bracket component within a circular frame (no text or symbols visible)

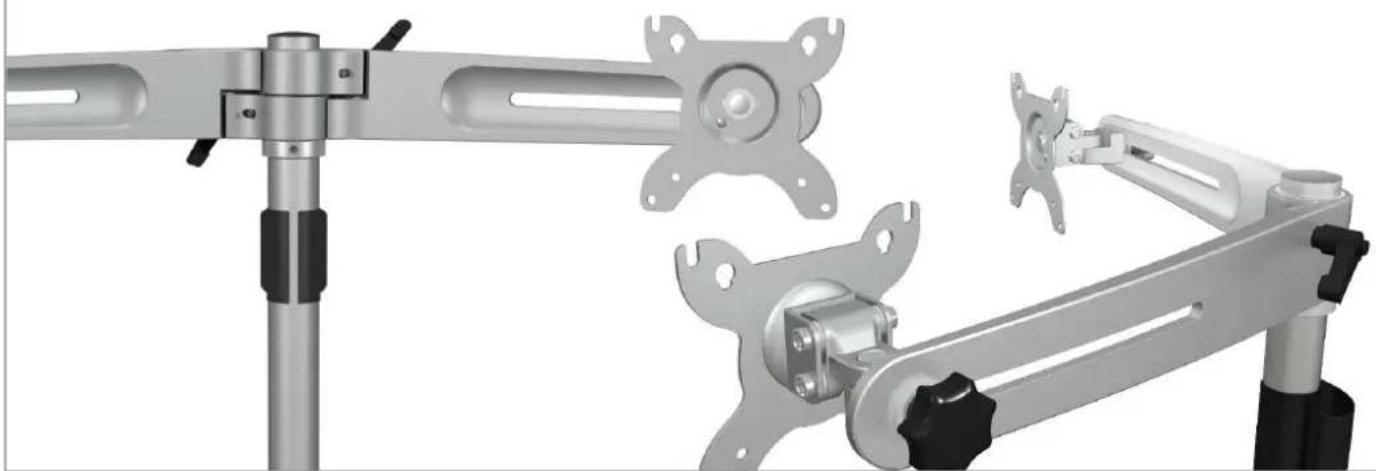

Swivel and tilt adjustable VESA mount

Mechanical assembly diagram showing articulated arms and joints (no text or symbols visible)

ICYBOXIB-AC638

Full metal holder for two screens with size up to 24" with a free standing base

Mechanical assembly diagram showing a lever and mounting bracket (no text or symbols)

Slim and ergonomically designed

The stand for two monitors, each with a maximum screen size of 24" (screen diagonal: 61 cm, max 6 kg per monitor) is made entirely of high quality steel and an aluminum alloy and provides very high stability. The design has also been taken to ensure that it doesn't take up too much space on the table, and that the use of screens is ergonomically.

Mechanical assembly diagram showing a metal linkage with a black knob (no text or symbols)

For optimal order...

At work or at home on your PC, the monitor holder has a Easy Cableable guide on the back. In order to balance the weights of different weighted screens well, a Smart Torque Adjustque adjustment ensures that each VESA mount is stable.

Diagram showing a 360° angle measurement setup with a mechanical component and screen (no text or symbols)

User-friendly orientation

The various components of the mount can be rotated in different angles up to 360^ . It also has the ability to shift the entire screen mount to the left or right, or direct the screens with an inclination angle of up to 15^ depending on your own wishes.

Logistical data

Packing unit: 5 pcs./carton

Total weight: 17.3 kg/carton

Gross weight (with packing): 3.22 kg

Net weight: 2.61 kg

Dimension/carton: 492x492x304 mm

Dimension (with packing): 95x472x272 mm

Dimension of article: 347x716x55 mm

Country of origin: Taiwan

Mechanical assembly diagram showing three articulated arms with mounting flanges and joints (no text or symbols visible)

ICYBOXIB-AC638

Accessories

Model IB-AC638M2

Article no. 70559

EAN code 4250078161363

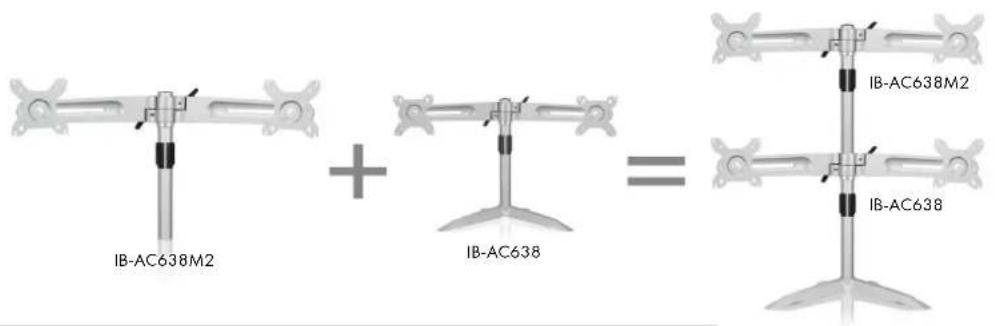

Description Silver extended module for two monitors

with screen size up to 24"

Packing content IB-AC638M2, allen wrench, set of screws, quick installation guide

Packing unit: 5 pcs./cartan

Total weight: 14.80 kg

Gross weight (with packing):

Net weight: 1.90 kg

Dimension/carton: 492x492x304 mm

Dimension (with packing): 98x476x273 mm

Dimension of article: 140x710x370 mm

Country of origin: Taiwan

IB-AC639B1

Model IB-AC639B1

Article no. 70568

EAN code 4250078161387

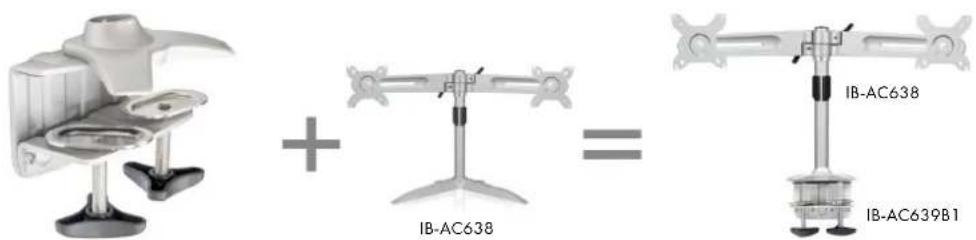

Description Alternative clamp base for IB-AC638 and IB-AC639

Robust metal body with dual knobs

Packing content IB-AC639B1, allen wrench, set of screws, quick installation guide

Packing unit: 8 pcs./carton

Total weight: 18.30 kg

Gross weight (with packing): 2.20 kg

Net weight: 2.03 kg

Dimension/carton: 362x350x290 mm

Dimension (with packing): 171x165x130 mm

Dimension of article: 120x160x130 mm

Country of origin: Taiwan
