HASZNÁLATI ÚTMUTATÓ HF611K118MF Union Special
Catalog No. T143M
Supplement For
Puller Machines
Illustrated Parts List
For Styles
HF611K101MF
LF611K118MF
HF611K118MF
LF611K152MF
HF611K152MF
LF612K101MBE-16
HF612K101MR-48
LF613K101HR-8
LF611K101MF
LF613K101HR-9

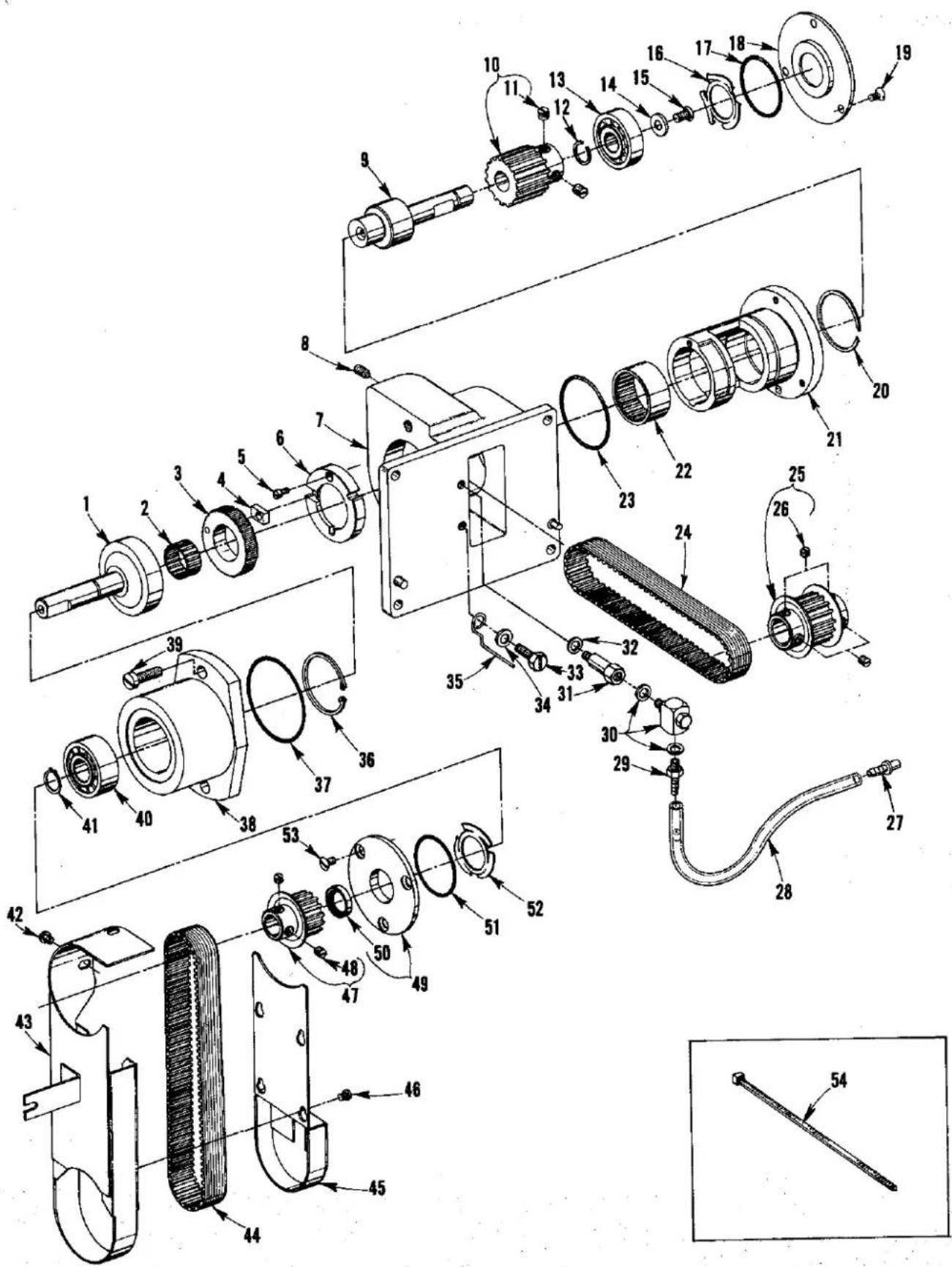

PULLER DRIVE
| Ref. No. | Part No. | Description | Amt. Req. |
| 1 | C50078 L | Gear, internal | 1 |
| 2 | 660-889 | Bearing, cage | 1 |
| 3 | C50078 M | Gear | 1 |
| 4 | C50078 J | Block, slide | 1 |
| 5 | 22593 | Screw | 1 |
| 6 | C50078 N | Ring, guide | 1 |
| 7 | C50078 G | Housing, bearing | 1 |
| 8 | 22894 J | Screw | 1 |
| 9 | C50022 L | Shaft, eccentric drive | 1 |
| 10 | C50042 AC-16 | Sprocket | 1 |
| 11 | 98 | Screw | 2 |
| 12 | 660-891 C | Ring, retaining | 1 |
| 13 | 660-888 | Bearing, ball | 1 |
| 14 | 59451 F | Washer | 1 |
| 15 | 22574 D | Screw (left hand threads) | 1 |
| 16 | 660-914 | Spring, finger | 1 |
| 17 | 660-886 A | "0" Ring | 1 |
| 18 | C50082 AR | Cover | 1 |
| 19 | 22524 | Screw | 3 |
| 20 | 661-70 A | Ring, snap | 1 |
| 21 | C50078 P | Housing, eccentric | 1 |
| 22 | 660-892 C | Bearing | 1 |
| 23 | 660-886 C | "0" Ring | 1 |
| 24 | C50042 AF | Belt, timing | 1 |
| 25 | C50042 AB-16 | Sprocket | 1 |
| 26 | 98 | Screw | 4 |
| 27 | 50394 D | Connector, oil tube | 1 |
| 28 | C50094 AG | Tube, oil | 1 |
| 29 | 671 F-19 | Connector | 1 |
| 30 | RM3633-1 | Fitting, oil | 1 |
| 31 | 671 F-64 | Fitting, extension | 1 |
| 32 | RM2964 B | Washer | 1 |
| 33 | 22824 B | Screw | 1 |
| 34 | 53634 C | Washer | 1 |
| 35 | C50093 CS | Protector, tube | 1 |
| 36 | 660-891 B | Ring, snap | 1 |
| 37 | 660-886 B | "0" Ring | 1 |
| 38 | C50078 H | Housing, bearing | 1 |
| 39 | 136 | Screw | 2 |
| 40 | 660-890 | Bearing, ball | 1 |
| 41 | 660-918 | Ring, retaining | 1 |
| 42 | 22825 | Screw | 3 |
| 43 | 21375 BX | Guard, belt | 1 |
| 44 | C50042 AG | Belt, timing | 1 |
| 45 | 21375 BY | Cover | 1 |
| 46 | 604 | Screw | 4 |
| 47 | C50042 Z-13 | Sprocket, puller driving (See sprocket chart for stitch length combinations) | 1 |
| 48 | 22560 B | Screw | 2 |
| 49 | C50082 AP | Cover | 1 |
| 50 | 660-893 | Seal, lip | 1 |
| 51 | 660-886 A | "0" Ring | 1 |
| 52 | 660-914 | Spring | 1 |
| 53 | 22524 | Screw | 3 |
| 54 | 670 E-2 | Tie, cable; to secure Ref. No. 28 | 1 |
NOTE: Ref No. 1-24, 36-41 and 49-53 can be ordered under Assembly No. 29476 PK.

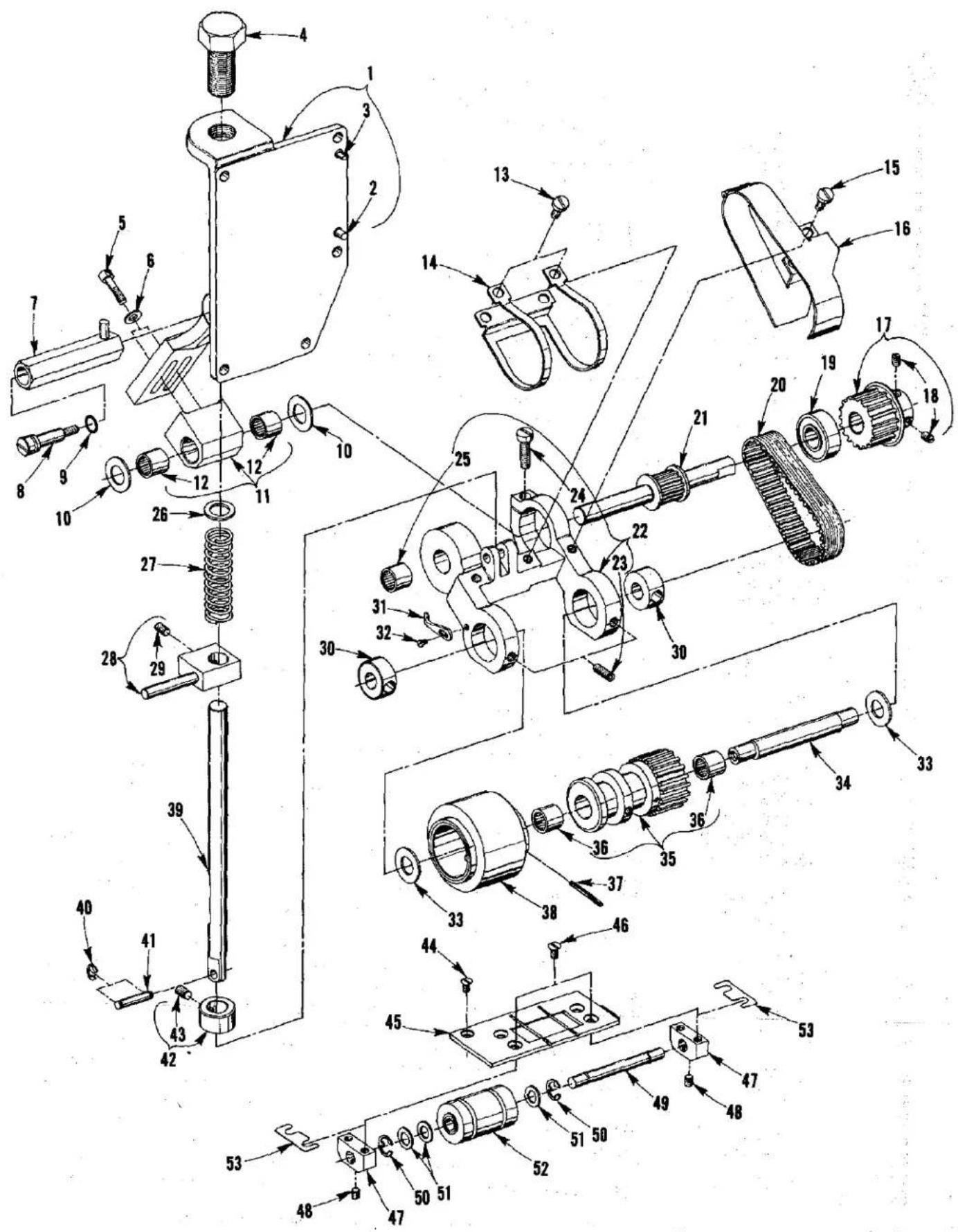

ROLLER PULLER
| Ref. No. | Part No. | Description | Amt. Req. |
| 1 | C50078 F | Bracket, mounting | 1 |
| 2 | 667 C-8 | Pin, dowel | 1 |
| 3 | 51-716 BLK | Pin, locating | 1 |
| 4 | C50077 D | Screw, adjusting | 1 |
| 5 | 88 F | Screw | 2 |
| 6 | 8372 A | Washer | 2 |
| 7 | C50077 C | Sleeve, stop | 1 |
| 8 | C50077 B | Stud, screw | 1 |
| 9 | 660-220 | "0" Ring | 1 |
| 10 | C50077 J | Washer | 2 |
| 11 | C50078 S | Block, mounting | 1 |
| 12 | 660-892 A | Bearing, needle | 2 |
| 13 | 94 | Screw | 4 |
| 14 | C50078 V | Guard, feed roller | 1 |
| 15 | 94 | Screw | 2 |
| 16 | 21375 BW | Guard, belt | 1 |
| 17 | C50042 Z-18 | Sprocket, puller driven (see sprocket chart for stitch length combinations) | 1 |
| 18 | 22560 B | Screw | 2 |
| 19 | 660-887 | Bearing, ball | 1 |
| 20 | C50042 AE | Belt, timing | 1 |
| 21 | C50022 K | Shaft, drive | 1 |
| 22 | C50078 E | Yoke, feed roller | 1 |
| 23 | 22894 E | Screw | 2 |
| 24 | 136 | Screw | 1 |
| 25 | 660-892 B | Bearing, needle | 1 |
| 26 | 51242 L | Washer | 1 |
| 27 | 28633 L | Spring | 1 |
| 28 | C50077 H | Collar, puller lifting | 1 |
| 29 | 22894 AM | Screw | 1 |
| 30 | C50078 T | Block, thrust | 1 |
| 31 | 39656 A | Knife, chain cutting | 1 |
| 32 | 604 | Screw | 1 |
| 33 | C50077 K | Washer | 2 |
| 34 | C50022 N | Shaft, upper roller | 1 |
| 35 | C50042 AL | Sprocket, drive | 1 |
| 36 | 660-892 A | Bearing, needle | 2 |
| 37 | 660-219 L | Pin, roll | 1 |
| 38 | C50075 B | Roller, upper (Smooth Polyurethane) | 1 |
| 39 | C50077 | Shaft, puller lifter | 1 |
| 40 | 660-416 | Ring, retaining | 2 |
| 41 | C50036 AJ | Pin, roller lifter | 1 |
| *42 | C50036 R | Collar, stop | 1 |
| *43 | 98 | Screw, set (required to replace screw in Ref. No. 42) | 1 |
Ref. Nos. 1 thru 43 to be ordered under Assembly No. 29476-PH with Smooth Polyurethane Roller and 29476 PW with Bakelite Saw Tooth Roller.
| 44 | AS22 D | Screw | 1 |
| 45 | C50078 R | Plate, feed | 1 |
| 46 | 22526 | Screw | 4 |
| 47 | C50078 U | Block, bearing | 2 |
| 48 | 22894 W | Screw | 2 |
| 49 | C50074 | Shaft | 1 |
| 50 | 660-330 | Ring, retaining | 2 |
| 51 | 6042 A | Washer | 3 |
| 52 | C50076 | Roller, lower (Smooth Polyurethane) | 1 |
| - | 50375 C | Roller, lower (Steel Diamond Knurled) | 1 |
| - | 50375 D | Roller, lower (Bakelite Saw Tooth) | 1 |
| 53 | C50078 AF-15 | Shim | 1 |
| - | C50078 AF-10 | Shim | 1 |
Ref Nos. 44 thru 52 can be ordered under Assembly No. 29476-PJ with Smooth Polyurethane Roller and 29476 PV with Bakelite Saw Tooth Roller.
| - | 50375 A | Roller, upper (Steel Diamond Knurled) | 1 |
| - | 50375 B | Roller, upper (Bakelite Saw Tooth) | 1 |
| - | 50375 | Roller, upper (Steel Saw Tooth) | 1 |

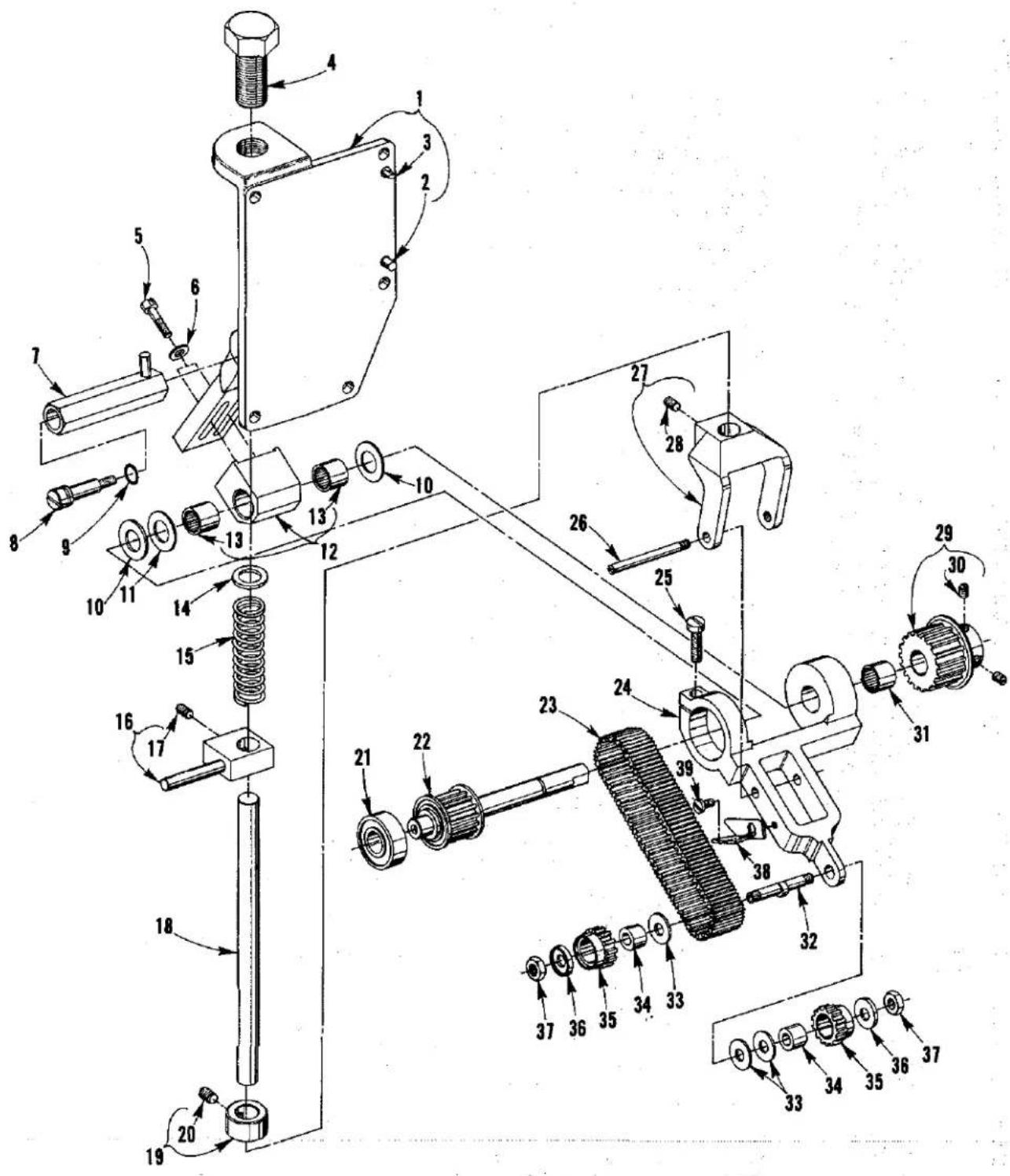

BELT PULLER
| Ref.No. | PartNo. | Description | Amt.Req. |
| 1 | C50078 AE | Bracket, mounting | 1 |
| 2 | 667 C-8 | Pin, dowel | 1 |
| 3 | 51-716 BLK | Pin, locating | 1 |
| 4 | C50077 D | Screw, adjusting | 1 |
| 5 | 88 F | Screw | 2 |
| 6 | 8372 A | Washer | 2 |
| 7 | C50077 C | Sleeve, stop | 1 |
| 8 | C50077 B | Stud, screw | 1 |
| 9 | 660-220 | "0" Ring | 1 |
| 10 | C50077 M | Washer | 2 |
| 11 | C50077 J | Washer | 1 |
| 12 | C50078 AC | Plate, binder | 1 |
| 13 | 660-892 A | Bearing, needle | 2 |
| 14 | 51242 L | Washer | 1 |
| 15 | 28633 L | Spring | 1 |
| 16 | C50077 H | Collar, lifting | 1 |
| 17 | 22894 AM | Screw | 1 |
| 18 | C50078 Y | Rod, lifter | 1 |
| *19 | C50036 R | Collar, stop | 1 |
| *20 | 98 | Screw, set (required to replace screw in Ref No. 19) | 1 |
| 21 | 660-887 | Bearing, ball | 1 |
| 22 | C50078 AB | Shaft, drive | 1 |
| 23 | C50042 AK | Belt, timing | 1 |
| 24 | C50078 W | Yoke, roller | 1 |
| 25 | 136 | Screw | 1 |
| 26 | 22570 E | Screw | 1 |
| 27 | C50078 AA | Lifter | 1 |
| 28 | 22894 R | Screw | 1 |
| 29 | C50042 Z-16 | Sprocket, puller driven (see sprocket chart for stitch length combinations) | 1 |
| 30 | 22560 B | Screw | 2 |
| 31 | 660-892 B | Bearing | 1 |
| 32 | C50078 X | Shaft | 1 |
| 33 | C50077 N | Washer | 3 |
| 34 | C50037 D | Ferrule | 2 |
| 35 | C50042 AJ-12 | Sprocket | 2 |
| 36 | C50063 Y | Washer | 2 |
| 37 | 18 | Nut | 2 |
| 38 | 52930 AC | Knife, chain cutting | 1 |
| 39 | 604 | Screw | 1 |
Ref No. 1 thru 39 can be ordered under Assembly No. 29476 PL.

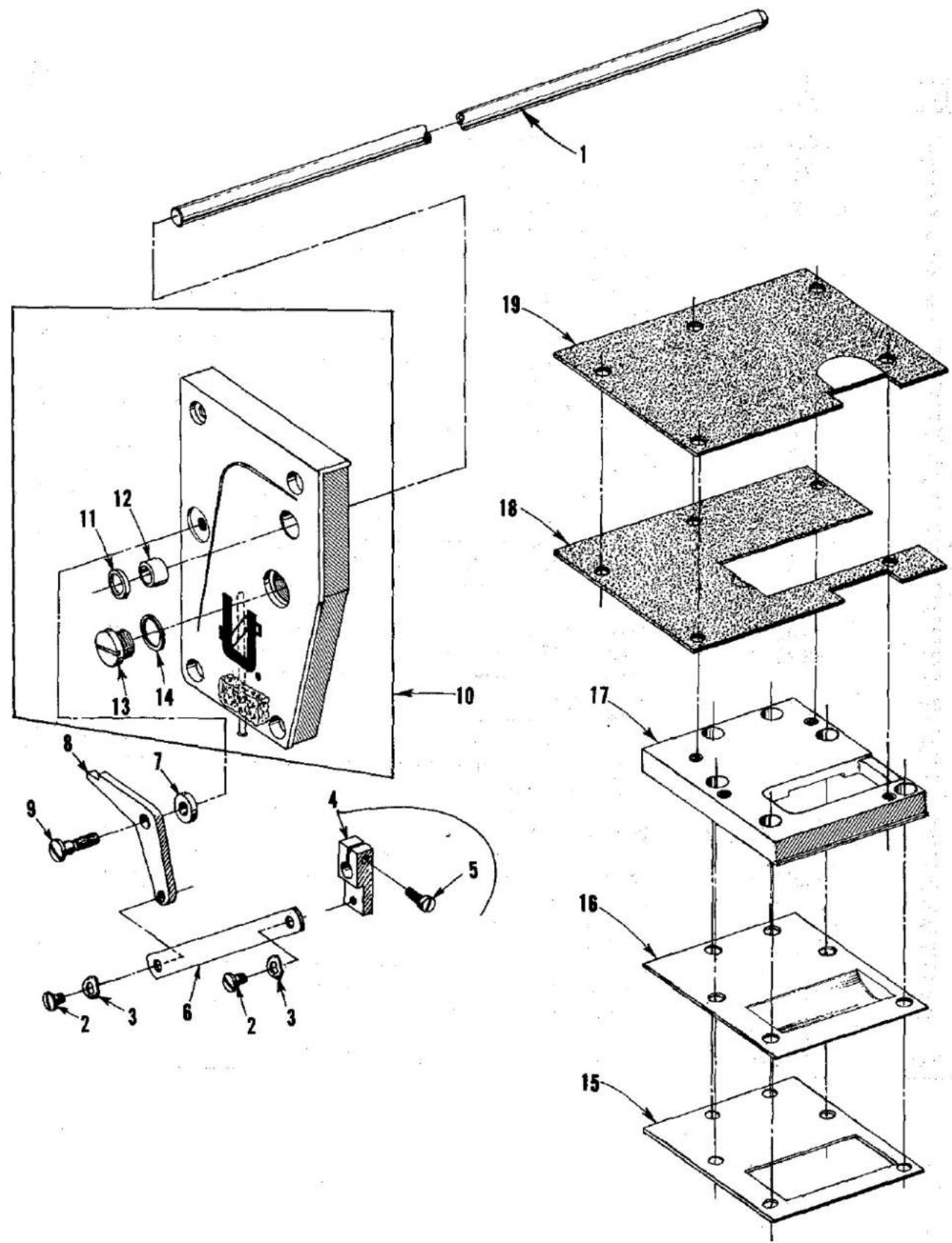

COVERS AND PULLER LIFTER PARTS
| Ref.No. | PartNo. | Description | Amt.Req. |
| 1 | 50322 F | Shaft, presser foot lift (upper) | 1 |
| 2 | 22758 | Screw | 2 |
| 3 | 660-718 | Washer, spring | 2 |
| 4 | C50077 E | Lever, lifter | 1 |
| 5 | 93 | Screw | 1 |
| 6 | C50077 F | Link, connecting | 1 |
| 7 | C50078 AD | Spacer | 1 |
| 8 | C50077 G | Lever, lifter roller | 1 |
| 9 | 22557 J | Screw, shoulder | 1 |
| 10 | 50382 BM | Cover, head | 1 |
| 11 | 660-739 | Seal, oil | 1 |
| 12 | 660-896 | Bushing | 1 |
| 13 | 22883 B | Screw, plug | 1 |
| 14 | C50082 AA | Gasket | 1 |
| 15 | 50382 U | Gasket, for Roller Puller (only) | 1 |
| 16 | 37-70 BLK | Trough, blank, for Roller Puller (only) | 1 |
| 17 | 50382 V | Cover, feed chamber, for Roller Puller (only) | 1 |
| 18 | 50301 P | Plate, cloth (left) for Styles LF611K101MF and HF611K101MF | 1 |
| - | 50301 Z | Plate, cloth (left) for Style HF612K101MR-48 | 1 |
| - | 50301 AD | Plate, cloth (left) for Style HF612K101MBE-16 | 1 |
| - | 50301 AE | Plate, cloth (left) for Sytles LF613K101HR-8 and 101HR-9 | 1 |
| 19 | 50301 D | Plate, cloth (left) for Styles LF611K118MF and HF611K118MF | 1 |
| - | 50301 T | Plate, cloth (left) for Styles LF611K152MF and HF611K152MF | 1 |
PULLER SPROCKETS COMBINATIONS
This chart shows the stitch length produced by available sprocket combinations. Sprockets furnished in the machines produces approximately 9.2 S.P.I. If a different length is required, refer to the chart for appropriate dash number when ordering sprockets-C50042-Z-( ).
Roller Puller Sprocket Variations
| DRIVEN SPROCKET PART NUMBER | NUMBER OF STITCHES PER INCH | ||||||||
| 14.69 SPI(1.73mm) | 13.37 SPI(1.90mm) | 12.25 SPI(2.07mm) | 11.30 SPI(2.25mm) | 10.50 SPI(2.42mm) | 9.80 SPI(2.59mm) | 9.18 SPI(2.77mm) | 8.65 SPI(2.94mm) | ||
| 13.87 SPI(1.83mm) | 12.62 SPI(2.01mm) | 11.56 SPI(2.20mm) | 10.67 SPI(2.38mm) | 9.91 SPI(2.56mm) | 9.25 SPI(2.75mm) | 8.67 SPI(2.93mm) | 8.16 SPI(3.11mm) | 7.71 SPI(3.30mm) | |
| 13.06 SPI(1.94mm) | 11.88 SPI(2.13mm) | 10.89 SPI(2.53mm) | 10.05 SPI(2.53mm) | 9.34 SPI(2.72mm) | 8.71 SPI(2.92mm) | 8.16 SPI(3.11mm) | 7.69 SPI(3.30mm) | 7.26 SPI(3.50mm) | |
| 11.14 SPI(2.28mm) | 10.21 SPI(2.49mm) | 9.42 SPI(2.70mm) | 8.75 SPI(2.90mm) | 8.16 SPI(3.11mm) | 7.65 SPI(3.32mm) | 7.21 SPI(3.52mm) | 6.80 SPI(3.73mm) | ||
| 9.52 SPI(2.67mm) | 8.76 SPI(2.89mm) | 8.16 SPI(3.11mm) | 7.62 SPI(3.33mm) | 7.14 SPI(3.56mm) | 6.72 SPI(3.78mm) | 6.35 SPI(4.00mm) | |||
| 8.16 SPI(3.11mm) | 7.59 SPI(3.35 mm) | 7.08 SPI(3.59mm) | 6.63 SPI(3.83mm) | 6.25 SPI(4.07mm) | 5.90 SPI(4.31mm) | ||||
| 7.00 SPI(3.63mm) | 6.53 SPI(3.89mm) | 6.12 SPI(4.15mm) | 5.76 SPI(4.41mm) | 5.44 SPI(4.67mm) | |||||
| 5.98 SPI(4.24mm) | 5.61 SPI(4.53mm) | 5.28 SPI(4.81mm) | 4.99 SPI(5.09mm) | ||||||
| 5.10 SPI(4.98mm) | 4.81 SPI(5.28mm) | 4.54 SPI(5.60mm) | |||||||
| -10 | -11 | -12 | -13 | -14 | -15 | -16 | -17 | -18 | |
| DRIVE SPROCKET PART NUMBER | |||||||||
PULLER SPROCKETS COMBINATIONS
This chart shows the stitch length produced by available sprocket combinations. Sprockets furnished in the machines produces approximately 9.2 S.P.I. If a different length is required, refer to the chart for appropriate dash number when ordering sprockets-C50042-Z-( ).
Belt Puller Sprocket Variations
| DRIVEN SPROCKET PART NUMBER | NUMBER OF STITCHES PER INCH | ||||||||
| 13.10 SPI(1.94mm) | 11.92 SPI(2.13mm) | 10.92 SPI(2.33mm) | 10.08 SPI(2.52mm) | 9.37 SPI(2.71mm) | 8.74 SPI(2.91mm) | 8.19 SPI(3.10mm) | 7.71 SPI(3.29mm) | ||
| 12.37 SPI(2.05mm) | 11.26 SPI(2.26mm) | 10.31 SPI(2.46mm) | 9.52 SPI(2.67mm) | 8.84 SPI(2.87mm) | 8.25 SPI(3.08mm) | 7.73 SPI(3.28mm) | 7.28 SPI(3.49mm) | 6.88 SPI(3.69mm) | |
| 11.65 SPI(2.18mm) | 10.60 SPI(2.40mm) | 9.71 SPI(2.62mm) | 8.96 SPI(2.83mm) | 8.33 SPI(3.05mm) | 7.77 SPI(3.27mm) | 7.28 SPI(3.49mm) | 6.86 SPI(3.70mm) | 6.48 SPI(3.92mm) | |
| 9.94 SPI(2.56mm) | 9.10 SPI(2.79mm) | 8.40 SPI(3.02mm) | 7.81 SPI(3.25mm) | 7.28 SPI(3.49mm) | 6.83 SPI(3.72mm) | 6.43 SPI(3.95mm) | 6.07 SPI(4.19mm) | ||
| 8.49 SPI(2.99mm) | 7.84 SPI(3.24mm) | 7.28 SPI(3.49mm) | 6.79 SPI(3.74mm) | 6.37 SPI(3.99mm) | 6.00 SPI(4.24mm) | 5.66 SPI(4.49mm) | |||
| 7.28 SPI(3.49mm) | 6.77 SPI(3.75 mm) | 6.31 SPI(4.02mm) | 5.92 SPI(4.29mm) | 5.57 SPI(4.56mm) | 5.26 SPI(4.83mm) | ||||
| 6.24 SPI(4.07mm) | 5.83 SPI(4.30mm) | 5.46 SPI(4.65mm) | 5.14 SPI(4.94mm) | 4.86 SPI(5.23mm) | |||||
| 5.34 SPI(4.76mm) | 5.00 SPI(5.08mm) | 4.71 SPI(5.39mm) | 4.45 SPI(5.71mm) | ||||||
| 4.55 SPI(5.58mm) | 4.29 SPI(5.92mm) | 4.05 SPI(6.27mm) | |||||||
| -10 | -11 | -12 | -13 | -14 | -15 | -16 | -17 | -18 | |
| DRIVE SPROCKET PART NUMBER | |||||||||
