KÄYTTÖOHJE UN60AU8000P SAMSUNG

4
43"

50"-70"
Diagram showing a device connected to an ammeter and a cable, with a magnified view of the cable being inserted.

SAMSUNG UN60AU8000P - 3

SAMSUNG UN60AU8000P - 4

SAMSUNG UN60AU8000P - 5

SAMSUNG UN60AU8000P - 6

A B G C D E F

Diagram showing two computer monitors with labeled icons H and I, likely illustrating a physics experiment or calibration setup.

ABCDEFGHI
43Q6*A43QA6*38.0 inches(965.5 mm)(96.55 cm)22.0 inches(559.8 mm)(55.98 cm)1.0 inches(25.7 mm)(2.57 cm)23.6 inches(599.8 mm)(59.98 cm)24.6 inches(624.8 mm)(62.48 cm)8.1 inches(205.6 mm)(20.56 cm)42.5 inches(108 cm)18.5 lbs(8.4 kg)19.6 lbs(8.9 kg)
50Q6*A50QA6*44.0 inches(1118.3 mm)(111.83 cm)25.4 inches(644.5 mm)(64.45 cm)1.0 inches(25.7 mm)(2.57 cm)26.9 inches(683.6 mm)(68.36 cm)27.9 inches(708.6 mm)(70.86 cm)9.0 inches(228.8 mm)(22.88 cm)49.5 inches(125 cm)25.4 lbs(11.5 kg)26.9 lbs(12.2 kg)
55Q6*A55QA6^48.5 inches(1232.1 mm)(123.21 cm)27.9 inches(708.8 mm)(70.88 cm)1.0 inches(25.7 mm)(2.57 cm)29.4 inches(747.8 mm)(74.78 cm)30.4 inches(772.8 mm)(77.28 cm)9.0 inches(228.8 mm)(22.88 cm)54.6 inches(138cm)34.2 lbs(15.5 kg)35.7 lbs(16.2 kg)
60Q6*A60QA6*53.3 inches(1353.0 mm)(135.30 cm)30.6 inches(776.8 mm)(77.68 cm)1.0 inches(25.7 mm)(2.57 cm)32.1 inches(816.1 mm)(81.61 cm)33.1 inches(841.1 mm)(84.11 cm)11.1 inches(281.8 mm)(28.18 cm)60.1 inches(152 cm)41.0 lbs(18.6 kg)43.0 lbs(19.5 kg)
65Q6*A65QA6*57.1 inches(1450.9 mm)(145.09 cm)32.7 inches(831.8 mm)(83.18 cm)1.0 inches(25.7 mm)(2.57 cm)34.3 inches(871.0 mm)(87.10 cm)35.3 inches(896.0 mm)(89.60 cm)11.1 inches(281.8 mm)(28.18 cm)64.5 inches(163 cm)46.1 lbs(20.9 kg)48.1 lbs(21.8 kg)
70Q6*A70QA6*62.0 inches(1575.9 mm)(157.59 cm)34.6 inches(877.7 mm)(87.77 cm)1.0 inches(26.6 mm)(2.66 cm)36.3 inches(923.0 mm)(92.30 cm)37.3 inches(948.0 mm)(94.80 cm)13.4 inches(340.4 mm)(34.04 cm)69.5 inches(176 cm)60.4 lbs(27.4 kg)63.1 lbs(28.6 kg)
43AU8***43UA8***38.0 inches(965.5 mm)(96.55 cm)22.0 inches(559.8 mm)(55.98 cm)1.0 inches(25.7 mm)(2.57 cm)23.6 inches(600.1 mm)(60.01 cm)24.6 inches(625.1 mm)(62.51 cm)7.7 inches(195.1 mm)(19.51 cm)42.5 inches(108 cm)18.5 lbs(8.4 kg)19.6 lbs(8.9 kg)
50AU8***50UA8***44.0 inches(1118.3 mm)(111.83 cm)25.4 inches(644.5 mm)(64.45 cm)1.0 inches(25.7 mm)(2.57 cm)27.0 inches(684.6 mm)(68.46 cm)28.0 inches(709.6 mm)(70.96 cm)8.9 inches(226.6 mm)(22.66 cm)49.5 inches(125 cm)25.4 lbs(11.5 kg)26.9 lbs(12.2 kg)
55AU8***55UA8***48.5 inches(1232.1 mm)(123.21 cm)27.9 inches(708.8 mm)(70.88 cm)1.0 inches(25.7 mm)(2.57 cm)29.5 inches(748.8 mm)(74.88 cm)30.5 inches(773.8 mm)(77.38 cm)8.9 inches(226.6 mm)(22.66 cm)54.6 inches(138cm)34.2 lbs(15.5 kg)35.7 lbs(16.2 kg)
60AU8***60UA8***53.3 inches(1353.0 mm)(135.30 cm)30.6 inches(776.8 mm)(77.68 cm)1.0 inches(25.7 mm)(2.57 cm)32.3 inches(819.3 mm)(81.93 cm)33.6 inches(844.3 mm)(84.43 cm)11.1 inches(281.8 mm)(28.18 cm)60.1 inches(152 cm)41.0 lbs(18.6 kg)43.0 lbs(19.5 kg)
65AU8***65UA8***57.1 inches(1450.9 mm)(145.09 cm)32.7 inches(831.8 mm)(83.18 cm)1.0 inches(25.7 mm)(2.57 cm)34.4 inches(874.3 mm)(87.43 cm)35.4 inches(899.3 mm)(89.93 cm)11.1 inches(281.8 mm)(28.18 cm)64.5 inches(163 cm)46.1 lbs(20.9 kg)48.1 lbs(21.8 kg)

^* :0-9,A-Z

SAMSUNG UN60AU8000P - 9

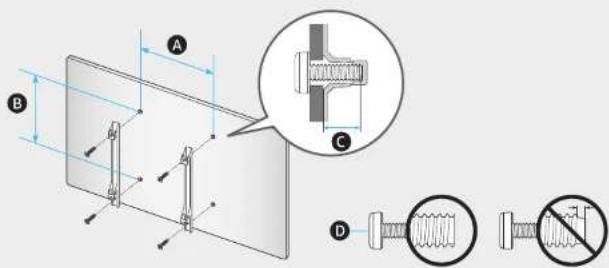

Technical diagram showing mechanical assembly with labeled components A, B, C, D and a magnified inset view of a bolted joint detail.

VESA (A x B m) (mm) x 4CD
43Q6*A, 43QA6*200 x 20011-13 M8
50Q6*A, 50QA6*
55Q6*A, 55QA6*
60Q6*A, 60QA6*400 x 30065Q6*A, 65QA6*
70Q6*A, 70QA6*
43AU8***, 43UA8***200 x 200
50AU8***, 50UAB***
55AU8***, 55UA8***
60AU8***, 60UA8***400 x 300
65AU8***, 65UA8***

*:0\~9,A\~Z

SAMSUNG

QUICK SETUP GUIDE

GUIDE D'INSTALLATION RAPIDE

GUÍA RÁPIDA DE CONFIGURACIÓN

GUIA RÁPIDO DE INSTALAÇÃO

KURZANLEITUNG ZUR KONFIGURATION

GUIDA DI INSTALLAZIONE RAPIDA

SAMSUNG UN60AU8000P - SAMSUNG - 1

SAMSUNG UN60AU8000P - SAMSUNG - 2
BN68-15316A-00

SAMSUNG UN60AU8000P - SAMSUNG - 3

SAMSUNG UN60AU8000P - SAMSUNG - 4

43" - 50"
SAMSUNG UN60AU8000P - SAMSUNG - 5
▶

SAMSUNG UN60AU8000P - SAMSUNG - 6

55" - 70"
SAMSUNG UN60AU8000P - SAMSUNG - 7

natural_image Illustration of two people assembling a large mechanical component with arrows indicating motion (no text or symbols)

▶

SAMSUNG UN60AU8000P - SAMSUNG - 8

SAMSUNG UN60AU8000P - SAMSUNG - 9

SAMSUNG UN60AU8000P - SAMSUNG - 10

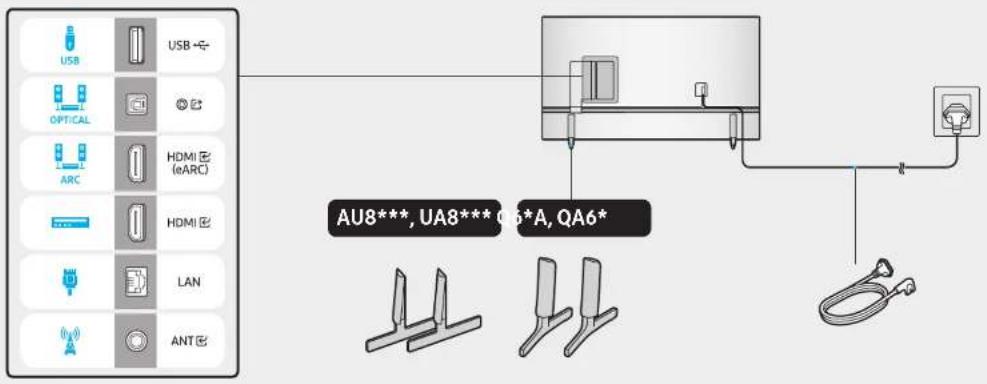

USB OPTICAL ARC HDMI (eARC) HDMI LAN ANT AU8***, UA8*** 06*A, QA6*

1

SAMSUNG UN60AU8000P - SAMSUNG - 12

natural_image Illustration of two people installing a large screen on a table, with a curved arrow indicating motion (no text or symbols)

2

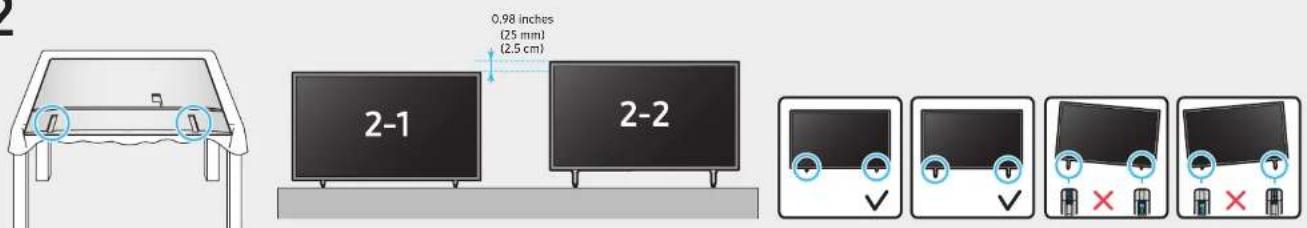

0.98 inches (25 mm) (2.5 cm) 2-1 2-2

2-1
SAMSUNG UN60AU8000P - SAMSUNG - 14
▶

SAMSUNG UN60AU8000P - SAMSUNG - 15

natural_image Diagram showing a mechanical component with an inset close-up of a blue component, alongside a separate view of a vertical support structure (no text or symbols present)

Diagram illustrating two steps of a mechanical or structural assembly, labeled ① and ②, with blue arrows indicating direction.

2-2
SAMSUNG UN60AU8000P - SAMSUNG - 17
▶

SAMSUNG UN60AU8000P - SAMSUNG - 18

natural_image Diagram showing a pen and its magnified view of a mechanical component, with no visible text or symbols.

SAMSUNG UN60AU8000P - SAMSUNG - 19

SAMSUNG UN60AU8000P - SAMSUNG - 20

SAMSUNG UN60AU8000P - SAMSUNG - 21

SAMSUNG UN60AU8000P - SAMSUNG - 22

3
Illustration showing two people holding a TV with a prohibition symbol indicating no smoking or anti-smoking.

SAMSUNG UN60AU8000P - SAMSUNG - 24
