KASUTUSJUHEND TP-AL56 Sabrent


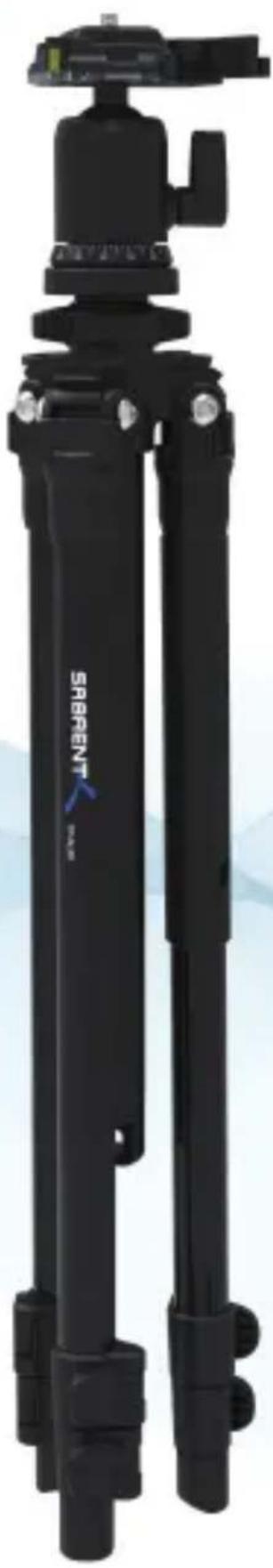

Black SRBENT tripod stand with adjustable legs and a small attached mount (no visible text or symbols on the device body)56 INCH ALUMINUM TRIPOD WITH 360
DEGREE FULL MOTION CAMERA MOUNT
INTRODUCTION:
The Sabrent Aluminum Tripod makes for the perfect companion for any photographer with its lightweight design. Featuring three section tripod legs with two adjustable height flip lock controls made of impact resistant materials. Having multiple integral bubble levels on the camera mount and also the tripod legs gives you the ability to use this on any terrain. The ability to use as a monopod with a removable center column and also quick release camera mount. Having a separate head and pan lock gives you individual head tension.


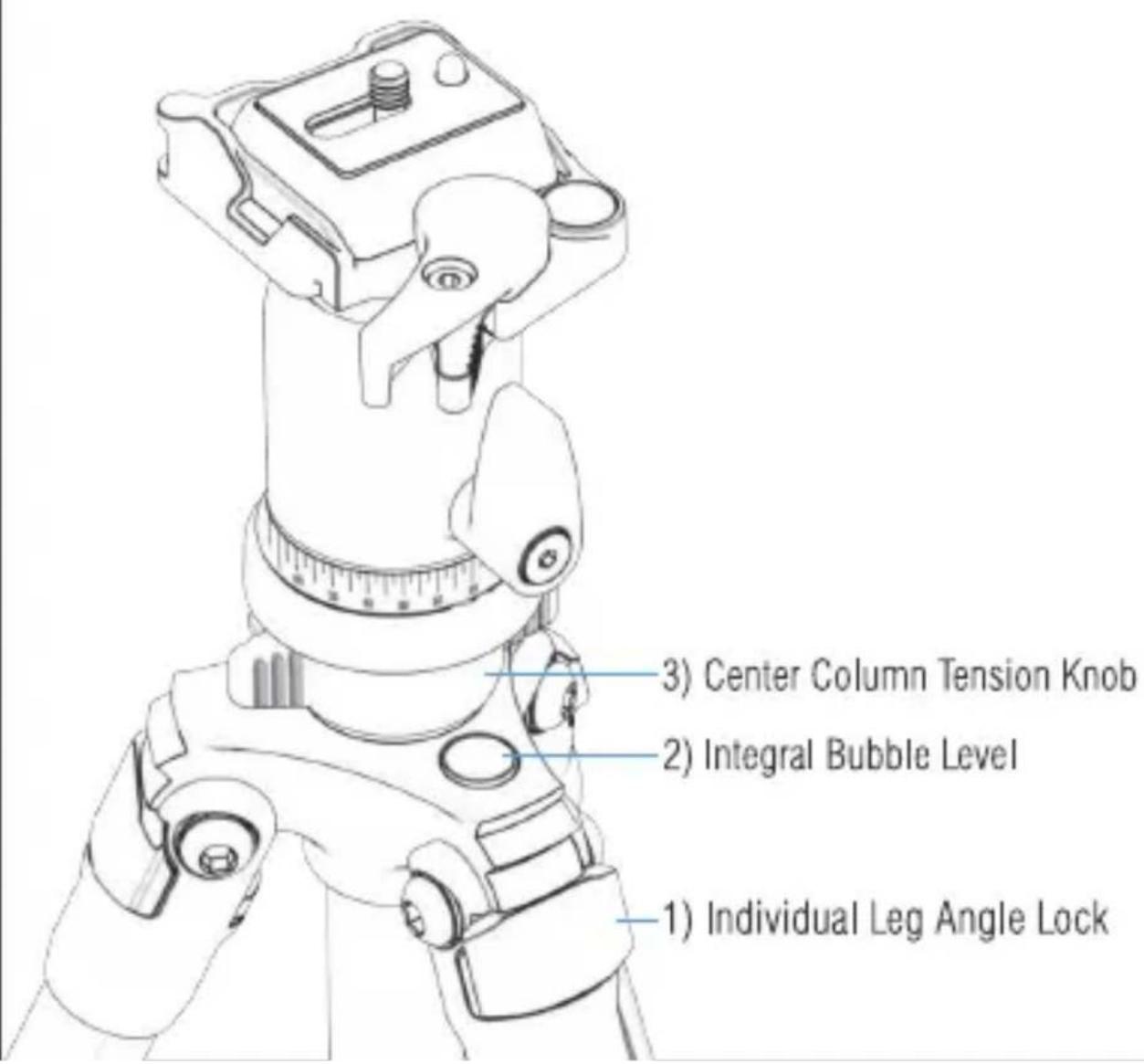

1) Individual Leg Angle Lock 2) Integral Bubble Level 3) Center Column Tension Knob


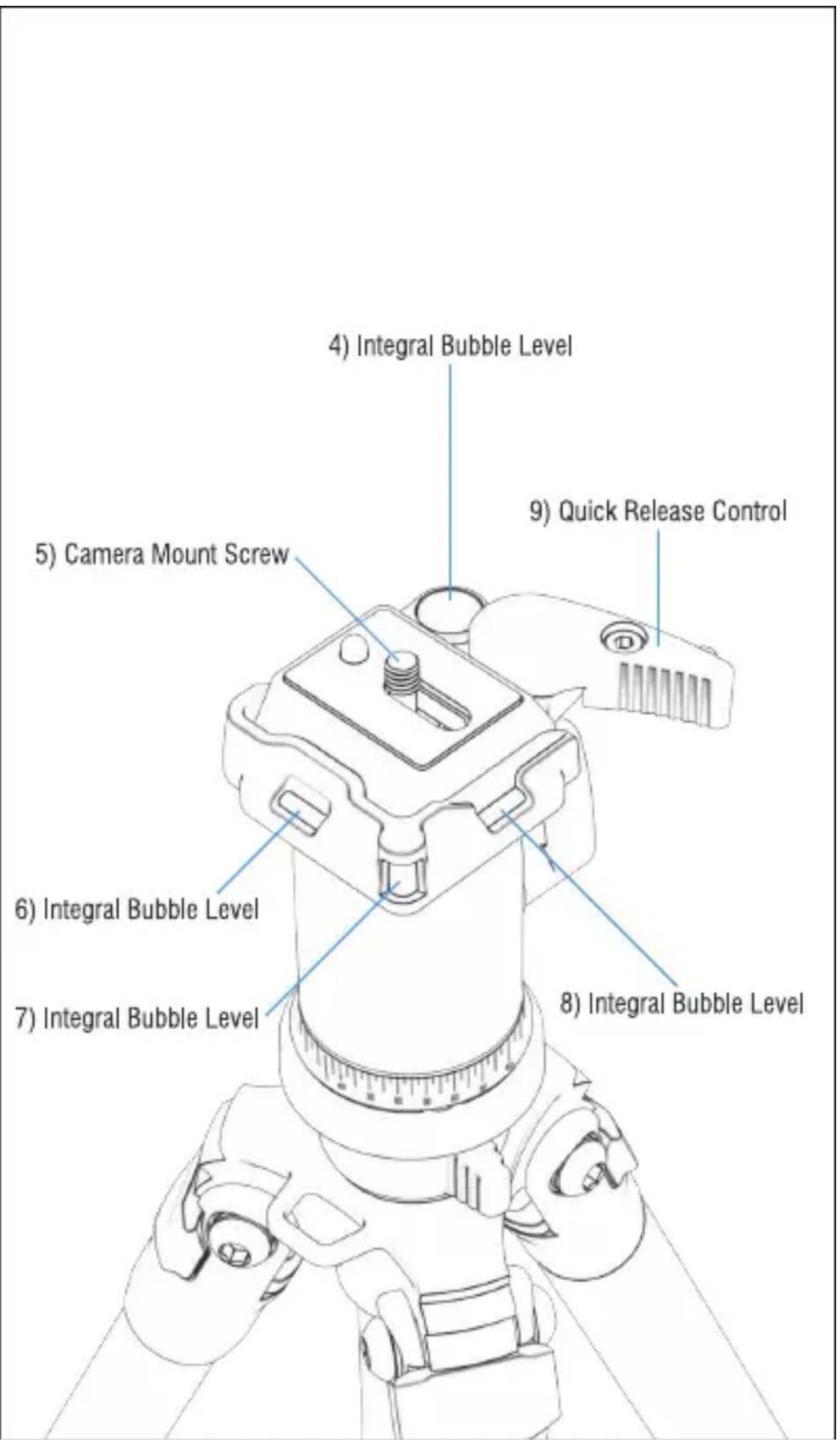

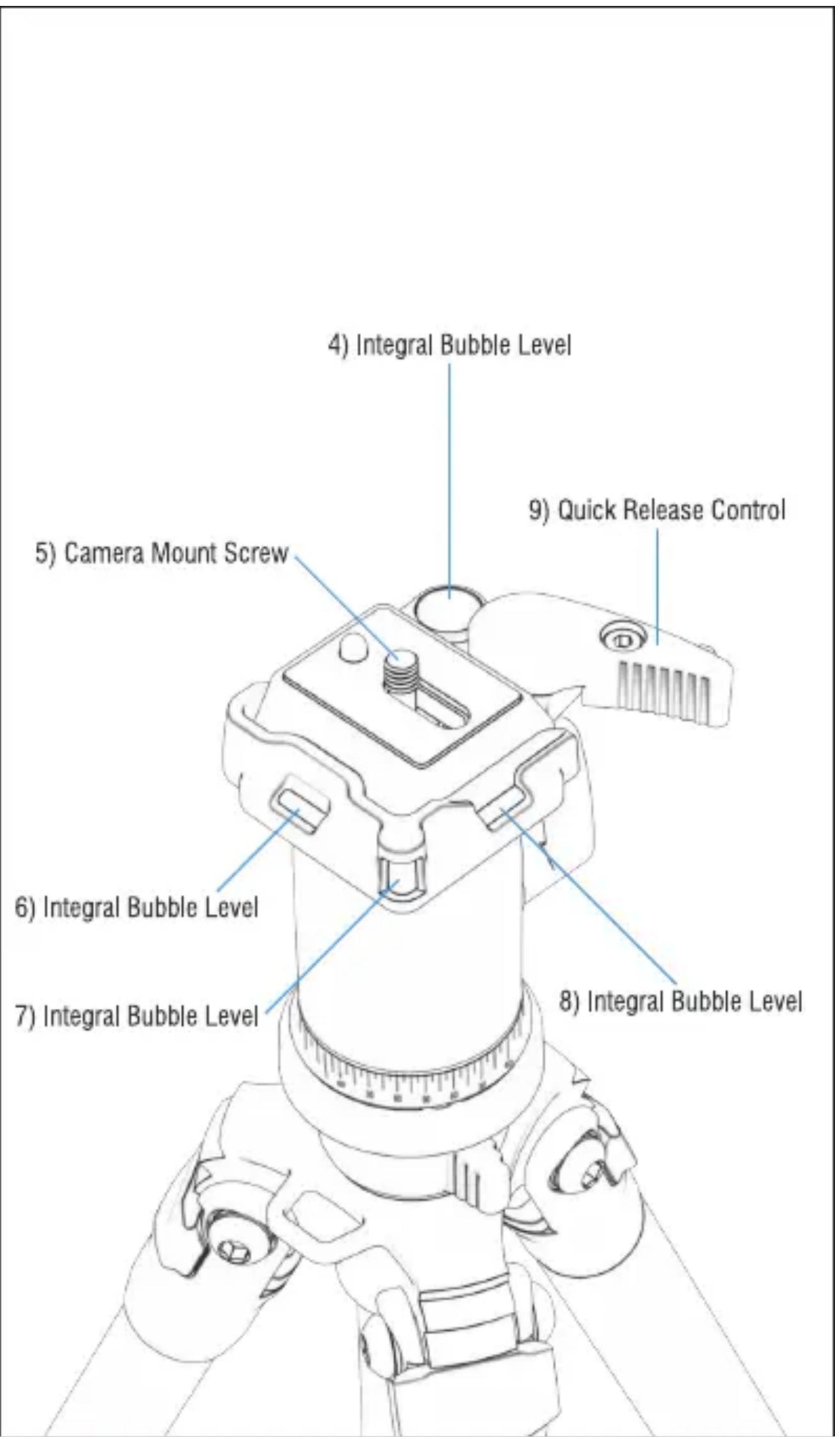

4) Integral Bubble Level 5) Camera Mount Screw 6) Integral Bubble Level 7) Integral Bubble Level 4) Integral Bubble Level 9) Quick Release Control 8) Integral Bubble Level
11) Ball Joint Lock Control
12) Panning Range Degree
13) Tripod Leg Height Control Lock
• Aluminum Tripod
- Carrying Case
- User Manual
FEATURES:
• Sleek Aluminum Construction
- Compact Lightweight Design of 3lbs
• Foam Grip on Monopod Leg
• 360-Degree Panning Scale for Accurate Image Alignment
• Quick Release Plate and Ball Head Joint System
• Integral Bubble Level to Prevent Uneven Panning
SPECIFICATIONS:
MAX HEIGHT: 56"
MAX HEIGHT COLUMN RETRACTED: 46"
FOLDED HEIGHT: 21"
WEIGHT LIMIT: 7.25lbs
