KASUTUSJUHEND X-DR S ALH HILTI
X-DR ... T ALH27 / ALH22
X-DR ... S ALH27
X-DR ALH27 / ALH22
2241748 A1-08.2019


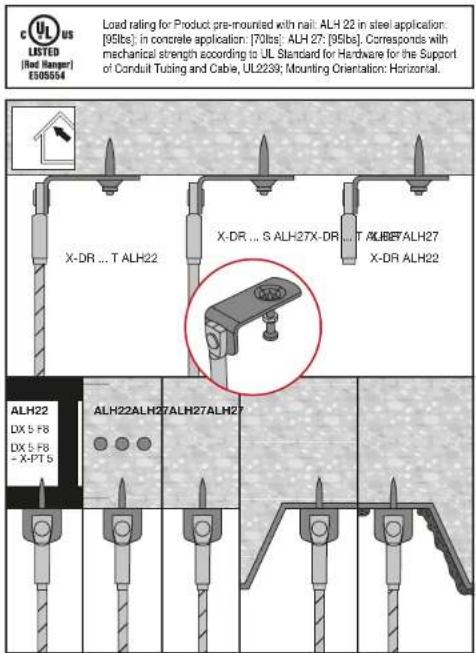

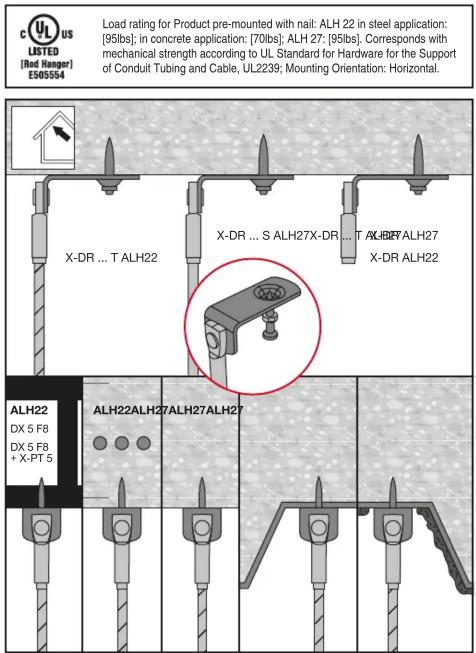

C US LISTED (Rad Ranger) E305554 Load rating for Product: pre-mounted with nail: ALH 22 in steel application: [95lbs]; in concrete application: [70lbs]: ALH 27; [95lbs]. Corresponds with mechanical strength according to UL Standard for Hardware for the Support of Conduit Tubing and Cable, UL2239; Mounting Orientation: Horizontal. X-DR ... T ALH22 X-DR ... S ALH27X-DR ... T ALH27/ALH27 X-DR ALH22 ALH22 DX 5-F8 DX 5-F8 = X-PT 5 ALH22ALH27ALH27ALH27


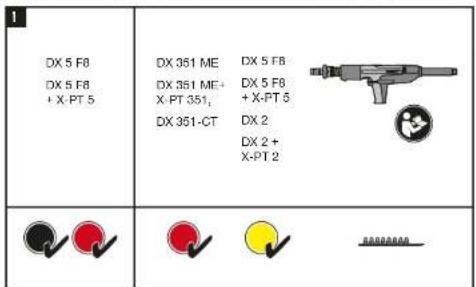

1 DX 5 F8 DX 5 F8 + X-PT 5 DX 361 ME DX 361 ME+ X-PT 351, DX 361-CT DX 5 FB DX 5 FB + X-PT 5 DX 2 DX 2 + X-PT 2 ###


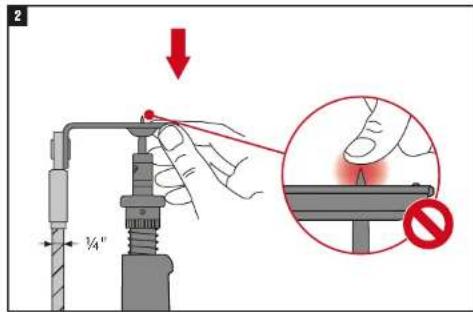

2 ¼" ↓ → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → → ← 1/4"


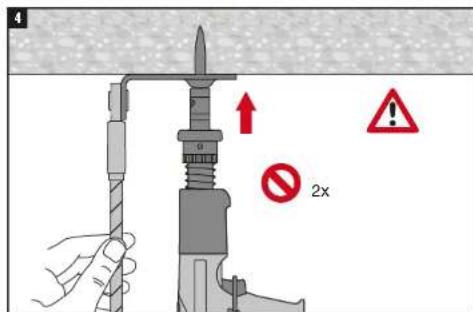

4 ↑ 2x ⚠️


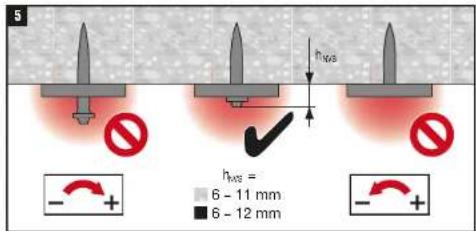

h_MS h_MS = 6 - 11 mm 6 - 12 mm


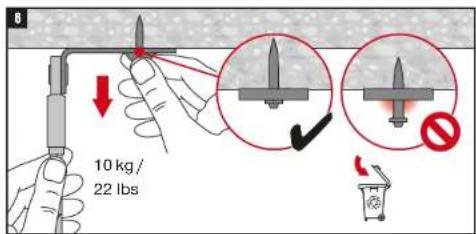

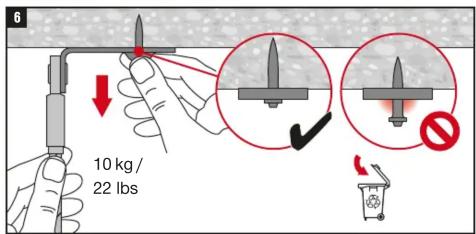

10 kg / 22 lbs


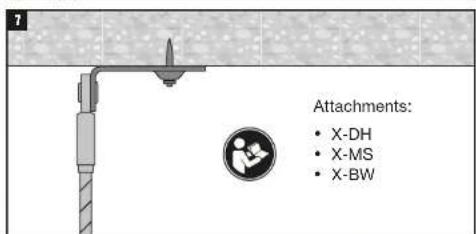

7 Attachments: • X-DH • X-MS • X-BW
