KASUTUSJUHEND AXBUCH-TYCAM36V AXESS
Fits Toyota Select Models 2012-2020
INTERFACE FEATURES
- Retains the factory backup camera to an aftermarket radio
- Includes the AXCSD-6V 12-volt to 6-volt converter
INTERFACE COMPONENTS
- AXBUCH-TYCAM36V harness
- AXCSD-6V 12-volt to 6-volt converter
APPLICATIONS
Scion
FR-S....2016
iM....2016
tC 2016
Toyota
86....2017-2018
4-Runner 2014-2019
4-Runner (w/o NAV) 2012-2013
Avalon....2015-2018
Camry....2014-2016
Corolla....2014-2019
Highlander....2014-2019
Prius (one, Two, Three, & Touring.....2018
Prius....2016-2017
Prius C 2015
Prius Prime (Plus)....2017-2019
Prius V....2015
Rav-4 (built after Nov 2013) ......2014
Sienna 2015-2017
Sequoia....2014-2019
Tacoma 2014-2019
Tundra....2014-2016
Venza 2015-2016
Yaris 2018-2020
TABLE OF CONTENTS
Connections: LD-TYCAM3....2
TOOLS REQUIRED
- Crimping tool and connectors, or solder gun, solder, and heat shrink
- Cutting tool • Tape • Crimping tool
For Dash Disassembly Instructions, refer to metraonline.com. Enter the year, make, and model of the vehicle in the Vehicle Fit Guide for Radio Install kits.
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications.
ATTENTION: With the key out of the ignition, disconnect the negative battery terminal before installing this product. Ensure that all installation connections, especially the air bag indicator lights, are plugged in before reconnecting the battery or cycling the ignition to test this product.
NOTE: Refer also to the instructions included with the aftermarket radio.

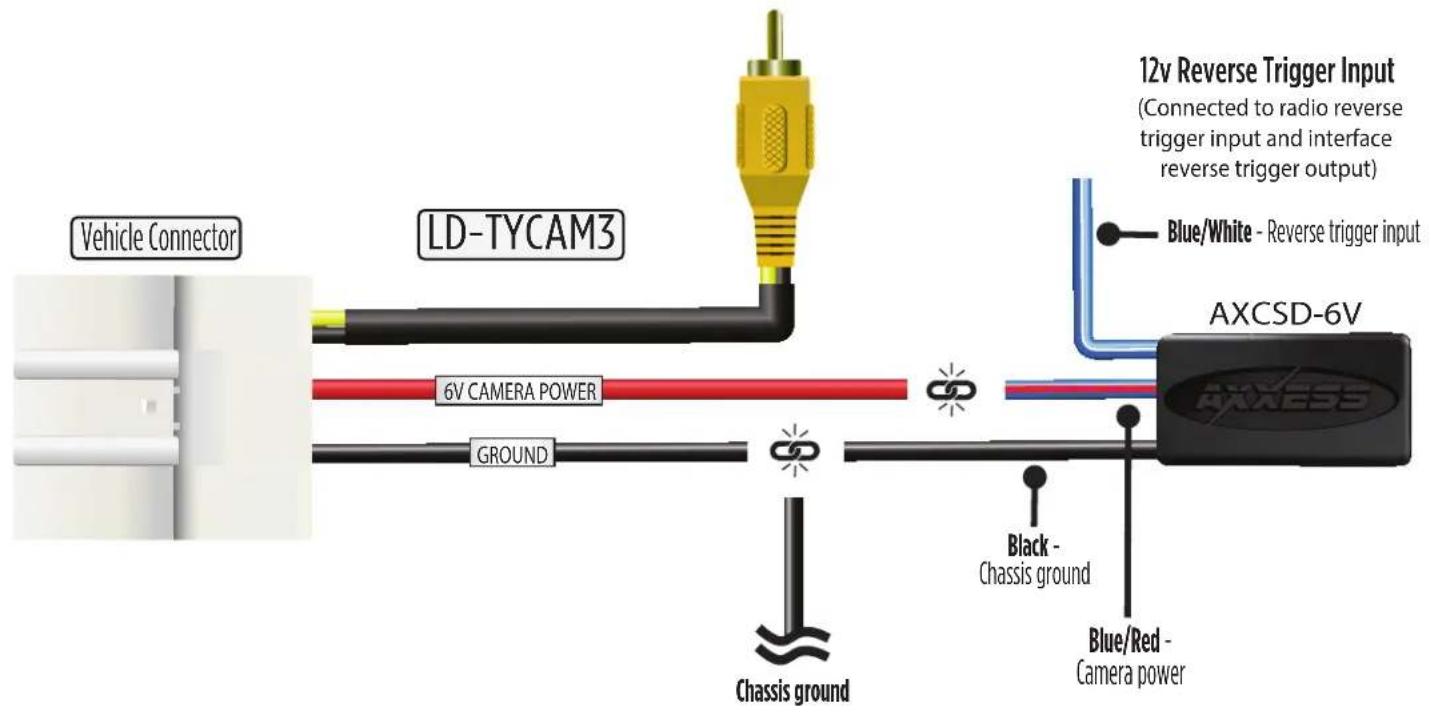

CONNECTIONS: LD-TYCAM3
REV. 2/11/25 INSTAXBUCH-TYCAM36V
AXBUCH-TYCAM36V
INSTALLATION INSTRUCTIONS
Having difficulties? We're here to help.
Contact our Tech Support line at:
386-257-1187
Or via email at:
techsupport@metra-autosound.com
Tech Support Hours (Eastern Standard Time)
Monday - Friday: 9:00 AM - 7:00 PM
Saturday: 10:00 AM - 5:00 PM
Sunday: 10:00 AM - 4:00 PM
Metra recommends MECP certified technicians
