KASUTUSJUHEND PAML-MB-90-HP3 Festo

PAML-CP/-MB/-MK-90

Sub-base/Mounting bracket/Module connector

Assembly instructions
8161942
2021-10b
[8161944]

Translation of the original instructions

© 2021 all rights reserved to Festo SE & Co. KG

1 Applicable documents

1

All available documents for the product → www.festo.com/sp.

2 Safety

2.1 Safety instructions

• Only use the product in its original condition without unauthorised modifications.
• Only use the product if it is in perfect technical condition.
• Take the weight of an individual device or a service unit into account. Dependent on the design, a mounted service unit can weigh more than 50 kg.
• Under intended use the surface temperature may reach 60 °C. Allow the device to cool down before working on it.
  -Make sure the mounting surface is sufficiently strong for the maximum forces.
• Only use suitable mounting components.
  -Mount the individual device or the service unit only on flat surfaces.

2.2 Intended use

-The sub-base PAML-CP serves as an adapter for the pneumatic connection and for pipe mounting for in-line installation of service units.
-The mounting bracket PAML-MB is used for connection and wall mounting of individual devices or service units.
-The module connector PAML-MK is used to connect two service units of the same size.

2.3 Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can evaluate the work and detect dangers. Personnel must have the relevant mechanical training.

3 Additional Information

- Accessories → www.festo.com/catalogue.

4 Product Range Overview

4.1 Scope of delivery

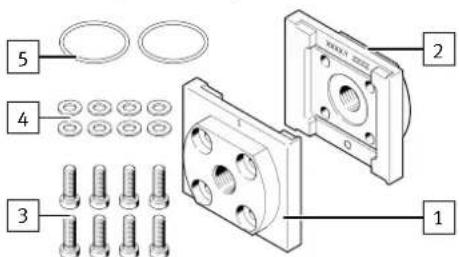

Fig. 1: Sub-base PAML-CP-90-HP3-G12

1 Front plate (1x)

4 Washer (8x)

2 Rear plate (1x)

5 O-ring (2x)

3 Screw (8x)

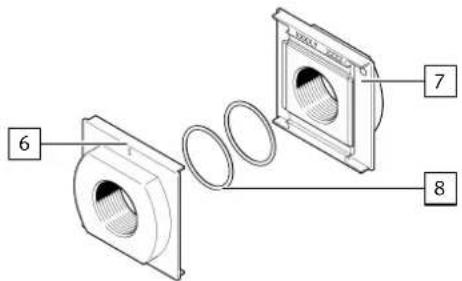

Fig. 2: Sub-base PAML-CP-90-HP3-G114

6 Front plate (1x)

8 0-ring (2x)

7 Rear plate (1x)

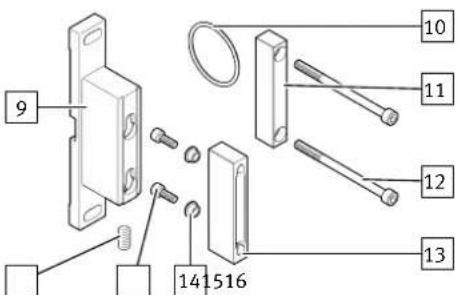

Fig. 3: Mounting bracket PAML-MB-90-HP3

9 Wall bracket (1x)

13 Rear plate (1x)

10 O-ring (1x)

14 Sleeve (2x)

11 Front plate (1x)

15 Screw (2x)

12 Screw (2x)

16 Retaining screw (1x)

Fig. 4: Module connector PAML-MK-90-HP3

17 Screw (2x)

19 O-ring (1x)

18 Front plate (1x)

20 Rear plate (1x)

4.2 Not in scope of delivery

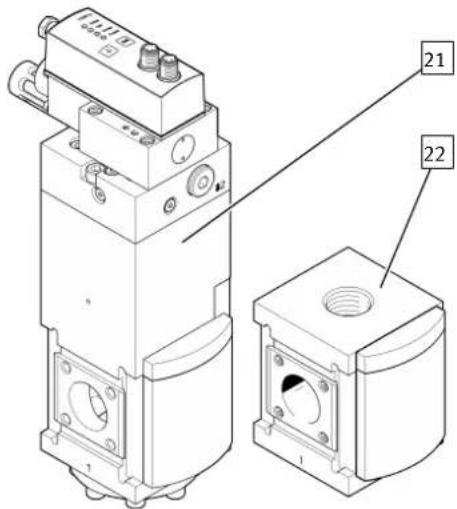

Fig.5

21 Electrical pressure regulator (1x) PREL-90

22 Branching module (1x) PMBL-90

5 Assembly

i

Some O-rings will be left over with some mounting variants.

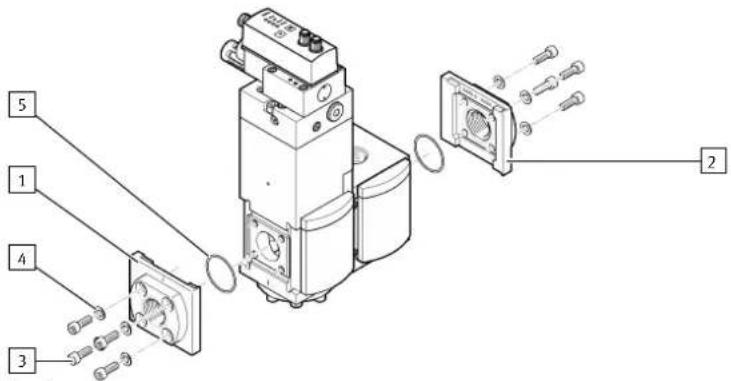

5.1 Mounting the connecting plates PAML-CP

Size G1/4 ... G1

Fig.6

1. Orient the front plate 1 and the rear plate 2 so that the stamp number of the sub-base corresponds to the stamp number on the housing (1 to 1 and 2 to 2).

2. Insert the O-rings 5 in the slots provided.

3. Position the front plate 1 and the rear plate 2.

4. Fasten the front plate 1 and the rear plate 2 to the service unit using four screws 3 and four washers 4. Tightening torque: 12 Nm ± 10%

5. Comply with the maximum screw-in depth for the pipe connection.

ISO 228 Max. screw-in depth [mm]

G1/2 12
G1/3 14
G1/2 16
G1 18

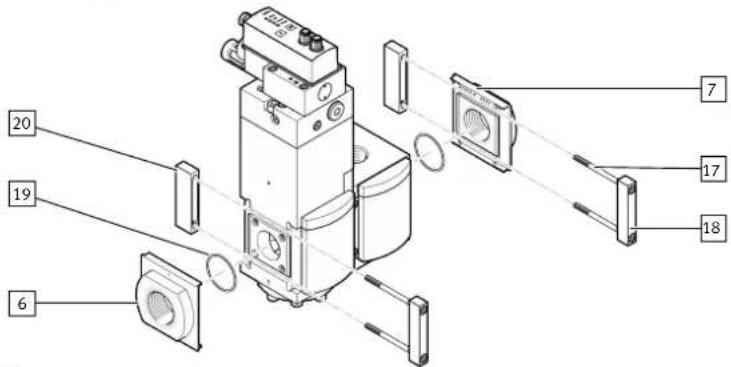

Size G1 1/4

Fig.7

1. Orient the front plate 6 and the rear plate 7 so that the stamp number of the sub-base corresponds to the stamp number on the housing (1 to 1 and 2 to 2).

2. Insert the O-rings 8 or 19 in the slots provided.

3. Position the front plate 6 and the rear plate 7.

4. Fasten the front plate 18 and the rear plate 20 to the service unit using the screws 17. Tightening torque: 12 Nm ± 10%

5. Observe the maximum screw-in depth for the pipe connection in accordance with ISO 228: 20 mm

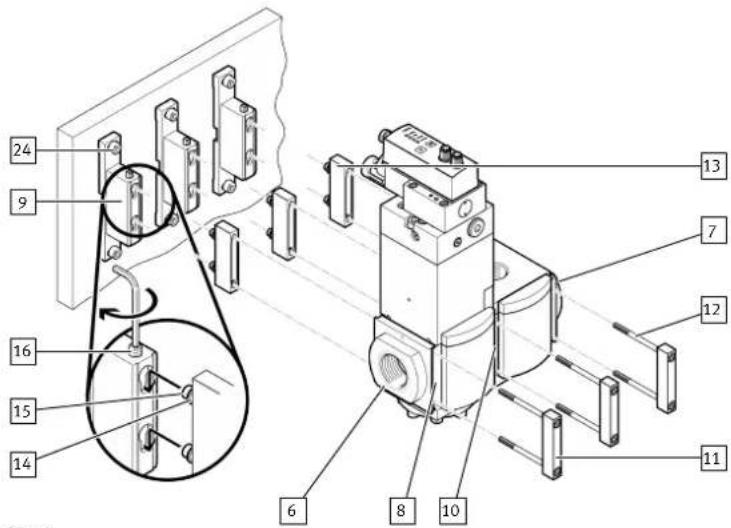

5.2 Mounting the mounting brackets PAML-MB

i

Always mount an individual device with two mounting brackets. Mount a service unit with a mounting bracket at both the beginning and the end of the service unit string and between the individual service units.

i

The grid width for he filter PFML-90 is 135 mm.

Fasten all required wall brackets 9 with two M8 screws 24 each at the specified locations. The standard grid width between the wall brackets 9 is 90 mm, and the distance in height between holes is 145 mm. All retaining screws 16 must point upwards.

Fig.8

1. Orient the front plate 6 and the rear plate 7 so that the stamp number of the sub-base corresponds to the stamp number on the housing (1 to 1 and 2 to 2).
2. Insert the O-rings 8 in the slots provided.
3. Position the front plate 6 and the rear plate 7.
4. Push the screws 12 into the front plate 11.
5. Place the seals 10 between the service units.
6. Place the front plate 11 and rear plate 13 in the slots of the service units.
7. Screw the screws 12 into the rear plates 13. Tightening torque: 10 Nm ± 10%
8. Unscrew the retaining screws 16.
9. Position the service unit combination with the lugs 15 in the slots of the wall brackets 9.
10. Tighten the retaining screws 16. Tightening torque: 2 Nm ± 10%

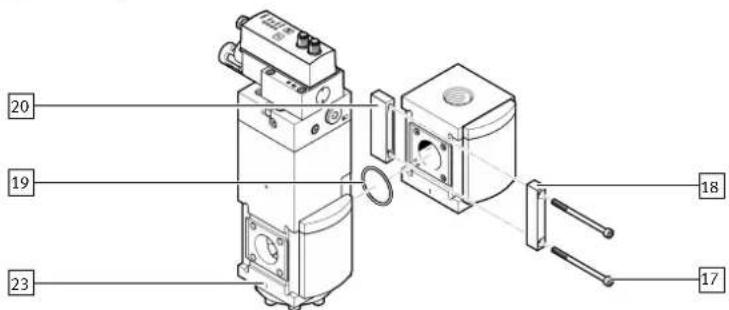

5.3 Assembly of the module connector PAML-MK

Fig.9

1. Note the flow direction from 1 to 2. The numbers on the product housing serve as orientation.
2. Insert the retaining screws 17 through the holes in the front plate 18.
3. Place the seal 19 between the service units.
4. Place the front plate 18 and rear plate 20 in the slots of the service units.
5. Tighten the screws 17. Tightening torque: 10 Nm ± 10%

6 Disassembly

1. Depressurise the system.
2. Check the surface temperature of the device. If necessary, let the device cool down.
3. Remove the existing service unit string.

7 Technical data

PAML -CP -MB -MK
Operating pressure [MPa] 0 ... 5
	[bar] 0 ... 50
	[psi] 0 ... 72$
Temperature of medium	[°C]	+5 ... +60
Ambient temperature	[°C]	+5 ... +60

Tab. 1: Technical data
