KASUTUSJUHEND SLMAB02 SereneLife

Black metal mailbox with open lid and decorative window (no visible text or symbols)

Exterior view of a modern office building (no signage)

SLMAB01 SLMAB02 SLMAB06 SLMAB08 SLMAB04 SLMAB15

SPECIFICATIONS:

Structural Material: Galvanized Steel

MODEL #	WIDTH (inches)	HEIGHT (inches)	DEPTH (inches)
SLMAB01 8.38 10.03	2.67
SLMAB02 13.18	14.05	5.19
SLMAB04 10.23	12.20	3.66
SLMAB06 14.96	15.74	4.80
SLMAB08 15.43	13.58	8.07
SLMAB15 11.53	15.9 4.72

MOUNTING INSTRUCTIONS FOR TYPICAL WOOD, CONCRETE OR BRICK WALLS

NOTE: Consult your local hardware store for proper mounting to other wall materials.

TOOLS REQUIRED: Phillips regular handle and short handle screwdriver, pencil, power drill.

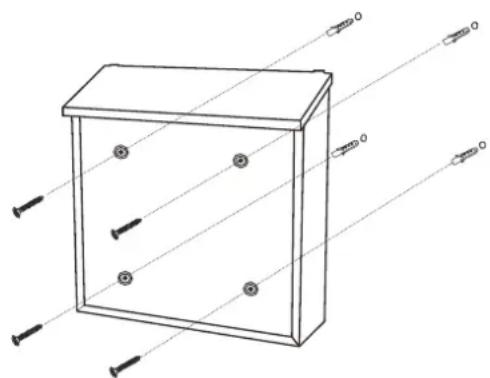

1. Place mailbox in desired location on wall.
2. Using a pencil, mark the location of mounting screws.
3. Remove the mailbox and make pilot holes using a power drill.
4. Attach mailbox to the wall using provided screws. Use a short handle Philips head screwdriver to install the top mounting screws.
5. A standard length Philips head screwdriver can be used to install the bottom screws.

NOTE: All mailboxes have 4 holes on the back for mounting and should have the spacers inserted between the unit and mounting surface

CLEANING INSTRUCTIONS

To maintain and protect the luster of all products, clean with a soft, damp cloth only.

INCLUDED:

Mailbox (x1)

Mounting Screws (x4)

Plastic Anchors (x4)

Black Spacers (x4)

Keys (1 set)

NOTE: It is highly suggested you have your local hardware store make a copy of the keys as we are unable to replace them.

Technical line drawing of a rectangular box with bolt holes and dimension lines (no text or symbols)
