KASUTUSJUHEND Maximo Ultra 502 Morel

Morel Maximo Ultra 502 - 1

natural_image Close-up of a hand using a CD to work on a vinyl record with a small mechanical component nearby (no visible text or symbols)

Morel Maximo Ultra 502 - 2

Morel Maximo Ultra 502 - 3

natural_image Circular diagram with concentric rings and a central label 'DDD morel' (no text or symbols beyond the label)

Morel Maximo Ultra 502 - 4

Morel Maximo Ultra 502 - 5

Morel Maximo Ultra 502 - 6

natural_image Circular diagram with concentric rings and a central label 'moral', no readable text or symbols present.

Morel Maximo Ultra 502 - 7

Morel Maximo Ultra 502 - 8

maximoultra

Car Audio Component Speaker System

602 6.5 2 Way / 502 5.25 2 Way

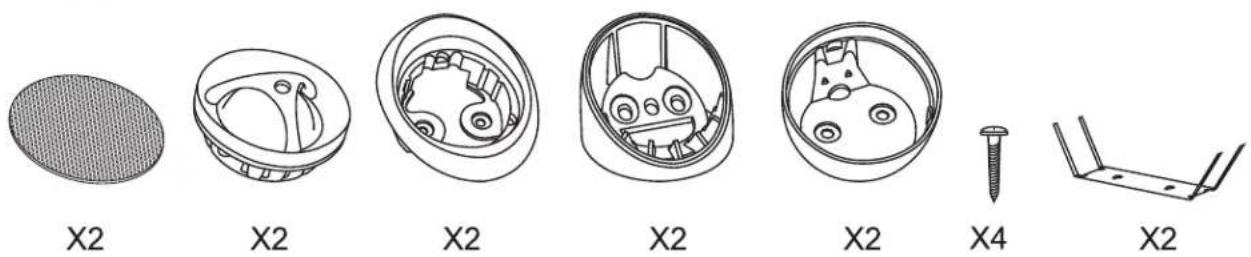

Content - Tweeter
X2 X2 X2 X2 X2 X2 X4 X2

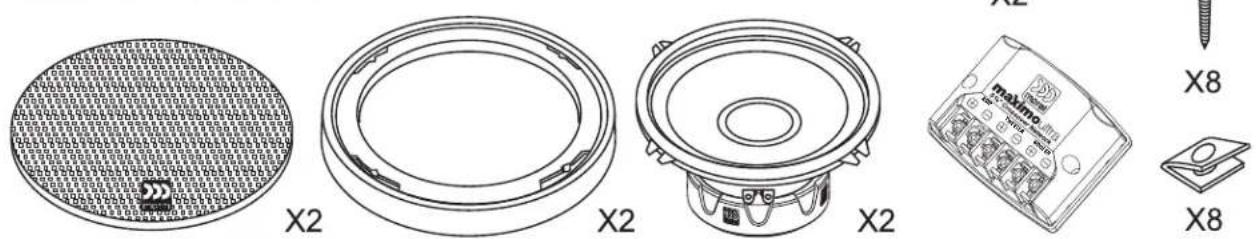

Content - Woofer
X2 X2 X2 X2 X8 X8

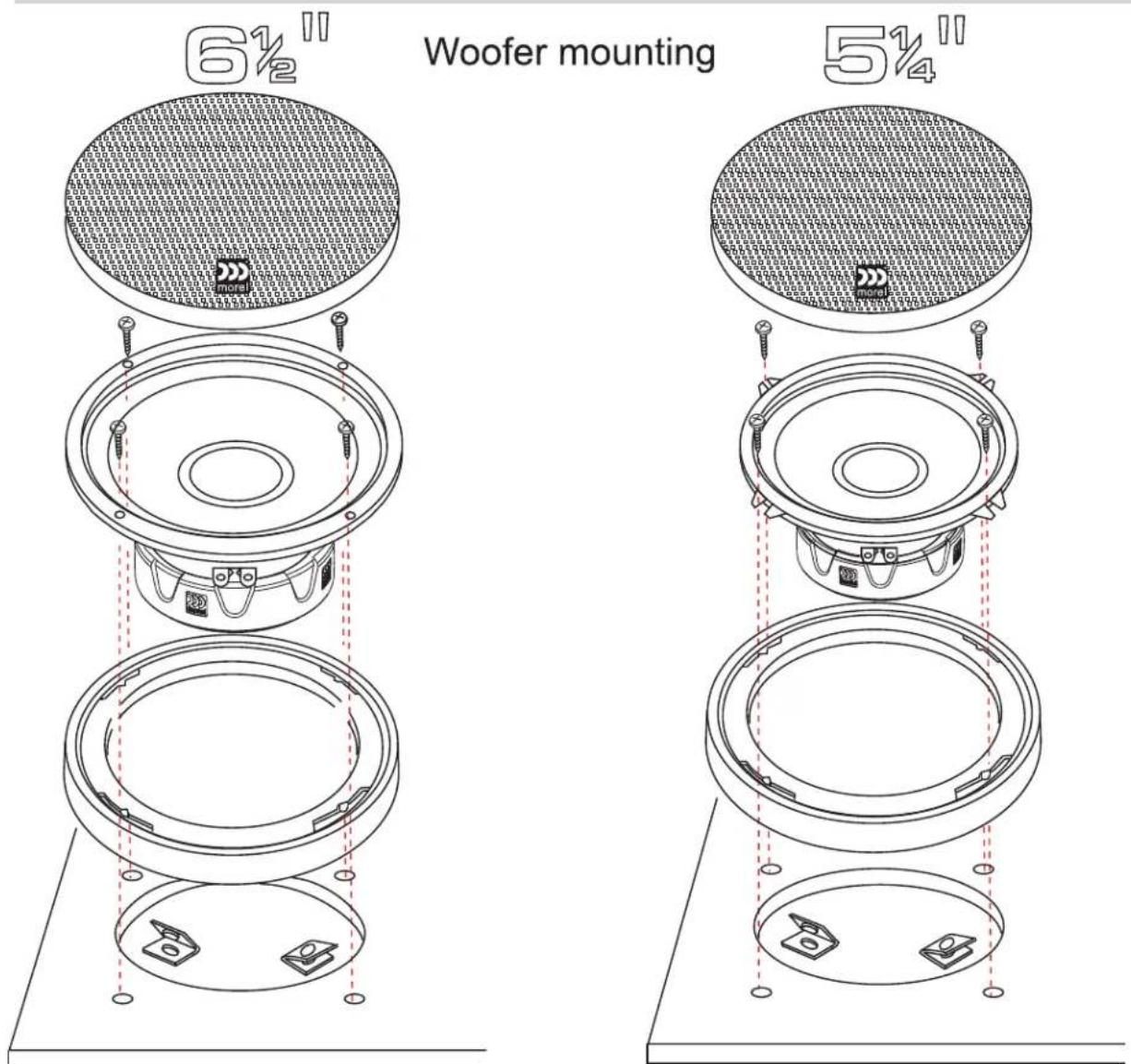

6½" Woofer mounting 5½"

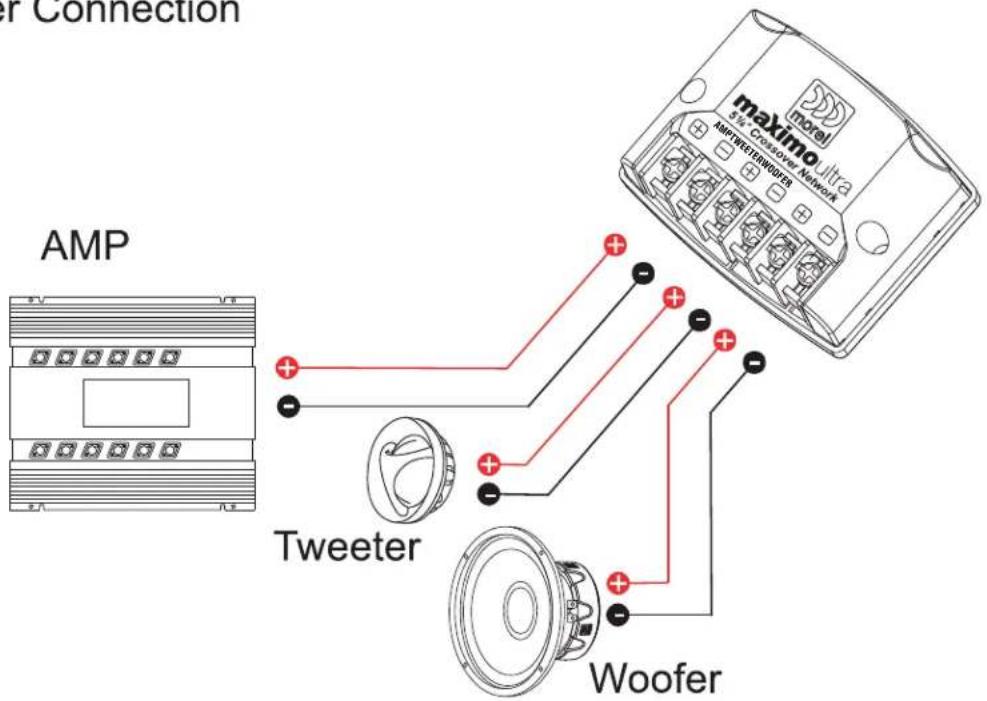

Crossover Connection
Power Connection AMP Tweeter Woofer maximo Ultra AM/FWEET/WPUER

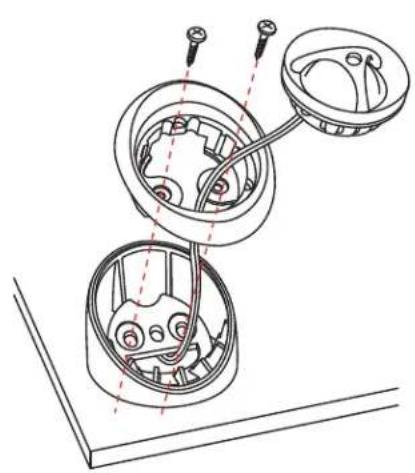

Surface mounting

1
Morel Maximo Ultra 502 - 13

natural_image Technical line drawing of a mechanical assembly with exploded view and internal components (no text or symbols)

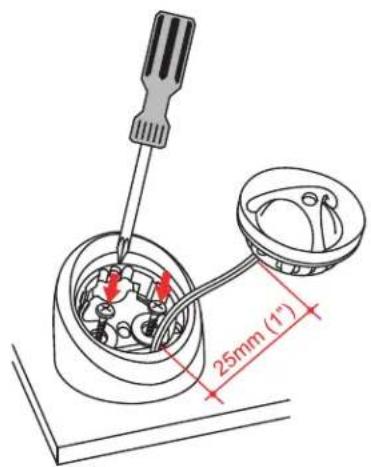

2
25mm (1")

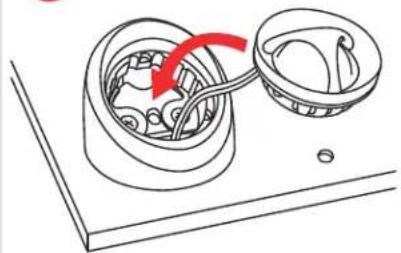

3
Morel Maximo Ultra 502 - 15

natural_image Diagram showing a mechanical assembly with a red arrow indicating rotation or force direction (no text or symbols present)

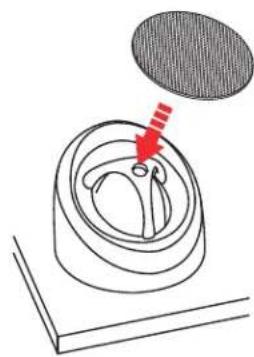

4
Morel Maximo Ultra 502 - 16

natural_image Diagram of a mechanical component with a red arrow pointing to a circular feature, no text or symbols present

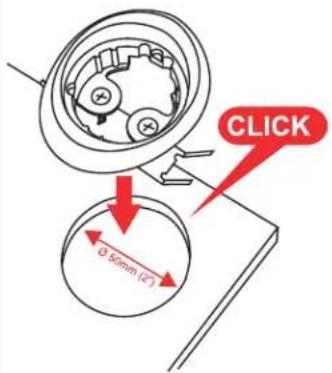

Flush mounting for 50 mm (1.96") cutout

1
Morel Maximo Ultra 502 - Flush mounting for 50 mm (1.96") cutout - 1

natural_image Technical line drawing of a mechanical component with two screw holes and a central gear-like structure (no text or symbols)

2
CLICK Ø 5mm (2)

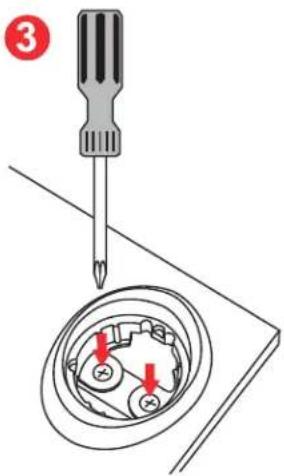

③

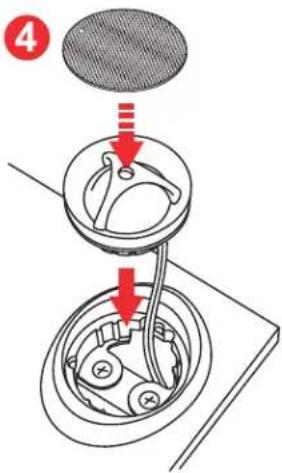

4

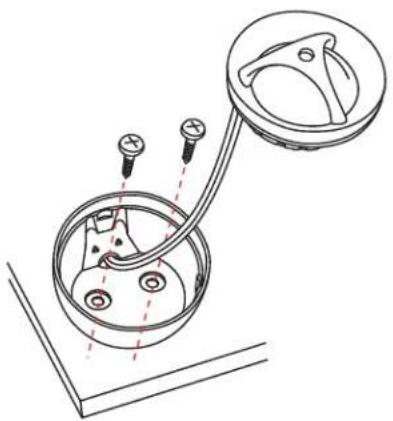

Surface mounting option 2

1
Morel Maximo Ultra 502 - Surface mounting option 2 - 1

natural_image Technical line drawing of a mechanical assembly with two components and screw fasteners (no text or symbols)

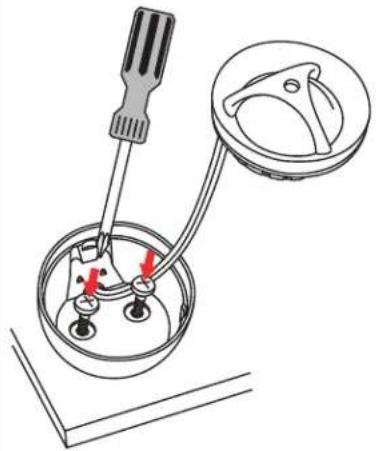

2
Morel Maximo Ultra 502 - Surface mounting option 2 - 2

natural_image Diagram of a mechanical switch mechanism with a tool and component, no text or symbols present

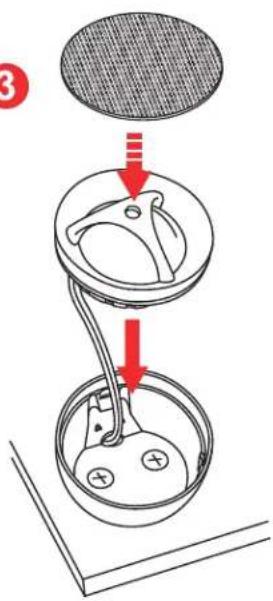

3
Diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force

Specifications

2-Way SystemMaximo Ultra 5^1/_4 "Maximo Ultra 6^1/_8 "
Nominal Impedance4 ohm4 ohm
Power Handling80W90W
Max. Transient Power Handling160W180W
Sensitivity (2.83V/1M)89dB90.5dB
Frequency Response50-20,000 Hz50-20,000 Hz
Voice Coil DiameterWoofer:25mm(1")25mm(1")
Tweeter:25mm(1")25mm(1")
Voice Coil WireCopperCopper
Magnet SystemWoofer:High grade ferrite magnetHigh grade ferrite magnet
Tweeter:NeodymiumNeodymium
Mounting Depth56mm (2.2")63mm (2.5")
