KASUTUSJUHEND Maximus 602 Morel
maximus 602 2WAY
High Efficiency Component System Installation Instructions
Content - Tweeter
X2
X2 X2 X2 X2
X4
X2
Content - Woofer
X1
X8
X8

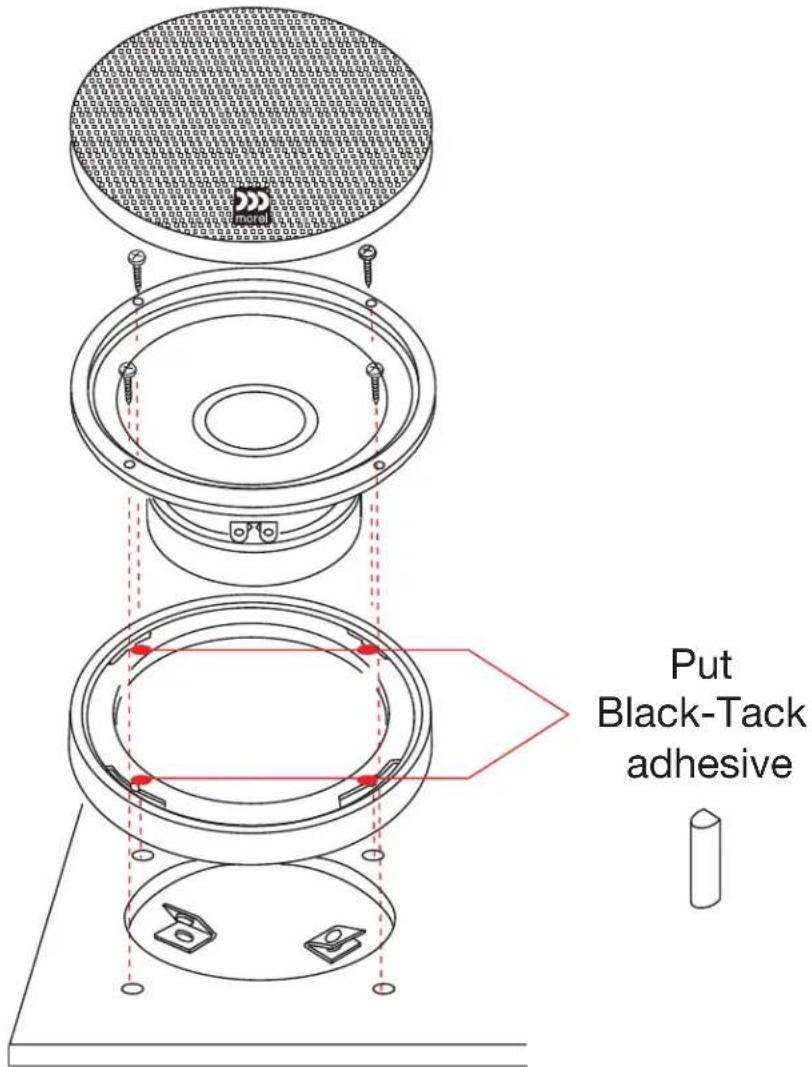

Woofer mounting

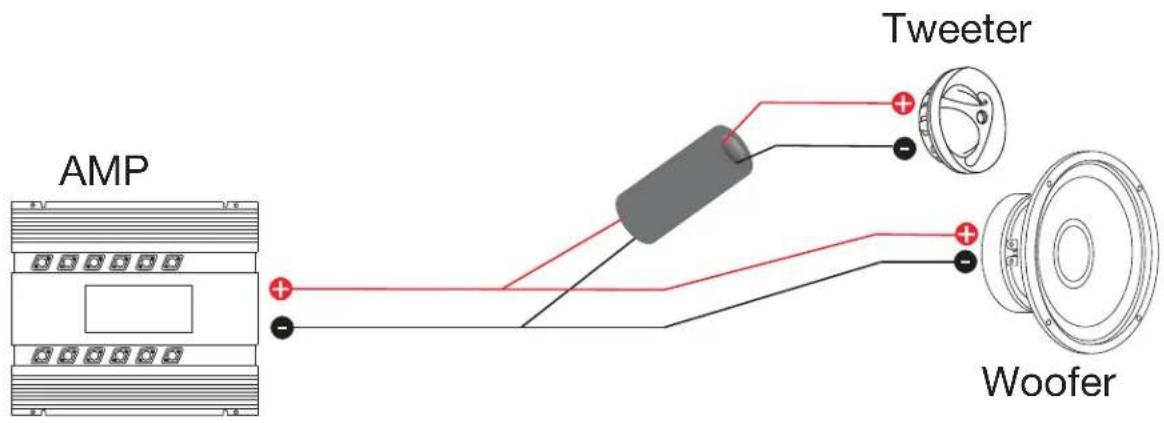

Crossover Connection

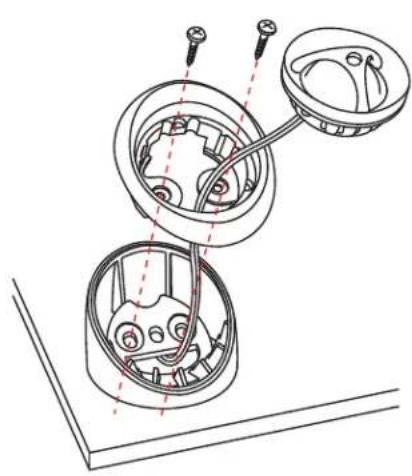

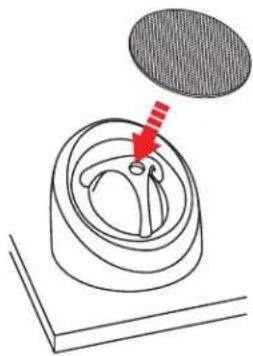

Surface mounting
1


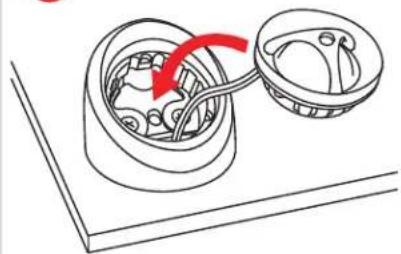

3


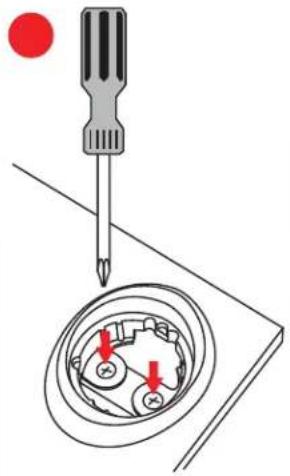

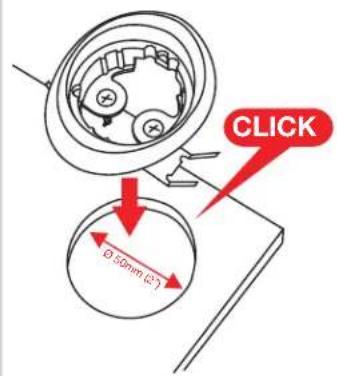

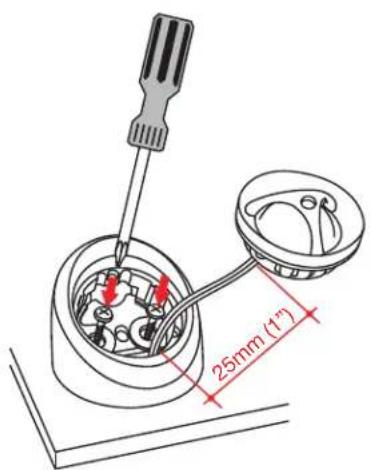

Diagram of a mechanical component with a red arrow pointing to a circular feature, no text or symbols presentFlush mounting for 50 mm (1.96") cutout
1
2


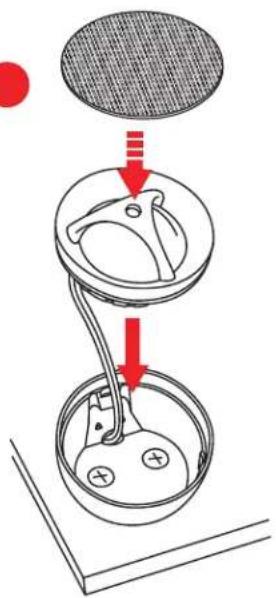

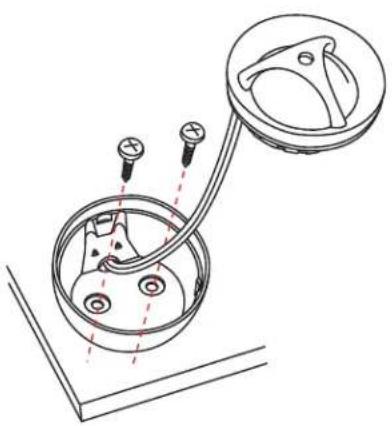

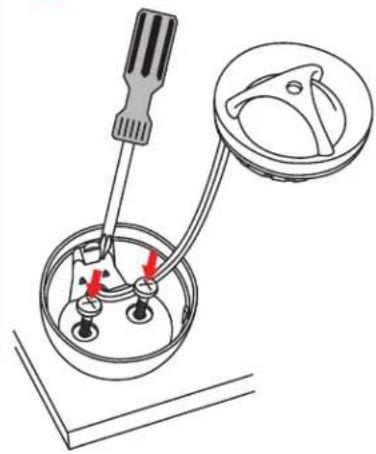

Surface mounting option 2
1
Specifications
2-Way System
| Nominal Impedance | 4 ohm | ||
| Power Handling | 60W | ||
| Max. Transient Power Handling | 120W | ||
| Sensitivity (2.83V/1M) | 94dB | ||
| Frequency Response | 60-22,000 Hz | ||
| Voice Coil Diameter | Woofer: 28mm (1.125") 25mm (1") | Tweeter: | |
| Voice Coil Wire | Woofer: Copper | Tweeter: | Copper |
| Magnet System | Woofer: Hybrid magnet system Neodymium | Tweeter: | |
| Mounting Depth | Woofer: 63mm (2.5") | Tweeter: | 20mm (0.8") |
Maximus 602 SPECIFICATIONS
| Nominal Impedance (Ohms) | 4 |
| Power Handling Wrms | 60 |
| Max Trans Pwr Handling Wrms | 120 |
| Sensitivity (2.83V/1M) | 94dB |
| Frequency Response Hz | 60-22000 |
| Voice Coil Diameter | W: 28mm (1.125")T: 25mm (1") |
| Voice Coil Wire | W: CopperT: Copper |
| Magnet System | W: Hybrid Magnet SystemT: Neodymium |
| Mounting Depth | W:63mm (2.5")T: 20mm (0.8") |
