KASUTUSJUHEND LECTTG3018-GMGM Bretford
BRETFORD
LECTTG3018

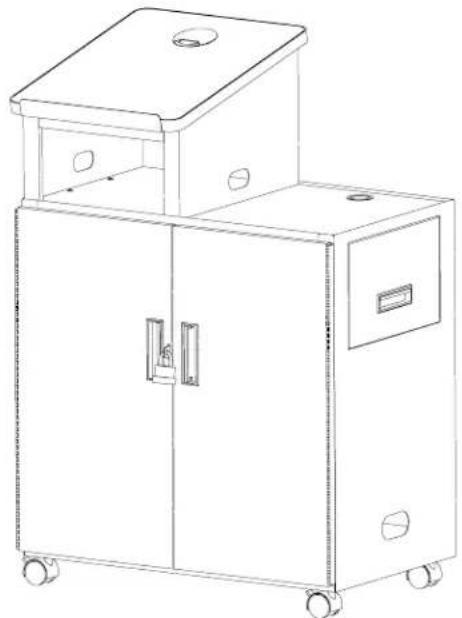

PODIUM WITH DOORS AND DRAWERS
Assembly Instructions
Hardware List
Ref. Qty. Part # Description
AA 2 030-0302 #8-32 x 1/2" Combo Truss Screws
BB 2 02236 #8-32 Whizlock Flange Nuts
CC 4 030-0291 #10-32 X 1/2" Truss Head Screws
DD 4 030-0357 10-32 Flanged Hex Nuts
STEP 1

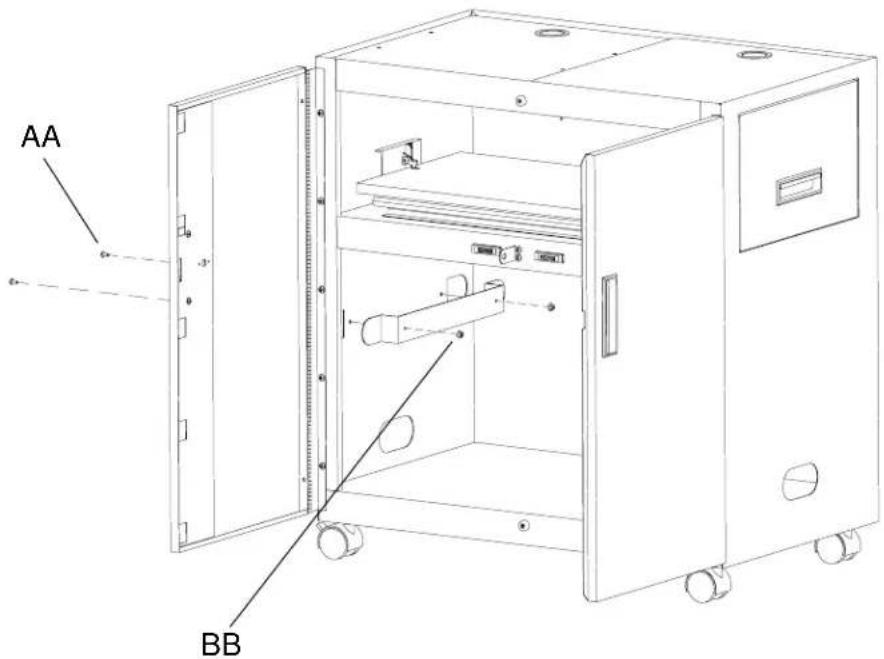

Open cabinet doors and remove lectern top. Attach cord winder with screws (AA) and nuts (BB) as shown.
STEP 2

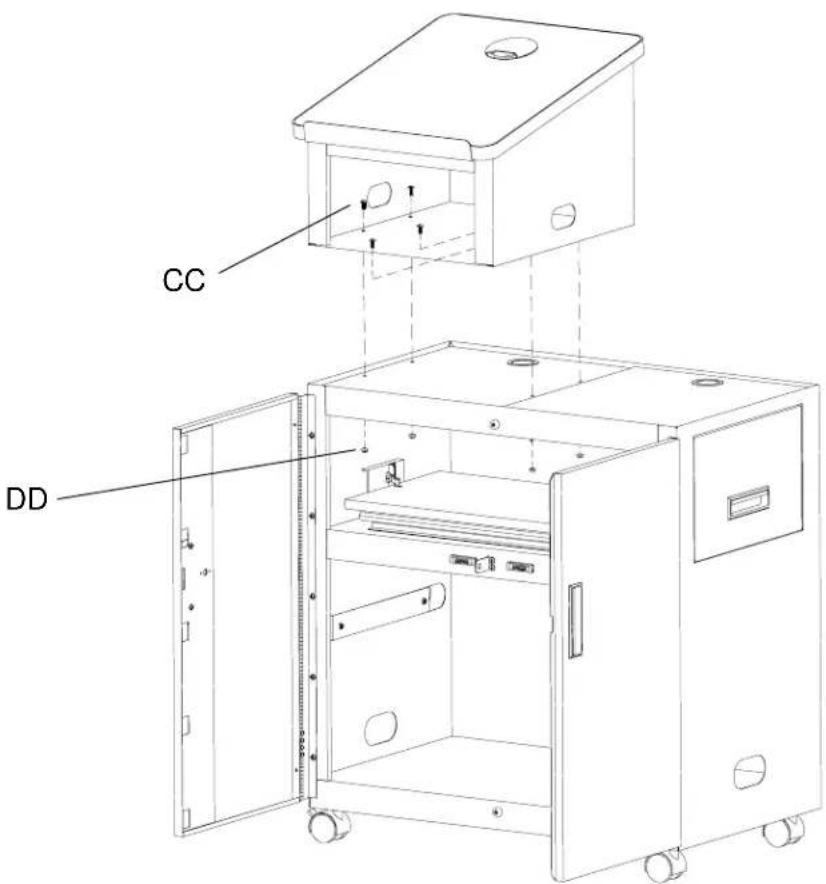

The lectern top can be mounted on either side. If necessary, the rubber mat can be moved. Simply remove both grommets, move rubber mat to opposite side and reinstall grommets. Attach top to podium with screws (CC) and nuts (DD) as shown.
Bretford Bretford Ltd.
11000 Seymour Avenue 2 Etongate
Franklin Park, IL 60131 110 Windsor Road
TEL: 847.678.2545 Slough, Berkshire SL1 2JA England
800.521.9614 TEL: 01753 216531
FAX: 847.678.0852 FAX: 01753 539478
800.343.1779
