Product Type	24" Class HDTV with DVD Combination
Display Size (Diagonal)	23.6 inches
Display Resolution	1920 x 1080 (Full HD)
Aspect Ratio	16:9
Contrast Ratio	1000:1
Brightness	300 cd/m²
Response Time	5 ms
Viewing Angle	170° horizontal / 160° vertical
Tuner	ATSC (digital)
Supported Video Resolutions	480i, 480p, 720p, 1080i, 1080p
Built-in DVD Player	Yes, slot-load (DVD, DVD±R/RW, CD, CD-R/RW, JPEG CD)
Inputs	HDMI, VGA, Composite video, RF, PC audio, RCA audio
Other Ports	USB 2.0, SD/MMC memory card reader
Speakers	Built-in
Power Supply	AC 100-240V (power cord included)
Remote Control	Yes, requires 2 AAA batteries (included)
Stand	Detachable
OSD Languages	English, French, Spanish
Dimensions (Approximate)	22.4 x 16.1 x 6.5 inches (with stand)
Weight (Approximate)	10.5 lbs

Frequently Asked Questions - TD2420AB GPX

How do I connect an external antenna to the TV?

Connect a VHF, UHF, or HDTV antenna to the RF INPUT on the back of the television. Then press SOURCE to switch to TV mode, go to MENU > CHANNEL > SIGNAL TYPE and select AIR, then run AUTO CHANNEL SEARCH.

Can I use a set-top box with this TV?

Yes. You can connect a set-top box via HDMI, Composite video, or Component video. Use the appropriate cable (not included) and press SOURCE to select the matching input (HDMI, AV, or YPBPR).

How do I play a DVD?

Gently insert a DVD with the label side facing the back of the TV into the slot-load drive. The TV will automatically switch to DVD mode and begin playback. If not, press PLAY/PAUSE.

What is the default parental control password?

The default passcode is 0000. You can change it in the PARENTAL menu after entering the current passcode.

How do I set up the clock?

Press MENU, go to SETUP > CLOCK. Set your TIME ZONE, then enable AUTO CLOCK to set automatically. To set manually, disable AUTO CLOCK and use SETUP TIME.

Why can't I see any channels after connecting my antenna?

You must run AUTO CHANNEL SEARCH in TV mode. Ensure SIGNAL TYPE is set to AIR (for antenna) or CABLE (if using a set-top box).

Can I connect a USB drive to watch photos or videos?

Yes. Insert a USB thumb drive into the USB PORT on the TV. Press SOURCE to switch to DVD mode, then press USB/CARD to access the USB drive. Use ARROW keys to navigate and ENTER to select.

How do I clean the screen?

Use a dry cloth only. Do not use water or cleaning liquids. Always unplug the TV before cleaning.

What types of memory cards are supported?

The memory card reader supports SD, MMC, and MS (Memory Stick) cards.

How do I connect a PC to the TV?

Connect your PC's VGA output to the VGA INPUT on the TV. For audio, connect a 3.5mm cable from the PC to the PC AUDIO INPUT. Press SOURCE to select VGA mode.

USER MANUAL TD2420AB GPX

Black-and-white photo of a modern flat-screen TV displaying a woman with floral hair, mounted on a stand with a CD nearby (no visible text or symbols)

TD2420AB

24" Class HDTV with DVD

For the most up-to-date version of this User's Guide, go to www.gpx.com

Warnings and Precautions

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
• AVERTISSEMENT: Pour réduire le risque d'incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l'humidité.
• CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.
• WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.
• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• PRÉCAUTION: Danger d'explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l'équivalent.
• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.
• WARNING: The remote control's button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste
• WARNING: Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.

Main plug is used as disconnect device and it should remain readily operable during intended use.

Do not mix old and new batteries.

Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. Invisible laser radiation is present when the CD Player's lid is open and the system's interlock has failed or been defeated. It is very important that you avoid direct exposure to the laser beam at all times. Please do not attempt to defeat or bypass the safety switches.

Important Safety Instructions

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

1. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

2. Unplug this apparatus during lightning storms or when unused for long periods of time.

3. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC Warnings

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings

- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.

- Main plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.

- Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

24" Class HDTV with DVD

Features Included

• 23.6" LCD display
• ATSC tuner
  • Electronic program guide
• Aspect ratio: 16:9
  • Resolution: 1920 x 1080
  • TV supports: 480p, 480i, 720p, 1080p, 1080i
• Upconversion to screen resolution
  • Viewing angle: 170 (H) x 160 (V)
• Contrast: 1000:1
• Brightness: 300cd/m2
  • Response time: 5ms
  • Color: 16.7 million
  • Multi-language OSD: English, French, Spanish
• Sleep timer
  • Auto-play DVD player
  • DVD player: DVD, DVD±R/RW
  • CD player: CD, CD-R/RW, JPEG CDs
  • SD memory card reader
  • USB port, 2.0 high speed
• Composite video input
• RCA audio input
• RF input
• VGA input
• PC audio input
• HDMI input
• Built-in speakers
• Remote control: requires 2, AAA size, batteries (included)
• AC power input: requires an AC power cable (included)

• TD2420B
- Detachable stand
- Remote control: requires 2, AAA size, batteries (included)
- AC power cord

TABLE OF CONTENTS

Warnings and Precautions . . . . . . . . . . . 2

Important Safety Instructions . . . . . . . . . . 3

• FCC Warnings
  • Additional Warnings

24" Class HDTV with DVD . . . . . . . . . . . . 4

• Features
• Included

Introduction . . . . . . . . . . . . . . . . 6

Setup . . . . . . . . . . . . . . . . . . . 8

• Power
• Remote

Television Setup . . . . . . . . . . . . . . . 9

• Connecting a TV Antenna
• Connecting Basic Cable
• Connecting a Set-Top Box
  • Auto Scanning for Channels

Television 10

• Channel List View
• Adding Favorites
• Viewing Favorites
  • Parental Controls (V-Chip)

DVD and CD 11

• Loading a DVD or CD
• Playing a DVD or CD
• Programming a DVD or CD

Company Information . . . . . . . . . . 12

• Green Initiative
  • International Support
• Contact Information

Introduction

Setup

Power

AC power: requires an AC power cord (included).

Plug the included AC power cord into a standard AC power outlet to power the television.

Line drawing of a cable being inserted into an electrical outlet, showing connections without any text or symbols.

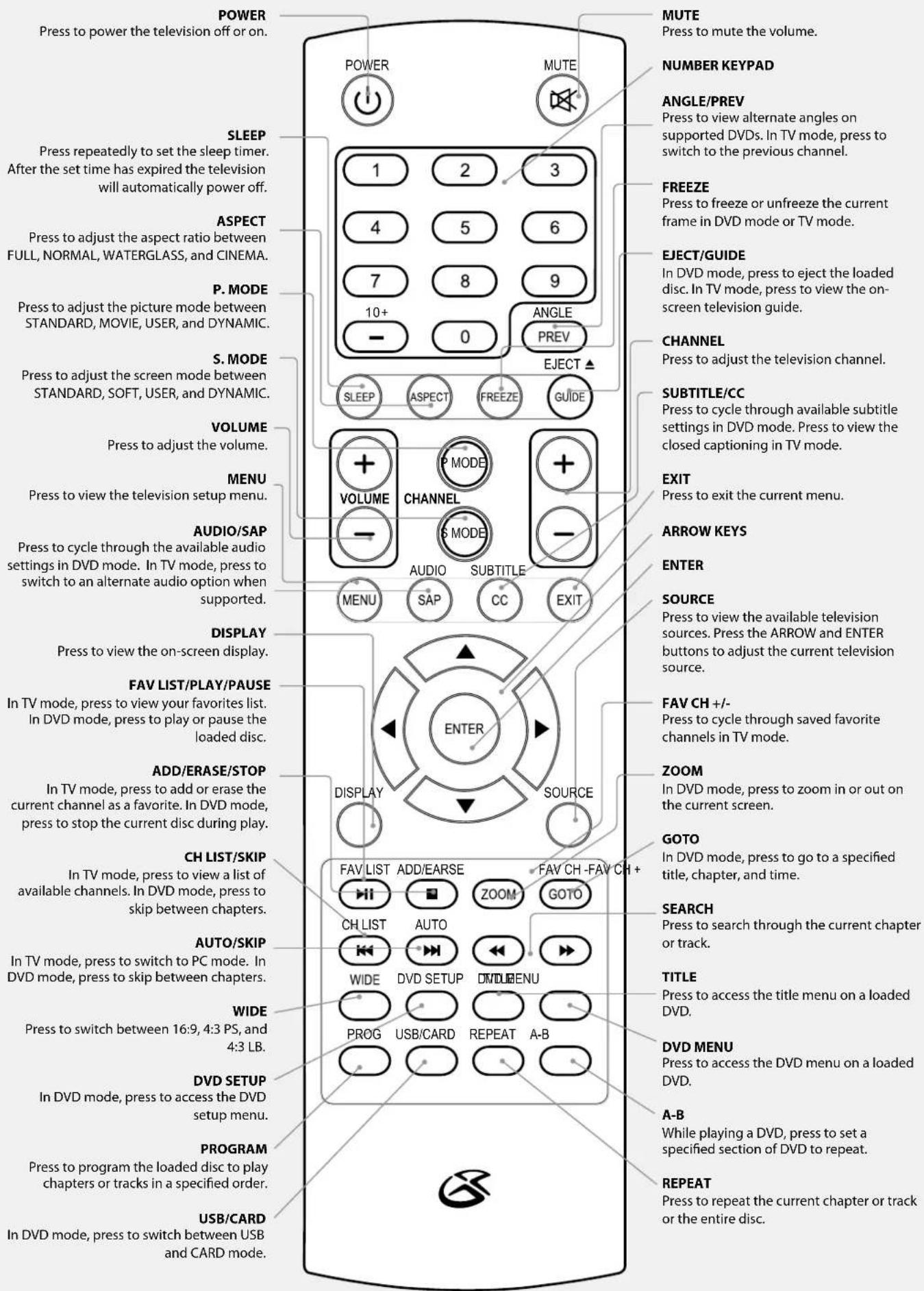

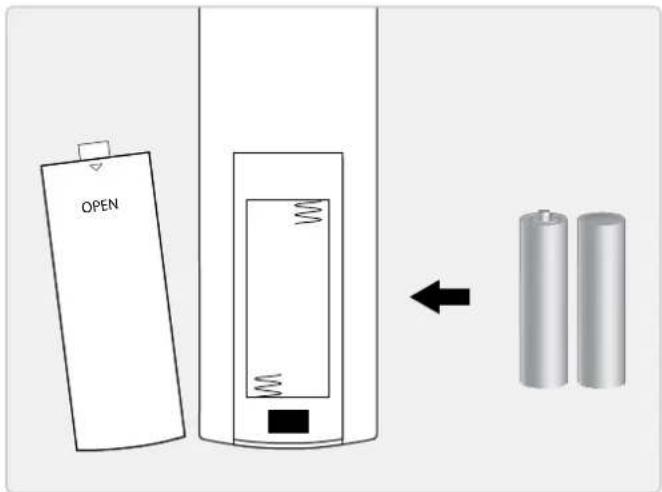

Remote

Requires 2, AAA size, batteries (included)

Connecting a TV Antenna

Requires a TV antenna (not included).

1. Connect a VHF, UHF, or HDTV antenna to the RF INPUT on the television.
2. Press the SOURCE button to switch to TV mode.
3. Press the MENU button to access the setup menu.
4. Press the ARROW (◀ ▶) buttons to highlight the CHANNEL icon. Press the ENTER button.
5. Press the ARROW (▼▲) buttons to highlight SIGNAL TYPE. Press the ARROW (◄►) buttons to select AIR.
6. Press the ARROW (▼▲) buttons to highlight AUTO CHANNEL SEARCH. Press the ENTER button to begin scanning for available channels.

Connecting Basic Cable

Because the LCD television is HDTV only, basic cable can only be connected through a set-top box. Requires a basic cable connection and set-top box, not included.

1. Follow the instructions for connecting a set-top box.

Connecting a Set-Top Box

Requires a Set-Top Box (not included).

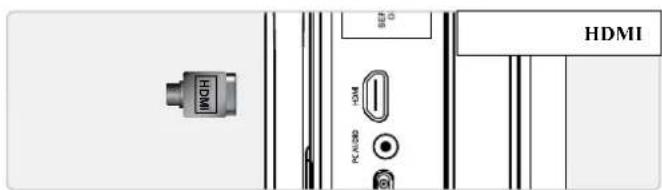

If your Set-Top Box has an HDMI Output:

- Connect the HDMI output on the Set-Top Box to the HDMI INPUT on the television using an HDMI cable (not included).

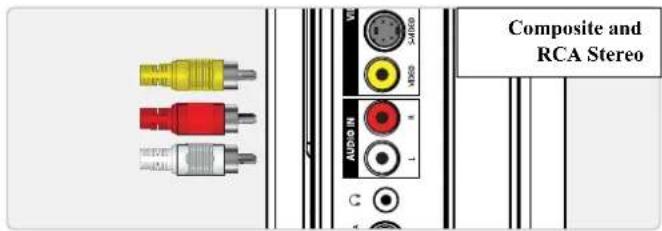

If your Set-Top Box has a Composite Video Output:

- Connect the video output on the Set-Top Box to the COMPOSITE VIDEO INPUT on the television using an A/V RCA cable (not included). Connect the audio output on the Set-Top Box to the RCA AUDIO INPUT on the television.

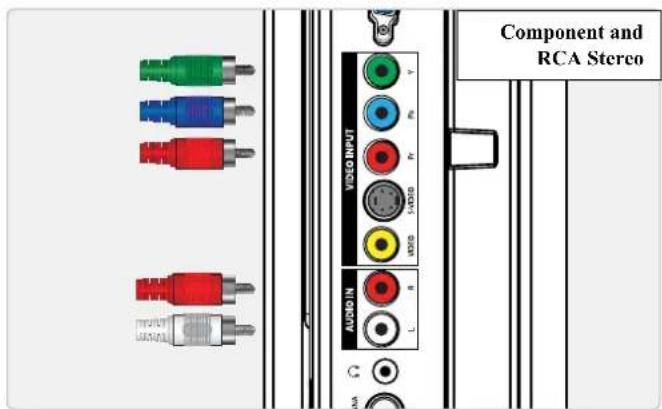

If your Set-Top Box has a Component Video Output:

- Connect the component video output on the Set-Top Box to the COMPONENT VIDEO INPUT on the television using a component RCA cable (not included). Connect the audio output on the Set-Top Box to the RCA AUDIO INPUT on the television.

After connecting your Set-Top Box:

- Press the SOURCE button to switch to YPBPR, S-VIDEO, AV, or HDMI to match the connection used.

Television

Auto Scanning for Channels

The Auto Channel Scan must be run before any channels can be viewed on the television.

1. Press the SOURCE button to switch to TV mode.
2. Press the MENU button to access the setup menu.
3. Press the ARROW (◀ ▶) buttons to highlight the CHANNEL icon. Press the ENTER button.
4. Press the ARROW (▼▲) buttons to highlight SIGNAL TYPE. Press the ARROW (◄►) buttons to select AIR.
5. Press the ARROW (▼▲) buttons to highlight AUTO CHANNEL SEARCH. Press the ENTER button to begin scanning for available channels.

Channel List View

1. Press the SOURCE button to switch to TV mode.
2. Press the CH LIST button, on the remote, to view a list of available channels.

Unless you are using a Set-Top Box, you must auto scan for channels before being able to view channels in list view.

Adding Favorites

1. Press the SOURCE button to switch to TV mode.
2. Press the CHANNEL buttons to select the desired TV channel.
3. Press the ADD/ERASE button to add or erase the current channel as a favorite.

Viewing Favorites

1. Press the SOURCE button to switch to TV mode.
2. Press the FAV LIST button to view a list of your saved favorites.

Parental Controls (V-Chip)

1. Press the SOURCE button to switch to TV mode.
2. Press the MENU button.
3. Press the ARROW (◀ ▶) buttons, highlight PARENTAL, and press the ENTER button.
4. The default passcode for the parental lock is: 0000
5. Enter the passcode to access the PARENTAL CONTROL preferences.
6. From this menu, you can lock specific ratings from the United States rating system or the Canadian rating system by accessing the V-CHIP settings. You can also lock the buttons on the television or lock specific sources from access.

Setting the Clock

1. Press the MENU button to access the setup menu.
2. Press the ARROW (◀ ▶) buttons to highlight the SETUP icon. Press the ENTER button.
3. Press the ARROW (▼▲) buttons to highlight CLOCK. Press the ENTER button.
4. Press the ARROW (▼▲) buttons to highlight TIME ZONE. Press the ARROW (◄►) buttons to select your current time zone.
5. Press the ARROW (▼▲) buttons to highlight AUTO CLOCK. Press the ARROW (◄►) buttons to turn auto clock off and on.
   When the correct time zone is set, auto clock will automatically set your clock and date for you.
6. To set the time and date manually, turn auto clock off, highlight SETUP TIME, and use the ARROW buttons to manually set the time and date.

Television Menu

Press the MENU button to access the TV menu. Press the EXIT button to exit the TV menu.


Picture Settings

Screen Settings

PC Settings

Color Temperature

Advanced Picture Settings

Sound

Sound Settings

Surround Mode

Analog Sound

Digital Sound

Other Settings

Equalizer Settings

Channel

Channel List

Favorite List

Channel Setting

Signal Type

Auto Channel Search

Parental

Lock Parental Control

V-Chip

Front Panel Lock

Source Lock

Setup

Closed Caption

Menu Language

Clock

Others

Blue Back

No Signal Power Off

No Operation Power Off

All Reset

Audio Only

DVD and CD

Loading a DVD or CD

1. Gently insert a DVD or CD into the slot-load disc drive, with the label side of the DVD or CD facing the back of the television.

Once a DVD or CD is loaded into the television, the TV will automatically switch to DVD mode.

Playing a DVD or CD

1. Follow the instructions for Loading a DVD or CD.
2. After the DVD or CD is loaded, it will begin playing automatically.

If the DVD or CD does not begin playing automatically, press the PLAY/PAUSE button to begin playing the loaded disc.

Programming a DVD or CD

1. While a DVD or CD is playing, press the PROGRAM button on the remote.
2. Using the NUMBER KEYPAD enter in the title (T) and chapters (C), or tracks in the order you want them to play.
3. Highlight the on-screen PLAY button using the ARROW buttons and press the ENTER button.
4. The programmed titles and chapters, or tracks will now play in the designated order.
5. To cancel a program, press the PROGRAM button, highlight the on-screen CLEAR button using the ARROW buttons, and press the ENTER button.

DVD Setup Menu

In DVD mode, press the DVD SETUP button to access the DVD setup menu. Press the DVD SETUP button to exit the DVD setup menu.

System Setup

TV System

Screen Saver

TV Type

Power Resume

Default

Exit Setup

Language Setup

OSD Language

Audio Language

Subtitle Language

Menu Language

Exit Setup

Audio Setup

Key

Exit Setup

Digital Setup

Dynamic Range

Dual Mono

Exit Setup

USB Port and Memory Card Reader

Connecting a Memory Card

1. Load an SD, MS, or MMC memory card into the MEMORY CARD READER as shown in the image to the right.

Using a Connected Memory Card

1. Follow the instructions for Connecting an SD or MMC card.
2. Press the SOURCE button to switch to DVD mode.
3. Press the USB/CARD button on the remote to switch to the connected memory card.
4. Use the ARROW and ENTER buttons to select and play content from the connected memory card.

Connecting a USB Thumb Drive

1. Load a USB thumb drive into the USB PORT as shown in the image to the right.

Using a Connected USB Thumb Drive

1. Follow the instructions for Connecting a USB thumb drive.
2. Press the SOURCE button to switch to DVD mode.
3. Press the USB/CARD button on the remote to switch to the connected USB thumb drive.
4. Use the ARROW and ENTER buttons to select and play content from the connected USB thumb drive.

Connecting Other Devices (Set-Top Box, Gaming Device, DVD Player, VCR, or PC)

Connecting a Set-Top Box

• You will need: a set-top box, s-video and RCA stereo cables or composite and RCA stereo cables or component and RCA stereo cables or an HDMI cable. (not included)
• Connect the set-top box's audio and video outputs to the corresponding audio and video inputs on the television.
• Power the television on and press the SOURCE button to switch to the connected input. (AV (composite), YPbPr (component), S-VIDEO, or HDMI)

Connecting a Gaming Device

• You will need: a gaming device, s-video and RCA stereo cables or composite and RCA stereo cables or component and RCA stereo cables or an HDMI cable. (not included)
• Connect the gaming device's audio and video outputs to the corresponding audio and video inputs on the television.
• Power the television on and press the SOURCE button to switch to the connected input. (AV (composite), YPbPr (component), S-VIDEO, or HDMI)

Connecting a DVD Player or VCR

• You will need: a DVD player or VCR, s-video and RCA stereo cables or composite and RCA stereo cables or component and RCA stereo cables or an HDMI cable.
• Connect the DVD player or VCR's audio and video outputs to the corresponding audio and video inputs on the television.
• Power the television on and press the SOURCE button to switch to the connected input. (AV (composite), YPbPr (component), S-VIDEO, or HDMI)

Connecting a Computer

• You will need: a PC with a VGA output, and a VGA cable. (not included)
• Connect the computer's VGA output to the VGA INPUT on the television.
• Power the television on and press the SOURCE button to switch to the VGA Mode.
• Audio from the connected PC can be input to the television through the TV's PC AUDIO INPUT by using a 3.5mm audio cable (not included).

Company Information

Green Initiative International Support

Environmental Commitment to 'Protect for Today and Sustain for Tomorrow'

2009 marked the official launch of DPI, Inc.'s corporate campaign for a greener and cleaner world. DPI is building upon environmental initiatives introduced at all of their facilities to help formulate and sustain significant and important conservation efforts within its manufacturing and marketing communities. In addition to targeting and selecting energy efficient product features, and structuring 'green office' procedures, other initial program efforts include:

• Reduction of all packaging sizes
- Recyclable plastics for clamshell packages, with a plan to eventually replace plastic with recyclable paper
• Recycled fiber board in place of the polyfoam in packing boxes
• Recycled plastics in place of the virgin material in product construction

To download this User's Guide in English, Spanish, or French, visit the support section at www.gpx.com.

2116 Carr Street, St. Louis MO, 63106

Phone:

1-314-621-2881

Fax:

1-314-588-1805

Email:

[e-mail]

Parts Email:

[e-mail]

Website:

www.gpx.com
