| Product Type | Dishwasher |
| Brand | Euromaid |
| Model | EDW14S |

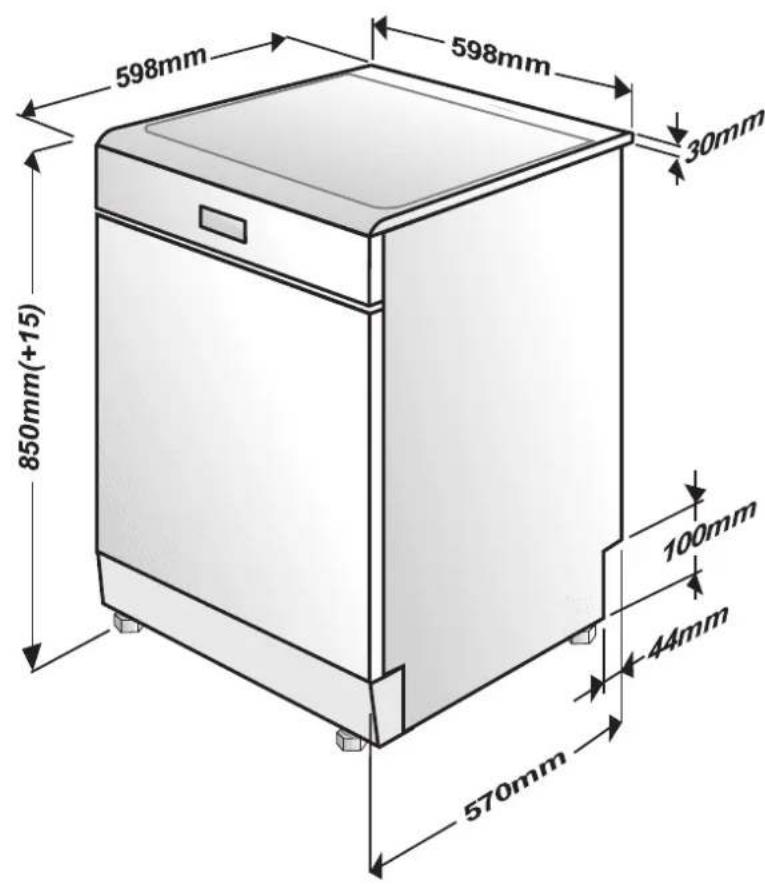

| Height | 845 mm (adjustable feet) |
| Width | 598 mm |
| Depth | 570 mm (with door closed) |
| Weight | Approx. 45 kg |
| Power Supply | 220-240 V, 50 Hz, 1900 W |
| Water Consumption | 12 L per cycle (Eco program) |
| Noise Level | 49 dB(A) |
| Capacity | 14 place settings |
| Energy Rating | A+ |
| Programs | 6 (Eco, Intensive, Normal, Quick, Soak, Glass) |

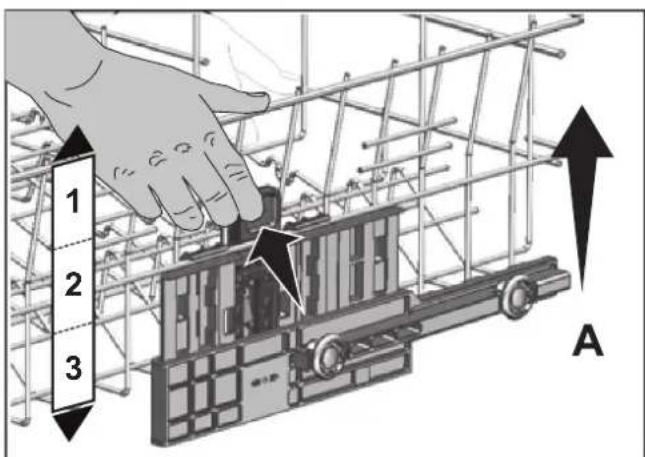

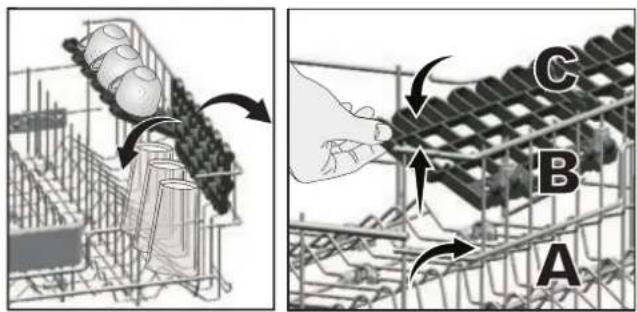

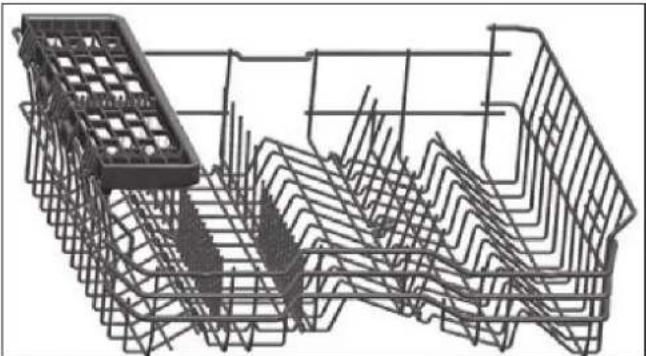

| Key Functions | Adjustable upper basket, half load option, delayed start (1-24h), self-cleaning filter |
| Interior Material | Stainless steel |
| Safety Features | Child lock, leak protection system, overflow protection |

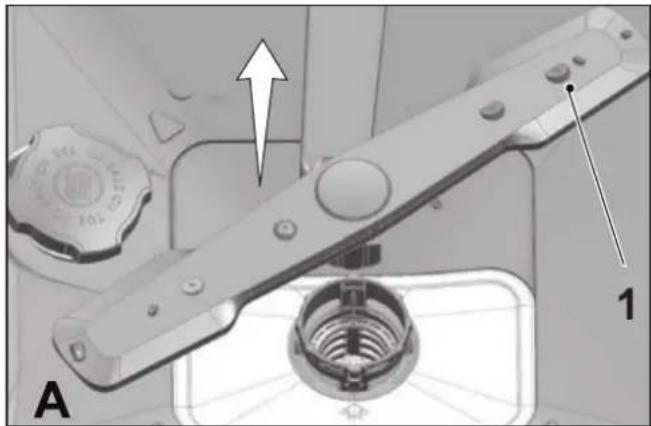

| Maintenance | Clean filter after each use, descale every 3 months, clean spray arms periodically |
| Repairability | User-replaceable filters, spray arms, door seal; serviceable by technician |
| Spare Parts | Filters, spray arms, racks, detergent dispenser, door seal available |
| Installation Type | Freestanding or integrated under counter |
| Certifications | CE, WEEE compliant |
Frequently Asked Questions - EDW14S Euromaid

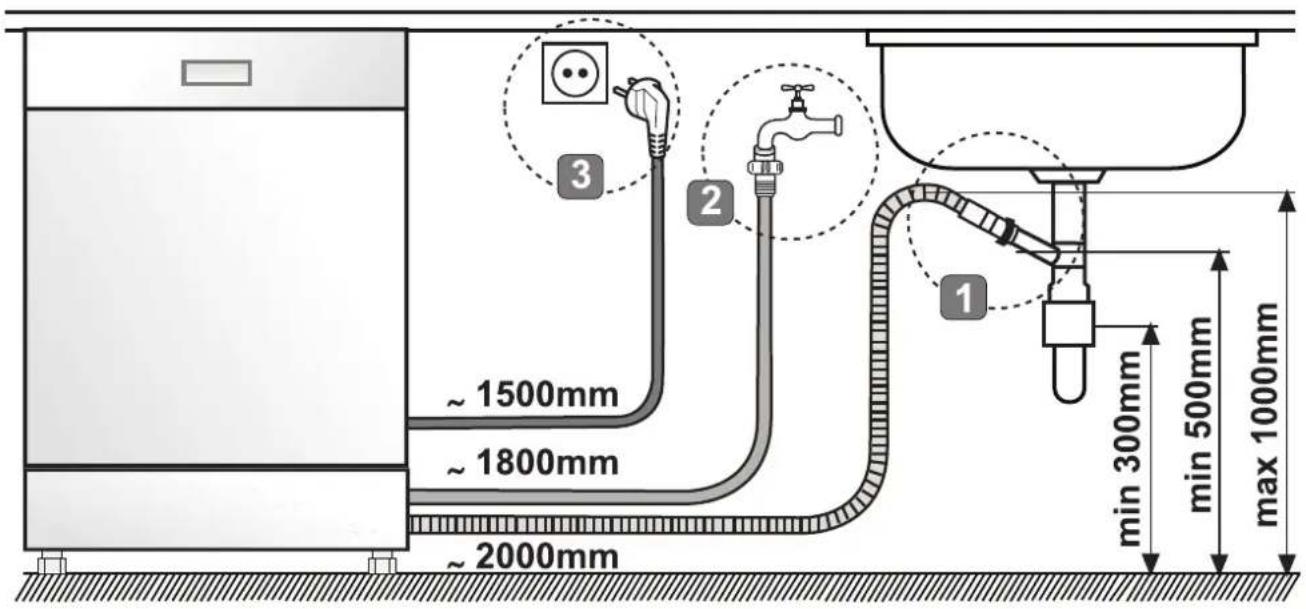

How do I install the Euromaid EDW14S dishwasher?
Ensure proper plumbing and electrical connections. The unit is freestanding or can be built under a counter. Refer to the user manual for detailed installation steps, including leveling and securing the dishwasher.
How many place settings does the EDW14S hold?
The dishwasher has a capacity of 14 place settings, suitable for larger households.
What should I do if the dishwasher does not drain?
Check the drain hose for kinks or blockages. Clean the filter and ensure the sink drain is not clogged. If the issue persists, inspect the drain pump.

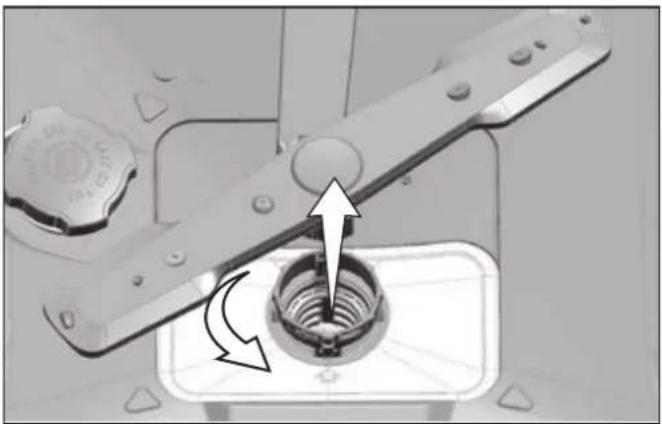

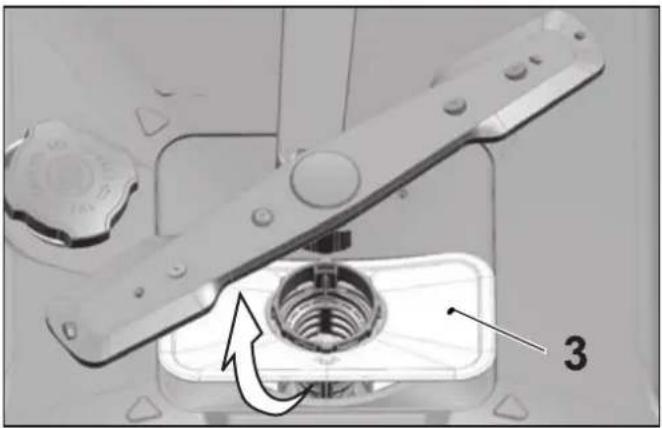

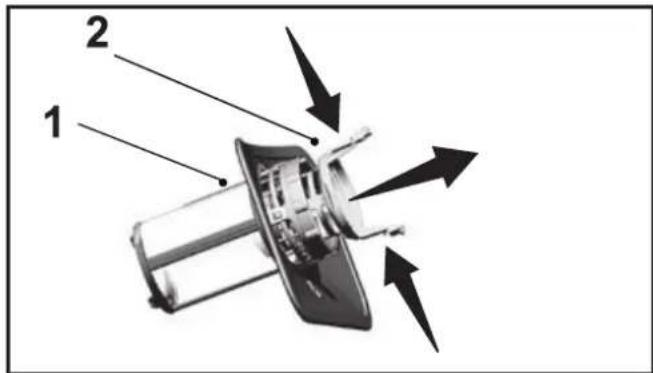

How do I clean the filter?
Turn the coarse filter counterclockwise and remove it. Rinse under running water and scrub if necessary. Reassemble after cleaning. The filter should be cleaned after every wash.
What programs are available on the EDW14S?
The machine offers 6 programs: Eco, Intensive, Normal, Quick, Soak, and Glass. Select based on load and soil level.
How do I start a delayed wash?
Press the Delay Start button until the desired delay time (1-24 hours) appears on the display, then close the door and select a program. The dishwasher will start automatically after the delay.
Why is the dishwasher not cleaning dishes properly?
Ensure spray arms are not blocked, filter is clean, and you are using the correct detergent. Also check that the water temperature is adequate (ideally 50-60°C).
Can I use regular dish soap in the dishwasher?
No, only use dishwasher-specific detergent in powder, gel, or tablet form. Regular dish soap can cause excessive suds and damage the appliance.
What does the child lock feature do?
The child lock prevents children from starting or changing the dishwasher program. Activate it by pressing and holding the appropriate button for 3 seconds (see manual).
How do I prevent lime scale buildup?
Use a dishwasher descaler every 3 months or when you notice white deposits. Some models have a water softener; refill the salt reservoir as needed.
