Product Type	MP3 Player
Brand	Coby
Model	MP-C7052
Dimensions	Approx. 4.2 x 2.4 x 0.6 inches
Weight	Approx. 2.0 oz (with battery)
Power Source	Built-in rechargeable lithium-ion battery (charging via USB)
Battery Life	Up to 12 hours of music playback
Storage Capacity	2GB internal memory
Display	1.8-inch color LCD
Supported Audio Formats	MP3, WMA, WAV
Playback Modes	Repeat, shuffle, folder play
FM Radio	Yes, with preset stations
Voice Recording	Yes, built-in microphone
Headphone Jack	3.5mm
USB Port	Mini USB (data and charging)
Equalizer	Multiple presets (Rock, Pop, Classic, etc.)
ID3 Tag Support	Yes
Language Support	Multiple languages
Care Instructions	Keep dry, avoid extreme temperatures, clean with soft cloth
Safety Warnings	Do not disassemble, avoid liquids, use only approved chargers
Spare Parts / Repairability	Not user-serviceable; contact support for issues
General Information	Read manual before use, keep away from children, comply with local laws

Frequently Asked Questions - MP-C7052 COBY

How do I turn the Coby MP-C7052 on and off?

To turn on, press and hold the Play/Pause button until the screen lights up. To turn off, press and hold the Play/Pause button again until the device powers down.

How do I charge the MP3 player?

Connect the Mini USB cable to the player and a computer USB port or USB wall charger. The battery indicator will show charging status. A full charge takes approximately 2-3 hours.

How can I transfer music to the Coby MP-C7052?

Connect the player to your computer via the Mini USB cable. It will appear as a removable drive. Drag and drop your MP3 files into the Music folder. Safely eject before disconnecting.

What audio formats does the MP-C7052 support?

The player supports MP3, WMA, and WAV audio files. For best compatibility, use MP3 files encoded at 128-320 kbps.

How do I use the FM radio function?

Press the Mode button to switch to FM Radio. Use the Prev/Next buttons to scan frequencies. To save a station, press and hold the Play/Pause button. Saved stations can be accessed via the Preset menu.

How can I record voice with the MP3 player?

Press the Mode button and select Voice Recording. Press Play/Pause to start recording. Press Play/Pause again to stop. Recordings are saved as WAV files in the Record folder.

What should I do if the device freezes?

Try a soft reset: press and hold the Reset button (if available) or hold the Play/Pause button for 10 seconds. If that doesn't work, connect to a computer and try to restore via the firmware update.

How long does the battery last on a full charge?

The lithium-ion battery provides up to 12 hours of continuous music playback. Actual battery life may vary based on volume, usage, and file format.

Can I expand the storage of the MP-C7052?

No, the Coby MP-C7052 does not support external memory cards. It has 2GB of internal storage, which is sufficient for approximately 500 songs at standard bitrate.

How do I clean and maintain the MP3 player?

Use a soft, dry cloth to wipe the device. Avoid using chemical cleaners. Do not expose the player to moisture or extreme temperatures. Store in a cool, dry place when not in use.

USER MANUAL MP-C7052 COBY

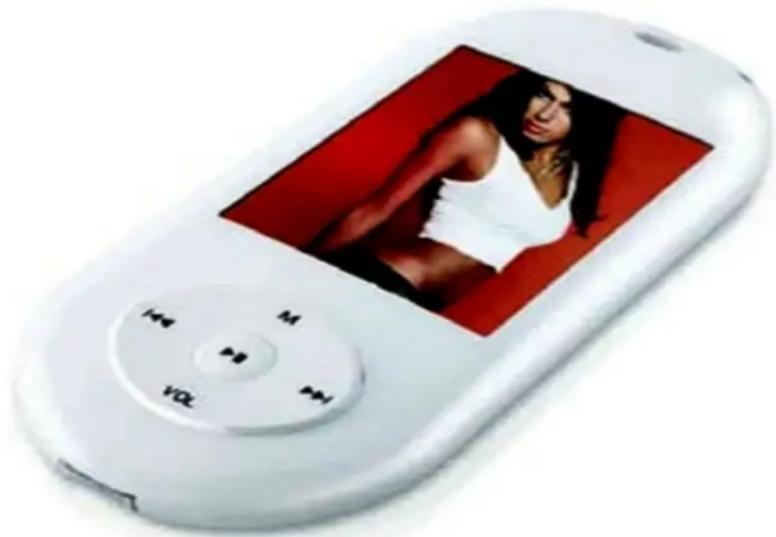

Thank you for choosing a COBY MP3 player!

White mobile phone with a red screen displaying a woman's photo, no visible text or symbols on the device body.

\~This guide will cover how to transfer your music CD's into your COBY MP3 player using Windows Media Player 11.

\~This guide will also provide common troubleshooting solutions for your COBY MP3 player.

Requirements

Windows Media Player 11 (WMP11)

The directions in this guide are given for Windows Media Player 11 (WMP11)

If your computer does not have Windows Media Player installed, please download the latest version of Windows Media Player (WMP) from Microsoft's website www.microsoft.com/windows/windowsmedia/player/download/download.aspx

AUDIO TRANSFER - Getting Started

Transfer your Music CD's into your COBY MP3 player

1) Launch the WMP11 program.

2) Put an audio CD into the CD-ROM drive of your computer.

If your computer has an internet connection, WMP will automatically retrieve and display the album information.

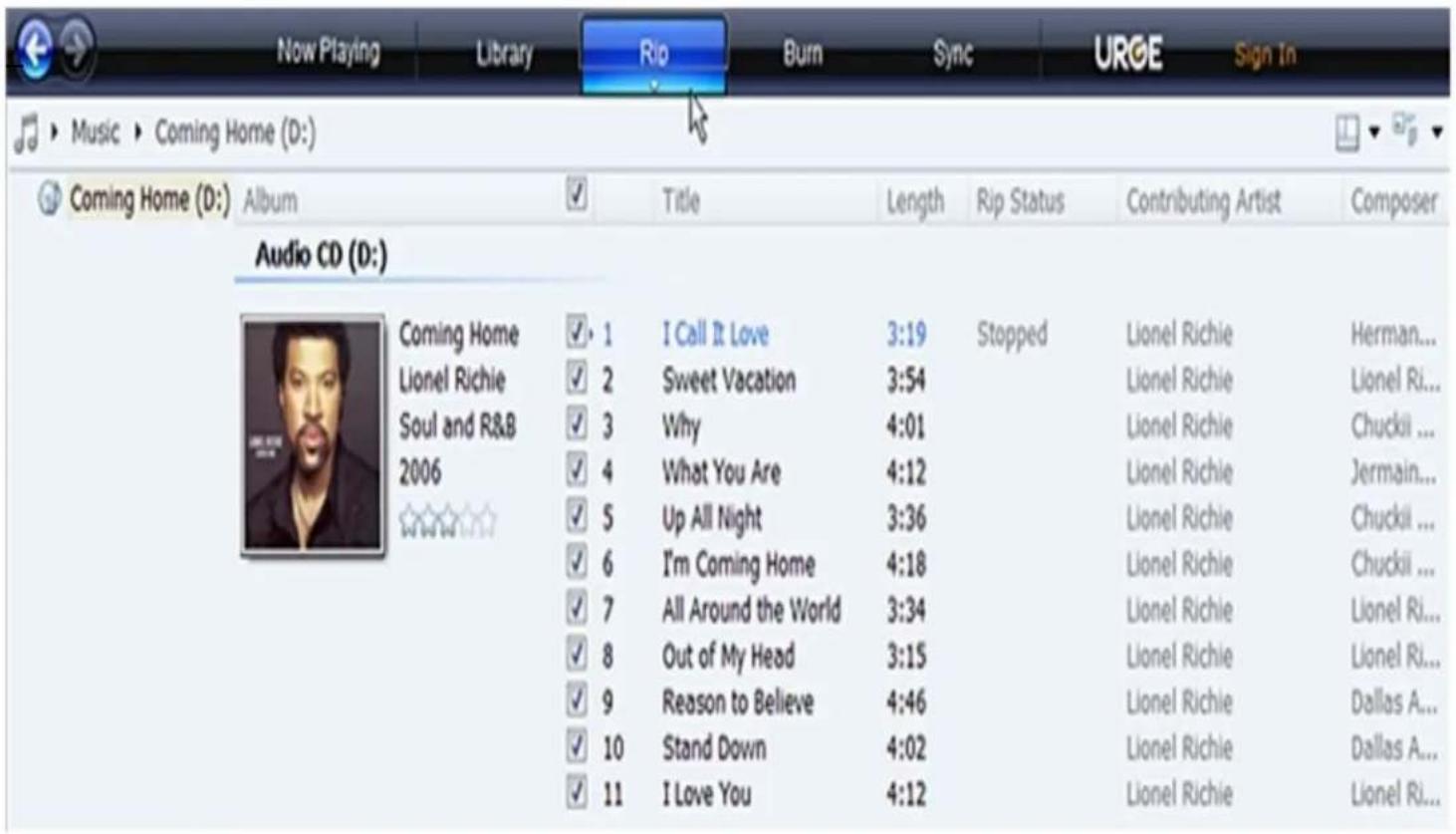

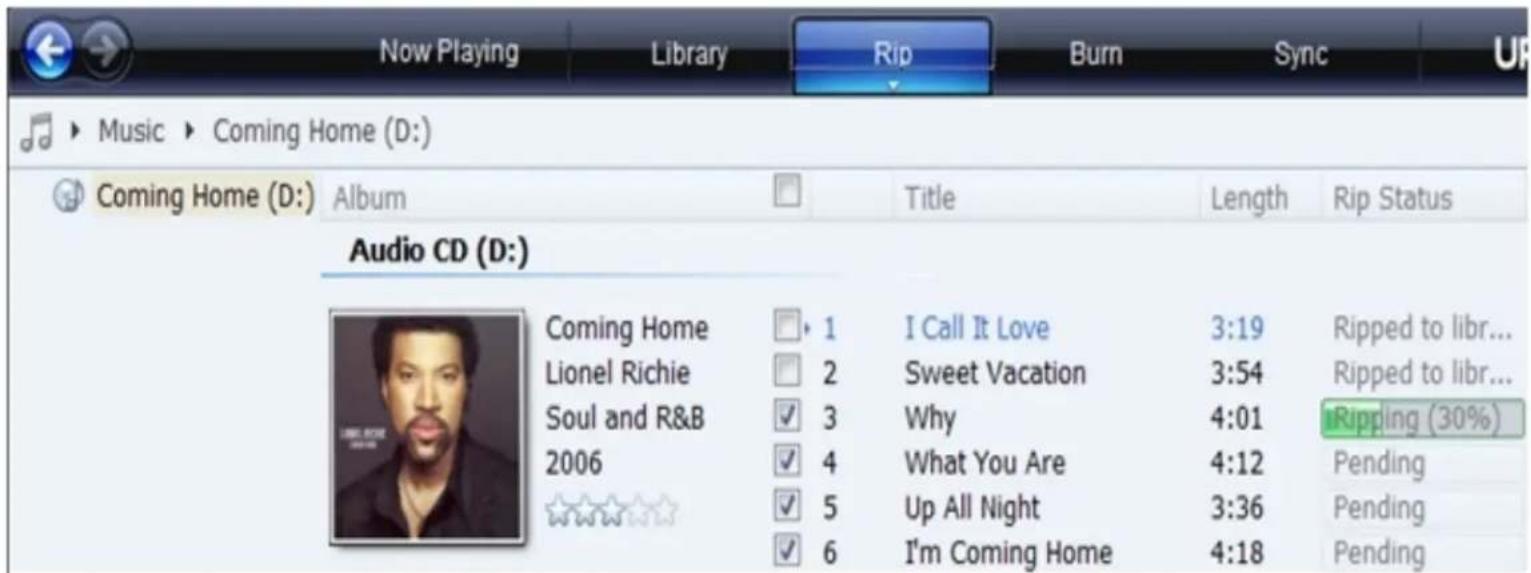

Click the "Rip" tab and select which "Title" to rip. To rip the entire album, check all of the check

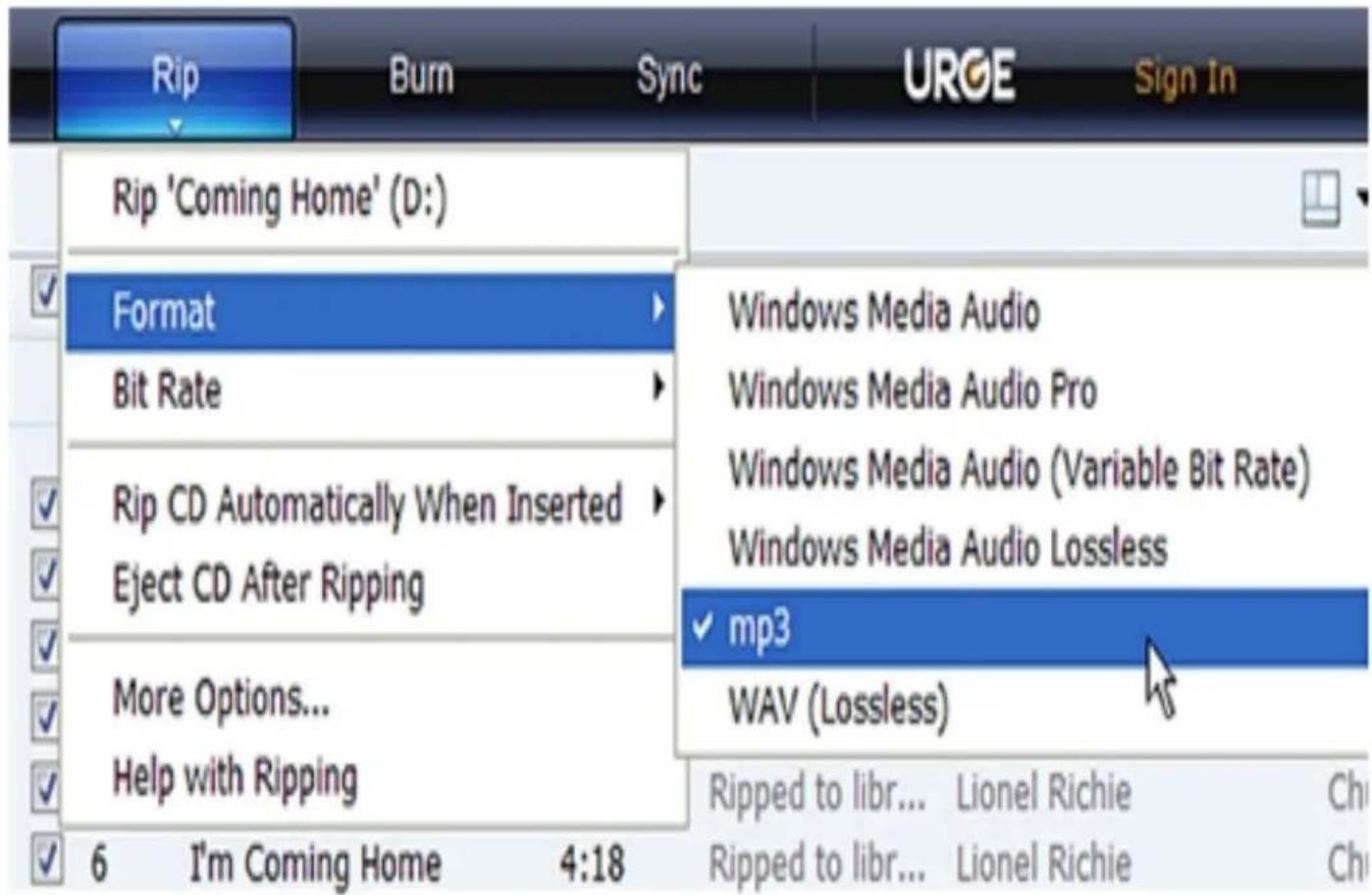

3) Set the Rip Options (optional).

Click the "Rip" button to set the Rip options. The recommended Rip settings are:

Select "Format > mp3"
✧ Select “Bit Rate > 128 Kbps”
Select "More Options" to change the directory to which WMP saves your ripped ✦ music les. WMP will save your music to your "My Documents > My Music" folder by default.

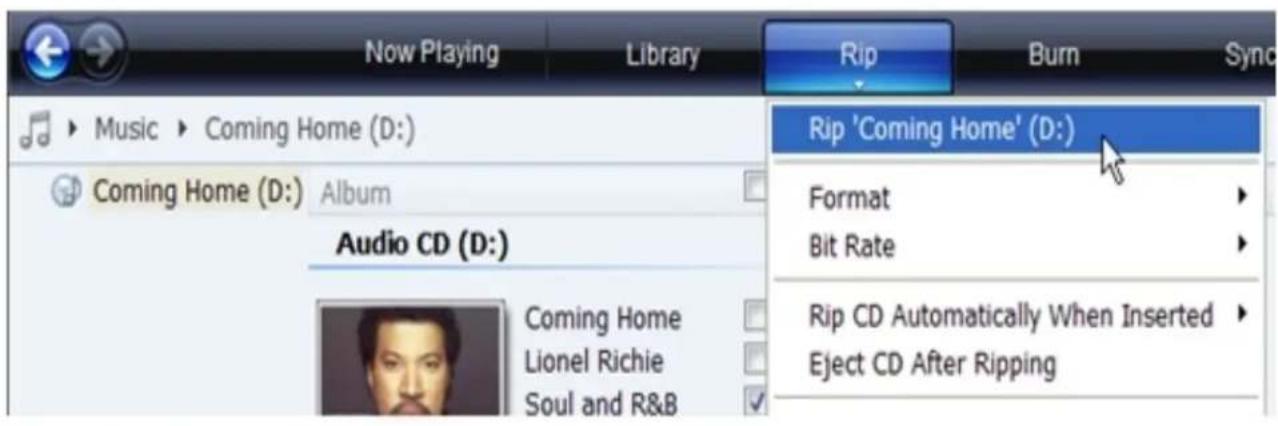

4) Start ripping the CD.

Click the "Rip" button and select "Rip" to start converting the audio CD to MP3/WMA

The ripping process will take a few minutes to complete. WMP will save the converted music files in your "My Documents > My Music" folder by default.

Transfer MP3/WMA Files to Your COBY Player

Once you have MP3 or WMA digital music files on your computer, transfer them to your COBY player in order to listen to music anywhere.

Use WMP11 to transfer (sync) music from your computer to your COBY MP3 player.

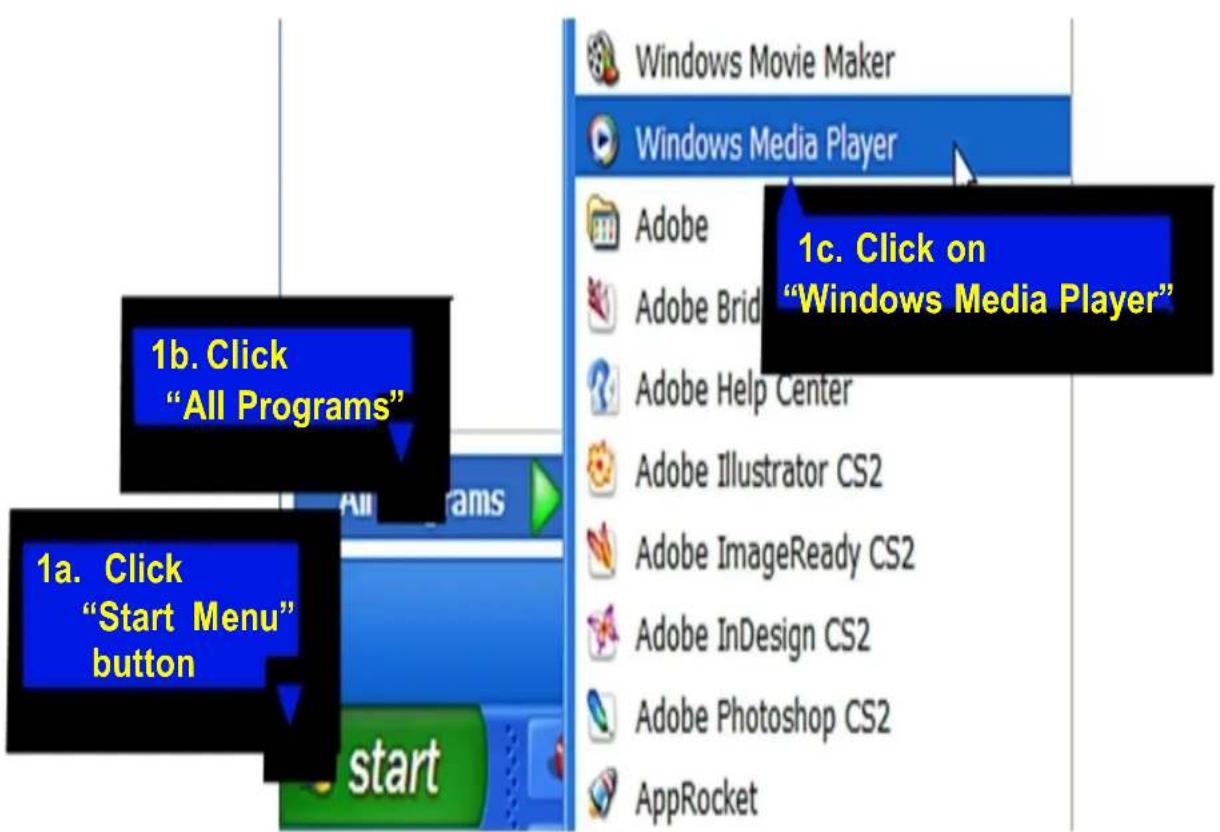

1) Launch the WMP11 program.

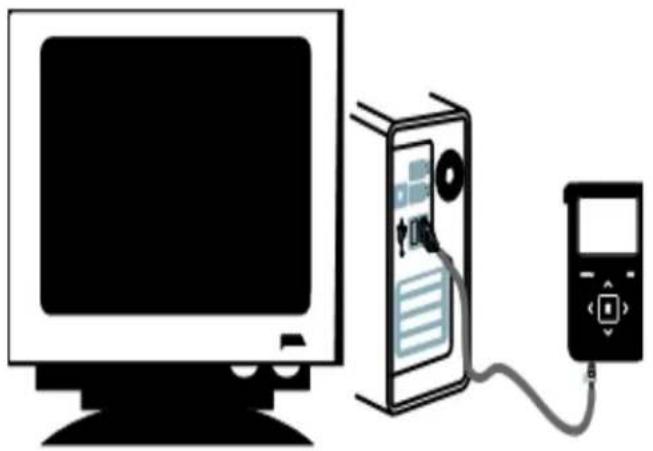

2) Connect your COBY player to a USB port on the computer.

WMP11 will detect your COBY player automatically.

Illustration of a desktop computer connected to a mobile phone via cable (no text or symbols present)

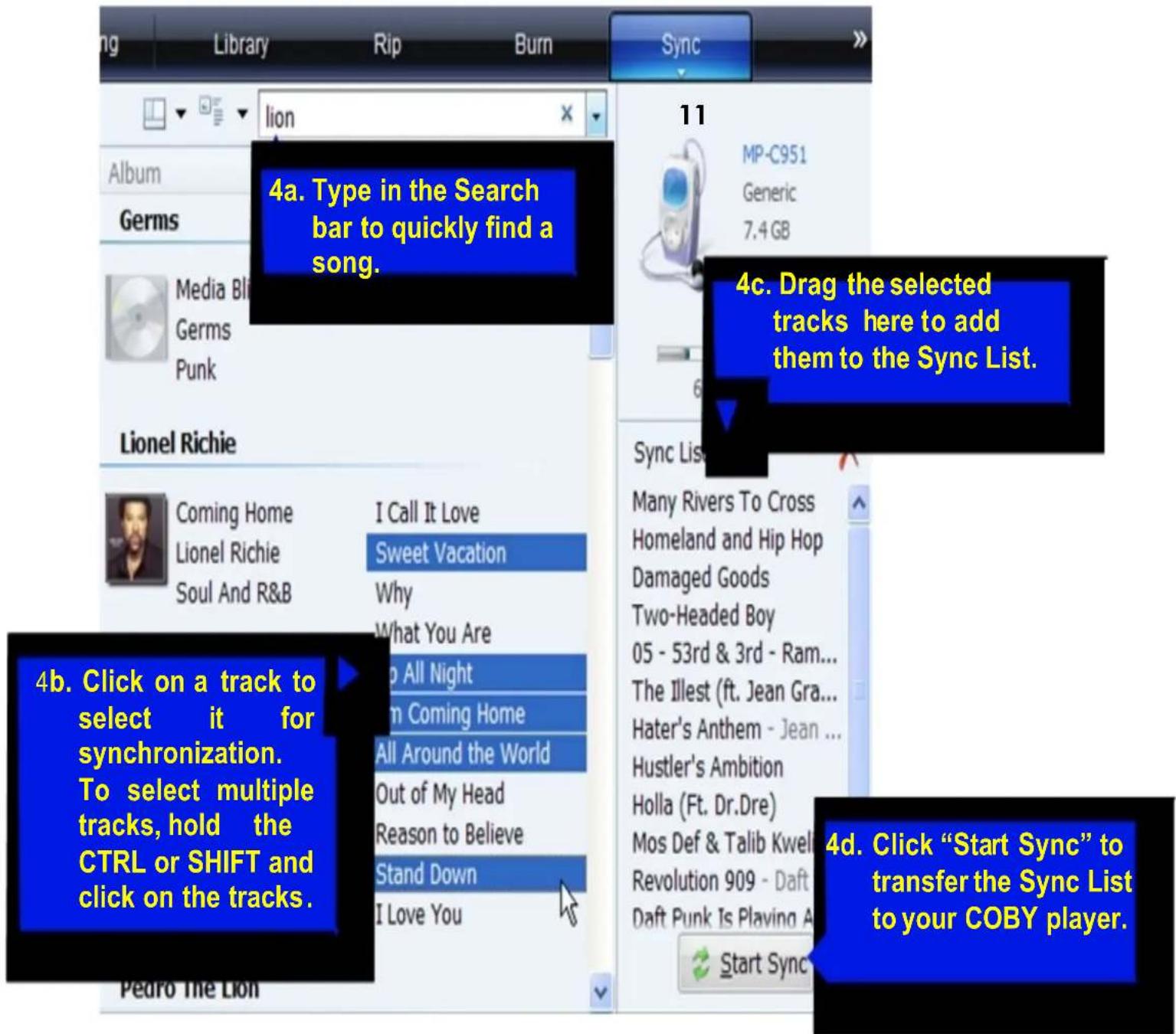

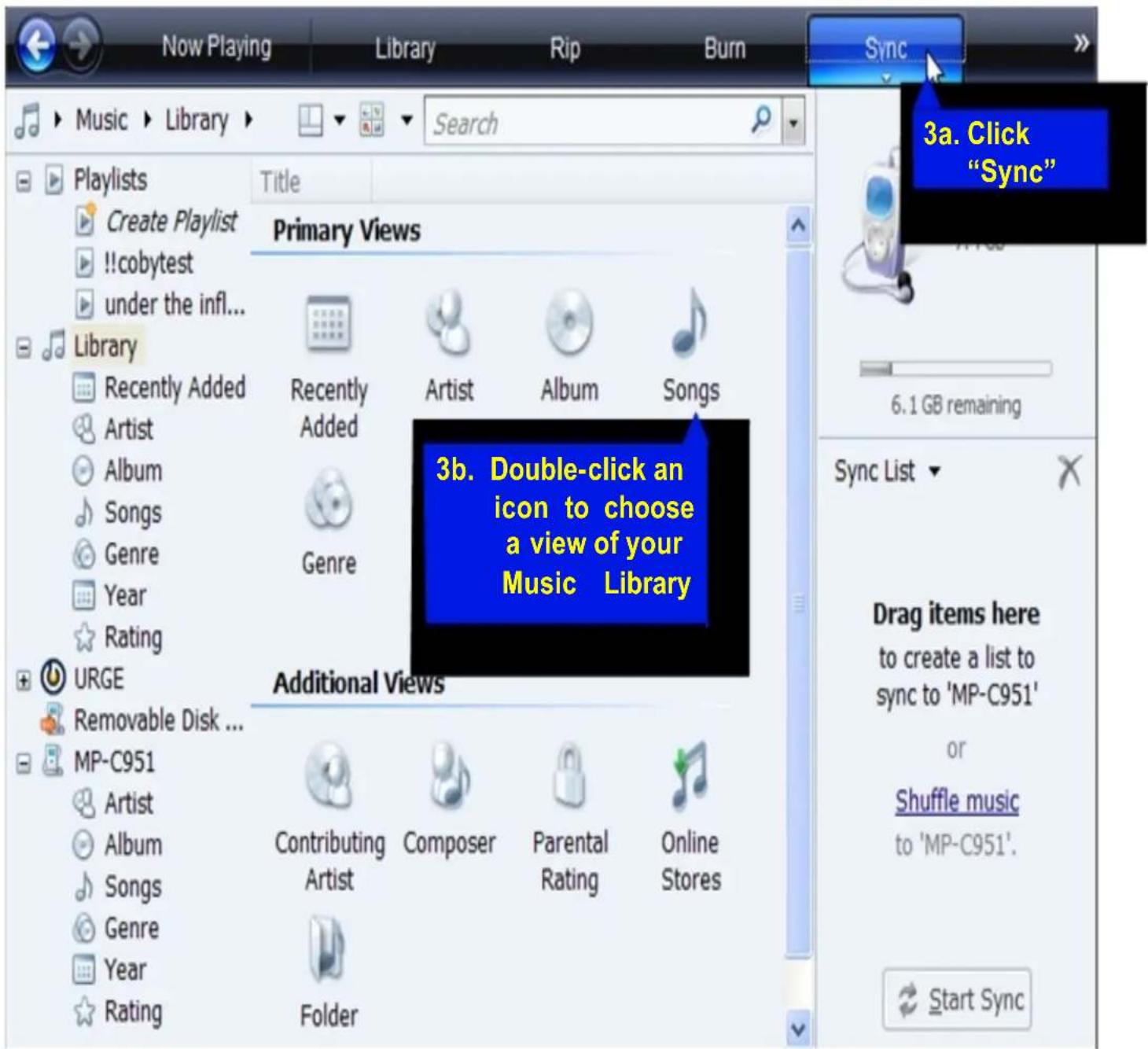

3) Browse your music library to choose songs to sync.

4) Select songs to sync to your COBY player.

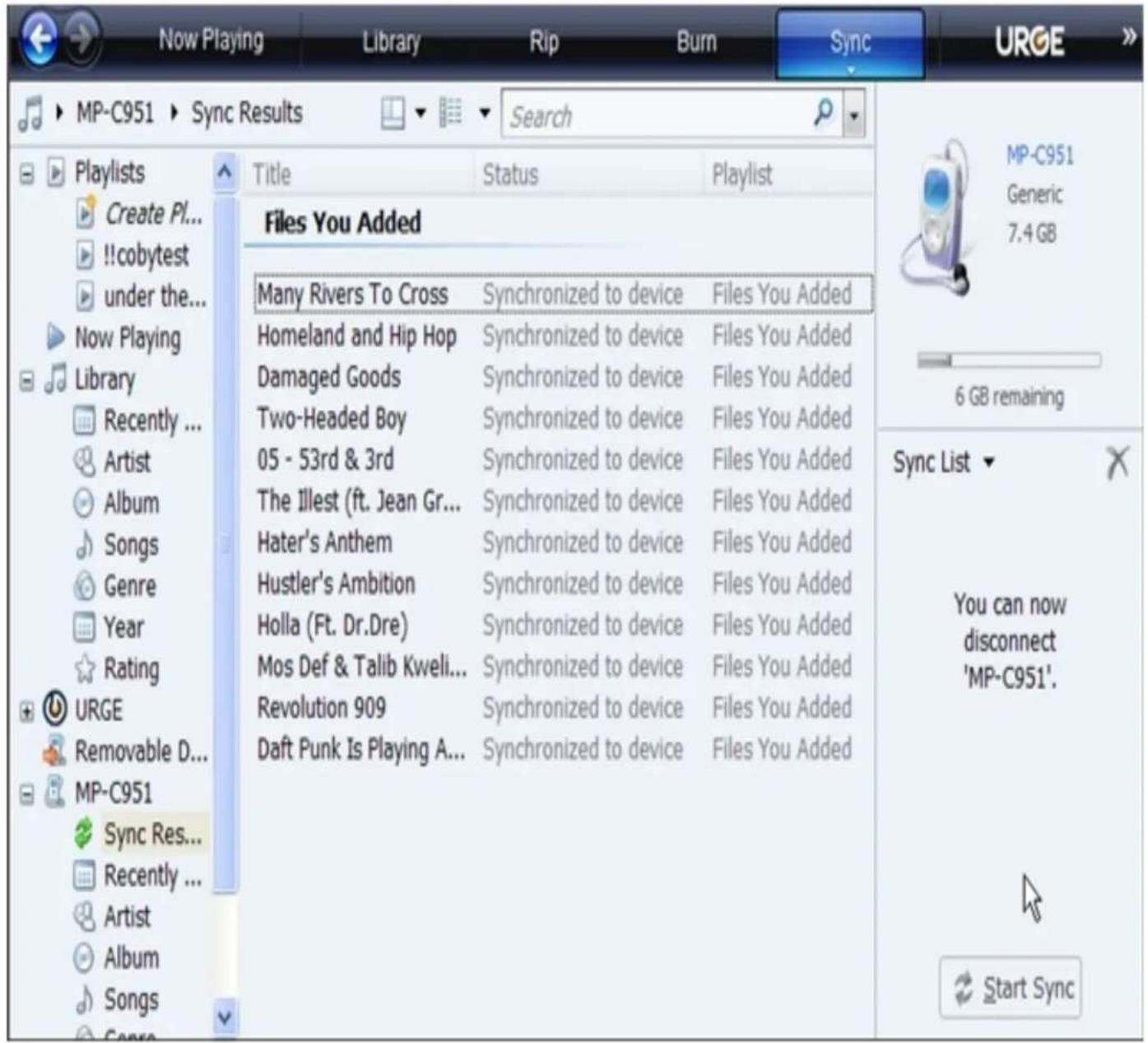

5) Disconnect your COBY player from the computer.

Once the sync process is complete, unplug your player from the USB port of the computer. Now you're ready to listen to music on your COBY player.

VIDEO TRANSFER - Getting Started

Converting your VIDEO files and transferring it into your player.

Install the Conversion Utility

1. Insert the driver CD
2. Double click on the "MP3set_V4.11" folder
3. Double click on the "setup" file.
4. Accept the agreement to install the Video Conversion utility.

Run the Conversion Utility

1. Go to your "Start Menu"
2. Select "All Programs"
3. Select "MP3 Player Utilities 4.11"
4. Select "AMV Converter"

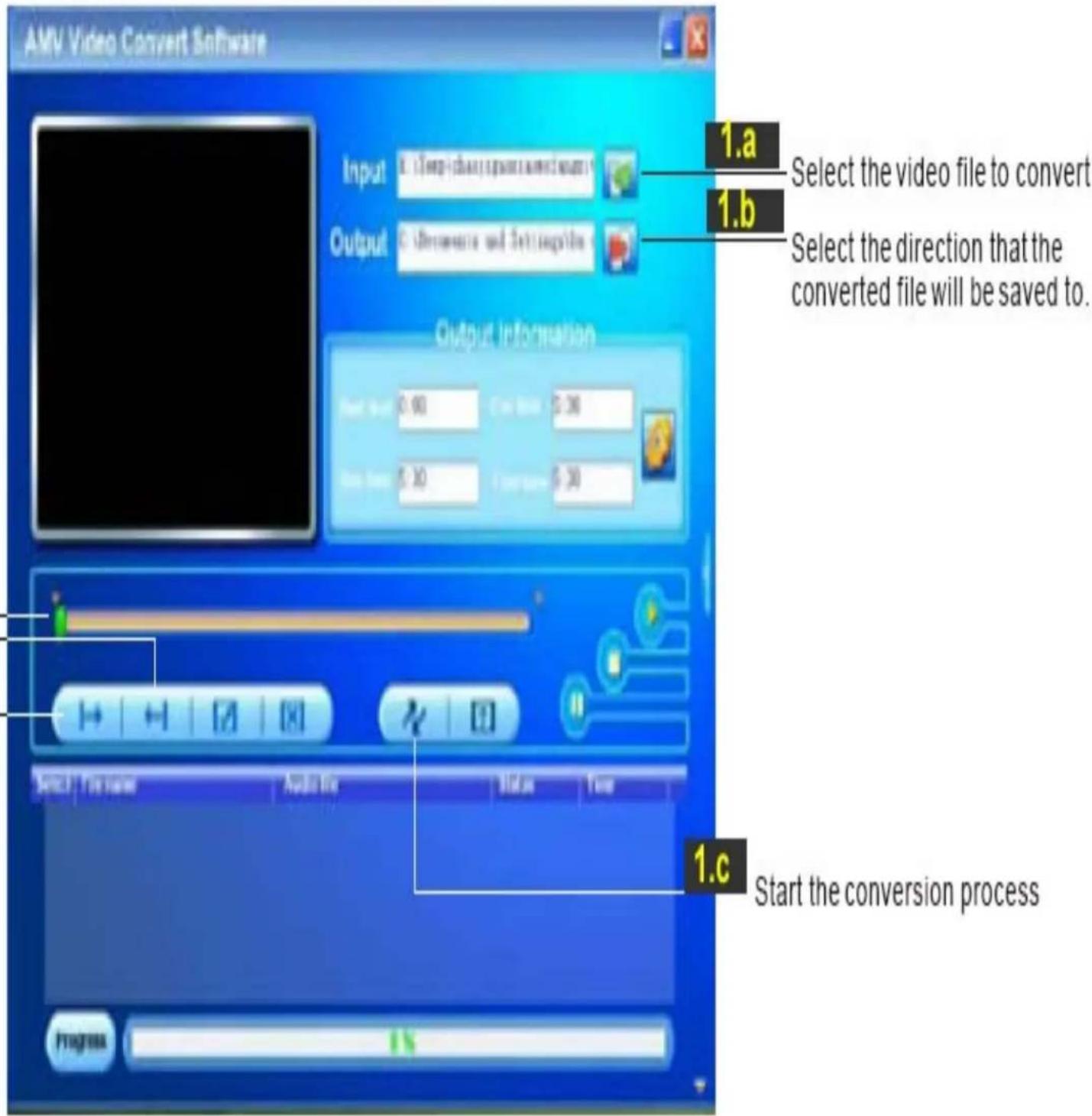

Converting Video (See Below)

1.a Find and Select the video files to convert in the INPUT Field
1.b Select the directory where you want to save the converted file
1.c Start the conversion process

When the conversion is completed, copy and paste or drag and drop the converted files to your MP3 player.

Done!!

Slide the "green block" to set the start and end point.

Select the start point of the file that will be converted.

Select the end point of the file that will be converted.

Common Troubleshooting

Problems	Possible Solutions
No Power	*The power switch is located on the back of the unit, ensure that the switch is set to the "ON" position.
	*The Battery level may be too low. Charge the unit.
Music does NOT play or Freezes	*Make sure your WMA file(s) are not DRM protected.
	*The file(s) are corrupted or damaged.
	*Unsupported file format (ACC, WAV, M4A...Etc.)
	*Unknown File (WMA file with DRM).
	*Request DRM Time (WMA file with DRM).
No sound after file transfer	*Ensure that the headphones are attached securely to the player.
	*Make sure your WMA file(s) are not DRM protected.
	*Unsupported file format (ACC, WAV, M4A...Etc.)
MP3 Player not recognized by the Computer	*Check the connections.
	*Switch USB ports
	*Go into the player MP3 player "SETTINGS" and change the "Online Device" from Media Device to USB Disk.
Video Conversion Error	*Ensure that the original file(s) plays on your computer. If not, then you will need to obtain the codec for that file(s).
	*Unsupported format

If you are still having difficulty with your MP3 player, please contact Customer Care, Hours of operation, Monday-Friday 8:00 AM – 8:30:00 PM EST, Saturday and Sunday 9:00 AM – 5:30 PM EST. You can also reach us online at [e-mail] or [e-mail]

1-800-727-3592
