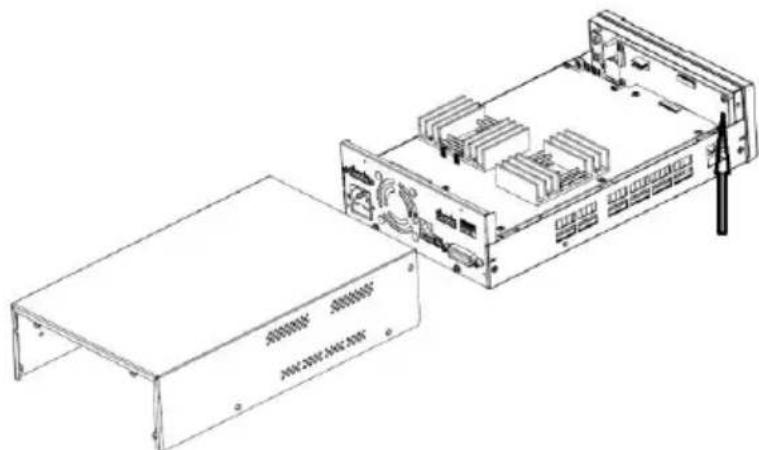

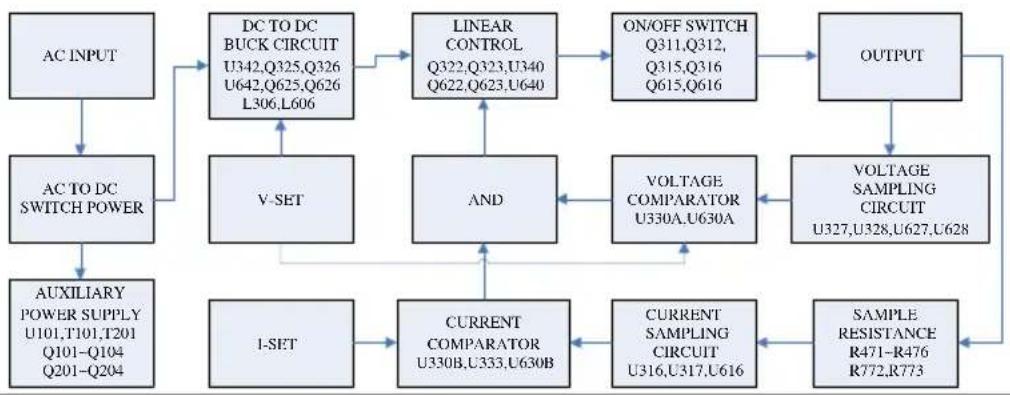

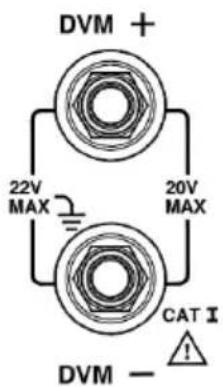

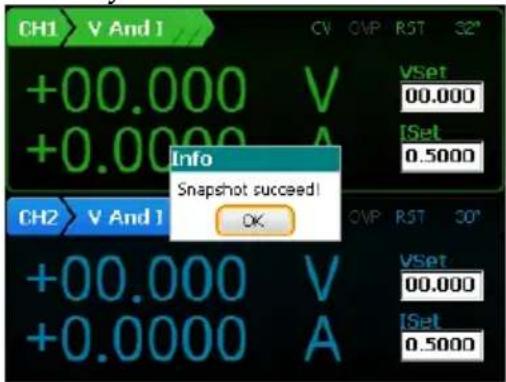

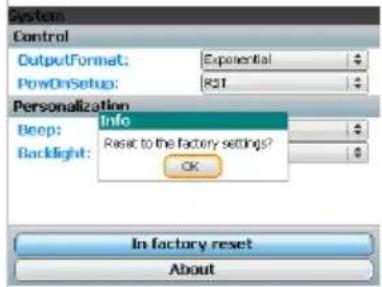

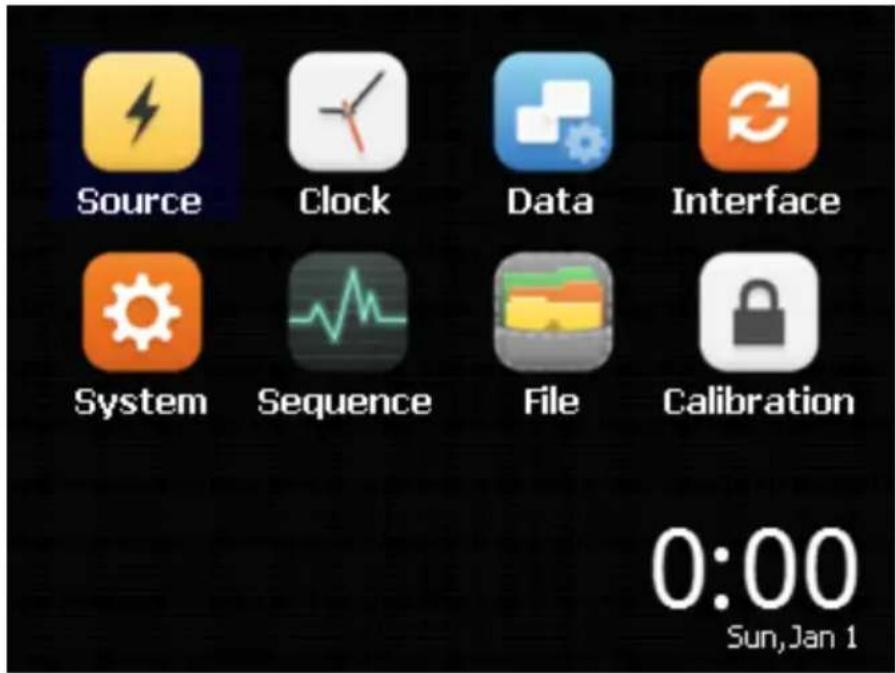

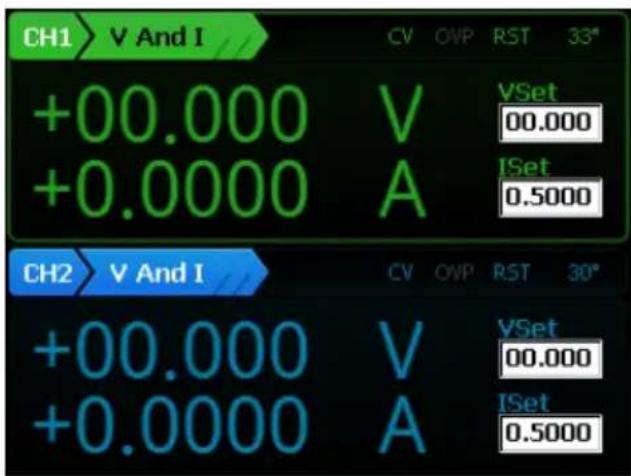

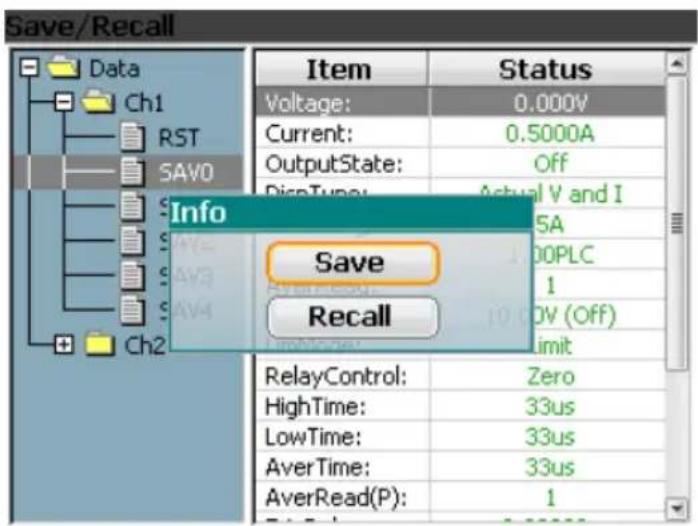

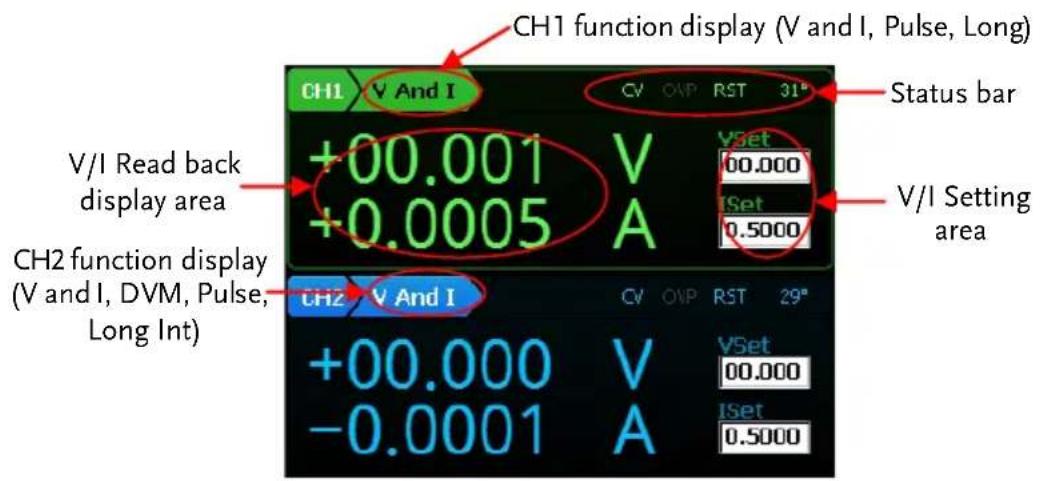

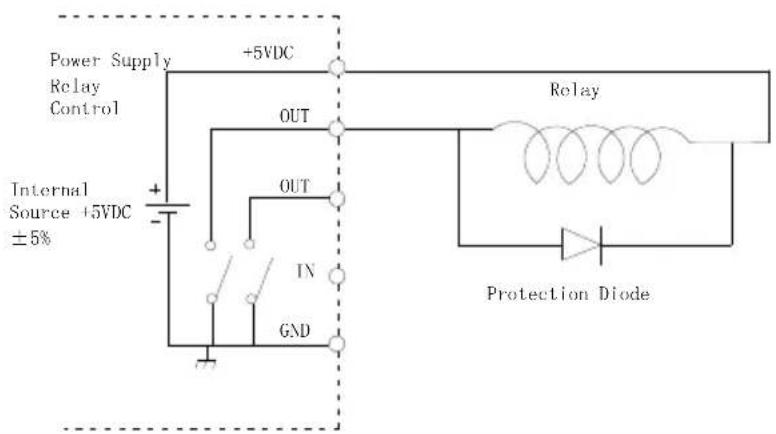

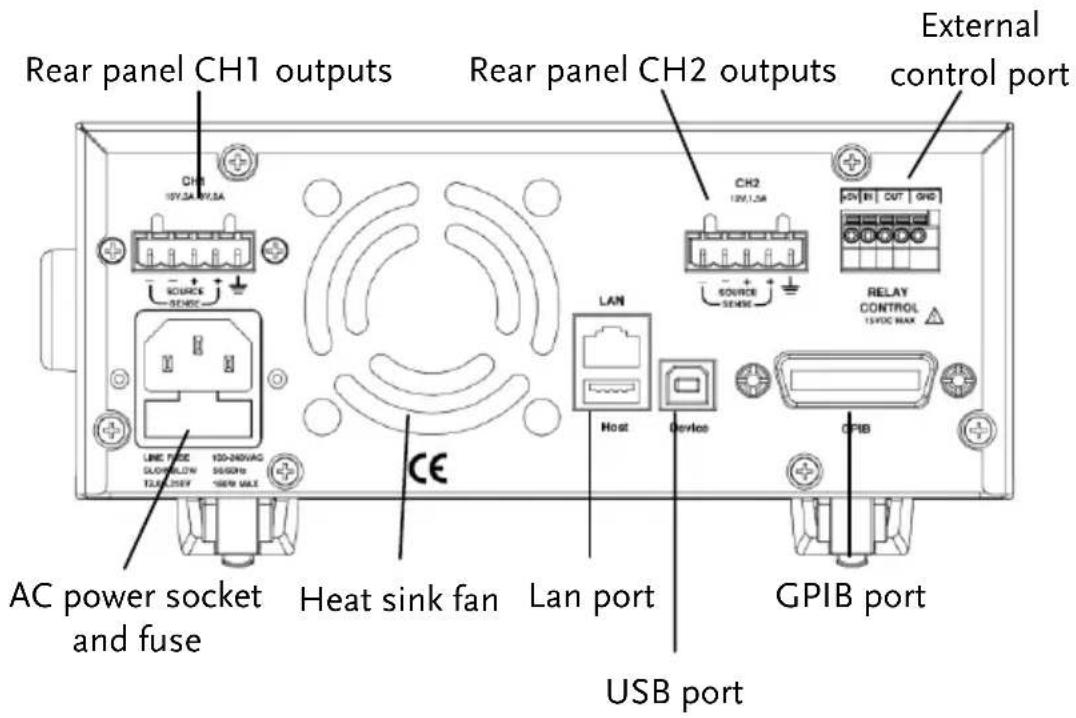

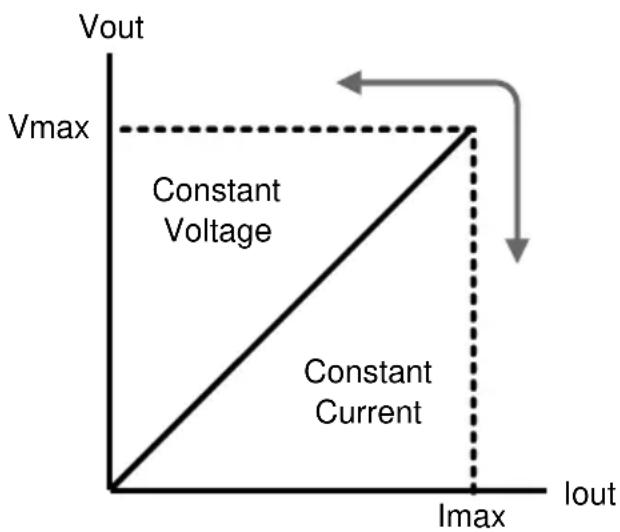

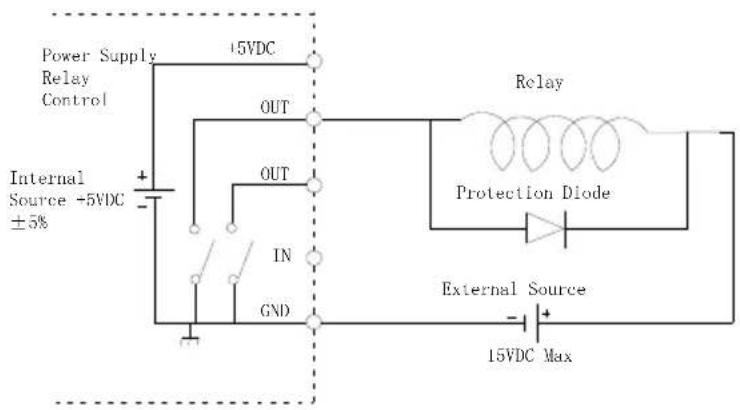

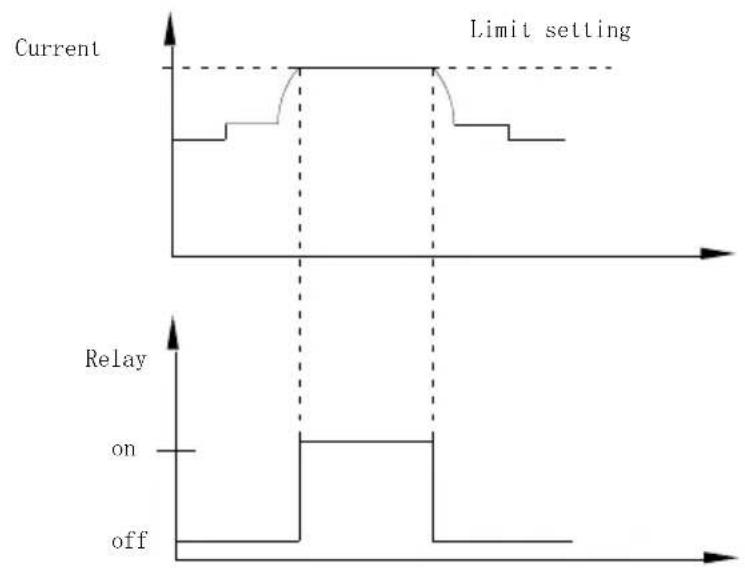

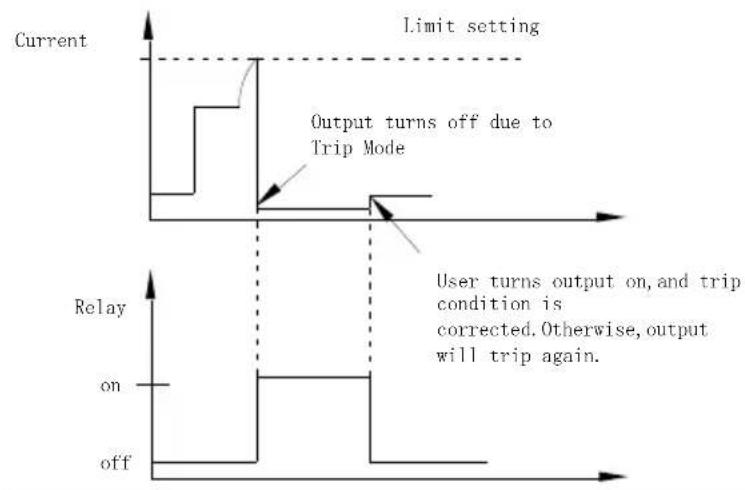

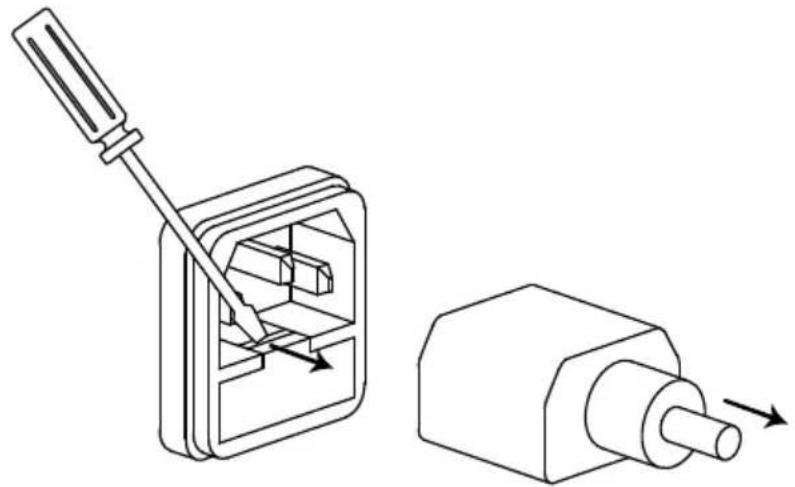

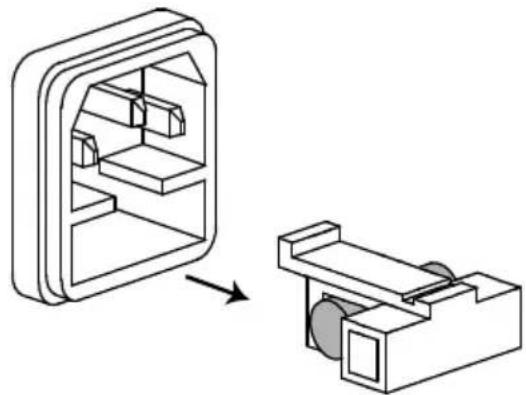

| Product type | Programmable DC Power Supply |
| Brand | GW Instek |
| Model | PPH-1506D |
| Number of outputs | 1 |
| Output voltage range | 0 ~ 150 V |
| Output current range | 0 ~ 6 A |
| Maximum output power | 900 W |
| Voltage resolution | 10 mV |
| Current resolution | 1 mA |
| Voltage accuracy | 0.05% + 10 mV |
| Current accuracy | 0.1% + 1 mA |
| Display | 4.3 inch color TFT LCD with touchscreen |
| Interfaces | USB (host & device), LAN, optional RS-232 |
| Dimensions (W x H x D) | 210 x 130 x 330 mm |
| Weight | 5.5 kg |
| Power input | AC 100-240 V, 50/60 Hz |
| Operating modes | CV (constant voltage), CC (constant current) |
| Sequence function | Yes, programmable output lists |
| Protections | OVP, OCP, OTP |
| Cooling | Fan cooled |
| Cleaning | Use a dry, soft cloth; no liquids |
| Spare parts | AC power cord, fuses (user-replaceable) |
| Safety compliance | CE, UL (typical) |
Frequently Asked Questions - PPH-1506D GW Instek

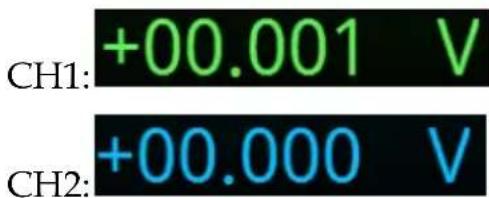

How do I set the output voltage on the PPH-1506D?
Press the Voltage key on the front panel, then use the numeric keypad or rotary knob to set the desired value. Confirm by pressing Enter.

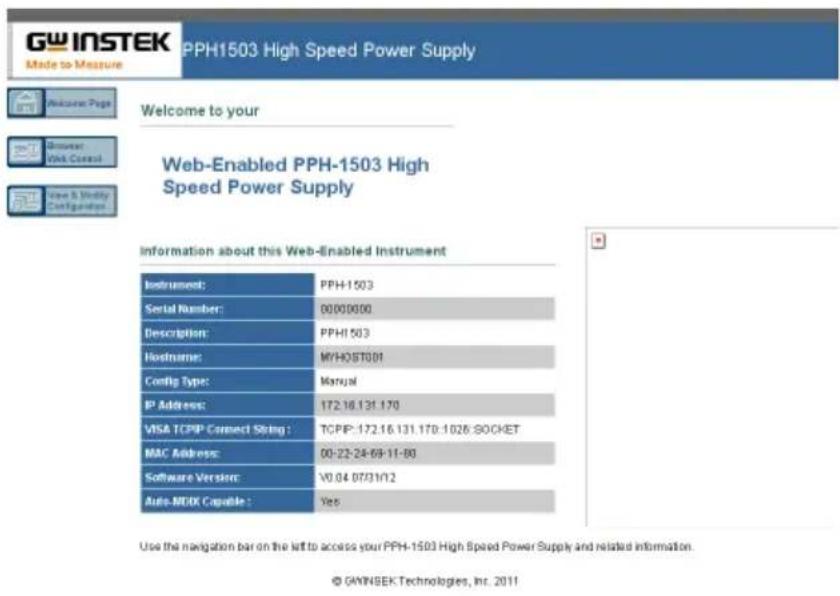

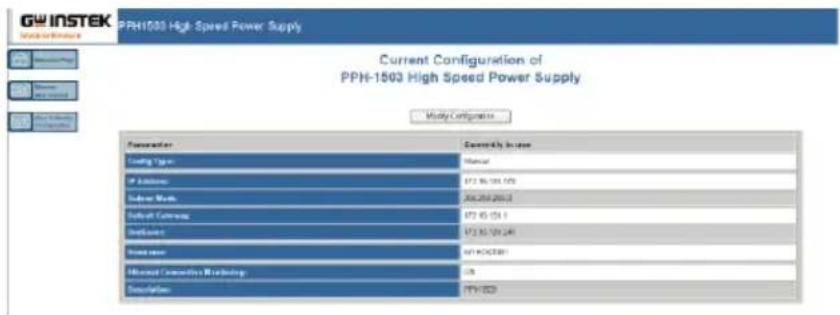

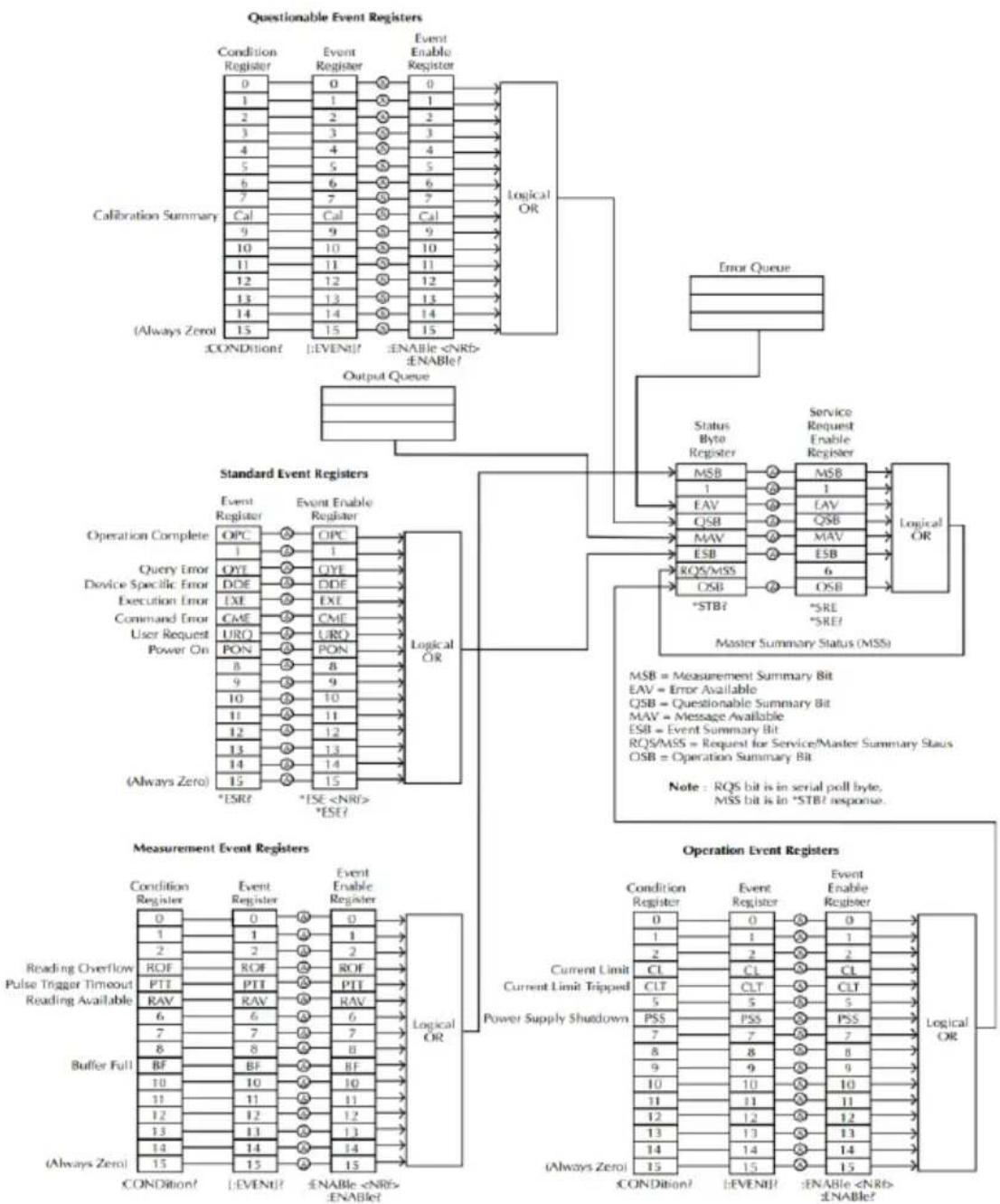

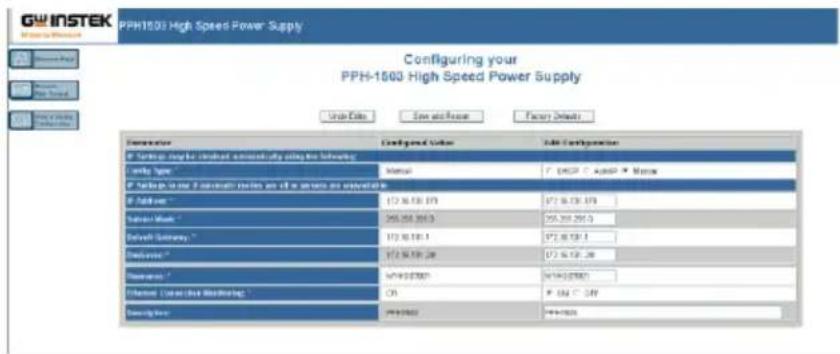

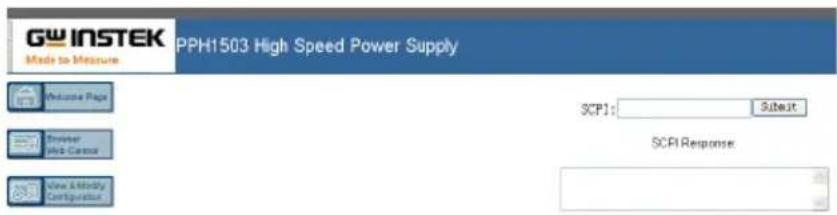

Can I control the PPH-1506D remotely via PC?
Yes, the PPH-1506D supports USB and LAN interfaces. You can use GW Instek's free software or send SCPI commands via a terminal.
What does OVP mean and how do I set it?
OVP stands for Over Voltage Protection. To set it, go to the protection menu, enter a voltage threshold, and enable the protection.
How do I calibrate the PPH-1506D?
Calibration requires a precision multimeter and load. Enter calibration mode by holding the Shift + Cal keys, then follow the on-screen prompts or the manual.
The fan is noisy. Is that normal?
The fan speed is temperature-controlled. If the load is heavy or ambient temperature is high, the fan may run faster and produce more noise. Ensure adequate ventilation.

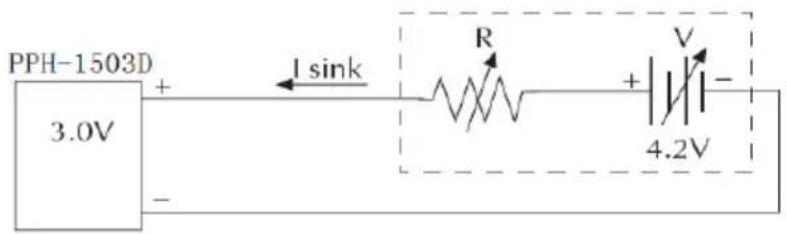

Can I use the PPH-1506D to charge batteries?
Yes, but you must set the current limit appropriately. Use CC mode and set the output voltage to the battery's float voltage. Monitor the current as the battery charges.

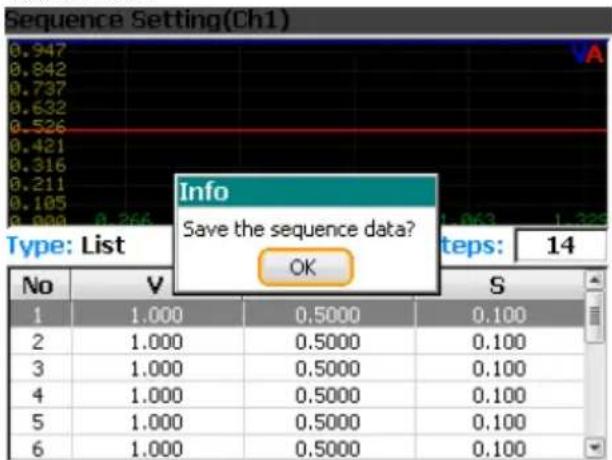

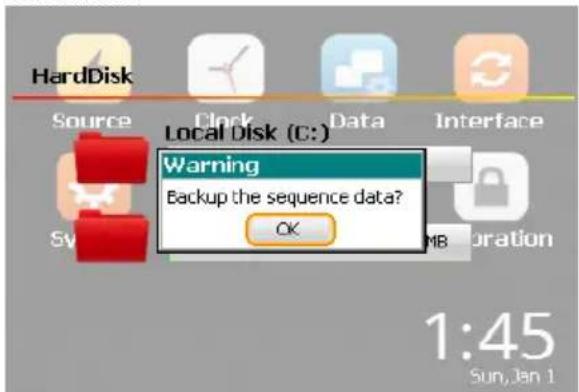

How do I create a sequence output?
Press the Sequence key, then define steps with voltage, current, and time. You can save up to 10 sequences and run them in loop or single mode.
What does the 'OTP' alarm mean?
OTP stands for Over Temperature Protection. The power supply has overheated. Reduce the load or allow it to cool down. Check that the fan is working and vents are not blocked.
Can I connect two PPH-1506D units in series or parallel?
Yes, you can connect up to two units in series for higher voltage, or in parallel for higher current. Use the Track function to synchronize outputs.

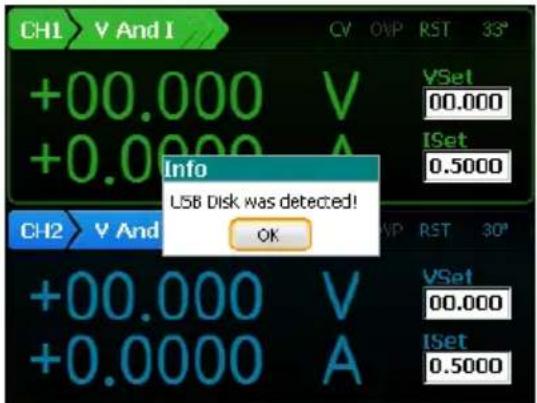

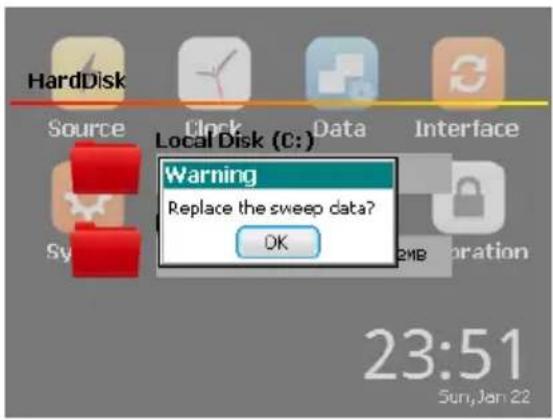

How to update firmware on the PPH-1506D?
Download the latest firmware from the GW Instek website, save it to a USB drive, insert into the power supply, and navigate to Utility > Firmware Update. Follow the prompts.
