OVA43500 - Lighting SCHNEIDER - Free user manual and instructions

Product Type	Ceiling Light
Brand	Schneider
Model	OVA43500
Dimensions (L x W x H)	40 cm x 40 cm x 15 cm
Weight	1.2 kg
Power Source	220-240 V AC, 50/60 Hz
Wattage	18 W
Luminous Flux	1200 lm
Color Temperature	3000 K (Warm White)
Color Rendering Index	80
Dimmable	Yes (with compatible dimmer)
Installation Type	Surface Mount
Material	Aluminum + Acrylic Diffuser
IP Rating	IP20 (Indoor use only)
Energy Efficiency Class	F
Lifetime	25,000 hours
Operating Temperature	-20°C to 40°C
Warranty	2 years
Maintenance	Wipe with dry cloth; do not use aggressive cleaners
Safety	CE certified, double insulation
Spare Parts	Contact Schneider customer service for replacement parts

Frequently Asked Questions - OVA43500 SCHNEIDER

Can I use the OVA43500 outdoors?

No, this model is IP20 rated and designed for indoor use only.

Is the light dimmable?

Yes, it is dimmable when connected to a compatible dimmer (not included).

What is the color temperature?

The color temperature is 3000K, providing a warm white light.

How do I install this ceiling light?

Follow the installation guide in the manual. Ensure power is off, connect wires, and secure the fixture to the ceiling with included mounting hardware.

What type of light source is used?

It uses integrated LED modules; no bulb replacement needed.

What are the dimensions?

The dimensions are approximately 40 cm x 40 cm x 15 cm (length x width x height).

Does it come with a warranty?

Yes, Schneider offers a 2-year warranty against manufacturing defects.

How do I clean the OVA43500?

Clean with a soft, dry cloth. Avoid abrasive or solvent-based cleaners.

Can I connect it to a smart home system?

This model does not have smart connectivity. It can be controlled via a traditional wall switch or dimmer.

What is the energy efficiency class?

The energy efficiency class is F under the EU energy label.

USER MANUAL OVA43500 SCHNEIDER

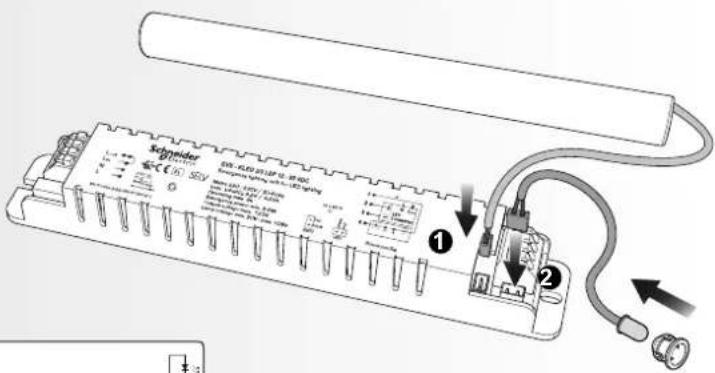

Electronic device with a black cable and connector, no visible text or symbols

OVA43500
OVA43501
OVA43502

	x1
	x1
	x1

Schneider

Electric

Dimensions

							mm.
	A	B	C	D	E	F
OVA43500	177	2	1,5	169	2	30	200 22,1
OVA43502

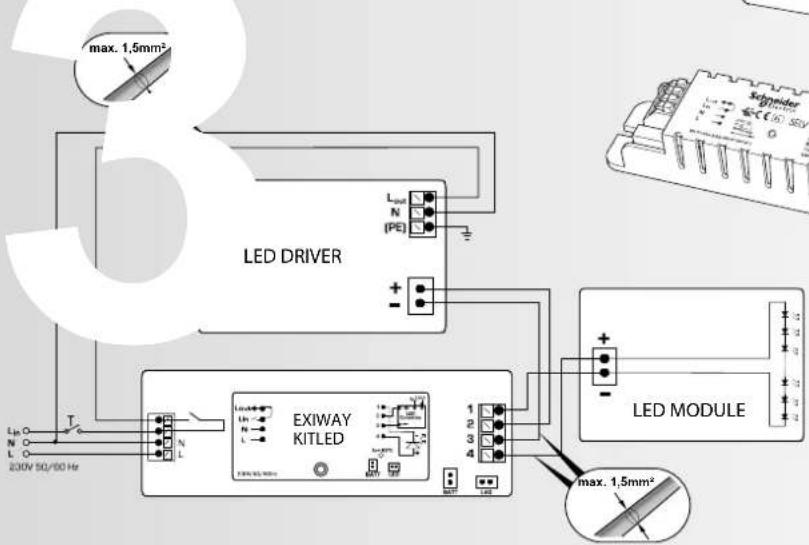

Collectivity / Connections

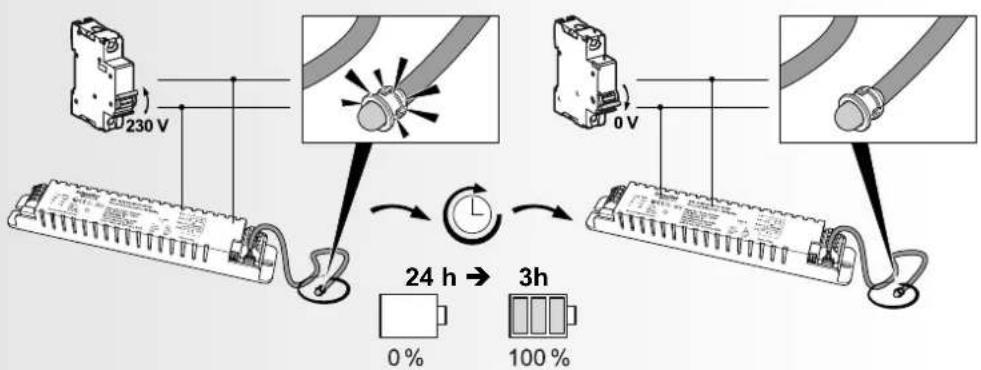

Wait 24 hours to have a working product (charged).

Technical diagram of a mechanical component with no visible text or symbols

Manu maintenance

Carattere tecniche / Technical specifications

		W VA W			h	Kg
	OVA43500 3,2 V 4,5	Ah LiFePO4 12 - 55 V / 3	W 4 0,8 3 0,215
	OVA43501 3,2 V 4,5	Ah LiFePO4 20 - 105 V /	3 W 4 0,8 3 0,215
	OVA43502 3,2 V 4,5	Ah LiFePO4 20 - 105 V /	3 W 4 0,8 3 0,215

Exiway Kitled, connected to a LED light source, enables a self-contained emergency lighting function ready to work. The product is fully compliant to CEI EN 61347-2-7 standard and it was designed for applications compatible with the EN 60598-2-22 standard. Nevertheless, the user has the full responsibility to release the CE certification of the complete LED light fixture including Exiway Kitled in accordance with EN60598-2-22 standard. Schneider-Electric declines all the responsibility about the CE certification and about the compliance with the EN60598-2-22 standard of the full light Fixture as well as all the responsibility about product selection and its use inside or outside the luminaire.

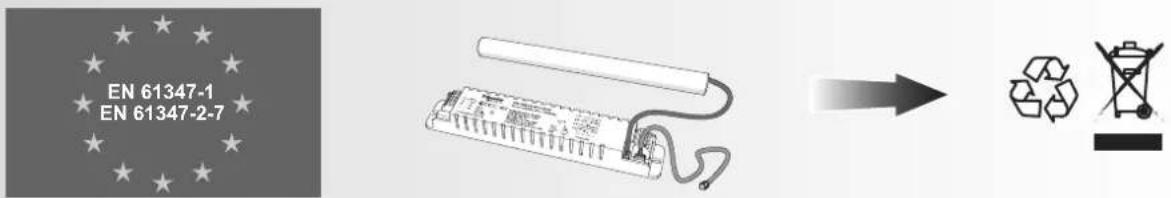

SMALTIMENTO

The crossed out wheelie bin symbol on the product indicates that at the end of its life the product shall be returned to authorized waste collection centers or to whom has the right to manage it. The proper separate collection and recycling of waste equipment at the time of disposal will help to protect natural resources and ensure that it is recycled in a manner that reduces possible negative effects on human health and the environment. For more information regarding waste collection centers, modalities and terms of law in force, please contact your local waste disposal authority.
