| Product Type | Built-in Refrigerator |
| Brand | Dacor |
| Model | HWC242R |
| Total Capacity | 15 cu ft |
| Width | 24 inches |
| Height | 72 inches |
| Depth (without handles) | 24 inches |
| Weight | 250 lbs |
| Power Supply | 115V / 60Hz, 15A dedicated circuit |
| Energy Star Certified | Yes |
| Cooling System | Dual-zone electronic temperature control |
| Lighting | LED interior lighting |
| Shelves | 3 adjustable glass shelves |
| Crisper Drawers | 2 humidity-controlled crisper drawers |
| Door Storage | 4 gallon-size bins |
| Ice Maker | Built-in, ready to use |
| Water Filtration | Replaceable water filter (model DWRF) |
| Control Panel | Electronic touch controls with temperature display |
| Door Alarm | Yes, sounds if door left open |
| Child Lock | Yes, on control panel |
| Finish | Stainless steel, fingerprint-resistant |
| Cleaning | Wipe exterior with mild soap and water; interior with baking soda solution |
| Installation Type | Built-in, requires ventilation grille |
| Warranty | 2 years parts and labor |
Frequently Asked Questions - HWC242R Dacor
What is the recommended temperature setting for the refrigerator?
The recommended temperature for the refrigerator compartment is 38°F (3°C). For optimal performance, avoid frequent door openings.
How do I install the water filter?
Locate the water filter compartment inside the refrigerator, typically at the top right. Twist the old filter counterclockwise to remove, then insert the new filter and twist clockwise until it locks.
Why is my refrigerator making a humming noise?
A low hum is normal from the compressor and fans. If it becomes loud or intermittent, check if the unit is level and not touching cabinetry. Contact support if noise persists.
How often should I clean the condenser coils?
Clean the condenser coils every 6 months to maintain efficiency. Use a vacuum or coil brush. The coils are located behind the front grille at the bottom.

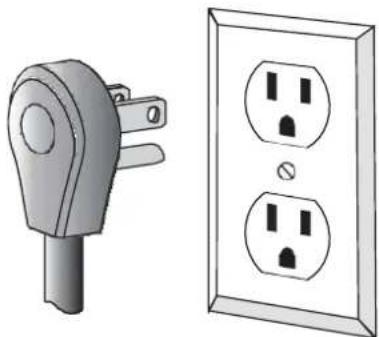

Can I use an extension cord?
No, do not use an extension cord. The refrigerator must be plugged directly into a dedicated 115V outlet. Using an extension cord can cause voltage drop and fire hazard.
What are the dimensions required for a built-in installation?
The cutout should be 24.5 inches wide, 72 inches high, and 24.5 inches deep to allow for ventilation. Refer to the installation manual for exact tolerances.
How do I reset the control panel after a power outage?
Press and hold the 'Power' button for 3 seconds. The panel will reset and display the current temperature. Wait 24 hours for the temperature to stabilize.
Is the refrigerator compatible with a 110V outlet?
Yes, it operates on 115V, which is standard for 110V outlets in the US. Ensure the circuit is 15A and dedicated.
How do I remove and clean the shelves?
To remove a glass shelf, tilt it upward and pull forward. Clean with warm water and mild detergent. Do not place hot cookware directly on glass.
What should I do if the door won't close properly?
Check if the refrigerator is level. Adjust the front leveling legs. Also ensure that bins or shelves are not obstructing the door.
