CFP9BG - Range hood Euromaid - Free user manual and instructions
Find the device manual for free CFP9BG Euromaid in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Range Hood |
| Model | CFP9BG |
| Brand | Euromaid |
| Width | 90 cm |
| Depth | 50 cm |
| Height | 60 cm (adjustable) |
| Weight | 12 kg |
| Power Supply | 220-240V ~ 50Hz |
| Motor Power | 200 W |
| Number of Speeds | 3 |

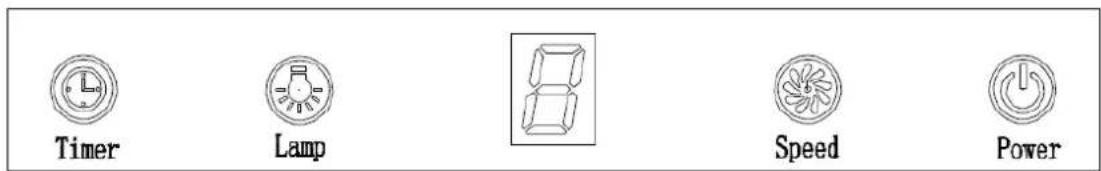

| Control Type | Push buttons |
| Lighting | 2 x 40W halogen (max) |
| Filter Type | Aluminum grease filter |
| Charcoal Filter | Optional, for recirculation mode |
| Ducting Diameter | 150 mm |
| Max Airflow | 650 m³/h |
| Noise Level | 55 dB (low speed) |
| Installation Type | Built-in or wall-mounted |
| Energy Class | B |
| Annual Energy Consumption | 60 kWh |
| Cleaning | Grease filter washable in dishwasher; clean exterior with damp cloth |
| Safety Features | Overheat protection, child lock (if equipped) |
| Spare Parts Availability | Filters, bulbs, and motors available from Euromaid service centers |
| Warranty | 1 year (standard) |
Frequently Asked Questions - CFP9BG Euromaid
How do I install the Euromaid CFP9BG range hood?
Please refer to the installation manual provided. Ensure the hood is mounted securely at least 65 cm above the cooktop. Connect the ducting (150 mm) for exhaust mode or install charcoal filters for recirculation mode.
Can I use the hood without ducting?
Yes, you can use it in recirculation mode by installing optional charcoal filters. These filters absorb odors and require periodic replacement.

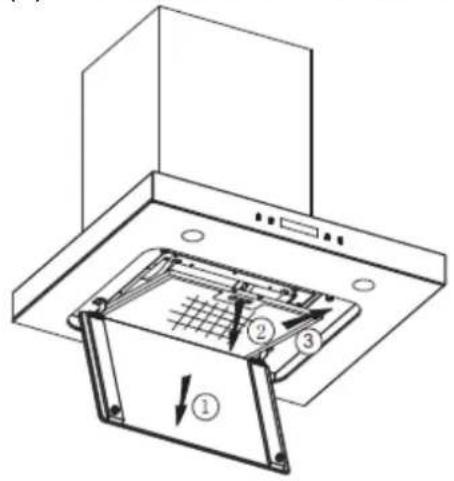

How often should I clean the grease filter?
Clean the aluminum grease filter every month or more frequently with heavy use. It is dishwasher safe. Remove and wash, then dry thoroughly before reinstalling.
What type of bulbs does the CFP9BG use?
It uses halogen bulbs with a maximum wattage of 40W each (G4 base). Always replace with the same type to avoid damage.
Why is my hood not working?
Check power connection, fuse/breaker, and that the motor hasn't overheated. If the overheat protection triggered, wait 15 minutes; it should reset automatically. Ensure filters are clean.

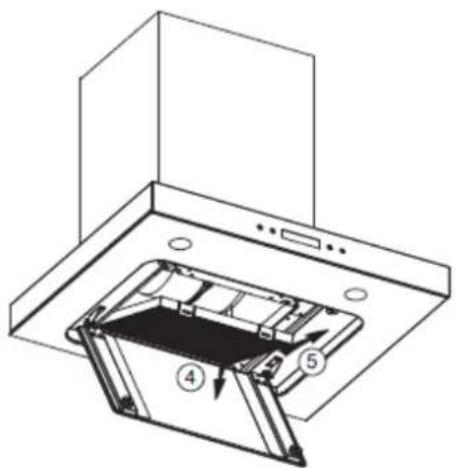

How do I replace the charcoal filter?
First, remove the grease filter. Then locate the charcoal filter (usually behind the grease filter). Unclip or unscrew it and replace with a new one. Reinstall the grease filter.
Can I reduce the noise of the hood?
Operating at lower speeds reduces noise. Ensure the hood is properly installed and ductwork is smooth. Loose parts or blockages can increase noise.
What size duct should I use?
Use a rigid or flexible duct with a diameter of 150 mm. Avoid sharp bends to maintain optimal airflow.
Is the CFP9BG suitable for island installation?
The CFP9BG is designed as a wall-mounted or built-in hood. For island installation, a special kit may be required. Check with Euromaid support.
Where can I find replacement parts?
Contact Euromaid authorized service centers or visit the Euromaid website. Parts like filters, bulbs, and motors are typically available.
